Визуальный Gps функциональный мелаллический кабель для обнаружения дефектов труб тестовые устройства сделано в
- Категория: Parameter Measuring Instrument >>>
- Поставщик: Tianjin,Grewin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3877.59 $* | 4071.44 $* |
| Aug-15-2025 | 3844.91 $* | 4036.90 $* |
| Jul-15-2025 | 3225.31 $* | 3386.64 $* |
| Jun-15-2025 | 3779.85 $* | 3968.3 $* |
| May-15-2025 | 3291.61 $* | 3456.60 $* |
| Apr-15-2025 | 3714.70 $* | 3900.79 $* |
| Mar-15-2025 | 3682.40 $* | 3866.69 $* |
| Feb-15-2025 | 3649.76 $* | 3831.33 $* |
| Jan-15-2025 | 3616.16 $* | 3797.48 $* |
Характеристики
Product name

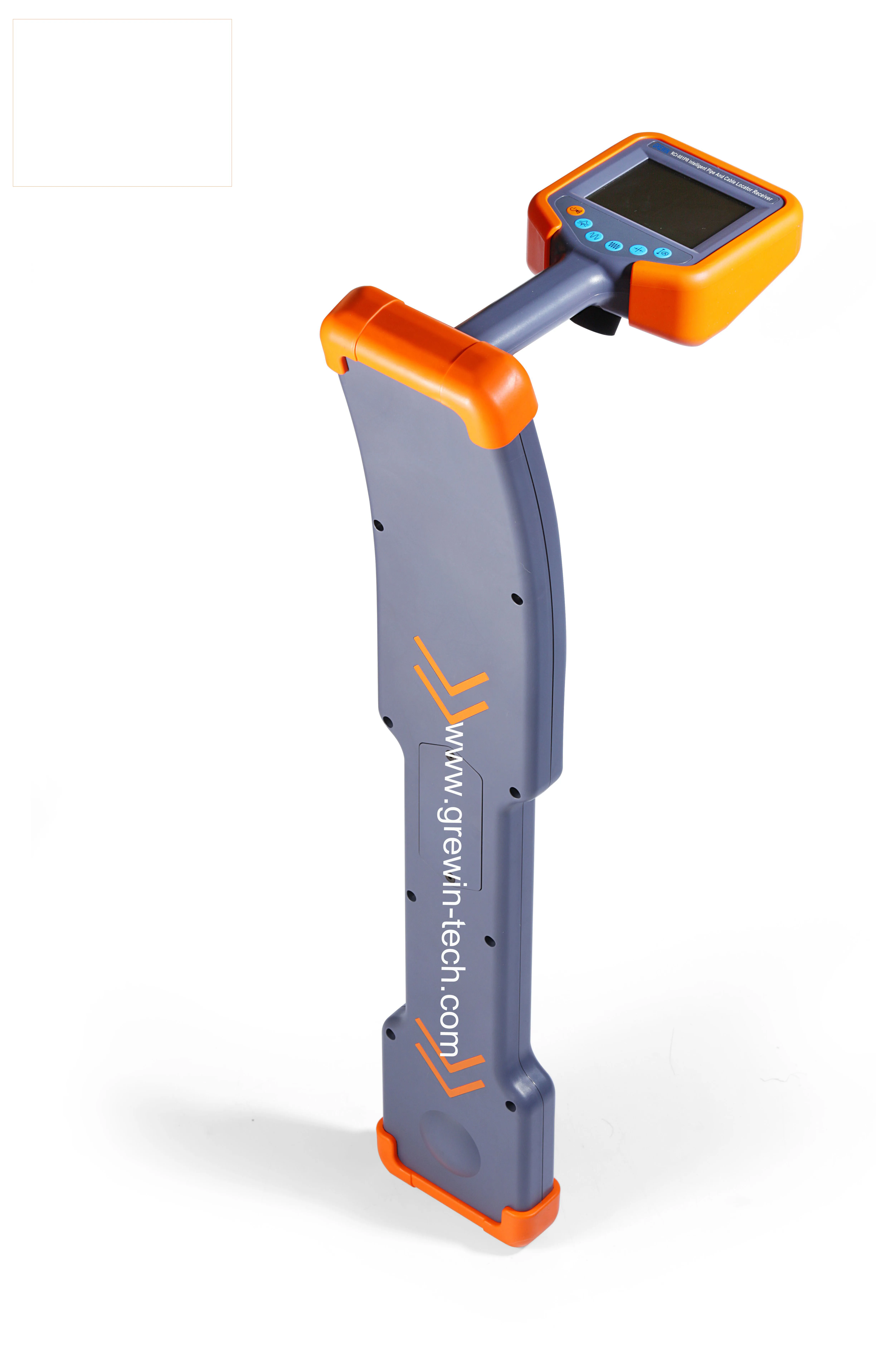

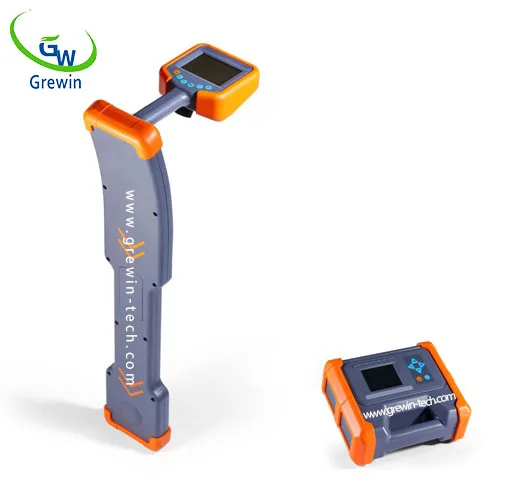

Underground melallic pipe and cable locator
China Promotion visual fault locator fiber optic cable tester
China Gps function HV underground cable fault locator for depth exploration and path lookup locator
China Promotion visual fault locator fiber optic cable tester
China Gps function HV underground cable fault locator for depth exploration and path lookup locator
Transmitter and Receiver specification
Usage:
Route tracing
Depth measurement
Construction pipeline survey
Construction pipeline survey
Application:
Cable (live and dead cable)
Metallic pipeline
Nonmetallic pipeline
Metallic pipeline
Nonmetallic pipeline
Feather:
Color compass display:Underground pipelines penetration,infra-field multiple underground pipelines display
Real-time tracing correct/error indication to suppress interference from the nearby pipelines
Enhanced precision depth measurement: real-time depth measurement
Depth measurement auxiliary sensor: interference indication
Enhanced passive detection: Multiple pipelines can be displayed simultaneously

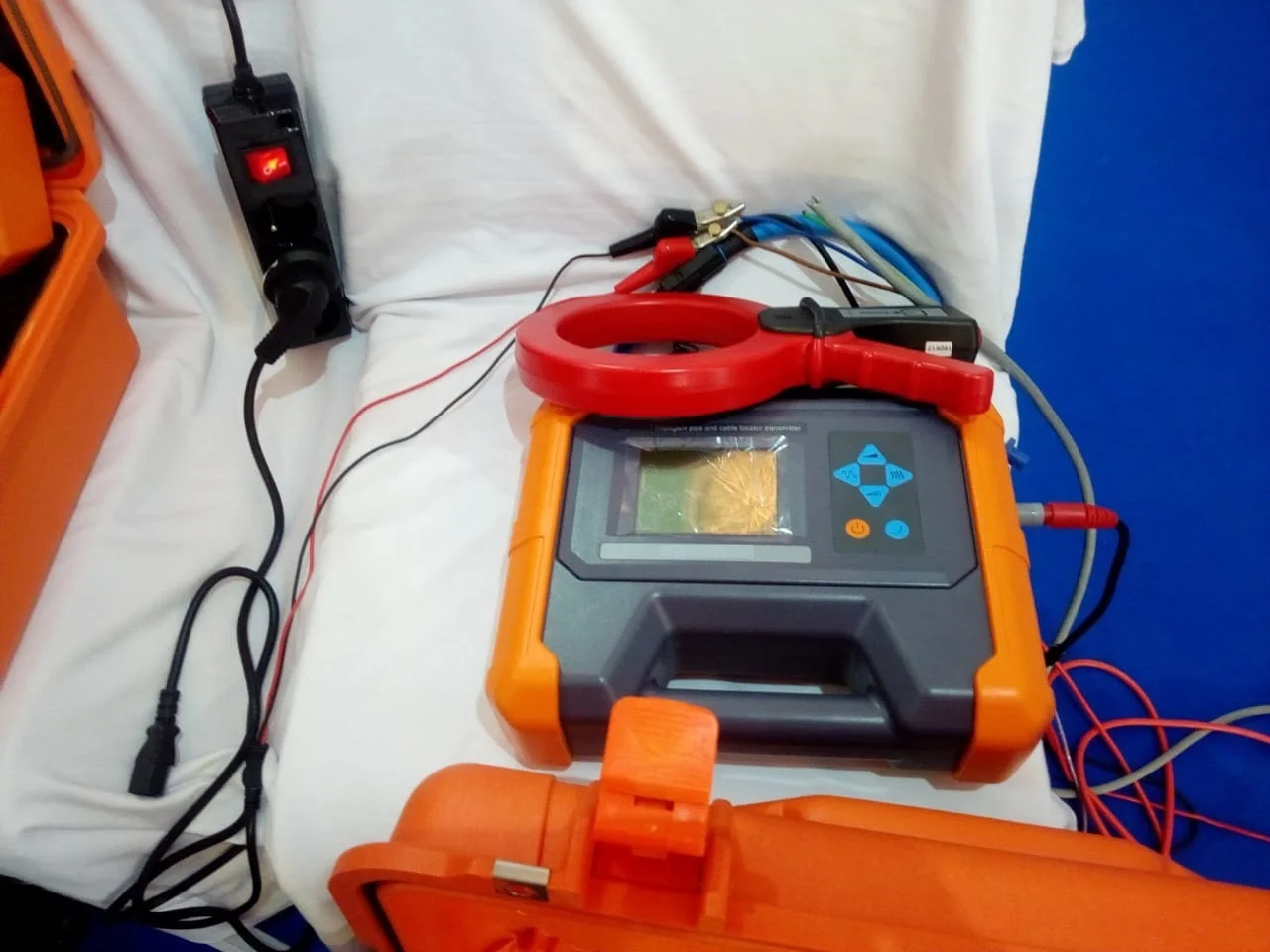

High performance transmitting clamp: running cable coupling signal transmitting
Flexible clamp unique identification: convenient and highly reliable
High power digital amplifier transmission, automatic impedance matching, automatic protection
High sensitivity, 2Hz ultra-low bandwidth receiving, high anti-interference
Transmitting and receiving all digital process,stable and reliable
IP65
Real-time tracing correct/error indication to suppress interference from the nearby pipelines
Enhanced precision depth measurement: real-time depth measurement
Depth measurement auxiliary sensor: interference indication
Enhanced passive detection: Multiple pipelines can be displayed simultaneously
High performance transmitting clamp: running cable coupling signal transmitting
Flexible clamp unique identification: convenient and highly reliable
High power digital amplifier transmission, automatic impedance matching, automatic protection
High sensitivity, 2Hz ultra-low bandwidth receiving, high anti-interference
Transmitting and receiving all digital process,stable and reliable
IP65
Optional extension function modules:
L1/L5 high-precision GPS module: positioning, distance measurement
Internal storage module: 256 pieces of detection data can be stored
Bluetooth communication module: upload detection data to the host station.
Magnetic filed detection mode:PCM method erosion resistant coating broken detection
Internal storage module: 256 pieces of detection data can be stored
Bluetooth communication module: upload detection data to the host station.
Magnetic filed detection mode:PCM method erosion resistant coating broken detection
Optional accessories:
Depth measurement auxiliary sensor:
interference indication during depth measurement
Output booster and A frame:
pinpoint the pipeline broken points Output
sonde:signal transmitting used for nonmetallic pipeline route tracing
interference indication during depth measurement
Output booster and A frame:
pinpoint the pipeline broken points Output
sonde:signal transmitting used for nonmetallic pipeline route tracing

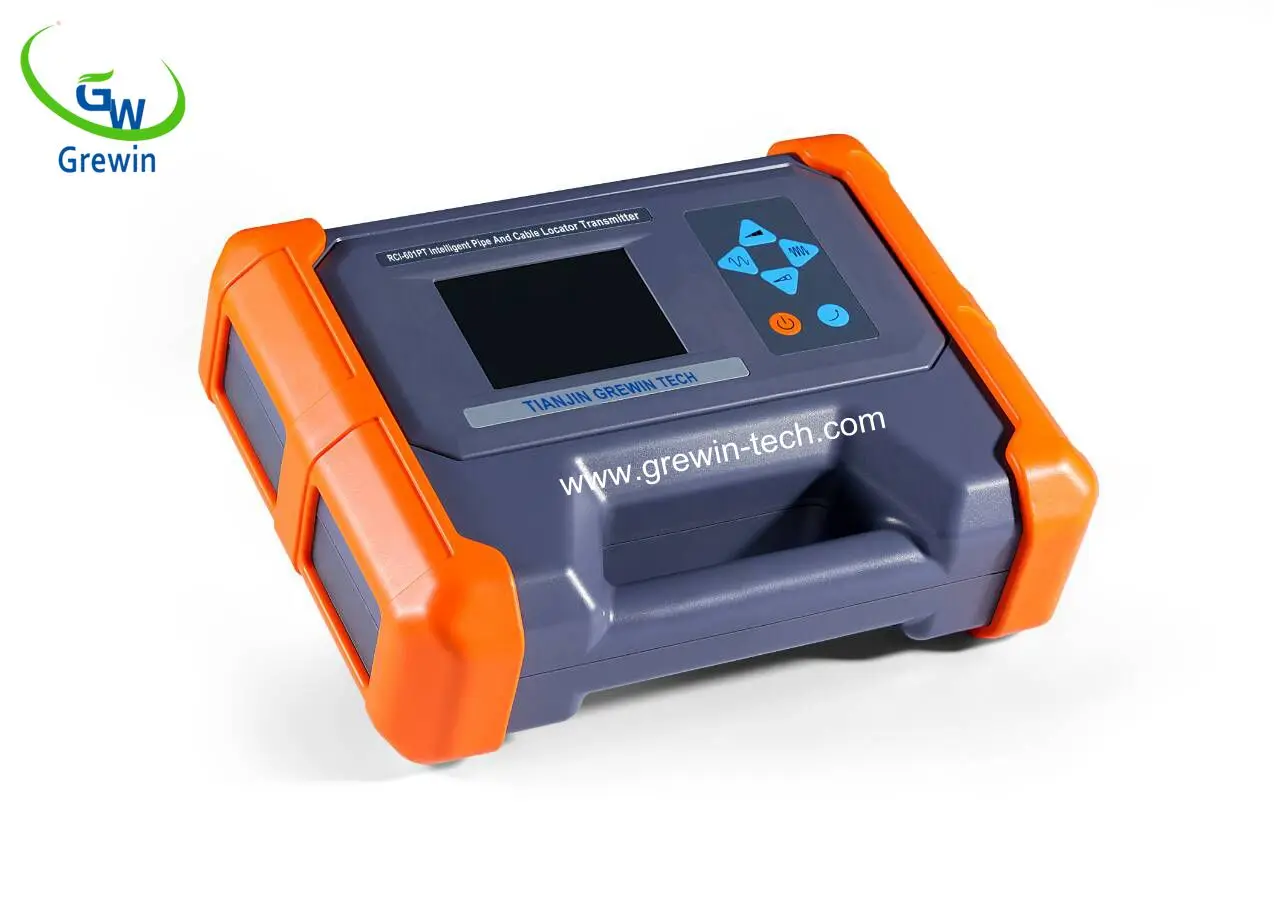

Transmitter | Receiver | ||||||
Output | Direct Connection output, Clamp Coupling Output (optional), Radiation output, fault location booster (optional) | Receiving mode | Built-in coil,Built-in magnetic filed sensor Flexible clamp,Sensor,A frame | ||||
Output Frequency | 640Hz (complex frequency), 1280Hz (complexfrequency), 8kHz,33kHz,82kHz,197kHz | Receiving frequency | Active frequency: 640Hz,1280Hz,8kHz,33kHz,82kHz,197kHz Power frequency: 50Hz/60Hz,4-24kHz Radiation frequency | ||||
Output power | 15Wmax,10 levers adjustable | Pipe detection mode | wide peak method, narrow peak method, valley method, history curve, frequency spectrum | ||||
Over voltage ,over current protection | auto | Cable identification mode | flexible Clamp (optional) intelligent identification and sensor (optional) identification | ||||
HMI | 320x240 Black and white LCD | HMI | 320X240 LCD color LCD,clear under sunshine | ||||
Power supply | 4 X built-in 18650 Li-on batteries, standard 7.4V, >6AH | Built-in battery | 2 X 18650 Li-on batteries, standard 7.4V,>3AH | ||||
Volume | 280x220x90mm | Volume | 680x120x277mm | ||||
Weight | 2.3 kgs | Weight | 2.0 kgs | ||||
Charger | DC8.4V,2A | Charger | AC 100~240V,50/60Hz | ||||
Temperature | -10-40℃,humidity 5-90%,elevation <4500m | ||||||
