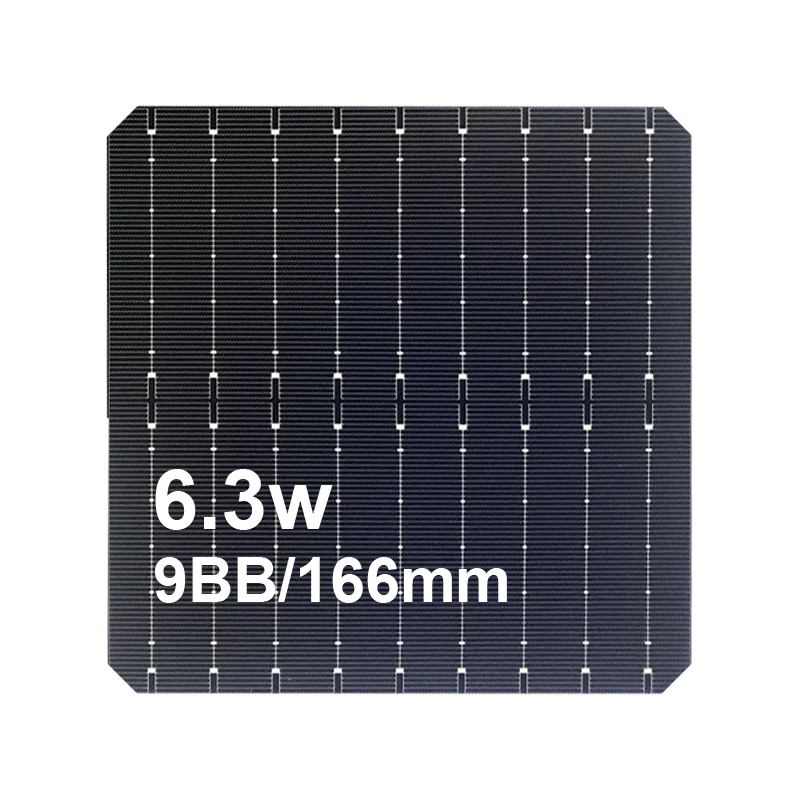

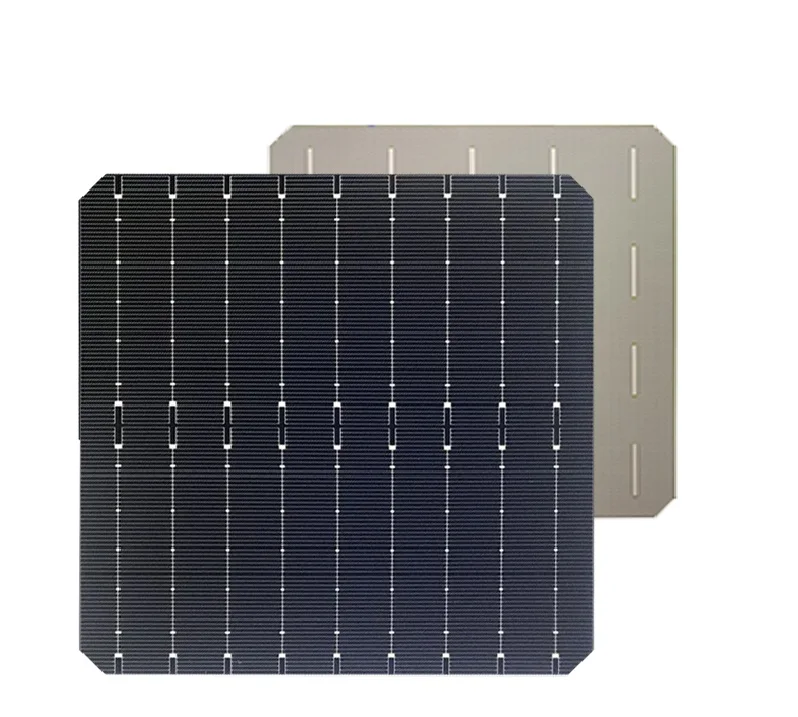

Высококачественные монокристаллические солнечные батареи PERC 9BB 166 мм для солнечных
- Категория: Solar Cells >>>
- Поставщик: Zhejiang,Intenergy,Innovation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.55 $* | 0.67 $* |
| Aug-19-2025 | 0.59 $* | 0.27 $* |
| Jul-19-2025 | 0.63 $* | 0.20 $* |
| Jun-19-2025 | 0.9 $* | 0.49 $* |
| May-19-2025 | 0.87 $* | 0.85 $* |
| Apr-19-2025 | 0.54 $* | 0.15 $* |
| Mar-19-2025 | 0.36 $* | 0.54 $* |
| Feb-19-2025 | 0.53 $* | 0.66 $* |
| Jan-19-2025 | 0.22 $* | 0.31 $* |
Характеристики
Products Description

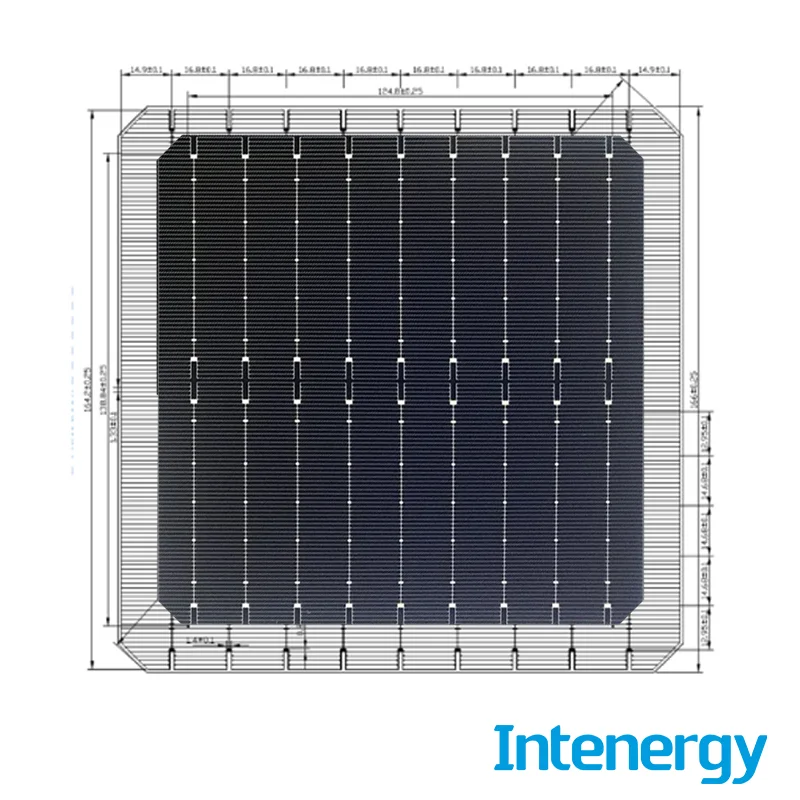

Front Busbar | 9 busbars(silver), width 0.1±0.03mm |
Finger | 124 fingers |
Back Busbar | Width of back electrode(silver) 1.3±0.25mm |
Dimension | 166mm*166mm±0.25mm |
Efficiency(%) | Pmpp(W) | Impp(W) |
21.70% | 5.95 | 10.411 |
21.80% | 5.98 | 10.437 |
21.90% | 6.00 | 10.451 |
22.00% | 6.03 | 10.464 |
22.10% | 6.06 | 10.472 |
22.20% | 6.09 | 10.485 |
22.30% | 6.11 | 10.488 |
22.40% | 6.14 | 10.502 |
22.50% | 6.17 | 10.515 |
22.60% | 6.20 | 10.529 |
22.70% | 6.22 | 10.544 |
22.80% | 6.25 | 10.550 |
22.90% | 6.28 | 10.563 |
Umpp(W) | Isc(A) | Uoc(V) | FF(%) |
0.5714 | 10.964 | 0.6610 | 82.08 |
0.5726 | 10.989 | 0.6619 | 82.11 |
0.5745 | 11.008 | 0.6641 | 82.13 |
0.5764 | 11.025 | 0.6662 | 82.15 |
0.5786 | 11.033 | 0.6683 | 82.16 |
0.5805 | 11.046 | 0.6699 | 82.18 |
0.5829 | 11.060 | 0.6732 | 82.18 |
0.5848 | 11.077 | 0.6746 | 82.25 |
0.5866 | 11.089 | 0.6761 | 82.27 |
0.5885 | 11.103 | 0.6770 | 82.43 |
0.5902 | 11.119 | 0.6784 | 82.51 |
0.5925 | 11.124 | 0.6803 | 82.60 |
0.5943 | 11.139 | 0.6817 | 82.67 |

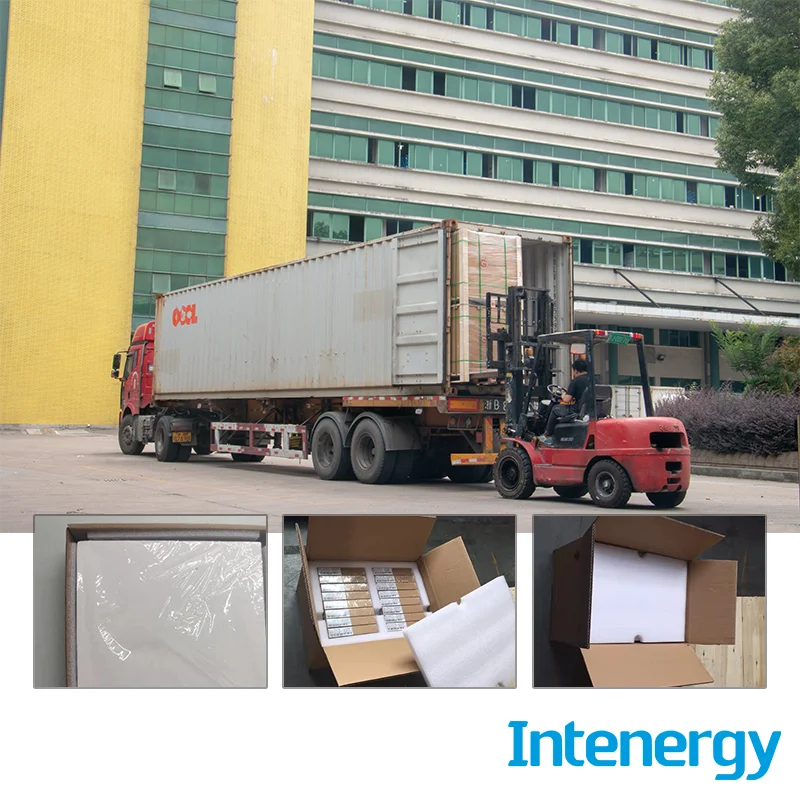

Packing Details : In carton on pallet or wooden box
Delivery Details : Ship from factory within 15days after received the deposit
Delivery Details : Ship from factory within 15days after received the deposit
Our Factory
Italy
BACCNI Solar Cell Printing
BACCNI Solar Cell Printing
USA
Despetch Sintering
Despetch Sintering
Finland
Endeas QuickSun Simulator
Endeas QuickSun Simulator
Fully Automated Soldering
Fully Automated Framing
Fully Automated Test Machine
Advanced Equipment & Technology R&D Center
* Advanced equipment and automatic quality control techniques ensure full compliance to every production steps.
* All raw materials be proved by the laboratory of leading enterprises.
* Because of this, our factory can guarantee that each PERC solar panel has high quality.
* All raw materials be proved by the laboratory of leading enterprises.
* Because of this, our factory can guarantee that each PERC solar panel has high quality.
Global Exhibitions
√ Four Global After-sales Service Centers:
Mexico＆South America，UK，EU，Japan，Australia
√ More than 2 GW sales volume
√ Top 3 Supplier in Turkey and Mexico.
√ Top 5 Supplier in UK.
√ Top 10 Supplier in Australia
Intenergy continues to expand it’s brand awareness through numerous professional exhibitions, marketing and promotional activity in several countries each year so that customers and partners are kept informed of new product developments and Intenergy’s continued emphasis on quality and service.
* Various certifications include TUV, CSA, IEC, CEC, MCS, JET, CE, etc.
* Each solar panel undergoes three EL tests during the production process
Solar Panels＆System Projects
UK installation
High Efficency
All Black Mono Solar Panels
Mono PERC 250W
System size:
10KW (40 x 250W Solar Panels)
Location:
Oxford, United Kingdom
Installation Date:
September, 2015
10KW (40 x 250W Solar Panels)
Location:
Oxford, United Kingdom
Installation Date:
September, 2015
Switzerland Installation
High Efficency
All Black Poly Solar Panels
Poly PERC 250W-270W
All Black Poly Solar Panels
Poly PERC 250W-270W
System size:
23KW Solar Panels
Location:
Schlierbach, Switzerland
Mounting time:
34 hours
23KW Solar Panels
Location:
Schlierbach, Switzerland
Mounting time:
34 hours
Contact Us
Sales
Tel/WhatsApp: +86-13396905829Email: jakin.liang@intenergy.net
ALL FOR YOU:
√ 100% Premium product, reliable quality
√ High Quality After-sales Service√ 100% Excellent cost performance and best services
√ Professional design solution
√ Professional design solution
Payment Term: L/C at sight, T/T, 30% as deposit, 70% balabce by T/T before shipment, Western Union
Packing Details: Carton Box with pallet, Wooden Box
Delivery Time: Ship from factory within 15days after received the deposit
Packing Details: Carton Box with pallet, Wooden Box
Delivery Time: Ship from factory within 15days after received the deposit
