Бесщеточный компрессор постоянного тока с низким уровнем шума для комплектов автомобильных
- Категория: Other NEV Parts & Accessories >>>
- Поставщик: Zhejiang,Juneng,Compressor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 337.16 $* | 344.66 $* |
| Jul-16-2025 | 273.37 $* | 278.69 $* |
| Jun-16-2025 | 331.46 $* | 338.9 $* |
| May-16-2025 | 329.2 $* | 336.50 $* |
| Apr-16-2025 | 262.91 $* | 267.61 $* |
| Mar-16-2025 | 323.9 $* | 329.99 $* |
| Feb-16-2025 | 321.41 $* | 327.20 $* |
| Jan-16-2025 | 318.57 $* | 324.65 $* |
Характеристики

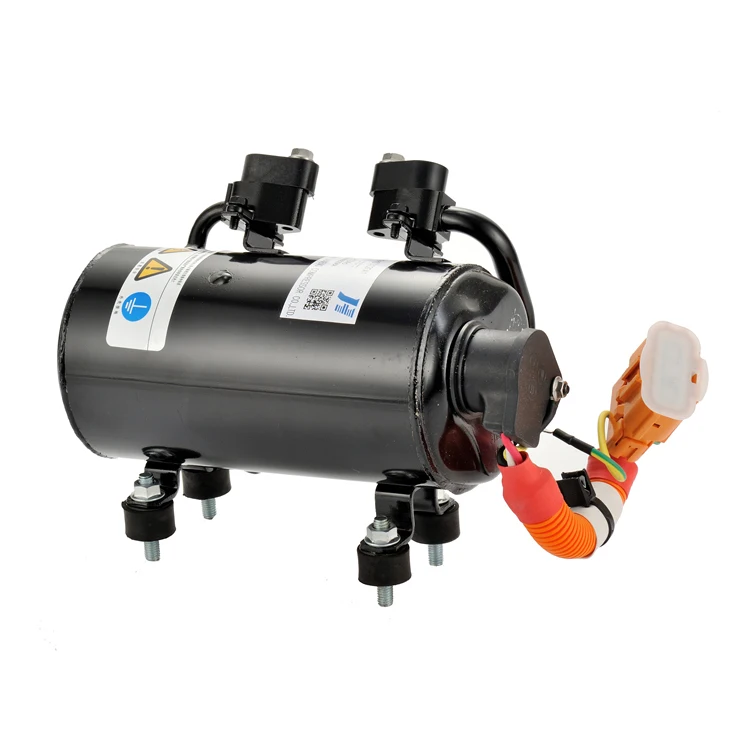

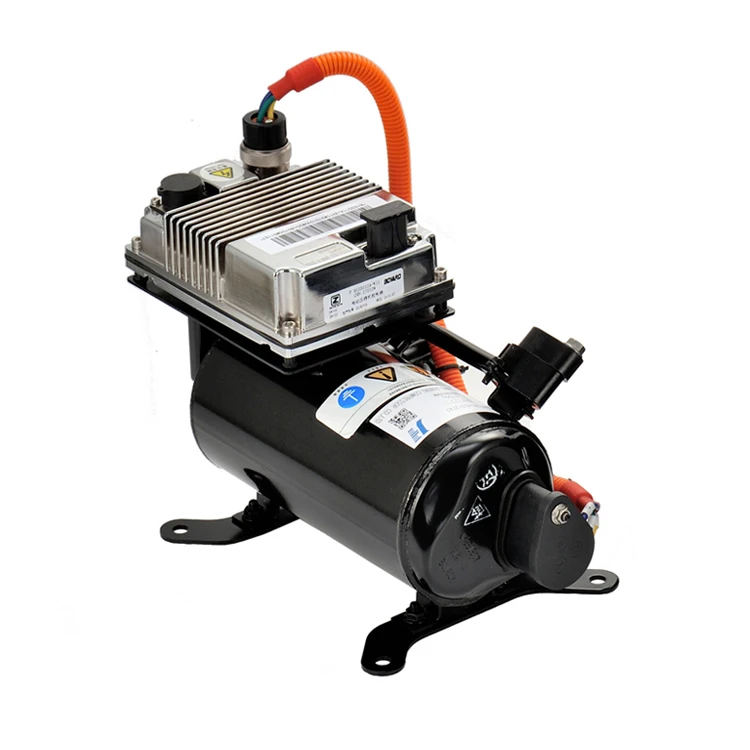

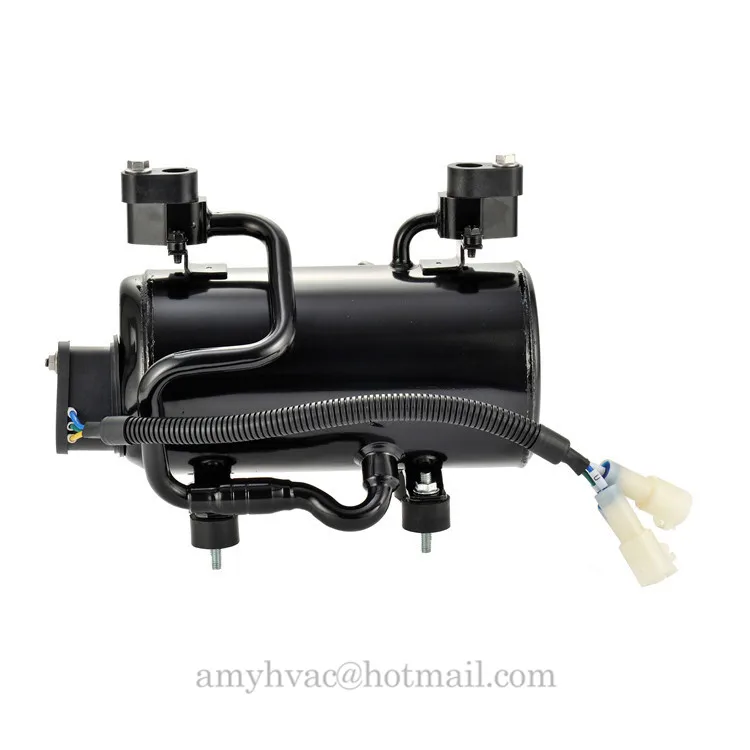

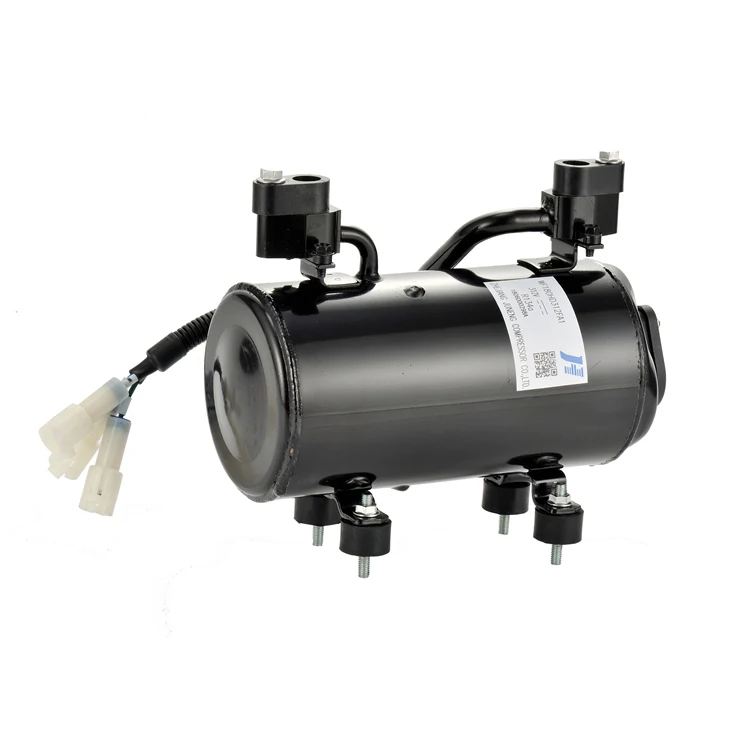

Product Description
Model | WF150HD072 |
Mount Type | Horizontal |
Refrigerant | R134A |
Voltage | DC 60-72V |
Displacement | 15.0cc/rev |
Speed range | 1800-5400 rpm |
Rated speed | 3600 rpm |
Cooling capacity | 2100W |
Power | 645W |
Cop(w/w) | 3.25 |
Compressor Height | 166mm |
Application | Electric vehicle air conditioner Low speed EV air conditioning Train air conditioner Other vehicle air conditioner |
| Refrigerant
| Model | Power | Type | cc/rev | ASHRAE (7.2°C) | Noise db(A) | Outer Dia. mm | Height mm | |
| Capacity | |||||||||
| W | BTU | ||||||||
R134a/ R1234yf | FSQX014Z12 | 12V | Vertical | 1.4 | 100~300 | 341~1023 | 48 | 57 | 76 |
| FSQX019Z12 | 12V | Vertical | 1.9 | 130~400 | 444~1365 | 48 | 57 | 79 | |
| FSQX014Z24 | 24V | Vertical | 1.4 | 100~300 | 341~1023 | 48 | 57 | 76 | |
| FSQX019Z24 | 24V | Vertical | 1.9 | 130~400 | 444~1365 | 48 | 57 | 79 | |
| FSQX019TZ24 | 24V | Vertical | 1.9 | 130~455 | 444~1553 | 48 | 57 | 92 | |
| FSQX020Z24 | 24V | Vertical | 2.0 | 150~500 | 500~1700 | 45 | 56 | 89 | |
| FSQX325Z24 | 24V | Vertical | 3.3 | 300~550 | 1025~1877 | 48 | 69 | 113 | |
| FSQZ014Z48 | 48V | Vertical | 1.4 | 100~300 | 341~1023 | 48 | 57 | 76 | |
| FSQX019TZ48 | 48V | Vertical | 1.9 | 130~455 | 444~1553 | 48 | 57 | 92 | |
| FSQX020Z48 | 48V | Vertical | 2.0 | 150~500 | 500~1700 | 45 | 56 | 89 | |
| 6TS035Z48 | 48V | Vertical | 3.5 | 200~650 | 680~2200 | 49 | 84 | 147 | |
| FSQA058Z48 | 48V | Horizontal | 5.8 | 200~800 | 680~2700 | 49 | 88 | 95 | |
| FSQA088Z48 | 48V | Horizontal | 8.8 | 300~1150 | 1000~4000 | 49 | 88 | 95 | |
| FSQA150Z48 | 48V | Horizontal | 15.0 | 500~2050 | 1700~7000 | 49 | 106 | 106 | |
| WF180HD48 | 48V | Horizontal | 18.0 | 700~2500 | 2400~8500 | 49 | 112 | 106 | |
| WF180HD72 | 72V | Horizontal | 18.0 | 700~2500 | 2400~8500 | 49 | 112 | 106 | |
| WF180HD320 | 320V | Horizontal | 18.0 | 700~2500 | 2400~8500 | 49 | 112 | 106 | |
| WF280HD320 | 320V | Horizontal | 28.0 | 2000~5000 | 6800~18000 | 65 | 126 | 156 | |

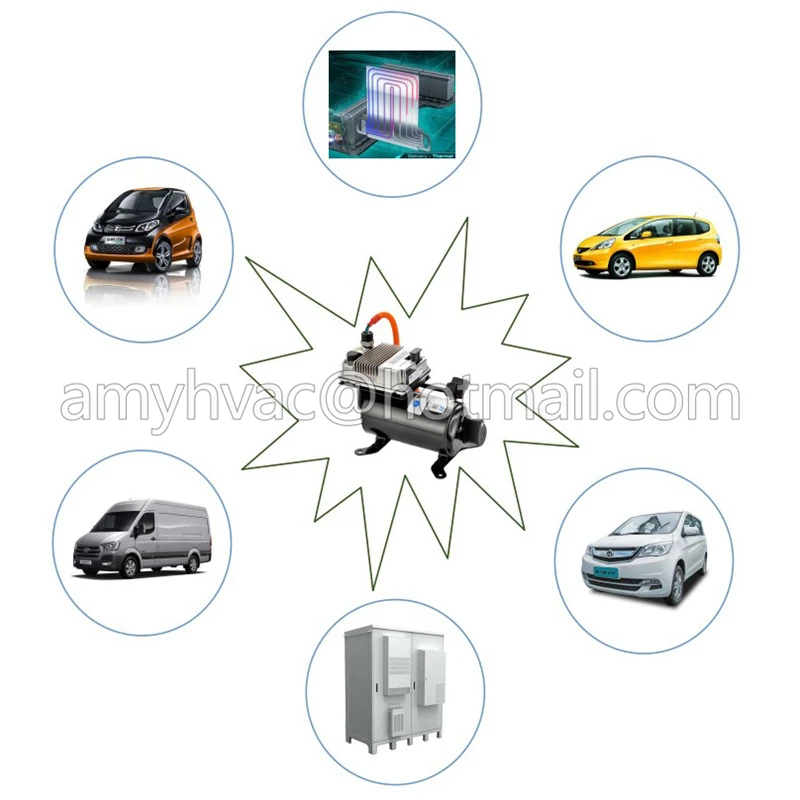

Applications
 |  |
| Battery cooling system | Telecom sites air conditioner |
 |  |  |
| 48V Hybrid passenger car | Low speed electric vehicle | High speed electric vehicle |
What we also supply
 |  |  |
| Household air conditioner | Industrial air conditioner | Portable air conditioner |
 |  |  |
| Clothes dryer | Dehumidifier | Heat Pump |
Company Information
Zhejiang Juneng Compressor Co., Ltd. is belong to Juhua Group Co., Ltd. who is biggest refrigerant manufacturer in the world.. The new standard factory building is 6200 square meters. It has first-class automation production equipment, modern R&D center and advanced testing equipment. It is mainly engaged in the R&D, production and sales of new energy automotive air conditioning compressors and refrigeration compressor.
FAQ
Q: What's your compressor brand?
- We are JUHUA compressor. Do you know the JUHUA group? Yes, the biggest refrigerant manufacturer in the world.
Q: Are you manufacturer?
- Yes, We are the professional manufacturer. Company name: Zhejiang Juneng Compressor Co., Ltd. A subsidiary of juhua group.
Q: What's your mainly products?
- Rotary compressors with R410a, R32, R290, R407C, R22, etc.
- New energy automotive air conditioning compressors with BLDC power.
Q: What's the applications of your compressors mainly used for?
- Well used for air conditioning of household, industrial, portable. Also can be used for dehumidifier, heat pump, clothes dryer, etc.
- Battery cooling system, telecom station air conditioning, New energy electric vehicle, etc.
Q: What's your warranty of your compressors?
- There will be one year warranty for OEM customers.
Q: Any MOQ condition?
- We normally suggest to try the sample compressor for test firstly. So have no MOQ requirement. For volume orders, of course take the pallets quantity will be better for packing and transportation.
Q: What's your payment terms? How can I pay?
- T/T and L/C are both OK. Normally, 30% T/T in advance, the balance before shipment.
Q: I can't find the suitable compressor which I need, what could I do?
- Please contact us, we could do the compressor suggest based on your project information.
