11 пластин ионизатор питьевой воды с платиновым
- Категория: Other Water Treatment Appliances >>>
- Поставщик: Shaanxi,Sunriseetech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 238.20 $* | 250.89 $* |
| Aug-20-2025 | 236.22 $* | 248.10 $* |
| Jul-20-2025 | 198.76 $* | 208.89 $* |
| Jun-20-2025 | 232.76 $* | 244.46 $* |
| May-20-2025 | 202.72 $* | 212.29 $* |
| Apr-20-2025 | 228.3 $* | 239.69 $* |
| Mar-20-2025 | 226.60 $* | 237.1 $* |
| Feb-20-2025 | 224.43 $* | 235.18 $* |
| Jan-20-2025 | 222.58 $* | 233.88 $* |
Характеристики
Product Description

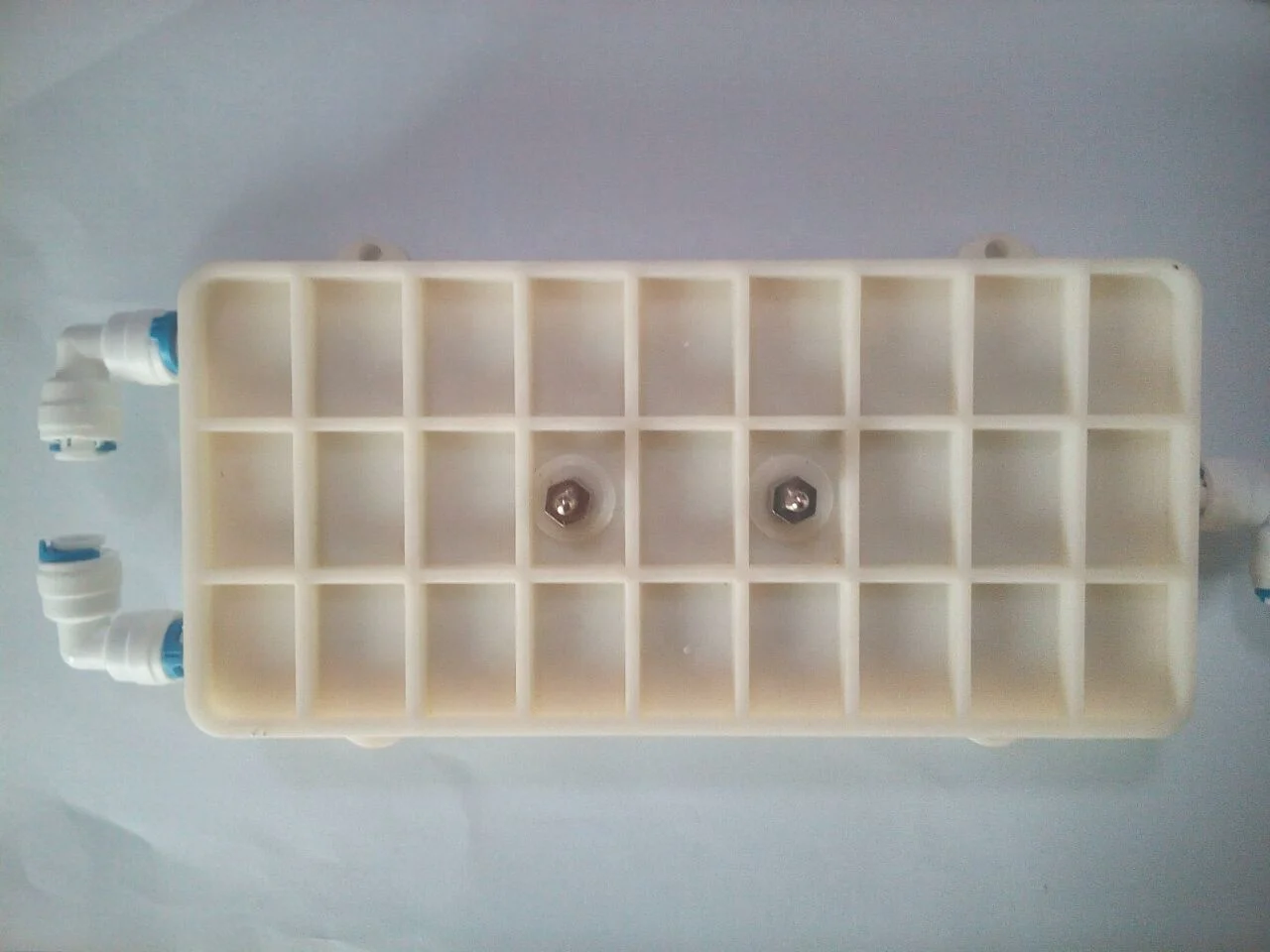

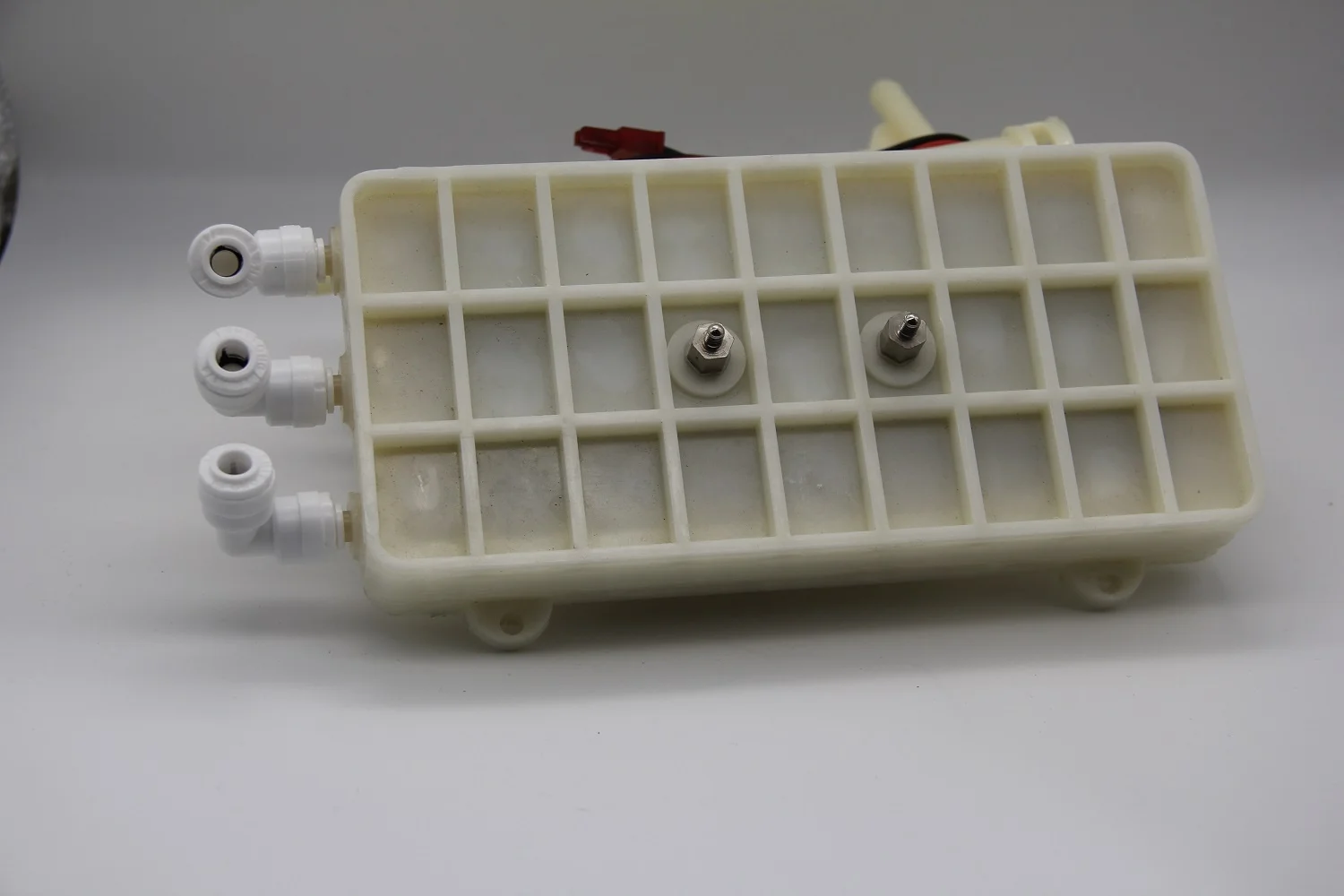

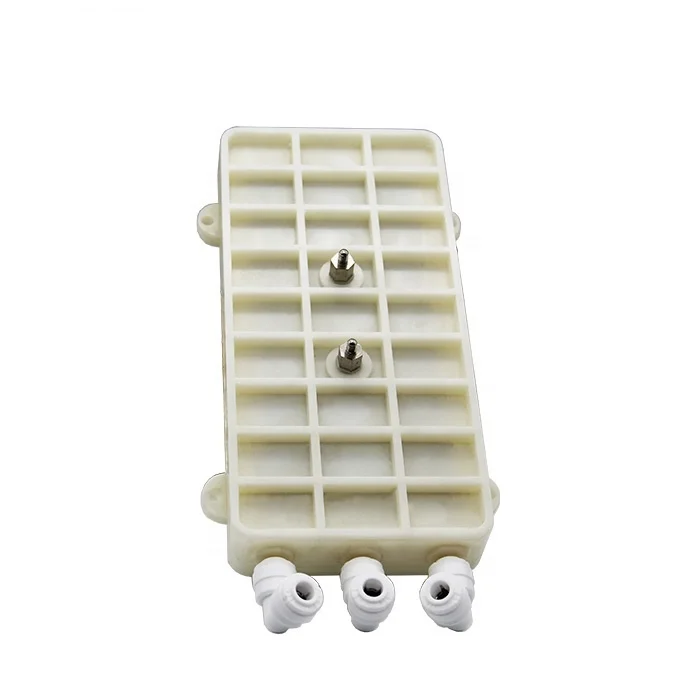

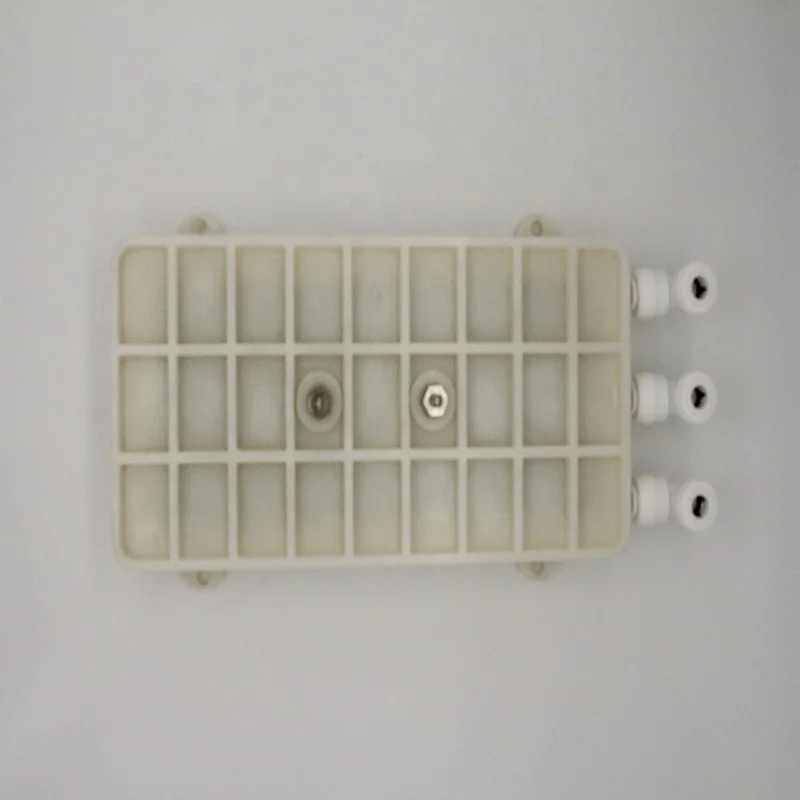

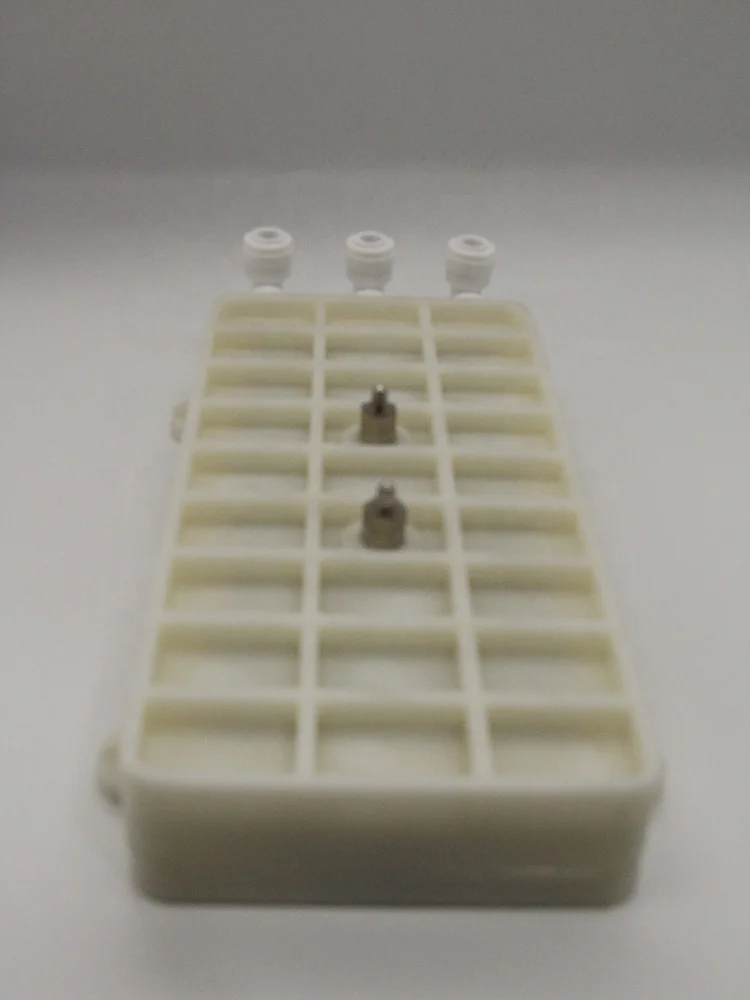

11 plates platinum coat alkaline drinking water ionizer electrolysis cell
Alkaline water electrolysis cell for family water processor alkaline water electrolyzer normally used for household use, canproduce alkaline water to balance the PH of drinking water, in order to make the water drinkable.
The electrolyzer consists of many cells.Each cell consists of cathode pool,which are separated by the membrane.The electrolyte will circle through cathode pool and anode pool with circle pump. Cells are connected by conductors or coppers. The electrolyte and membrane will conduct between cathode pool and anode with series mode.Oxidation will happen at the anode with oxidation products and deoxidation will happen at the cathode with deoxidation products.
Specification
Plates:3-11 plates
Shell Materials:Food Grade ABS
Dimensions: 234 x 108 x 30 mm or other size
Water outlet index: pH 7.5-9 or high alkaline
Water capacity: 240L/h
Power range: 0~220W
Power factor: 0.9
Input current: 0~6 A
Input voltage: DC, 0~36V
Outlet pipe: 10 mm
Inlet pipe: 10 mm
Shell Materials:Food Grade ABS
Dimensions: 234 x 108 x 30 mm or other size
Water outlet index: pH 7.5-9 or high alkaline
Water capacity: 240L/h
Power range: 0~220W
Power factor: 0.9
Input current: 0~6 A
Input voltage: DC, 0~36V
Outlet pipe: 10 mm
Inlet pipe: 10 mm
Plates:3-7 plates
Shell Materials:Food Grade ABS
Dimensions: 130 x 70 x 155 mm
Water outlet index: pH 7.5-10
Water capacity: 240L/h
Power range: 0~220W
Power factor: 0.9
Input current: 0~6 A
Input voltage: DC, 0~36V
Outlet pipe: 10 mm
Inlet pipe: 10 mm
Shell Materials:Food Grade ABS
Dimensions: 130 x 70 x 155 mm
Water outlet index: pH 7.5-10
Water capacity: 240L/h
Power range: 0~220W
Power factor: 0.9
Input current: 0~6 A
Input voltage: DC, 0~36V
Outlet pipe: 10 mm
Inlet pipe: 10 mm
Product instruction
water requirements: municipal pipe network tap water
A, conductivity <80-120us/cm;
B, hardness ≤5 mg/L;
C, water pressure 0.1-0.2mpa;
D, water intake: 180L/H
A, conductivity <80-120us/cm;
B, hardness ≤5 mg/L;
C, water pressure 0.1-0.2mpa;
D, water intake: 180L/H
Method of use
A, vertical installation, inlet down.
1. The other two outlets are respectively drawn out with hoses, one for alkaline water (drinking water) and the other for acidic water.
2. Connect the positive and negative electrodes of the dc power supply to the two electrodes of the electrolytic cell as per the upper negative and the lower positive
A, vertical installation, inlet down.
1. The other two outlets are respectively drawn out with hoses, one for alkaline water (drinking water) and the other for acidic water.
2. Connect the positive and negative electrodes of the dc power supply to the two electrodes of the electrolytic cell as per the upper negative and the lower positive
Announcements:
1. Connect water first when starting up, and turn on the power after the water flows out from the outlet. Turn off the power
before turning off the water inlet valve.
2. The water outlet must be unblocked before water supply, and the water outlet must not be blocked or closed in the process of
water production, otherwise the electrolytic cell will be damaged.
3, water quality, voltage, current must meet the requirements.
1. Connect water first when starting up, and turn on the power after the water flows out from the outlet. Turn off the power
before turning off the water inlet valve.
2. The water outlet must be unblocked before water supply, and the water outlet must not be blocked or closed in the process of
water production, otherwise the electrolytic cell will be damaged.
3, water quality, voltage, current must meet the requirements.
