Характеристики
Product Overview

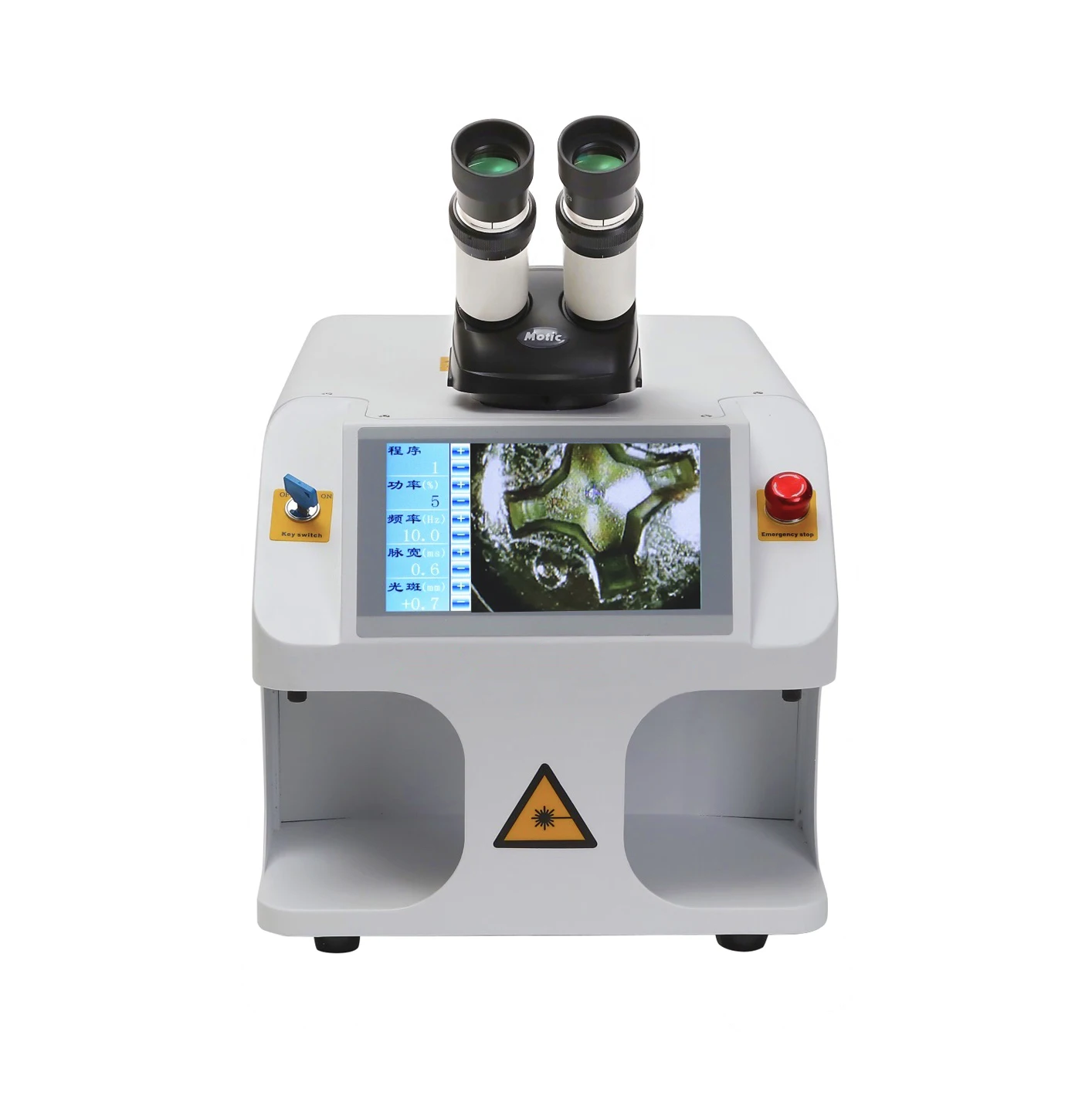

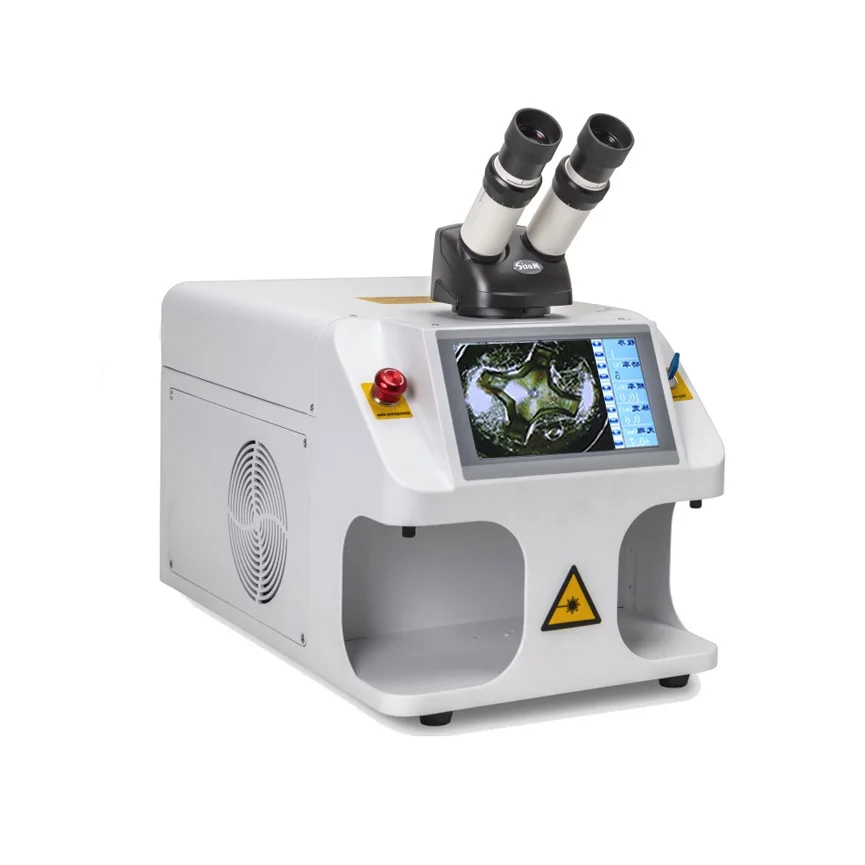

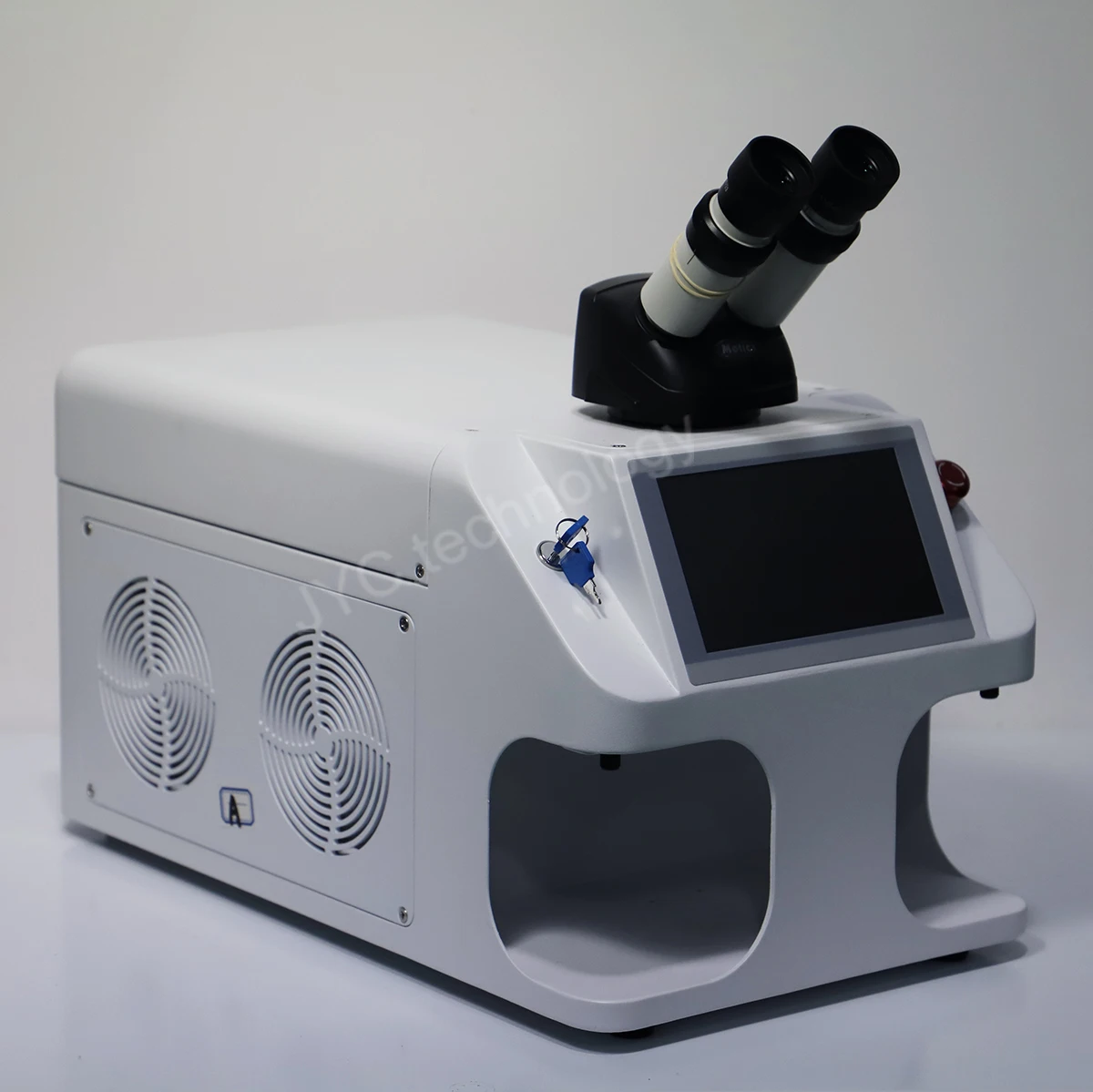

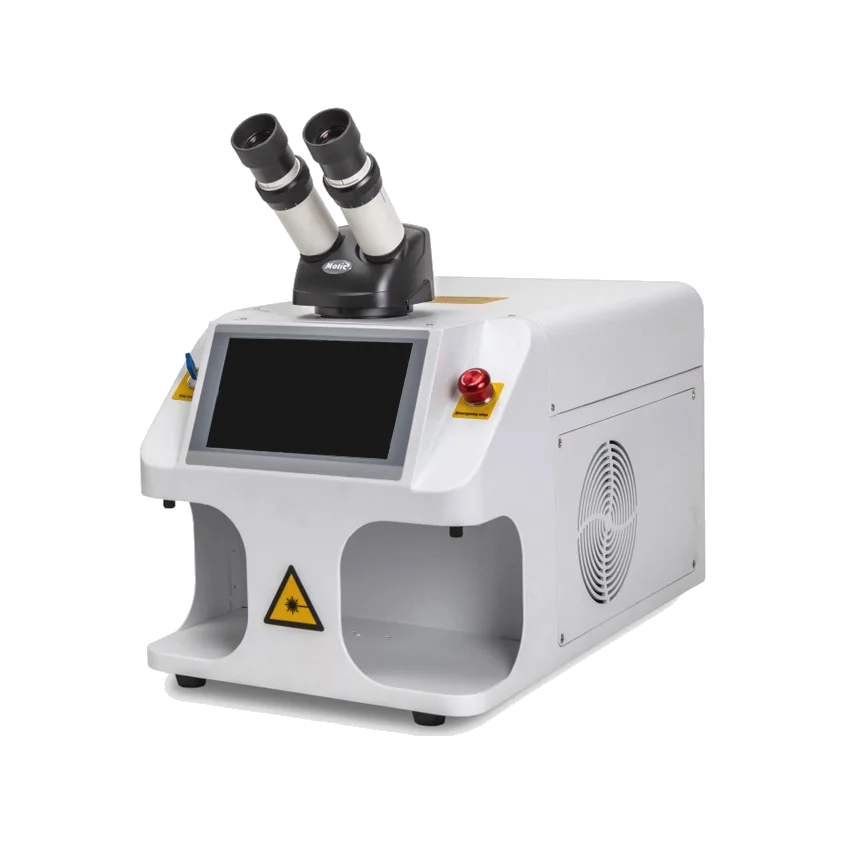

High Precision Laser Welding Machine 60w Metal Laser Welding Machine
The advantage of jewelry laser welding machine:
- High efficiency: it is around 3-10 times faster than conventional welding machine.
- Un-contacted welding mode: small welding spot with beautiful welding effect, do not injure the surrounding metal.
- Save cost: the electric energy of laser welder can be saved about 80%-90% compared with traditional machine and the processing
cost can be reduced around 30%.
- Easy operation: the equipment use touch panel design, easy to modify process parameter, machine use CCD monitor and 10X
microscope, easy to observe.
The advantage of jewelry laser welding machine:
- High efficiency: it is around 3-10 times faster than conventional welding machine.
- Un-contacted welding mode: small welding spot with beautiful welding effect, do not injure the surrounding metal.
- Save cost: the electric energy of laser welder can be saved about 80%-90% compared with traditional machine and the processing
cost can be reduced around 30%.
- Easy operation: the equipment use touch panel design, easy to modify process parameter, machine use CCD monitor and 10X
microscope, easy to observe.
Product Specifications
Item | YAG jewelry laser spot welding machine |
Power | 60w |
Laser cavity | Ceramic cavity |
Pump Lamp | Single xenon lamp |
Laser medium | Nd3+YAG |
Laser wavelength | 1064nm |
Max power of single impulse | 45J |
Pulse width | 0.1-15ms |
Laser power frequency | 0-20Hz |
Instability of energy | <2% |
Adjustable scope of laser spot | 0.6-3.0mm |
Continuous working time | 16 hours |
Cooling System | water chiller |
Diemension | 510*295*395mm |
Weight | 28KG |
Product Configuration
01
Color HD CCD monitor with microscope
20X color enlargement welding effect display in HD screen, help you to observe the welding object and positioning the welding position easily
02
Emergency Switch
protect your safe,one button control with one button switch,simplify the control process, more convinent to use
03
Multi-Language for optionOur system language can be customized according to your requirement: 中文, English,
Español, français,한국어, etc
04

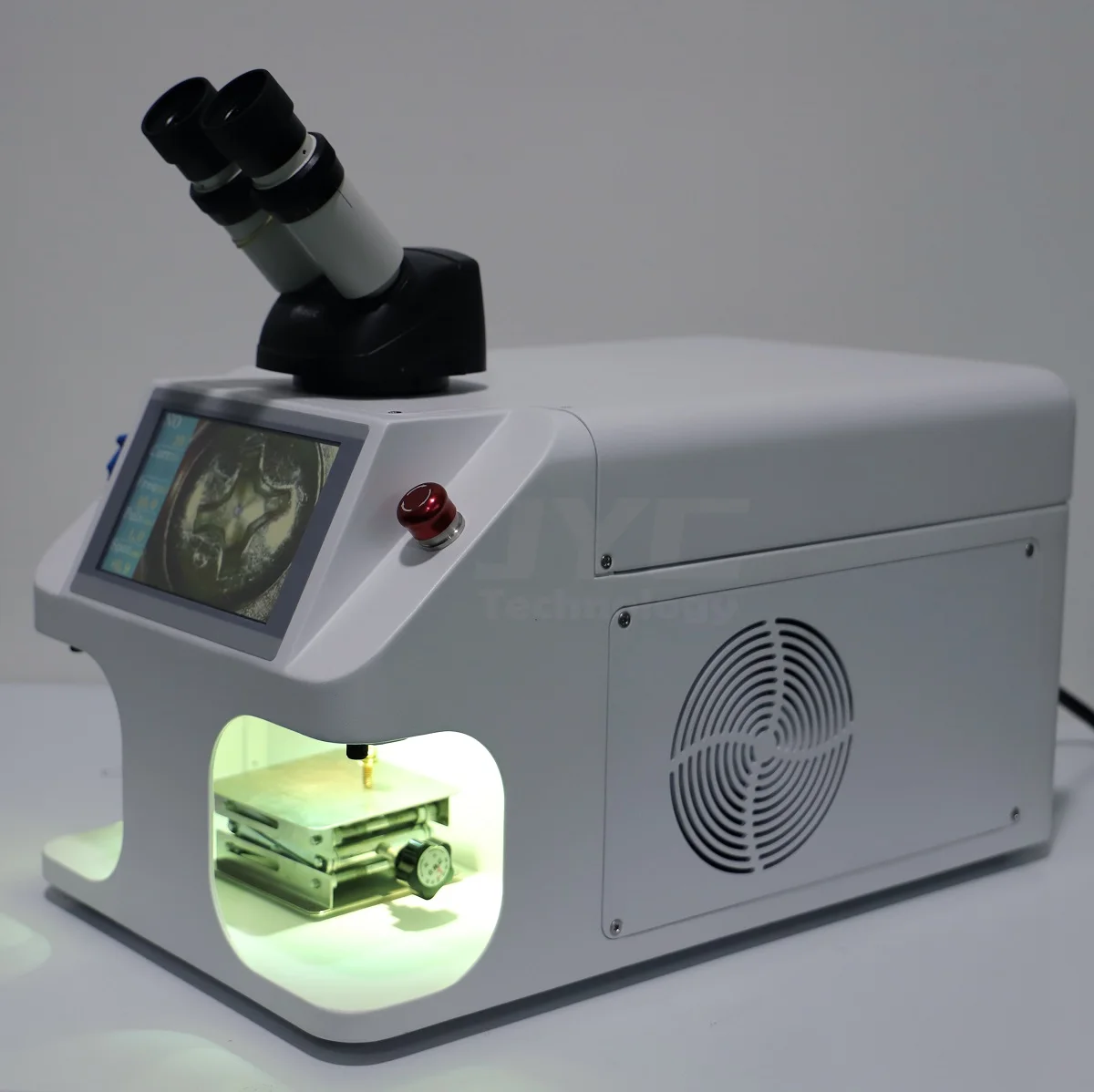

Large working area
the inner space is large enough to add a small worktable and jewelry fixture
Welding Sample
Application
Widely used in Jewelry ring soldering, Precision Watch repair, Sand Hole repair, bracelet welding,Necklace repair,glass frame welding, electric components welding etc.
Recommended Products
Company Profile
JYC Technology have 23 years experience in jewelry machinery field. We provide jewelry machinery for the complete production line like: gold chain making machine, jewelry laser welding machine, jewelry spot welder, chain hammering machine, chain diamond cutting machine , wire compressing machine, loop making machine etc.
Workshop
Why choose us
We have professional team and able to provide you professional solution and advice, JYC technology is a perfect partner for newborn customers in the jewelry production market and customers who constantly strive to introduce new chain models. With our rich and lengthy experience in the jewelry market, it is in an advantageous position to present and plan a complete installation layout from the fusion process to its finished end product.We are looking for agents distributor and sales representatives in oversea market, we believe that honest and professional is our best weapon to win customer’s trust, and we promise for all the customers that we provide high quality machine and timely and eficient service all the times.
Packing & Delivery
Pack in standard International wooden case with sponge filled inside for packing protection.
Packing Size:110*85*82cm
Gorss Weight: 110KG
All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment
Gorss Weight: 110KG
All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment
Can ship by sea, by air, by train, by express.
FAQ
Q1. What is the advantage about your company?A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
