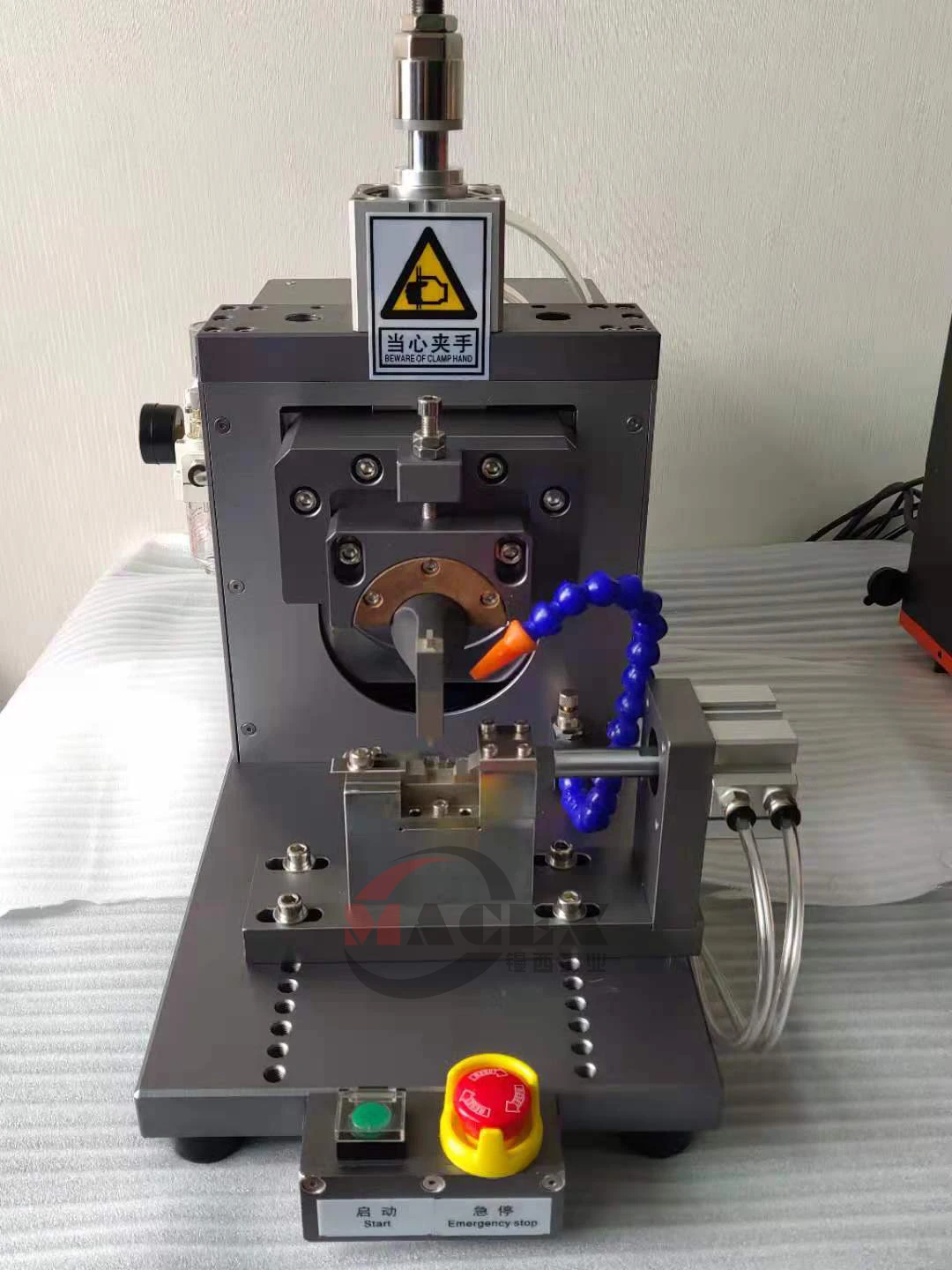

Аппарат для сварки Металлических проводов ультразвуковой медный сварочный аппарат
- Категория: Spot Welders >>>
- Поставщик: Shenzhen,Macex,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 657851.75 $* | 671008.31 $* |
| Jul-15-2025 | 533533.86 $* | 544204.32 $* |
| Jun-15-2025 | 647491.88 $* | 660441.72 $* |
| May-15-2025 | 642311.64 $* | 655157.15 $* |
| Apr-15-2025 | 512813.26 $* | 523069.51 $* |
| Mar-15-2025 | 631951.84 $* | 644590.43 $* |
| Feb-15-2025 | 626772.85 $* | 639307.64 $* |
| Jan-15-2025 | 621592.75 $* | 634024.99 $* |
Характеристики
Product details
Principle
The principle of ultrasonic metal welding is a special method of using the mechanical vibration energy of ultrasonic frequency to connect the same or different metals. When metal is welded by ultrasonic, it neither delivers current to the workpiece nor applies high temperature heat source to the workpiece, just only under static pressure, the wire frame vibration energy is transformed into friction work, deformation energy and limited temperature rise between the workpieces. The metallurgical bonding between the joints is a solid state welding that is realized without the base material melting. Therefore, it effectively overcomes the spatter and oxidation caused by resistance welding. Ultrasonic metal welding machine can perform single-point welding, multi-point welding and short strip welding on thin wire or sheet materials of non-ferrous metals such as copper, silver, aluminum, and nickel. It can be widely used in the welding of SCR leads , fuse pieces , electrical leads , lithium battery pole pieces , and tabs.
Technical Parameters
Model | MD-SWBW4010 | MD-SWBW2030 | MD-SWBW2040 | MD-SWBW2050 | MD-SWBW2080 | ||||
Ultrasonic frequency | 20KHz 40KHz | ||||||||
Input | AC220V/50Hz | ||||||||
Ultrasonic power | 1000W | 3000W | 4000W | 5000W | 8000W | ||||
Air pressue | 0.4MPa~0.6MPa | ||||||||
Control | Time/energy | ||||||||
Welding stroke | 30mm | ||||||||
Structure dimension | 440*230*400mm | ||||||||
Generator dimension | 450*435*140mm | ||||||||
Weight | 60kg | 65kg | 65kg | 70kg | 100kg | ||||
Advantage
L) The welding material does not melt, and the metal is not fragile
2) The conductivity is good after welding, and the resistivity is extremely low or almost zero.
3) Low requirements on the surface of the weld metal, both oxidation and electroplating can be welded.
4) The soldering time is short, without any flux, gas, or solder.
5) Welding without sparks, environmental protection and safety.
2) The conductivity is good after welding, and the resistivity is extremely low or almost zero.
3) Low requirements on the surface of the weld metal, both oxidation and electroplating can be welded.
4) The soldering time is short, without any flux, gas, or solder.
5) Welding without sparks, environmental protection and safety.
Applications
Copper wire/strand wire/aluminum wire/multiple wire connection/compacting
Welding of wiring and electronic components, connectors, terminals;
Welding of wiring and electronic components, connectors, terminals;
1) Ni-MH batteries, nickel-metal hydride batteries, nickel mesh and nickel sheets welding and nickel sheets welding.
2) Lithium battery and polymer battery copper foil and nickel sheet welding, and aluminum foil and aluminum sheet welding.
3) Wires welding to each other, and the wires weld to one or multiple wires.
4) Wires weld with various electronic components, contacts and connectors.
5) Welding of large heat sinks, heat exchange fins and honeycomb
2) Lithium battery and polymer battery copper foil and nickel sheet welding, and aluminum foil and aluminum sheet welding.
3) Wires welding to each other, and the wires weld to one or multiple wires.
4) Wires weld with various electronic components, contacts and connectors.
5) Welding of large heat sinks, heat exchange fins and honeycomb

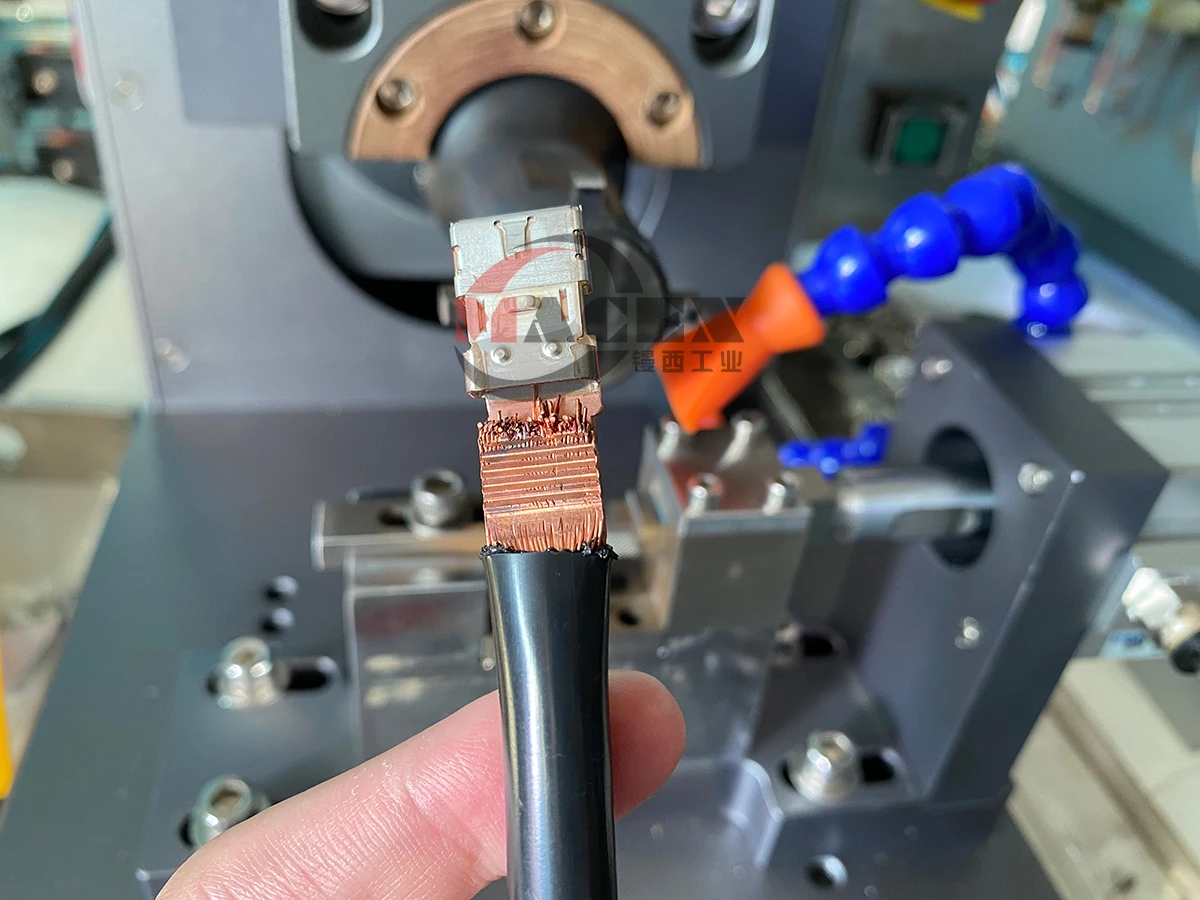

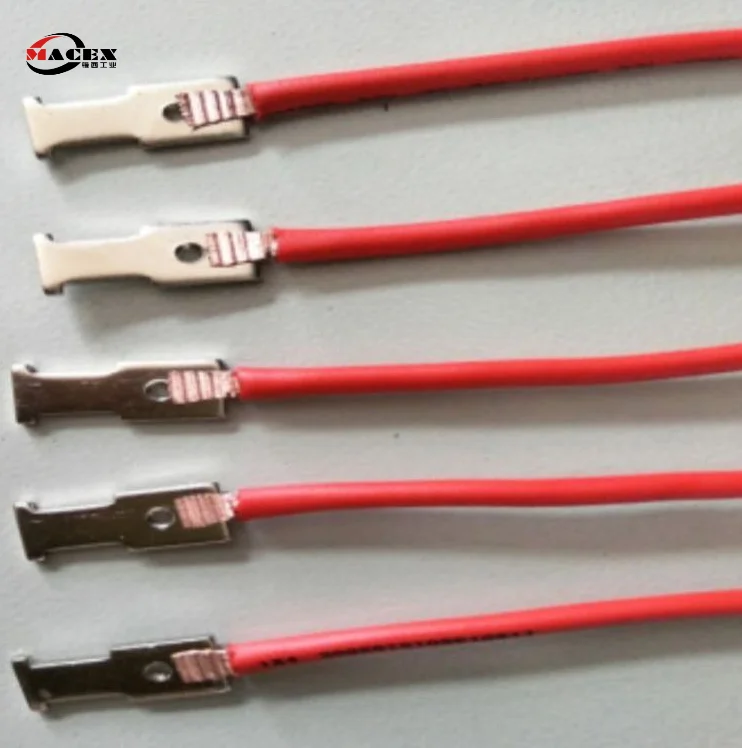

Sample

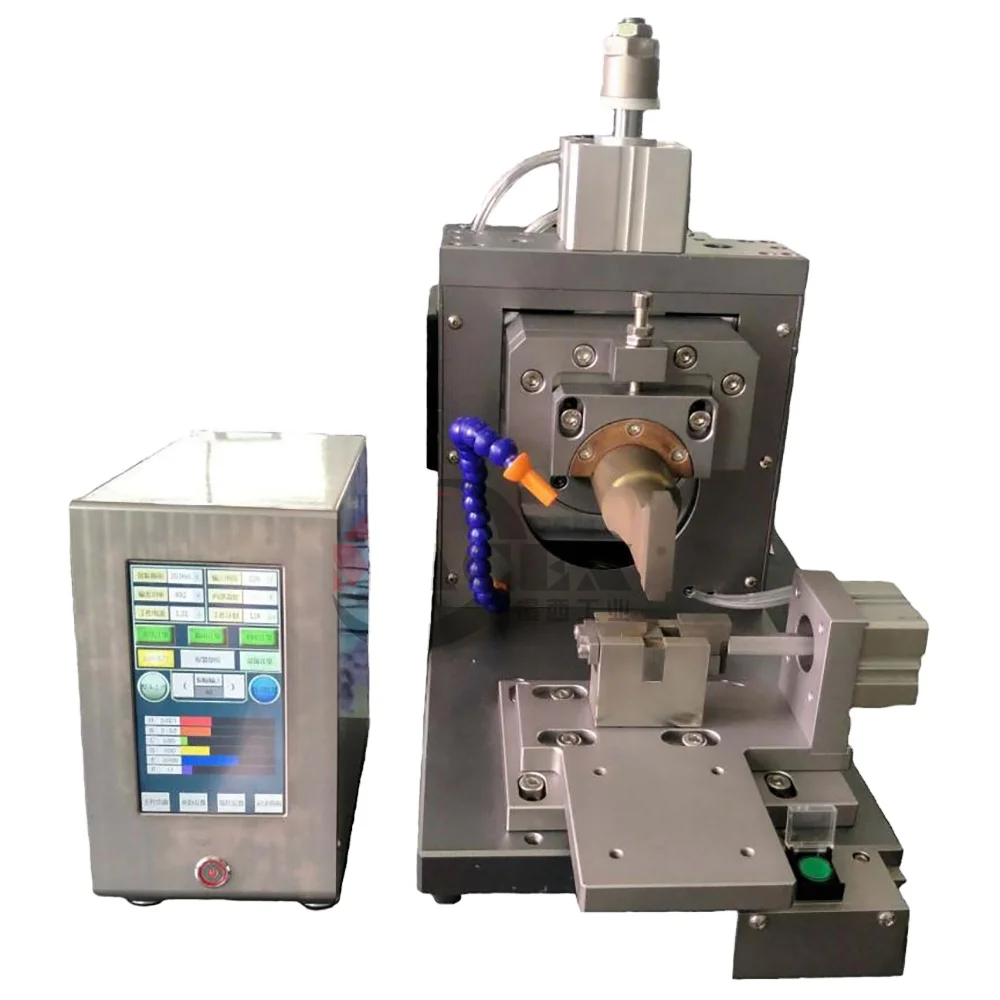

Factory

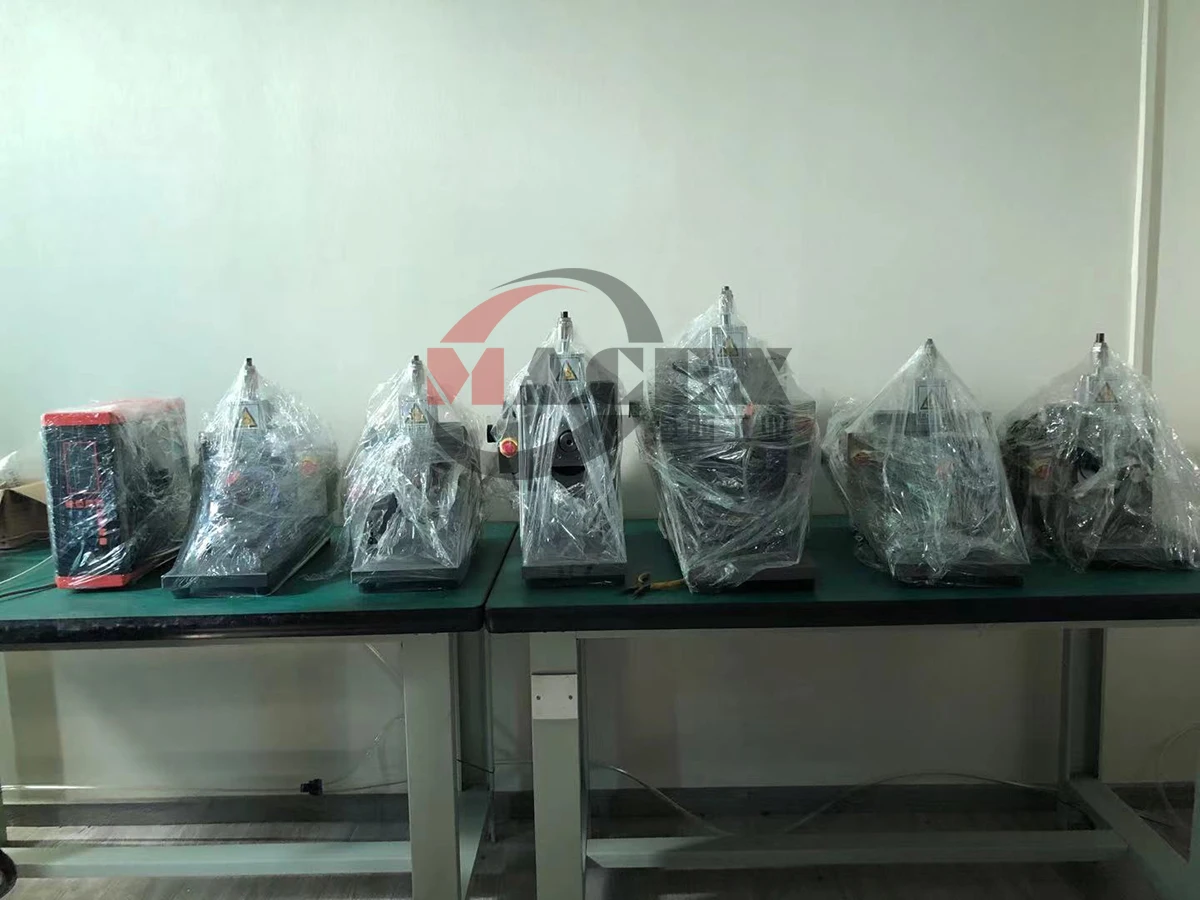

Packing
Our services
We can provide you with a variety of ultrasonic metal welding solutions.
If you want to konw more,please contact our sales engineer:
