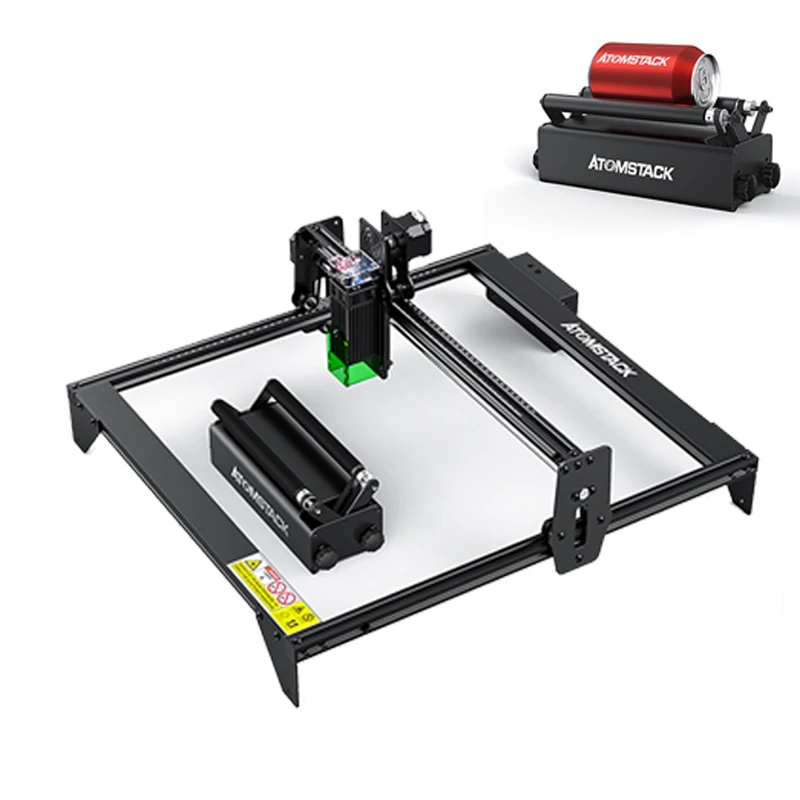

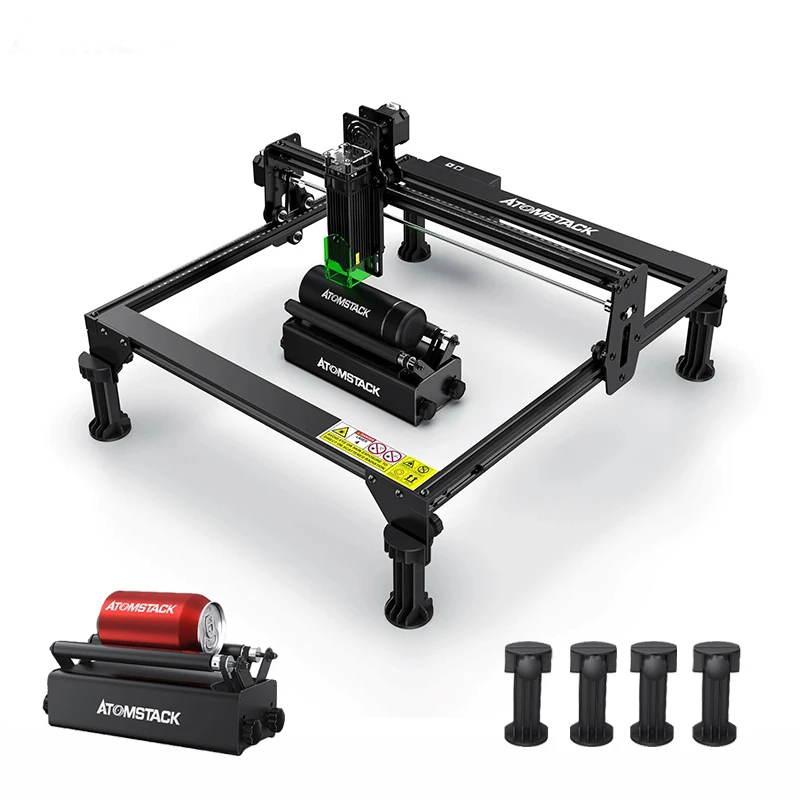

Лазерный гравировальный станок ATOMSTACK A5 20 Вт лазерный гравер принтер с Y-axis вращающимся роликом для банок яиц цилиндров бутылок
- Категория: Laser Engraving Machines >>>
- Поставщик: Shenzhen,Ssjy,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 374.29 $* | 393.42 $* |
| Aug-16-2025 | 371.66 $* | 390.71 $* |
| Jul-16-2025 | 311.0 $* | 327.54 $* |
| Jun-16-2025 | 364.32 $* | 382.52 $* |
| May-16-2025 | 317.63 $* | 333.12 $* |
| Apr-16-2025 | 358.5 $* | 376.95 $* |
| Mar-16-2025 | 355.39 $* | 373.33 $* |
| Feb-16-2025 | 352.60 $* | 370.3 $* |
| Jan-16-2025 | 349.76 $* | 366.16 $* |
Характеристики
Certifications
Have CE ,FCC,Rohs Certifications , Quality is Guranteed 100%, no worries to purchase
Product Specifications:
Item model number | ATOMSTACK A5 20W + R3 Rotary Roller |
Print Size | Recommend Print Size 410*400mm |
Carving Objects | All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal |
Cutting Objects | Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. |
Laser power | 20W |
Laser output power | 4.5-5W |
Wave Length | 445 ± 5nm |
Engraving accuracy | 0.01mm |
Focusing method | fixed focus laser, no need to focus |
Laser protective cover | Protect the user's eyes and prevent pets from grabbing the laser spot. |
Operating software | LaserGRBL, LightBurn, |
Support system | support Win XP / Win 7 / Win 8 / XP / Win 10 system |
Input Format | NC, BMP, JPG, PNG, DXF, etc. |
Data transmission method | USB connection |
Input Voltage | AC100-240V, 50/60Hz |
Output Voltage | DC12V, 5A |
Equipment net weight | 4kg /1.6kg |
Package weight | 5.5kg+3kg |
Equipment size | 570*600*270mm |
Packing size | 618*342*129mm/320mm*200mm*150mm |
Certification | CE FCC RoHS |
Customers Feedbacks :
Packaging List
A: A5 LASER ENGRAVER PACKAGE:
1 x X-axis assembly
2×Section 57CM
2×Section 48CM
1 x control box
3 x support legs
1×Goggles
1 x laser
1×24V2A power adapter
1 x power cord
1 x USB cable
1×M5 wrench
10×rolled belt
3 x small wood
1×focal length film
1×M3 wrench
1 x marker
1 x brush
3×small acrylic

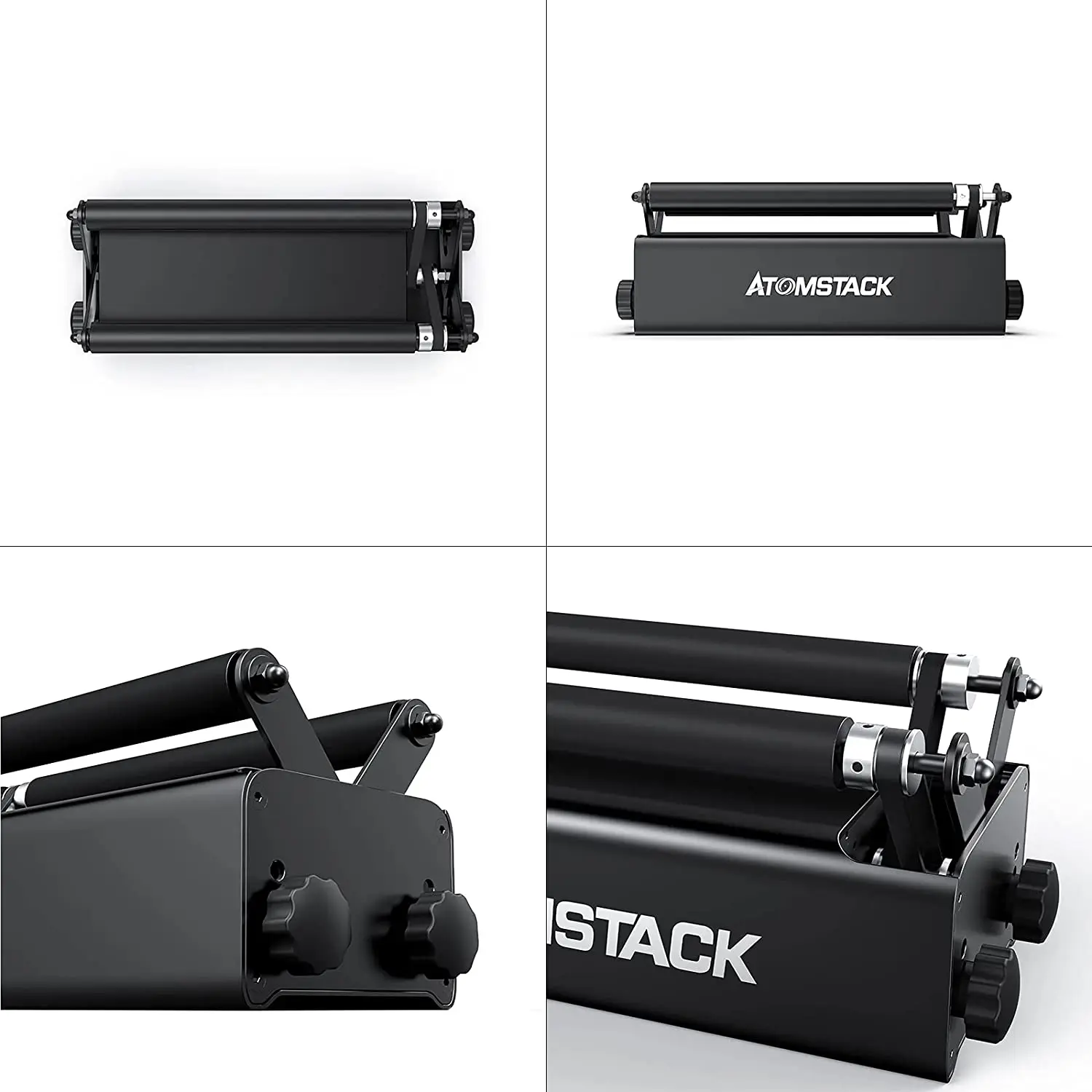

B : 1 x Rotary Roller
4 x heightening column
1 x X-axis assembly
2×Section 57CM
2×Section 48CM
1 x control box
3 x support legs
1×Goggles
1 x laser
1×24V2A power adapter
1 x power cord
1 x USB cable
1×M5 wrench
10×rolled belt
3 x small wood
1×focal length film
1×M3 wrench
1 x marker
1 x brush
3×small acrylic
B : 1 x Rotary Roller
4 x heightening column
Product Description:
Our Company：
our company’s main development direction is intelligent manufacturing, committed to direct manufacturing of consumer products in 3D.So that every consumer can use and afford personalized products.our company has mature sales channels, supply chains and core key technologies.Factory direct sales, specializing in the production of laser engraving machines, 3D printers, PLA consumables, washing resins and other printer peripheral products,Direct supply from foreign trade,professional international certification, high quality, quality assurance, perfect after-sales, spot supply, support for multiple languages,Export type with manual and software support multiple languages
Shipping Ways:
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the mosteconomical way to reduce shipping cost.
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the mosteconomical way to reduce shipping cost.
FAQ
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.
Q: Are there software and instructions can I get it?
A:Hello, if your computer is a Windows system, can install lasergrbl software. The link to download lasergrbl software is https://lasergrbl.com/download/ , MAC system can install lightburn software, lightburn software download link is https://lightburnsoftware.com/pages/trial-version-try-before-you-buy ；
Q: What's the laser's lifetime?
A: The laser module have over 10000 hours lifetime.
Q:what is the maximum thickness it can cut?
A : Can cut 8mm wood, 12mm black plastic, 8mm black acrylic, 3mm leather etc
Q:New ATOMSTACK A5 20W Laser in the description informs 4.5 to 5.0W, wouldn't it be 20W?
A :The total power of the machine is 20W, and the laser power is 4.5-5W
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver,power supply the machine,that's all.
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free DHLFedex etc fast shipping,about 5-10 working days to door .
Q: How long time for warranty ?
A: We promise you 13 months warranty , kindly contact us if any quality problem when you receive the parcel, we will refund or resend you a new replacement.
Q: What is the speed of the machine?
A:Max Speed is 1000mm/min
Q:How much is the working area of the machine?
A:working area is 410*400mm big area
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand. - Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.
Q: Are there software and instructions can I get it?
A:Hello, if your computer is a Windows system, can install lasergrbl software. The link to download lasergrbl software is https://lasergrbl.com/download/ , MAC system can install lightburn software, lightburn software download link is https://lightburnsoftware.com/pages/trial-version-try-before-you-buy ；
Q: What's the laser's lifetime?
A: The laser module have over 10000 hours lifetime.
Q:what is the maximum thickness it can cut?
A : Can cut 8mm wood, 12mm black plastic, 8mm black acrylic, 3mm leather etc
Q:New ATOMSTACK A5 20W Laser in the description informs 4.5 to 5.0W, wouldn't it be 20W?
A :The total power of the machine is 20W, and the laser power is 4.5-5W
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver,power supply the machine,that's all.
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free DHLFedex etc fast shipping,about 5-10 working days to door .
Q: How long time for warranty ?
A: We promise you 13 months warranty , kindly contact us if any quality problem when you receive the parcel, we will refund or resend you a new replacement.
Q: What is the speed of the machine?
A:Max Speed is 1000mm/min
Q:How much is the working area of the machine?
A:working area is 410*400mm big area
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand. - Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
