Лучшая дноуборочная машина 32 дюйма 8000m 3/h низкие цены на всасывающий Пескоструйный
- Категория: Dredger >>>
- Поставщик: Qingzhou,Best,Environmental,Protection,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1368500.64 $* | 1436925.29 $* |
| Aug-16-2025 | 1357000.36 $* | 1424850.20 $* |
| Jul-16-2025 | 1138500.84 $* | 1195425.37 $* |
| Jun-16-2025 | 1334000.47 $* | 1400700.64 $* |
| May-16-2025 | 1161500.42 $* | 1219575.58 $* |
| Apr-16-2025 | 1311000.22 $* | 1376550.17 $* |
| Mar-16-2025 | 1299500.6 $* | 1364475.60 $* |
| Feb-16-2025 | 1288000.7 $* | 1352400.12 $* |
| Jan-16-2025 | 1276500.69 $* | 1340325.53 $* |
Характеристики
Products Description

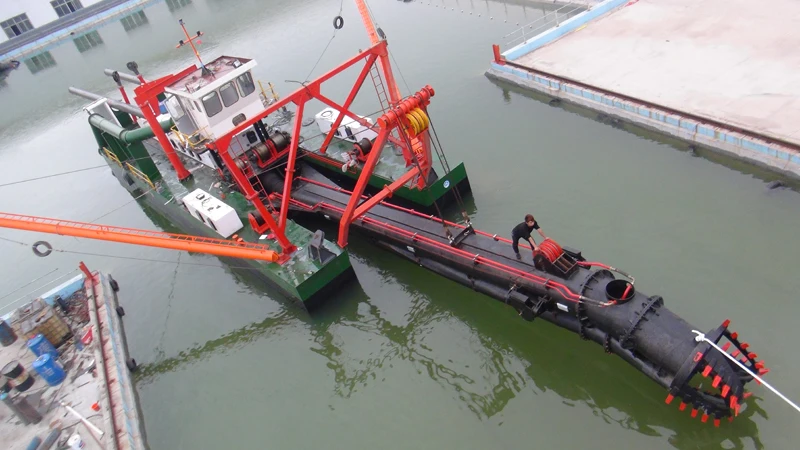

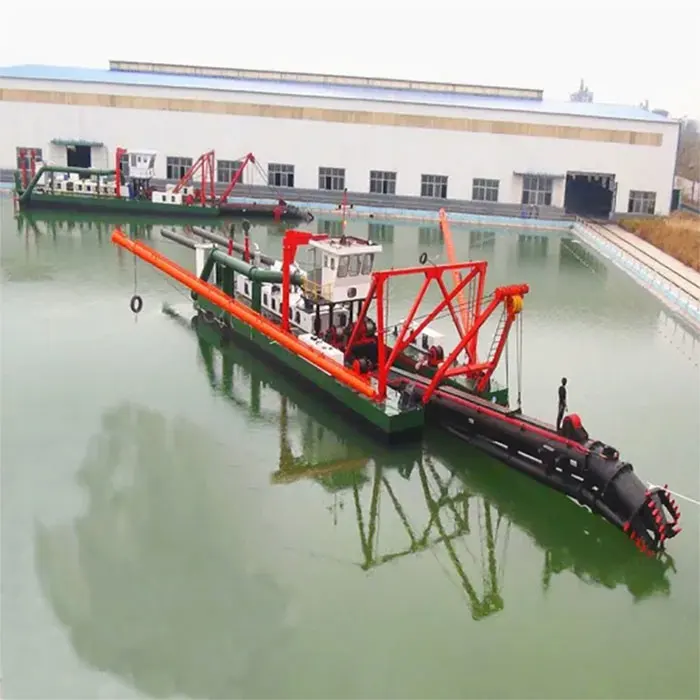

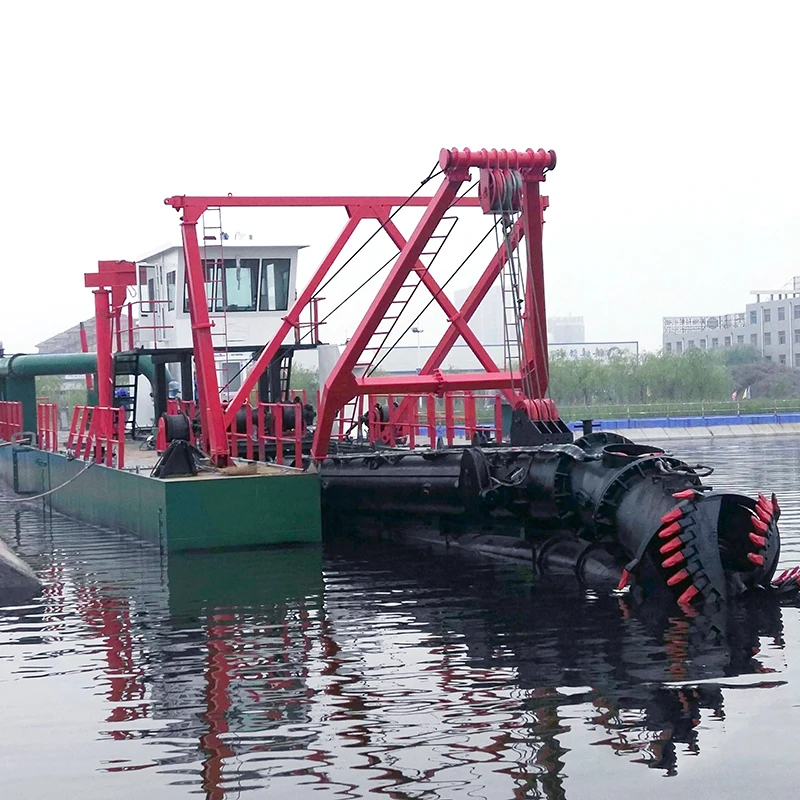

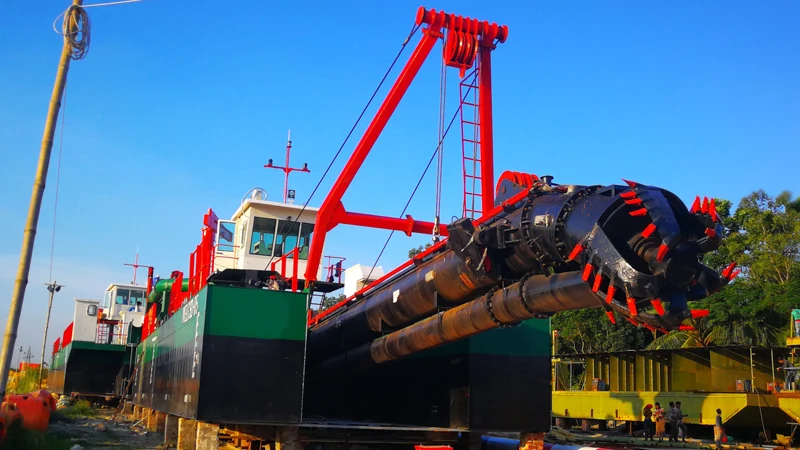

Dredging Equipment-cutter suction dredger
Best sand cutter suction dredger , is self-propelled or non self-propelled, portable dredger. The anchor boom is installed at the two sides of the dredger, it can anchoring and improve work efficiency.Cutter suction dredger is absolutely necessary widely used, efficient and cost-saving tool in modern production and are mainly used to desilt and deepening channel, excavate and maintain waterways, expand shoreline or create land and pumping sand. In all dredging equipments, cutter suction dredger is of higher efficiency.
Main feature of sand suction dredger
1. Famous brand Cummins engine or China Weichai engine
2. Famous brand China Shijiazhuang pump
3. Siemens PLC control system
4. Reliable hydraulic system
5. Simple and reliable structure, easy to dismantle and assemble at working site
6. Operating cabin with good all around visibility
7. Full tested before delivery
8. Short production time
9. Economic price and high efficiency
10. Improve work efficiency
2. Famous brand China Shijiazhuang pump
3. Siemens PLC control system
4. Reliable hydraulic system
5. Simple and reliable structure, easy to dismantle and assemble at working site
6. Operating cabin with good all around visibility
7. Full tested before delivery
8. Short production time
9. Economic price and high efficiency
10. Improve work efficiency
PRODUCT SPECIFICATIONS
Dredging Equipment-sand cutter suction dredger technical specification | ||||
Serial No. | Model | BST800 | ||
1 | Manufacturer | Best | ||
2 | Total length | 49m | ||
3 | Hull size | 36 * 11.5 * 3.5m | ||
4 | Water flow | 8000m3/h | ||
5 | Dredging depth | 20m | ||
6 | Discharge distance | 3000m | ||
7 | Draught | 1.7m | ||
8 | Engine brand | Cummins | ||
9 | Engine power | 2206kW | ||
10 | Cutter power | 500kW | ||
11 | Suction Dia. | 850mm | ||
12 | Discharge Dia. | 800mm | ||
13 | Specification | Customized | ||
14 | Application | River, lake, port, sea | ||
PRODUCT CONFIGURATION
Dredge pontoon
Consist: left side pontoon, right side pontoon and middle pontoon each 1 piece
Material: marine steel plate (CCSB certificate)
Structure: box-like structure, can be dismantle and assemble at working site
Painting: marine epoxy zinc-rich primer and marine chlorinated rubber surface painting, with anticorrosive zinc block, can work in
sea salt water.
All equipments, diesel engine, hydraulic engine, dredging pump, generator set, hydraulic system pipeline in main engine room
Material: marine steel plate (CCSB certificate)
Structure: box-like structure, can be dismantle and assemble at working site
Painting: marine epoxy zinc-rich primer and marine chlorinated rubber surface painting, with anticorrosive zinc block, can work in
sea salt water.
All equipments, diesel engine, hydraulic engine, dredging pump, generator set, hydraulic system pipeline in main engine room
Diesel Engine
Brand: World famous brand CUMMINS, DEUTZ, Caterpillar, Weichai or as required
Power: 100-2500kW or as required
Function: Supply power to dredger, driving sand pump
Guarantee: worldwide aftersales service
Power: 100-2500kW or as required
Function: Supply power to dredger, driving sand pump
Guarantee: worldwide aftersales service
Sand Dredging Pump
Brand: China famous brand made in Shijiazhuang
Water flow: 400-8000m3/h
Sand output: 80-1600m3/h
Material: Using strong anti-wear alloy cast iron, the hardness of up to 70HRC, high resistant corrosion
Discharge Distance: 100-2500m
Guarantee: worldwide aftersales service
Water flow: 400-8000m3/h
Sand output: 80-1600m3/h
Material: Using strong anti-wear alloy cast iron, the hardness of up to 70HRC, high resistant corrosion
Discharge Distance: 100-2500m
Guarantee: worldwide aftersales service
Marine Gear Box
Brand: China famous brand made in HangZhou
Guarantee: worldwide after-sales service
Guarantee: worldwide after-sales service

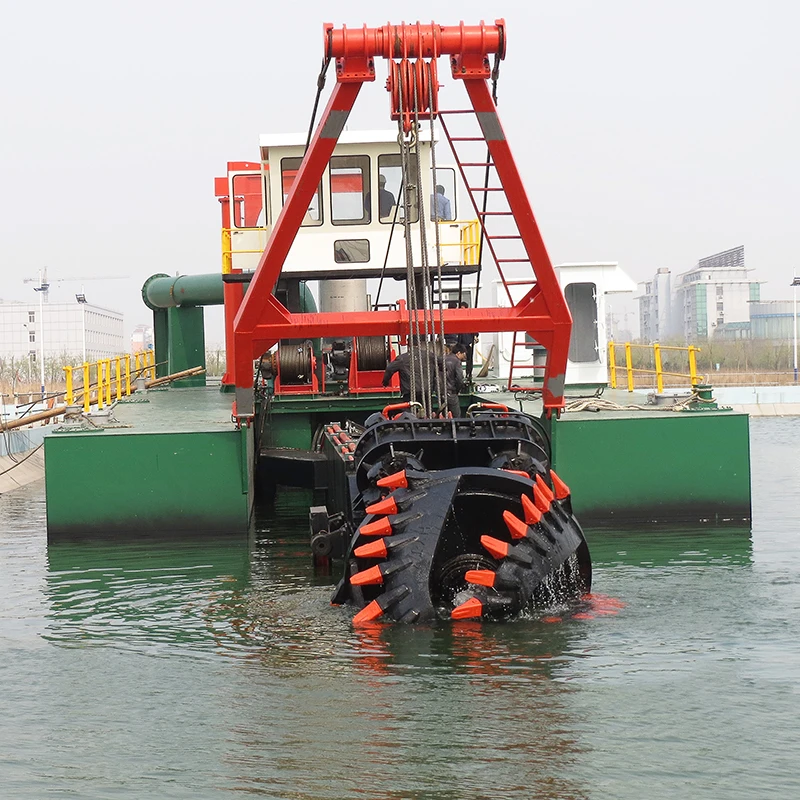

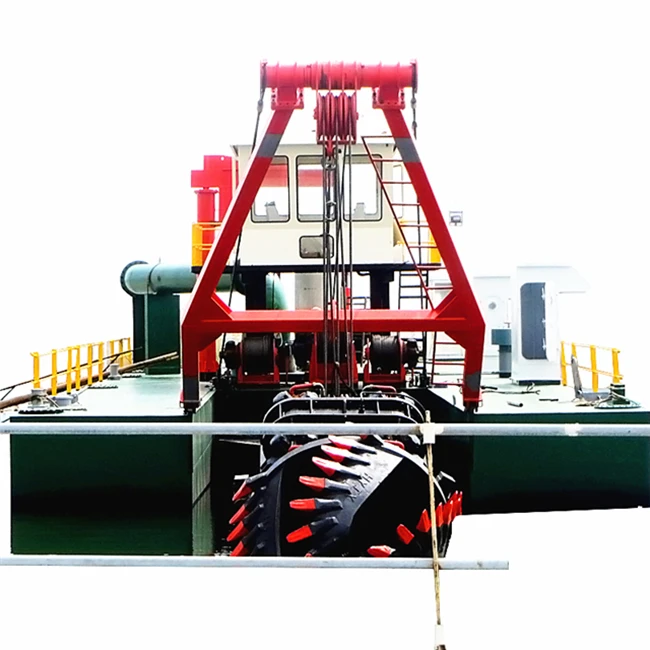

Cutter Head
Type: Crown-like
Drive: Hydraulic motor
Cutter teeth type: Replaceable
Cutter teeth material: ZGMn13 wear-resisting
Cutter blade material: ZG35SiMn
Cutter teeth and blade quantity: Multi
Drive: Hydraulic motor
Cutter teeth type: Replaceable
Cutter teeth material: ZGMn13 wear-resisting
Cutter blade material: ZG35SiMn
Cutter teeth and blade quantity: Multi
Hydraulic System
Cutter head hydraulic system
Winch hydraulic system
Hydraulic pump
Hydraulic oil tank and pipes
Spud hydraulic system
Winch hydraulic system
Hydraulic pump
Hydraulic oil tank and pipes
Spud hydraulic system
Controlling system
Brand: PLC Siemens
Working cabin with controlling system
Control desk: Integrated control electrical accessories
Deck crane
Type: Mechanical type and Hydraulic telescopic boom crane
Function: Replaced and maintenance dredging pump
Function: Replaced and maintenance dredging pump
Discharge system
HDPE pipes with floaters
Connection rubber hose
Discharge distance customized
Connection rubber hose
Discharge distance customized
Optional equipment
1) Anchor boom system: easy to use, economical, fast anchor moving speed, and not affected by adverse factors such as tide or
shoal near the excavated ditch.
2) Spud carriage: help the dredger travel and improve work efficiency
shoal near the excavated ditch.
2) Spud carriage: help the dredger travel and improve work efficiency
Successful Project
Dredging project in Nigeria
Dredging project in UAE
Dredging project in Indonesia
Dredging project in India
Dredging project in Bangladesh
Dredging project in Argentina
Similar Products
Gold bucket chain dredger
Wheel bucket dredger
Multi-function service work boat
Jet suction dredger
Cutter suction dredger with anchor boom
Sand transportation ship
Company Profile
Qingzhou Best Environmental Protection Machinery Co., Ltd. is a professional manufacturer, over 20 years development, company covers the products are of a great variety including 500-20000m³/h large scale dredging and sand mining equipments, gold panning ship，sand transport ship, multifunctional service work boat, iron extraction equipment, sand screening machine, crusher, magnetic separator, sand washing machine and so on, more than 80 specifications for customer choice. We can also design and produce special types of machinery according to customer’s requirement. Widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, blow fields stretched, port construction, etc., It formed the complete ship machinery industry chain.
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according with the standards and regulations of CCS.
Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according with the standards and regulations of CCS.
Why to choose us? Where is our advantage？
Best dredger is a professional factory to manufacture dredger.
Best dredger has 30 years of production experience.
Best dredger has exported more than 30 countries.
Best dredger will be fully tested before delivery.
Best dredger has passed marine ship quality control certificate.
Best dredger can be customized according to customer requirements.
Workshop photo
Dredger pontoon is laying
Dredger pontoon manufacturing
Dredger pontoon finish
Dredger finish
Engine room internals
Dredger package and shipment
Our service
Pre-Sales Service
Receive client’s inquiry
Introduce dredging machine to clients
Visit and study clients mining conditions
Propose the most suitable solution
Recommend and design reasonable dredger type to clients
Receive client’s inquiry
Introduce dredging machine to clients
Visit and study clients mining conditions
Propose the most suitable solution
Recommend and design reasonable dredger type to clients
After-Sales Service
Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories
Core equipments have office all over the world
Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories
Core equipments have office all over the world
Product packaging and shipment
Dredger separate package in factory
Dredger can be divided into several parts
From factory to port can be transported by truck.
Dredger is loaded onto the ship at the port
Dredger shipped by container or in bulk according to dredger size.
Small size dredger can be shipped by container.
FAQ
Q1: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.
Q2: What about the delivery?
Our equipments can be in bulk or in containers by sea.
We have various dredgers and spare parts in stock, can finish manufacture in short time.
Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.
Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of dredger.
Free repair if have any quality problems during working.
Lifetime service for dredger.
Q5: How will the dredger be transported to the customer's country?
Our dredgers are all separable. According to different models, they can be transported by sea in containers or in bulk.
We can accept T/T, L/C, WESTERN UNION and so on.
Q2: What about the delivery?
Our equipments can be in bulk or in containers by sea.
We have various dredgers and spare parts in stock, can finish manufacture in short time.
Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.
Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of dredger.
Free repair if have any quality problems during working.
Lifetime service for dredger.
Q5: How will the dredger be transported to the customer's country?
Our dredgers are all separable. According to different models, they can be transported by sea in containers or in bulk.
