Характеристики



Product Description

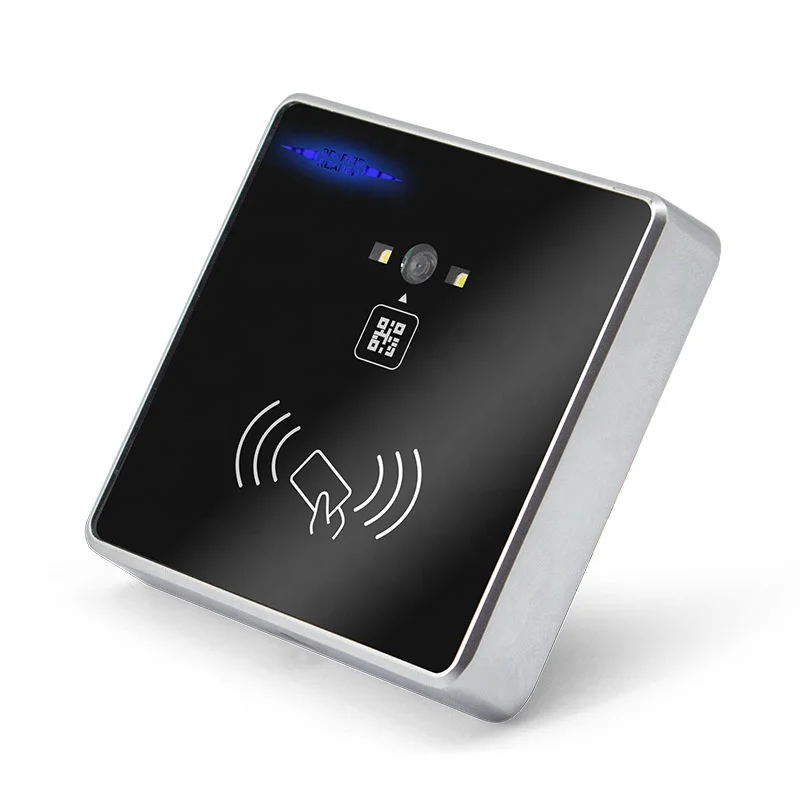

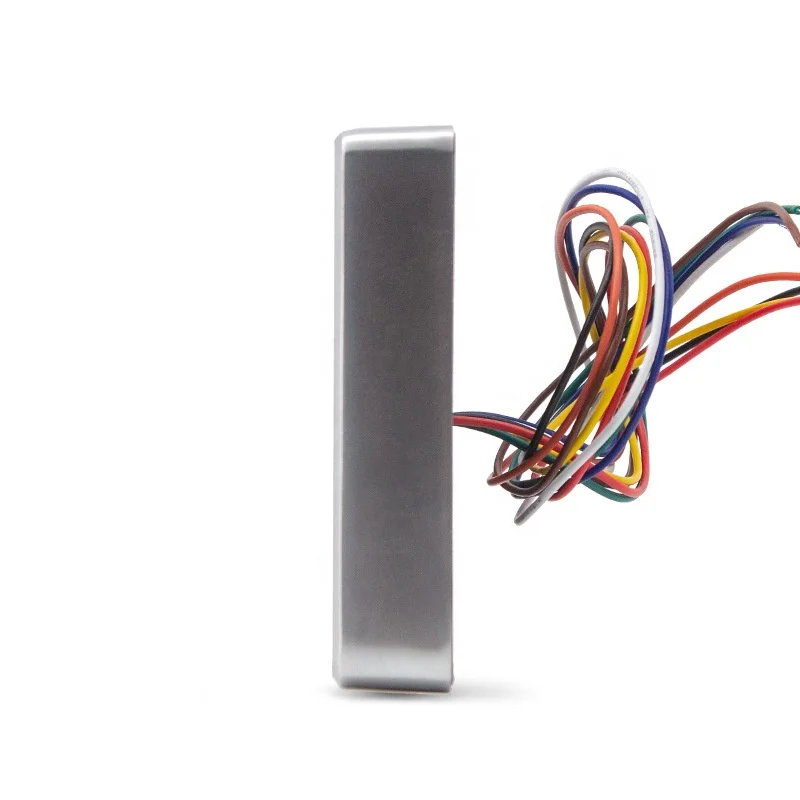

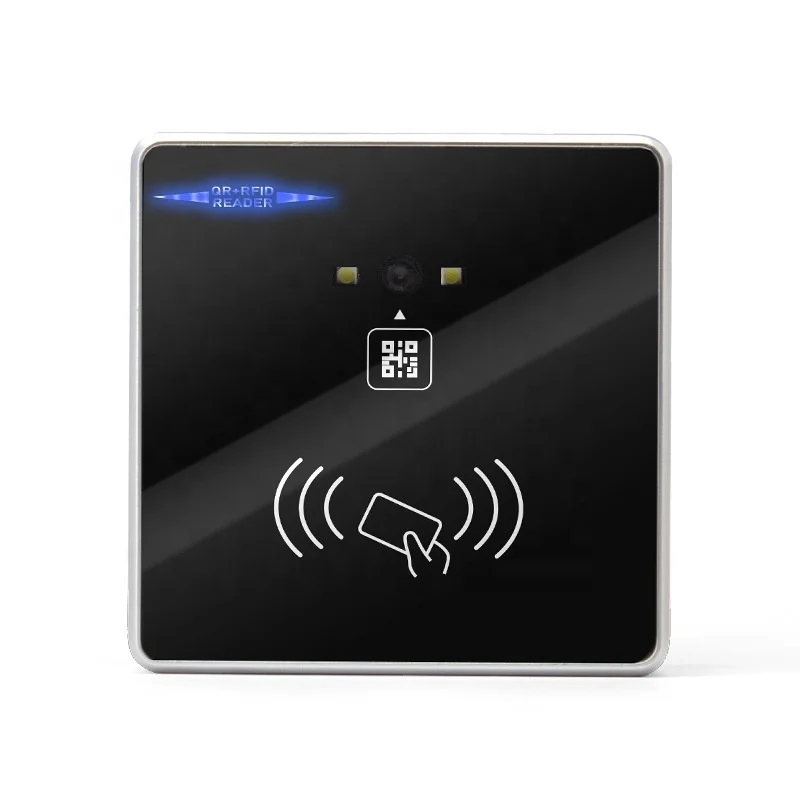

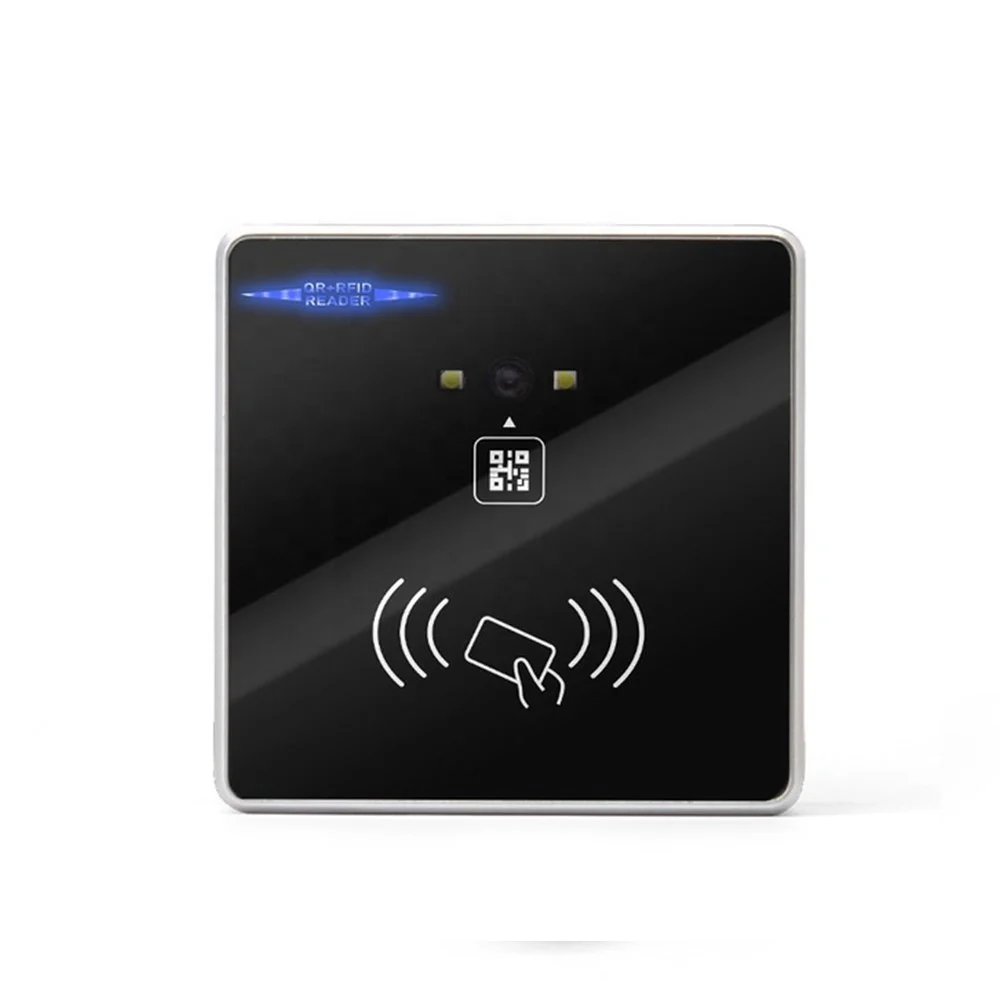

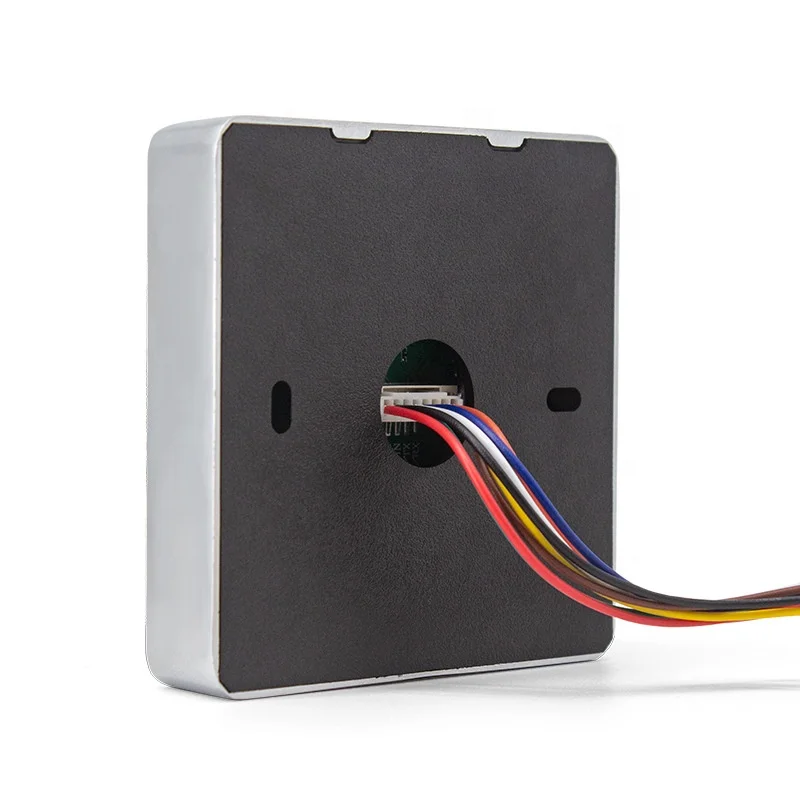

2D Wall Fix-mounted NFC QR Code Barcode Scanner Door Access Control 13.56MHz RFID Reader

Feature



1.Pixel resolution 640*480


2.Support 1D/2D barcode on paper and screen


3.Support EM or Mifare card


4.8-12V DC power


5.Support  wiegand/USB/RS232/RS485


6.Wall mounted installation method






Parameter



































































































































Barcode


Reading performance



Image Sensor



CMOS



Resolution



300 thousand  640*480pixels



Decoding capacity



Support paper and screen barcodes



2D: QR, PDF417,Data Matrix code etc.



1D:UPC-A, UPC-E, EAN-8, EAN-13, Code128,  Code39, Code93,


Code 11, Interleaved 2 of 5, Matrix 2 of 5, China post etc.



Barcode Density



8mil



Light Source



624nm Visible red LED



Scan Angle



Rotation360°,tilt±45°,skew±45°



Min Contrast



30%



Scanning Speed



200 times/s



Typical DOF



40-180mm(10mil code128) 45-200mm(20mil QR)


Performance may be impacted by bar code quality and environmental conditions



Card Reading Performance



RFID Frequency



13.56MHz or 125KHz



Card Type



EM card or Mifare card



Data format



Default 8 bit Hex(format customized, like 10 bit 10 system,10 bit Hex)



Reading Distance



30-60mm(depend on card type)



Reading Rate



106K/Bit



Reading Speed



0.1S



Interval



0.5S



Reading Time



≤100ms



Mechanical and electrical



Interface



USB(COM),RS232,RS485,Wiegand



Working Voltage



DC 8-12V



Current



800mA(working)



Dimensions



86mm×86mm×42mm



Weight



150g(NW)



Indication



Buzzer & LED



Environment Request



Operation System



XP WIN7/8/10 LINUX



Working Tem



-20~70℃



Storage Tem



-40~85℃



Humidity



5%-95%(Non-condensing)



Light Immunity



0~10,000Lux
