FTA спутниковый ТВ приемник H.265 10bit DVB S/S2/S2X тюнер с Wifi IPTV GTmedia V9
- Категория: Satellite TV Receivers >>>
- Поставщик: Shenzhen,Longsky,Technology,Innovation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 24.41 $* | 24.0 $* |
| Jul-18-2025 | 20.79 $* | 20.49 $* |
| Jun-18-2025 | 24.42 $* | 24.90 $* |
| May-18-2025 | 24.5 $* | 24.83 $* |
| Apr-18-2025 | 19.53 $* | 19.85 $* |
| Mar-18-2025 | 23.1 $* | 23.25 $* |
| Feb-18-2025 | 23.25 $* | 23.71 $* |
| Jan-18-2025 | 23.12 $* | 23.93 $* |
Характеристики

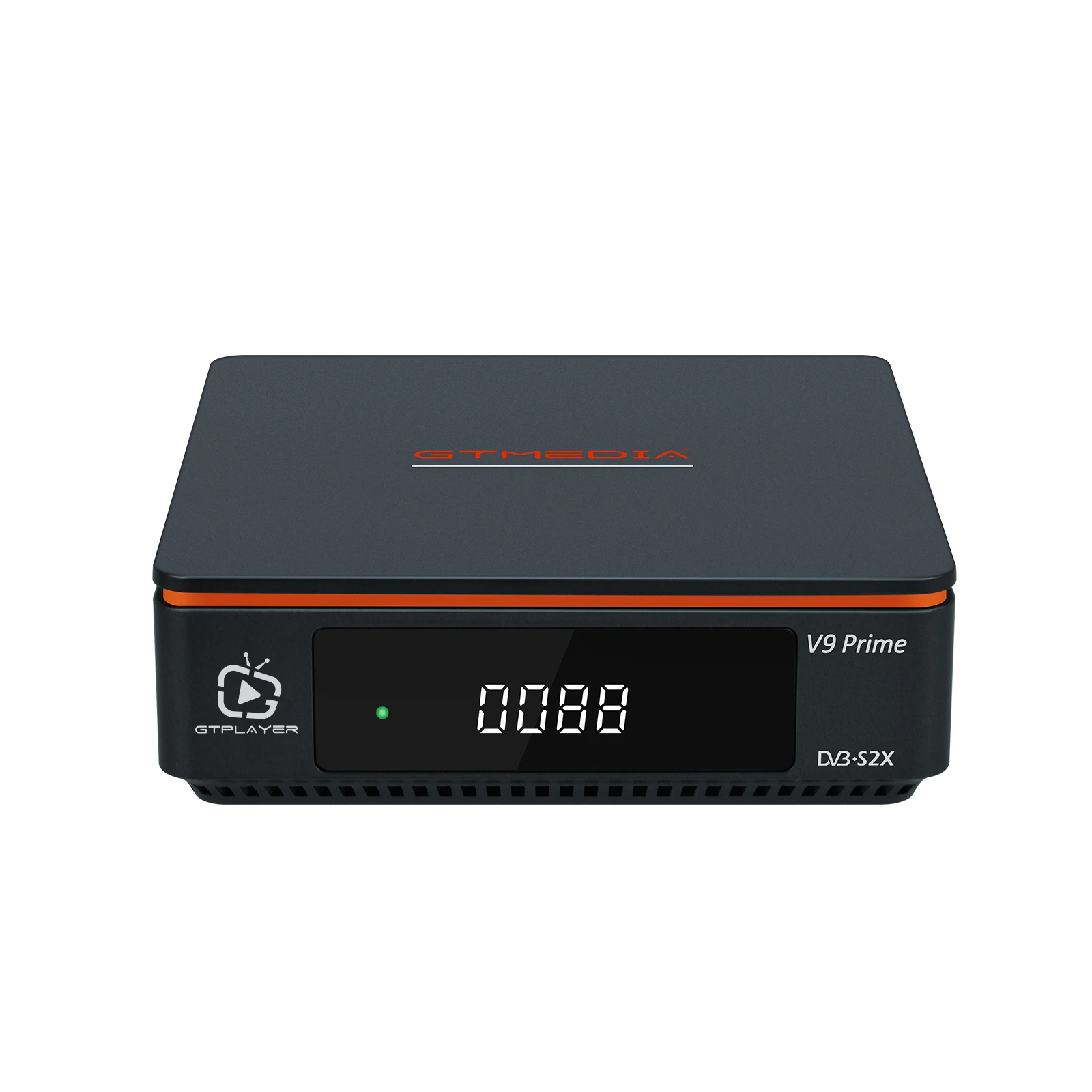

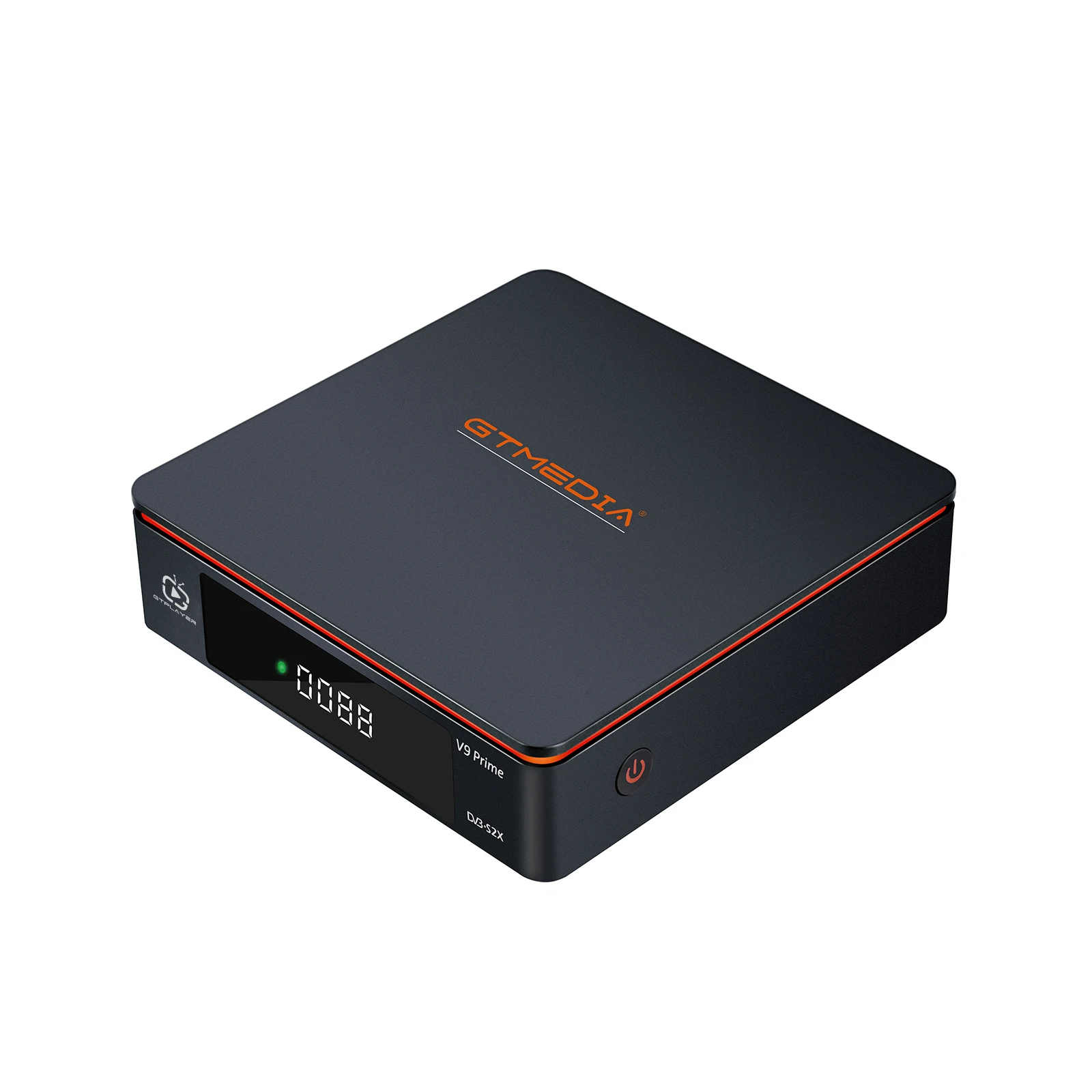

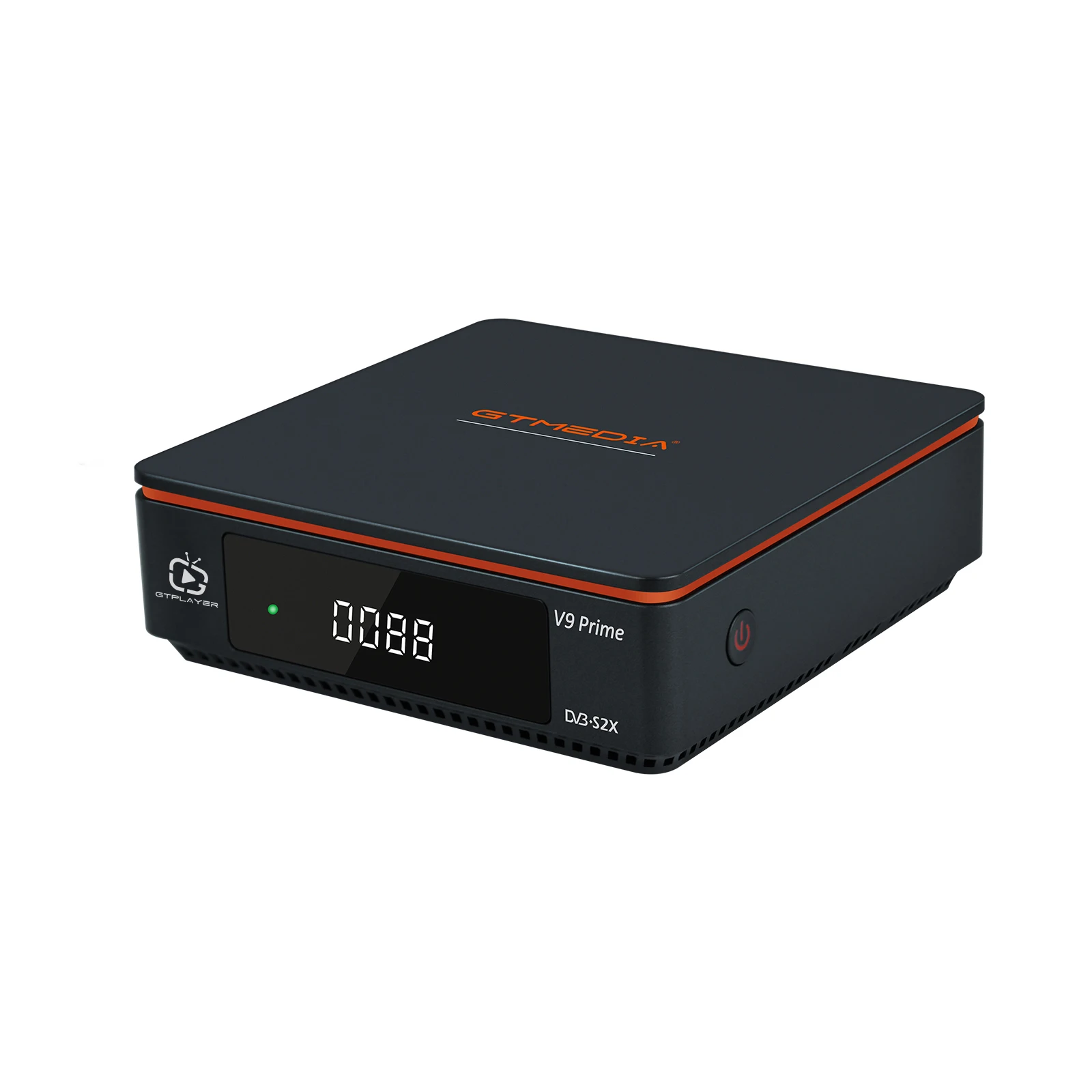

FTA satellite TV receiver H.265 10bit DVB S/S2/S2X Tuner With Wifi IPTV GTmedia V9 Prime
Product Description
Highlight
1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, HEVC main 10 profile, AVS+
2.Support BISS auto roll, Full PowerVu, DRE &Biss key;
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
4.Support SAT2IP by GTShare APK, DLNA;
5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G/4G usb dongle;
6.Support Online Movie (Youtube,Youporn,Hotstar), WebTV;
7.Support IPTV (Customize, xtream, stalker);
8.Support Network Sharing Cccam,Newcam,Mgcam;
| Main Chip Sets | CPU | 770MHz Dual Core | ||||
| Flash Memory | 64MB SPI Flash | |||||
| DDR3 Memory | 1G bit RAM | |||||
| TS Demux | Demultiplexer | ISO/IEC 13818-1 | ||||
| Input Bit Rate | Max 100Mbit/s | |||||
| Video Decode | Video Decode | HEVC main profile @ level 4.1 and main10 profile @ L4.1,High tier MPEG-2 MP @ ML H.264 BP,MP&HP @ L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile @ L5 VC1 SP @ ML, MP @ HL, AP @ L0-3 H263 baseline profile JPEG decoder | ||||
| TV System | Automatic PAL/NTSC conversion | |||||
| Aspect Mode | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||||
| Video effects | Standard, Default, Vivid. | |||||
| Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | |||||
| HDMI Color Space | RGB, YUV422, YUV444, Auto | |||||
| Audio Decode | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | ||||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||||
| Sampling Frequency | 32KHz,44.1KHz,48KHz | |||||
| Audio Out | LPCM Out, BS Out | |||||
| Hardware specifications | Panel display | 4-digit white LED display (Support function display) | ||||
| LED Indicator | Power ON :Green; Standby :Red | |||||
| Button | POWER | |||||
| Wifi | Built in 2.4G WiFi Support IEEE 802.1.1b/g/n | |||||
| IR | Exit IR for 38KHz,Infra Remote control | |||||

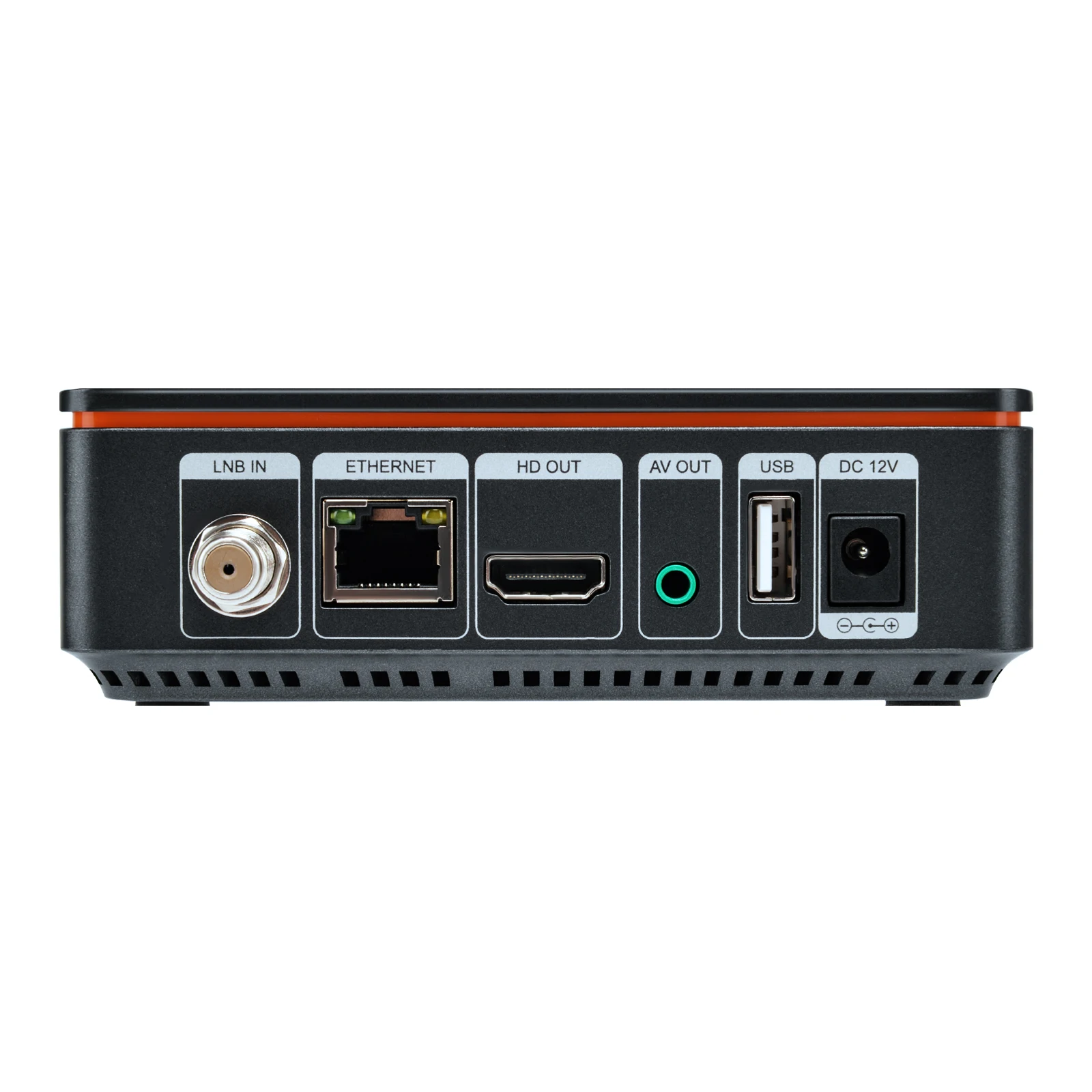

| Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | |||||
| HD OUT (up to 1080P) | ||||||
| AV OUT (3-pin 3.5 mm jack) | ||||||
| 1*USB HOST | ||||||
| 1*RJ45 | ||||||
| 1*CA Card | ||||||
| DC IN (DC12V/1.5A) | ||||||
| DVB-S/S2 specificati-ons | System standard | ETS 302 307 | ||||
| Frequency Range | 950~2150MHz for DVB-S/S2/S2X baseband demodulator | |||||
| LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, Overload Protection | |||||
| Input Level Range | -80dBm ~ -20dBm (average power) | |||||
| Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | |||||
| Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | |||||
| Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | |||||
| Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | |||||
| Roll-off factors | Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | |||||
| Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | |||||
| ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | |||||
| Sortware Features | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard | ||||
| Channel Search | Support automatic network search for new added transponders | |||||
| Channels Number | 6000+ channels TV and Radio programmable | |||||
| Channel | Recording one channel, can view another channel under the same TP, Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||||
| Favorites | 31 different favorite groups selection | |||||
| OSD Language | English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish, Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian ,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian. | |||||
| OSD Color | 32-bits OSD with anti-flickering | |||||
| OSD Setting | Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3. | |||||
| Other Setting | Sets up multiple habitual operation Settings | |||||
| Parental Ctrl | Parental control for channels | |||||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | |||||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||||
| Subtitle | support DVB EN300743 and EBU | |||||
| Teletext | support DVB ETS300472 by VBI | |||||
| SoftUpgrade | Software upgrades through USB port, or FTP upgrade. | |||||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||||
| USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | ||||
| PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | |||||
| Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | |||||
| Audio Codec | WMA,MP3 | |||||
| Photo Codec | JPG, BMP, PNG, GIF | |||||
| Packing | Product Dimension | 125*125*38MM(L*W*H) | ||||
| Packaged Size | 220*160*63MM | |||||
| Carton Size | 460*345*345MM (20pcs/ctn) | |||||
| Unit Weight | 0.63 Kg with gift box | |||||
| Carton Qty&Weight | 20 pcs/Carton, 13 kgs | |||||

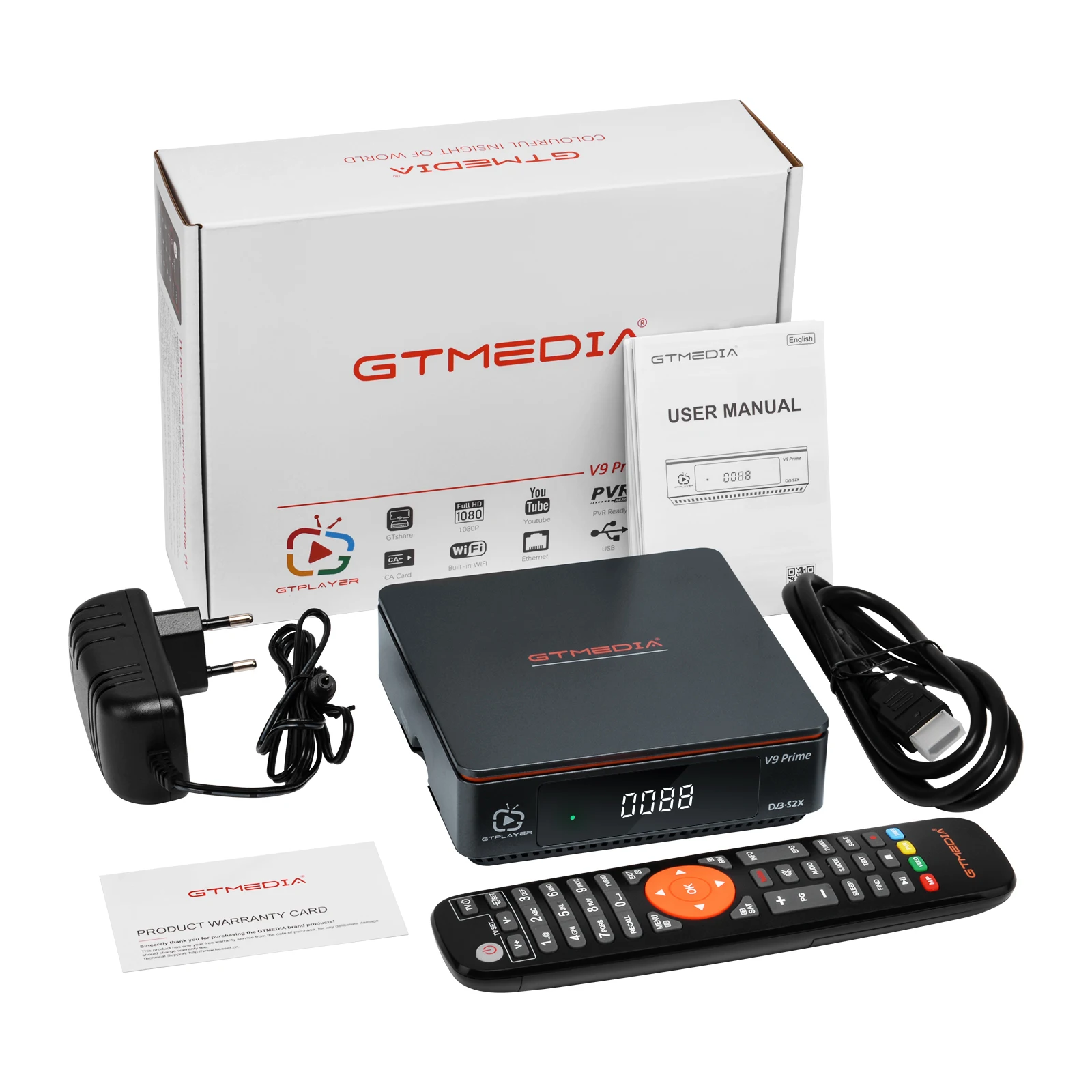

| Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card | |||||
| Physicals | Power Supply | AC 100V ~250V, 50/60Hz | ||||
| Power Consumption | 10W in operation <1 W Standby Power Mode | |||||
| Temperature | Operation 0~+45℃; Storage -10~+60℃ | |||||
| Humidity | 20~90%, non-condensed | |||||
Company Information
Shenzhen Longsky Technology Innovation Co., Ltd.is a professional multimedia video products manufacturer. Our main products is Android TV Box, Smart tv box, Set top box, Network Player, Mini PC and Network Camera.There have more than 100 workers for production15-20 engineers in the R&D department . The QC team is composed of skilled engineers and technicians.covers all process of production from the material, production, and finished product testing.
SMT Line
Assembly line and Quality Control Ensure all products are in good condition when customer get it
Warehouse, Fast shipping
Our Services
1. Experienced R & D team to Support OEM/ODM
OEM: Logo printing (silk screening or gold blocking) Customized package Software Customization: Booting image, UI, APP, Function… and so on
ODM: PCBA desgin Housing desgin Software Customization
2. Professional after-sales service.
3. Strict test before shipment.
Packaging & Shipping
1.Delivery: Send out immidately after your payment
2.By DHL: 3-5days
3.By Fedex:3-7days
4.By Euexp:7-11 days(special Europe shipping way, especial for safe for Germany & Switzerland & Portugal & Czech Republic & Slovakia)
5.Payment:Accept Paypal/Western Union/Moneygram/TT/ Escrow
FAQ
Q1: What is your minimum order quantity?
A: Generally 10pcs. 500pcs or 1000pcs for OEM/ODM service, Sample order is acceptable.
Q2: How long can i get the boxes?
A2: Quantity less then 100pcs will be shipped within 3 working days 15-25 working days for OEM/ODM orders, And it will take another 3-7days to reach you by DHL,UPS,FEDEX,TNT...etc.
Q3: What is the warranty of your products?
A: We provide 12 months warranty, if you have any question, please contact us and tell us about the problem. First we will try to help you to fix it on your side, Secondly, you can send the broken PCBA back to us, we will send you a new one.
Q4: What payment methods do you accept?
A: We accept T/T, Paypal, Western Union and Trade Assurance order on Alibaba.
Q5: What can you do for my OEM/ODM orders?
A: We can put your logo on the customized boxes, software, UI, and packages.
