Переходник со штекера SMA на гнездо BNC
- Категория: Coaxial Connectors (RF) >>>
- Поставщик: Dongguan,ANNXIN,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.42 $* | 1.63 $* |
| Jul-17-2025 | 1.33 $* | 1.27 $* |
| Jun-17-2025 | 1.66 $* | 1.54 $* |
| May-17-2025 | 1.72 $* | 1.76 $* |
| Apr-17-2025 | 1.12 $* | 1.54 $* |
| Mar-17-2025 | 1.54 $* | 1.89 $* |
| Feb-17-2025 | 1.94 $* | 1.54 $* |
| Jan-17-2025 | 1.47 $* | 1.42 $* |
Характеристики

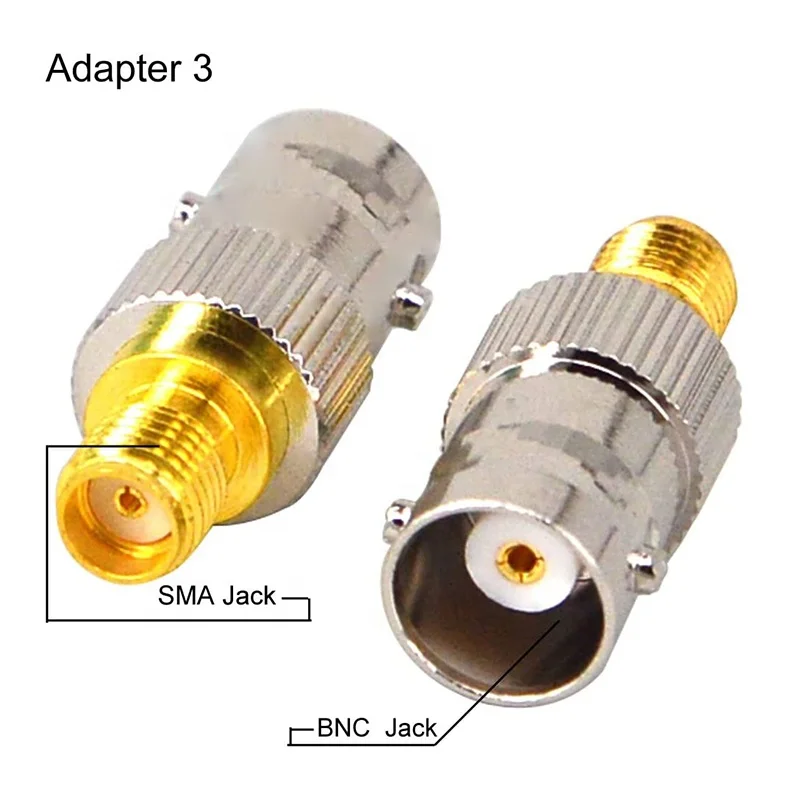

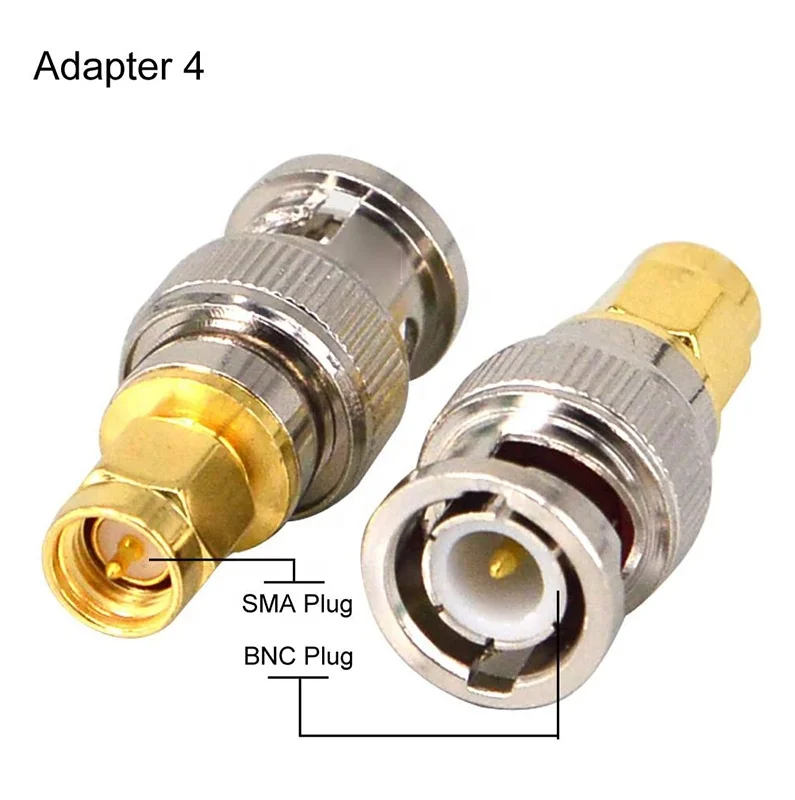

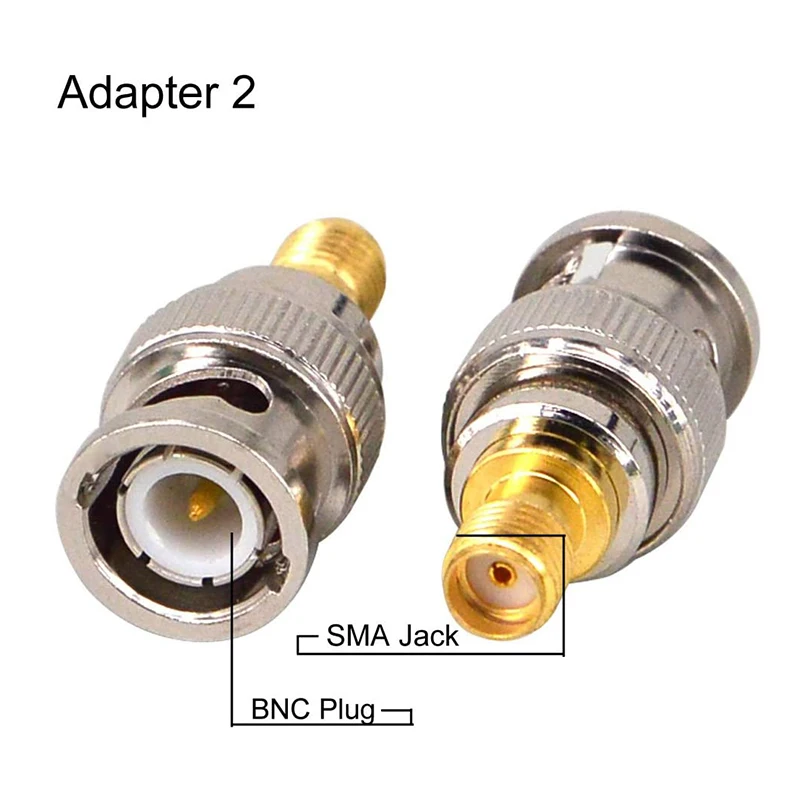

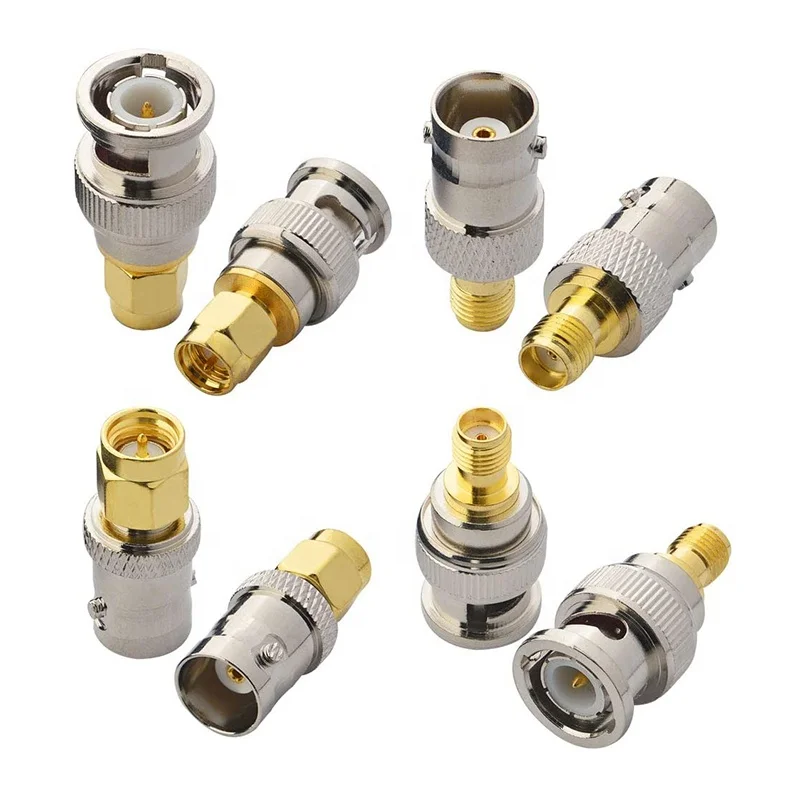

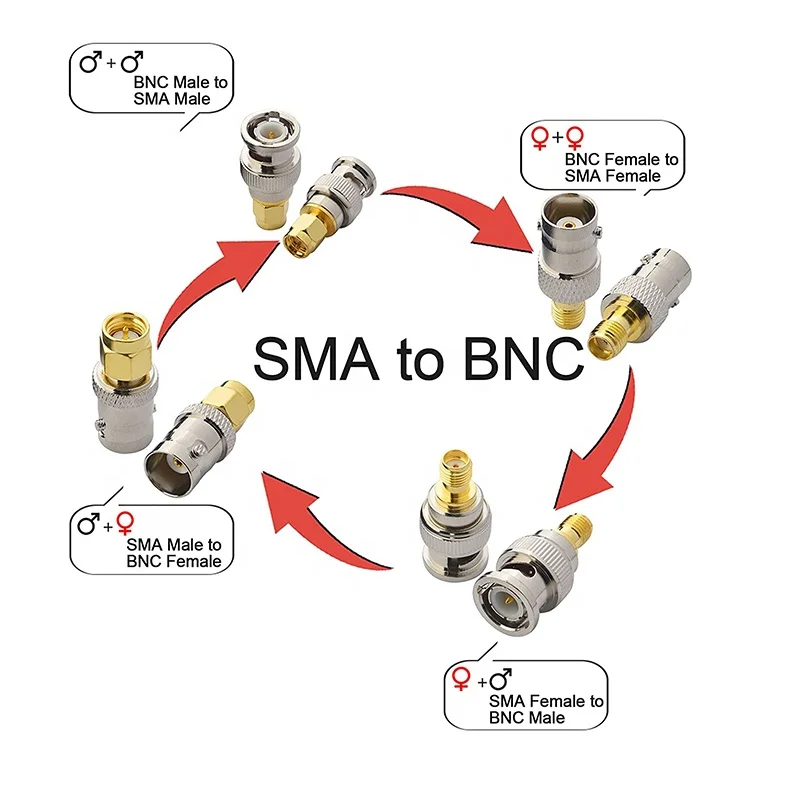

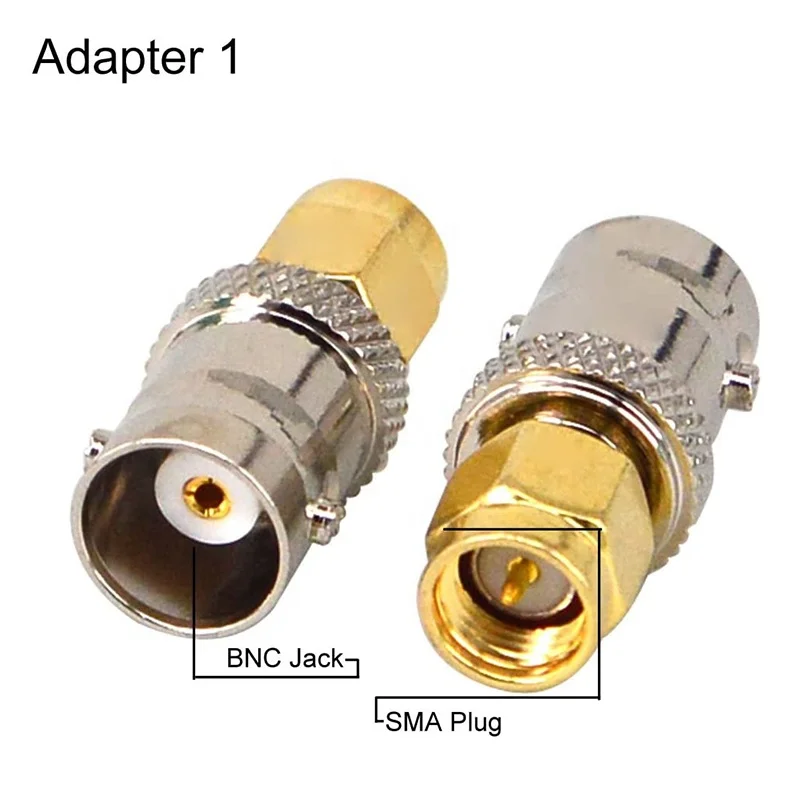

Panelmounted SMA Male To BNC Female Rf Adapter,BNC Male To SMA Female,BNC Female To SMA Female Adapter
Product Description
Temperature range | -40~+85°C |
Vibration | 100m/s2 (10~500Hz) |
Impedance | 50 OHM |
Frequency Range | DC – 11GHz |
Working Voltage | 2700V max |
Break-down Voltage | 4000V rms @ sea level |
Contact resistance | ≤0.4 OHM @ inner contact |
Average power | 3KW max |
Insulation resistance | ≥10000M OHM |
VSWR | ≤ 1.10 |
Durability (mating) | ≥500 (cycles) |
Material & Plating
Body | Brass | Nickel plated / Alloy plated |
Inner Pin | Brass | Gold plated |
Resilient Contact | Beryllium Copper | Gold plated |
Socket Contact | Beryllium or tin bronze | Gold plated |
Insulator | PTFE |
|
Crimp Ferrule | Copper alloy | Nickel / Gold plated |
O-ring sealing | Silicone Rubber |
Detailed Images
Buyer Feedback
Product Uses
Related Products
Company Information
Packaging & Shipping
FAQ
| 1 Q: What is you brand ? |
| A: Our brand is ANNXIN&HQAT. |
| 2 Q: Can I choose a different connector? |
| A: We can customize different connector according to your requirements. |
| 3 Q: Can you provide customization? |
A: Of course. Personalized designs of the products according to customer's requirements are welcomed. |
| 4 Q: How can I get the sample to check your quality? |
A:After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight. |
| 5 Q: How much the shipping cost will be for sample ? |
| A: It depends on the specific weight and packing size of the goods.To USA 0.5kgs cost USD20. |
| 6 Q: What can I get the price? |
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority. |
| 7 Q: What's your MOQ? |
| A: In generally, we will ask at least 100pcs for the Antenna, which we can make further negotiation. |
| 8 Q: What is your term of delivery? |
A: We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you. |
| 9 Q: What about the lead time for the mass production? |
| A: Honestly, it depends on the order quantity and the season you place the order. |
