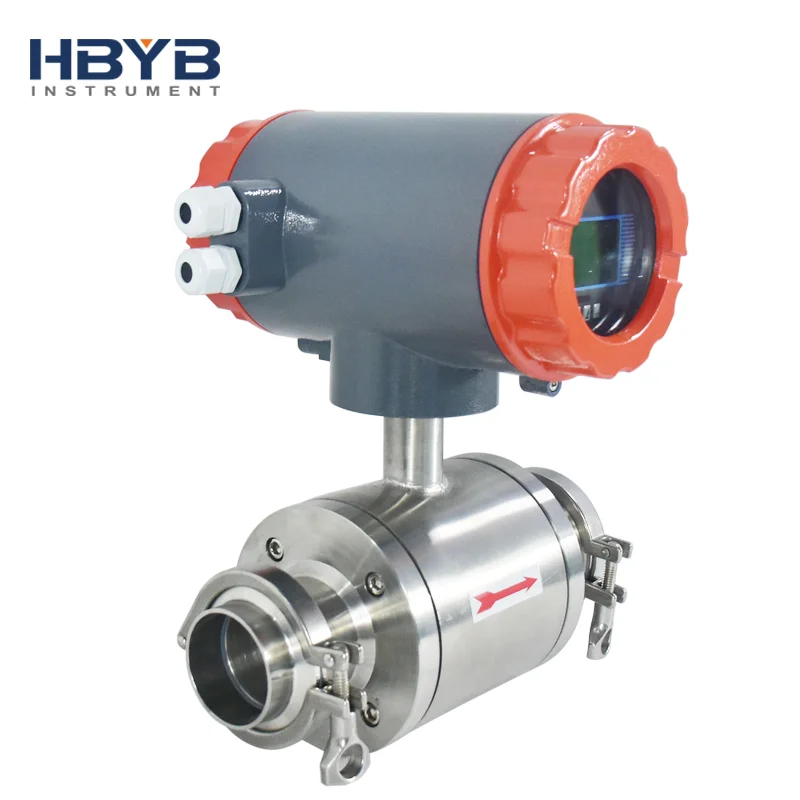

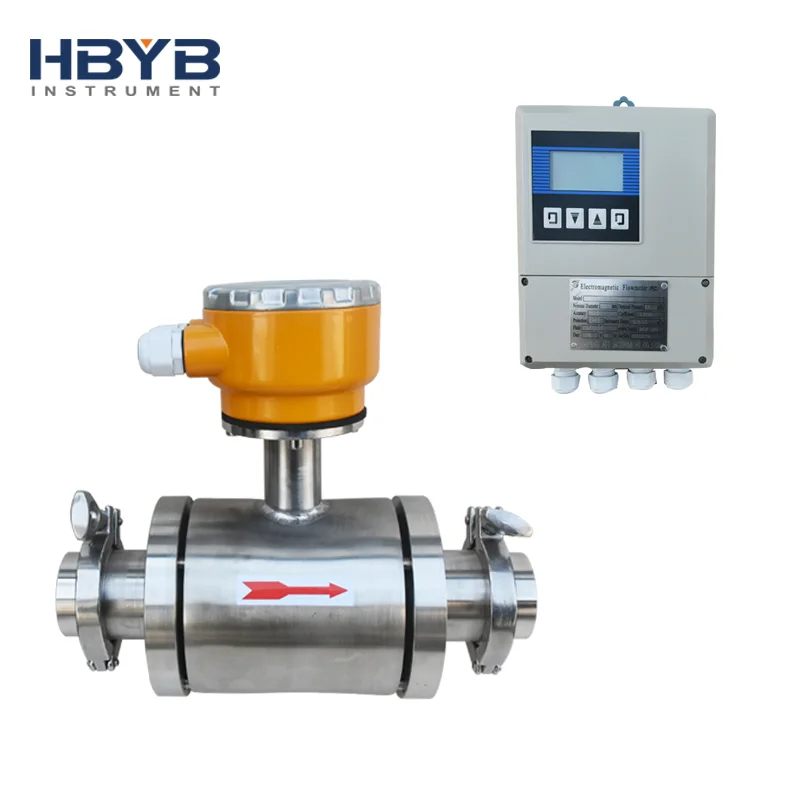

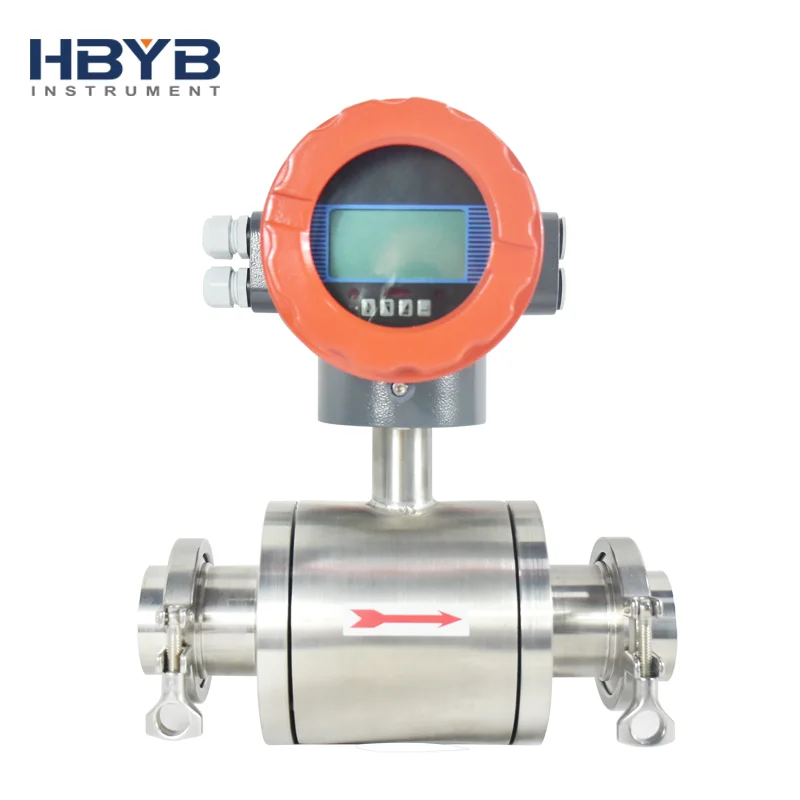

Features of clamp type electromagnetic flowmeter:
1.Suitable for food and beverage industry 2.Food grade lining, material can choose 304SS, 316L high quality stainless steel
3. Can quantitatively control pumps or valves
————————Technical parameter————
![]() | Applicable medium | Food and wine industry |
Caliber range | DN15-DN200 | |
Lining type | PTFE,F46,PFA | |
Electrode type | 316L,HaB,HaC,titanium,tantalum,platinum- iridium alloy,stainless steel tungsten carbide | |
Pressure range | 0.6-4.0Mpa | |
Temperature resistance | -25~80℃ | |
Accuracy | ±0.5% | |
Protection level | Sensor IP65\\IP67\\IP68 (optional), converter IP65 | |
Output type | Frequency, pulse, 4-20mA, RS485, Modbus protocol; Hart;protocol (optional), Profibus DP (optional) | |
Power supply | 85~250V, 45~63Hz, 20VDC --- 36VDC |

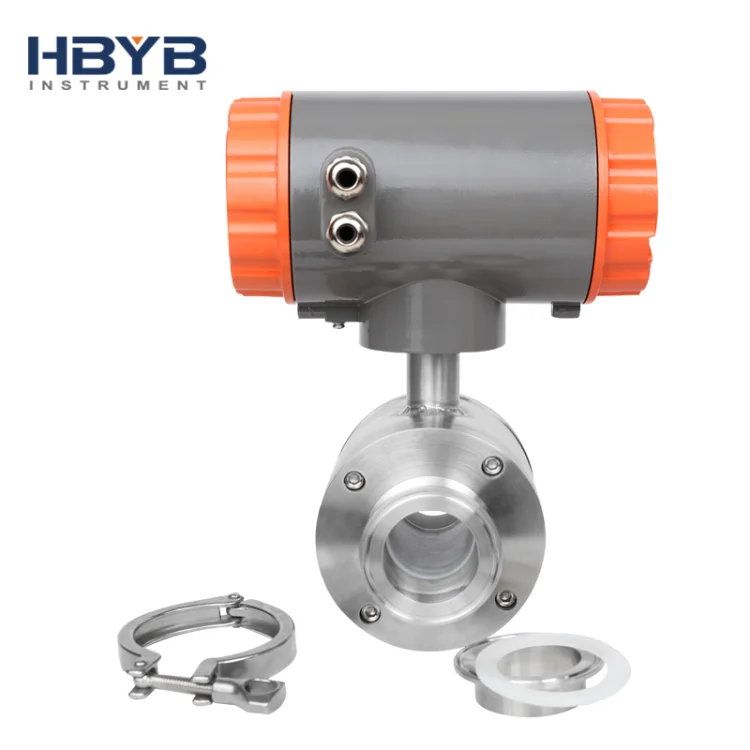

Clamp Connection Sensor Size:
Nominal diameter(DN) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 |
L(mm) PTFE/F46/PFA | 267 | 267 | 267 | 267 | 267 | 267 | 287 | 287 | 287 | 287 |
H(mm)
| 320 | 320 | 330 | 340 | 345 | 345 | 360 | 380 | 400 | 430 |
W(mm)
| 105 | 115 | 115 | 125 | 130 | 130 | 145 | 165 | 185 | 215 |
D(mm)
| 50.5 | 50.5 | 50.5 | 50.5 | 64 | 77.5 | 91 | 106 | 119 | 145 |
d1(mm)
| 19.05 | 25.4 | 34.8 | 34 | 45 | 57 | 70 | 85 | 108 | 133 |
d2(mm)
| 16.05 | 22.4 | 28.8 | 31 | 42 | 53 | 66 | 81 | 104 | 128 |
L1(mm)
| 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |

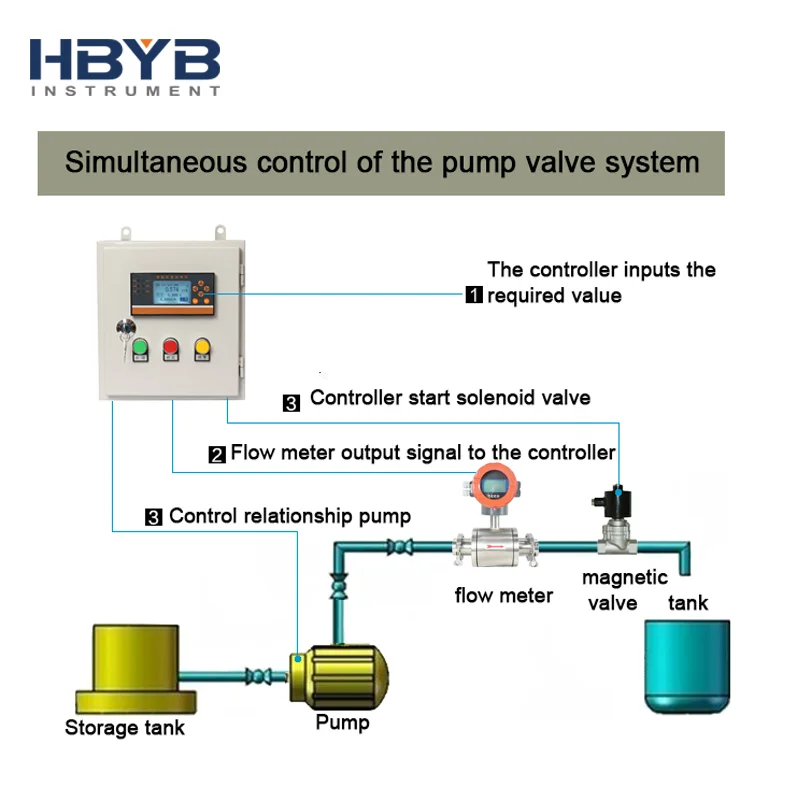

Quantitative control system solution:
1. Are you a manufacturer?
---We are manufacturer with 10 years experience!Welcome to visit our factory at any time.
2. How about the delivery time ?
---Around 3 working days for standard products. For customized orders, it takes about 10-15 days.
3. Do you accept OEM business?
---We do OEM .
4.Do you have ISO certificate?
--- Yes, we have ISO, also CE, and Calibrate certificate.
