OK006 автоматическая машина для взвешивания жидких смазочных материалов производственная линия большого объема


Поделиться:


Цена:23 500,00 $ - 25 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 27965.5 $* 29363.27 $*
Aug-18-2025 27730.76 $* 29117.66 $*
Jul-18-2025 23265.92 $* 24428.45 $*
Jun-18-2025 27260.17 $* 28623.33 $*
May-18-2025 23735.83 $* 24922.71 $*
Apr-18-2025 26790.99 $* 28130.76 $*
Mar-18-2025 26555.73 $* 27883.28 $*
Feb-18-2025 26320.71 $* 27636.59 $*
Jan-18-2025 26085.20 $* 27389.95 $*

Характеристики


Full-auto linear weight type filling machine





This equipment is fully automatic weighing and filling machine. It integrates light, machine, electricity and gas. PLC control system combined with weighing feedback system, with a fixed flow parameters, with large flow control close to the target, achieve supplement with small flow rate measuring filling, control the time of filling and to implement different measuring filling. The ball screw is adopted to dive, and the filling is more stable. The filling process is controlled by PLC program and completed on the touch screen. It has stable and reliable operation, high production efficiency, strong regulation and high filling precision. This machine meets GMP requirement.















































Electric component:



Touch screen



SIEMENS



PLC



SIEMENS



Weighing sensor



Gento technology



Weight indicator



Gento technology



Solenoid valve



AIRTAC



Airsource treatment



AIRTAC



Electro-Optic Systems



AUTONICS



Switch



SIEMENS



Material



SUS316(the part which touch with oil),SUS304

















Automatic capping  machine


The control system has the function of control producing speed, cap shortage detection, bottle  block auto stop and production counting.The machine applies a highly effective cap arranging system that has complete self control and protective device


 Characteristic:


The models and design new ideas by modular flexible, applicable to a variety of bottles and caps.


And simply adjusting, simple operation, easy maintenance.


An initial capping rotation, the rotary torque for each of the two groups, the size can be adjusted independently, can freely adjust the tightness of the screw cap.


Relating to the bottle, the bottle clamping speed adjustable, optional two group type bottle clamping rail, the high bottle or unstable containers for.


An electromagnetic vibration or pneumatic sealing, suitable for a variety of bottle cap. More practical. The operation space of the slide cover track is large and is convenient to adjust.


So the storage tank can cover for continuous cover, adjustable base and gate control for cover.


As the continuous operation, complete automatic production, save time, improve efficiency.







 Photos

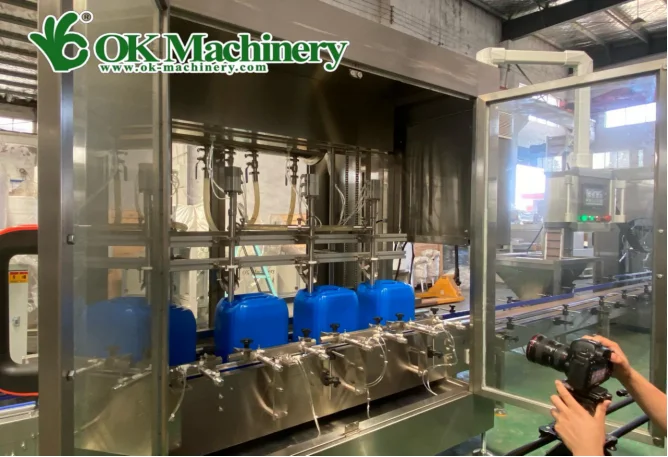

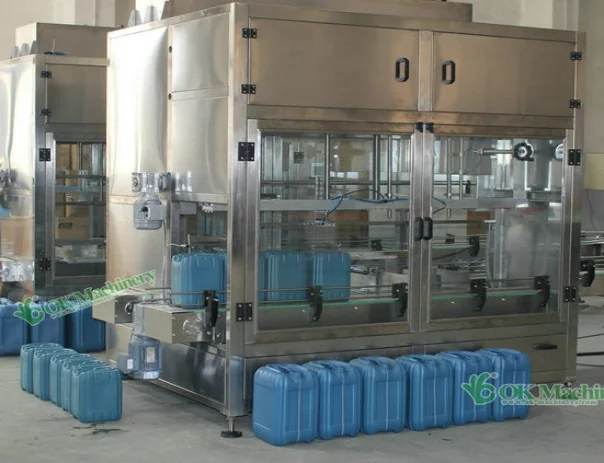

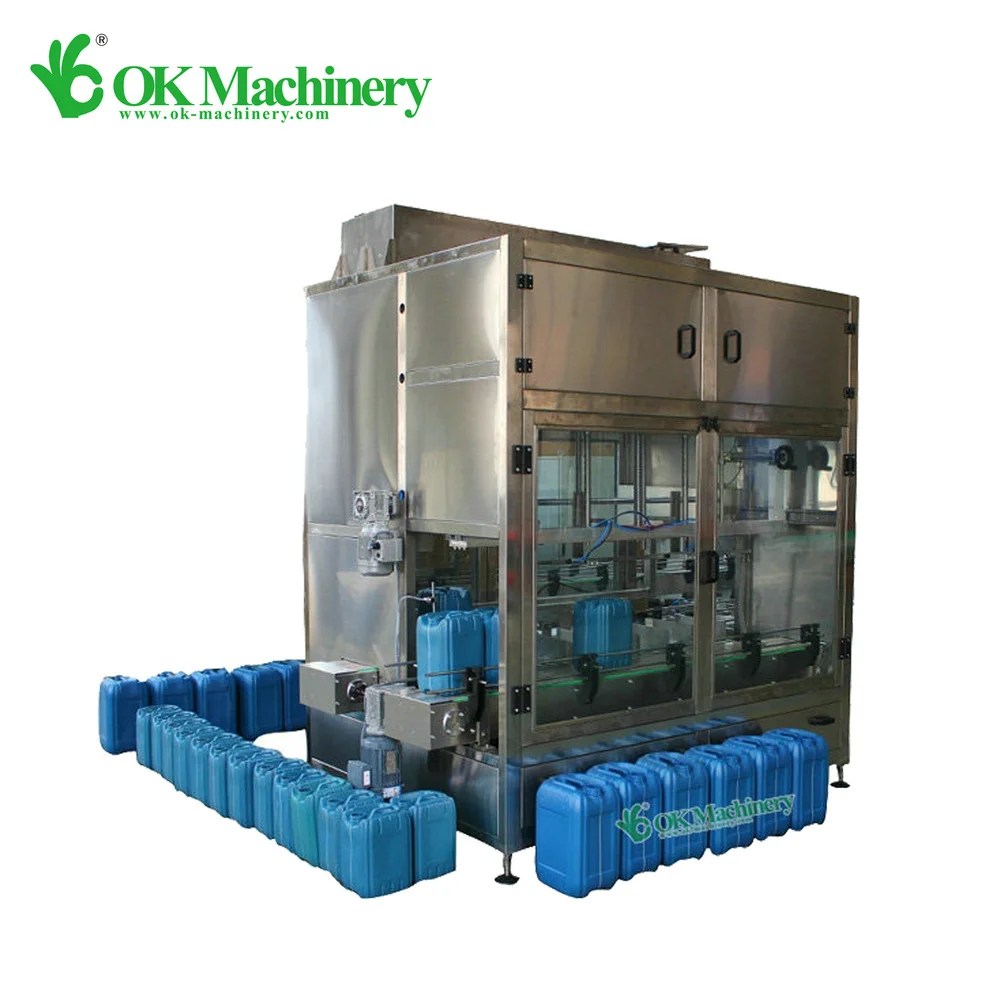

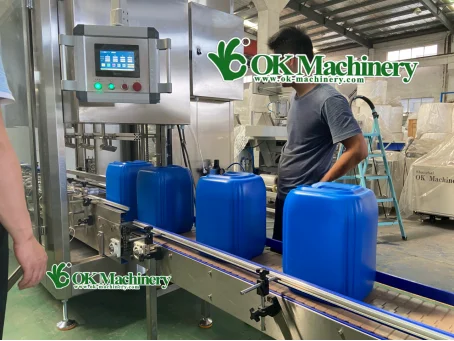

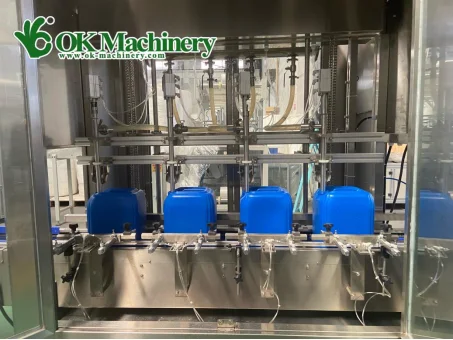

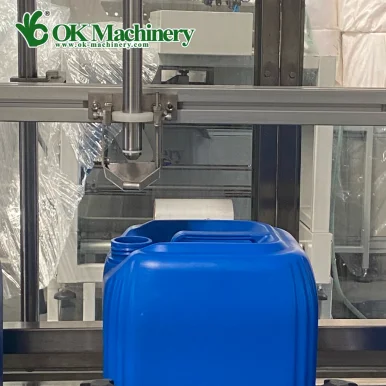

5l oil filling line






Company Information


Shanghai OK Machinery Co.,Ltd is located on Zhangjiagang City,Jiangsu Province with  rich experience in the field of bottling packaging line ,that makes us not only become the industry expert but also have professional skill more than 20 years. So far we have provided more than 1000 water filling lines for more than 90 countries in the world. We will always keep researching and innovating in the fastest-growing market and make sure us and our customer to be the leader of our industry.OK Machine as beverage packing machinery manufacture has supplied excellent equipments and perfect service for many customers worldwide.








FAQ


FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.





Our Services


After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.


2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video
BKCC01 Automatic water filling line plant/water filling production line/water filling machine
