Считыватель штрих-кода SmartMore QR 2D беспроводной сканер промышленного дальнего действия с быстрой скоростью под
- Категория: Scanners >>>
- Поставщик: SmartMore,Corporation,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 666.24 $* | 699.91 $* |
| Aug-18-2025 | 661.24 $* | 694.67 $* |
| Jul-18-2025 | 554.19 $* | 582.39 $* |
| Jun-18-2025 | 650.45 $* | 683.21 $* |
| May-18-2025 | 566.23 $* | 594.18 $* |
| Apr-18-2025 | 638.60 $* | 670.59 $* |
| Mar-18-2025 | 633.80 $* | 665.87 $* |
| Feb-18-2025 | 627.40 $* | 658.33 $* |
| Jan-18-2025 | 622.86 $* | 653.93 $* |
Характеристики
Specification
Product Name | High Speed Industrial Code Scanner 1D/2D/QR Barcode Reader |
Resolution (HxV) | 1280*800 |
Frame Rate (fps) | 45 |
Image Type | Monochrome |
Input Control | 2 Input Controls，Software Controllable. Optical Isolator NPN-type. |
Output Control | 3 Output Controls, Software Controllable. Optical Isolator NPN-type. Max Rated Voltage 30VDC；Max Rated Current：50mA |
Field of View | Horizontal 38.5°，Vertical 25.2° |
Angular Range | 360° Rotation；+-50° (pitch)；+-50° (skew) |

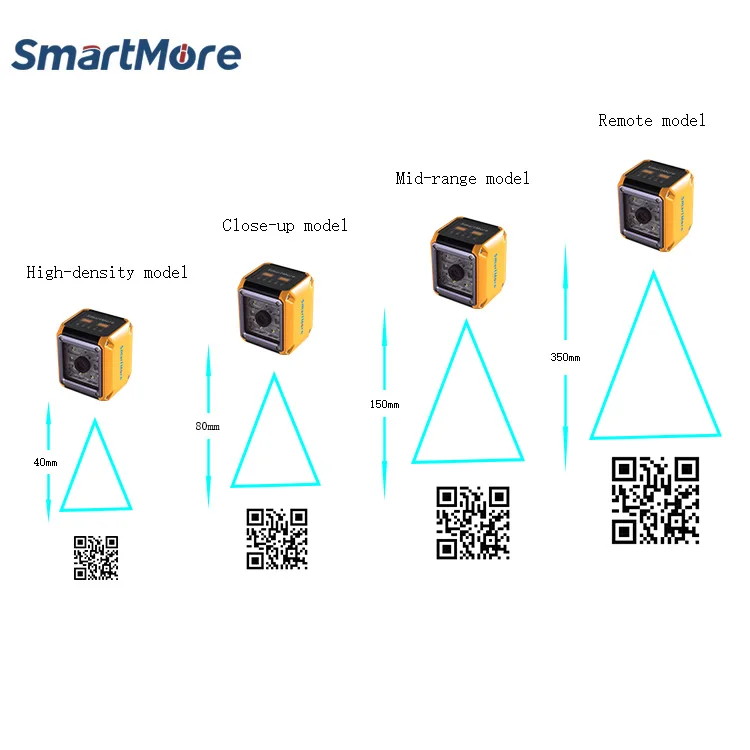

Camera | High Density，Short-Range，Mid-Range，Long-Range |
Light Source | Red LED，White LED，Integrated Lighting System (ILS)* |
Reading Precision | 1D ≥ 0.03mm；2D ≥ 0.02mm |
Position Indicator | Aiming Light locating the center of the Code Scanning region. |
Status Indicator | Five LED status indicator |
1D Code Support | 1D code:EAN-13,Code128,Code93,Interleaved 2 of 5, Code 39 |
2D Code Support | 2D code: DataMatrix, QR code |
Stacked Code Support | PDF 417, MicroPDF417,EAN.UCC Composite，GS1 Databar |
Communications | USB、RS232(TTL232)、Ethernet（10M/100M/1000M） |
Power | 24V+/-10% |
Power Consumption | 5W |
Dimensions | 52mm*51mm*69mm |
Weight | 220g |
Operating temperature | 0°C - 45°C |
Storage temperature | -20°C - 70°C |
Operating and storage Humidity | 5% - 95% (non-condensing) |
Protection | IP65 |
Approvals (CE, FCC) | Yes |
3C Certified | Yes |
Warranty(Year) | 1-Year |
Packing | Packing |
Products Description
Application
Recommend Products
Company Profile
SmartMore
SmartMore is the industry's leading next-generation visual AI platform company. The core team of the company has been deeply
involved in the field of computer vision for more than 20 years, with the ability of algorithm, application, engineering and chip
four-in-one solutions, providing the industry with end-to-end visual AI full-stack services. Currently, SmartMore has branches in
Shenzhen, Beijing, Shanghai, Hong Kong, Suzhou and Tokyo, Japan.
The company has established cooperative relations with more than 100 world-renowned enterprises and institutions such as Zeiss,
Procter & Gamble, Unilever, Airbus, Luxshare Precision, BYD, Bosch, JINGdong Cloud, OPPO, TCL and so on.
involved in the field of computer vision for more than 20 years, with the ability of algorithm, application, engineering and chip
four-in-one solutions, providing the industry with end-to-end visual AI full-stack services. Currently, SmartMore has branches in
Shenzhen, Beijing, Shanghai, Hong Kong, Suzhou and Tokyo, Japan.
The company has established cooperative relations with more than 100 world-renowned enterprises and institutions such as Zeiss,
Procter & Gamble, Unilever, Airbus, Luxshare Precision, BYD, Bosch, JINGdong Cloud, OPPO, TCL and so on.
Logistics and payment methods
FAQ
Q：Are you manufacturer?
A：Yes, we are manufacturers.
Q：What is the minimum order?
A：We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q：What is the payment method?
A：We accept paypal ,accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
Q：Which way to deliver the goods?
A：By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers
Please confirm with us before placing an order.
A：Yes, we are manufacturers.
Q：What is the minimum order?
A：We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q：What is the payment method?
A：We accept paypal ,accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
Q：Which way to deliver the goods?
A：By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers
Please confirm with us before placing an order.
