Product Description

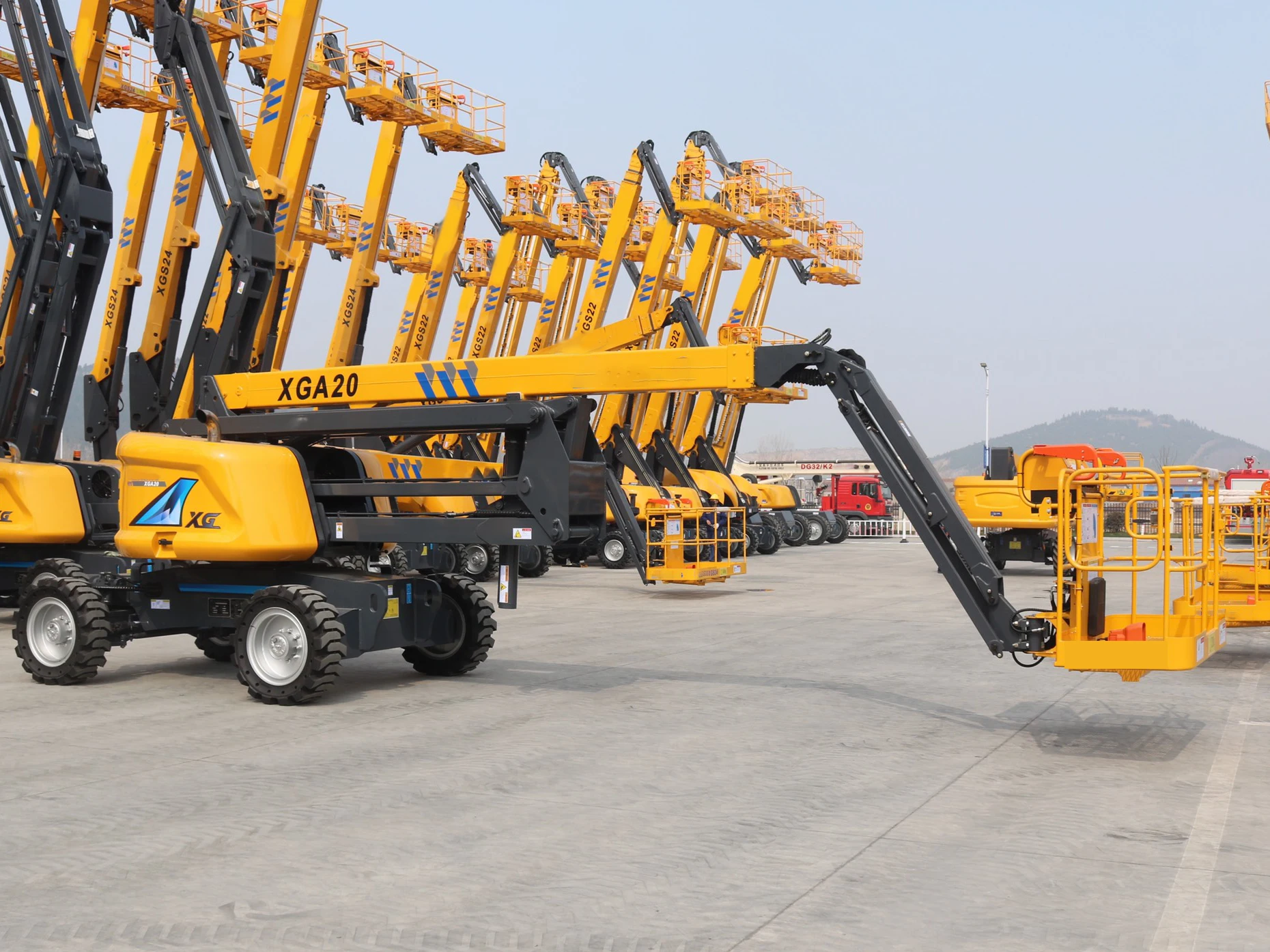

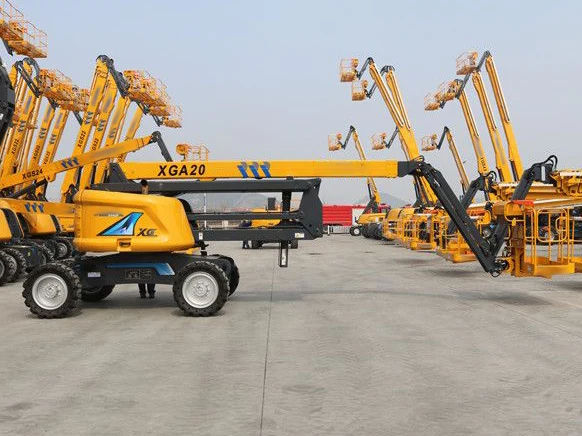

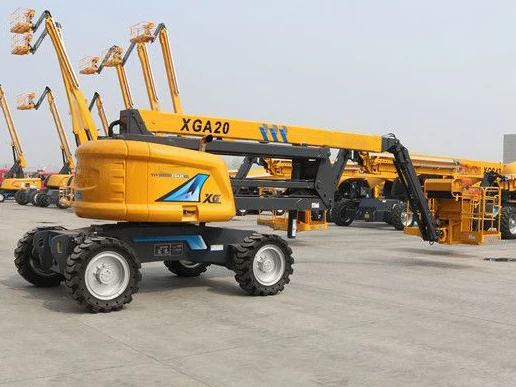

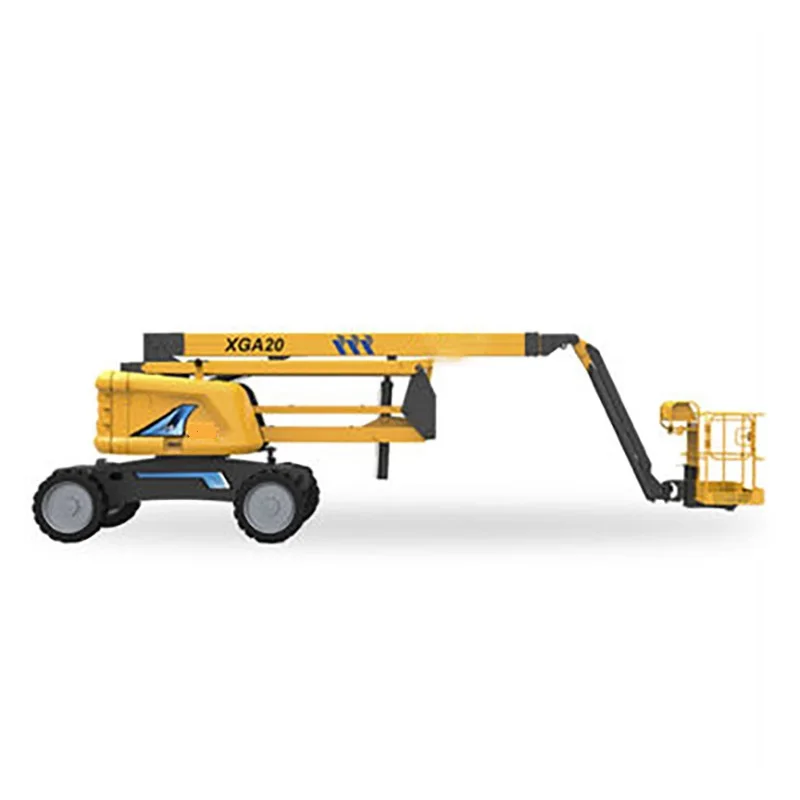

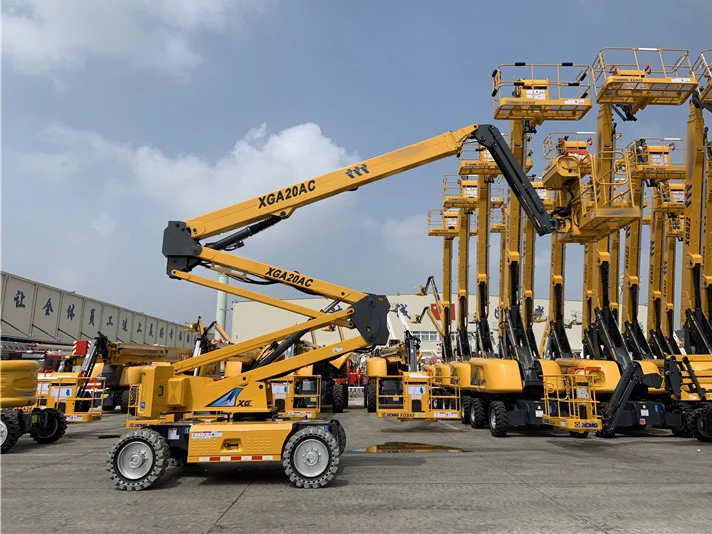

20m articulated mobile elevating work platform features compact composition, obstacle-crossing, precise control, powerful driving and easy operation.

The machine is simple, efficient, safe and reliable, meeting demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.

Advantages and highlights:
* Upwards, downwards and crossed multi-directional precise position and excellent extension

* The electrical system makes use of the distributed PLC-control technologies and the proportional valve being of self-adaptation method, leading the products in the terms of adaptability.

* Full-hydraulic drive, turntable free slewing by 360°, limitless angle in full work range, easy operation, reliable.

* 4WD drive, off-road wide tires and axle-balancing device enable the machine to be excellently suitable for any terrain, with gradeability up to 45% ranking the top in industry.

* The complete vehicle is compact. Before transportation, the crank is retracted back, shortening the transportation length to only 7m.

* Zero tail swing design could facilitate the entering of narrow room and the storage.

Item	Unit	Parameter
Overall length of complete machine	mm	9080
Overall width of complete machine	mm	2490
Overall height	mm	2680
Wheelbase	mm	2500
Max. working height	m	20.4
Max. platform height	m	18.4
Max. working range	m	11.9
Max. carrying weight	kg	230
Scope of luffing of No.1 arm	°	0~+70
Scope of luffing of Boom No.2	°	0~+75
Crank arm luffing range	°	-65~70
Slewing angle of turntable	°	360
Max. Tail swing	mm	0
Dimension of platform	mm	1830×760×1150
Slewing angle of platform	°	160
Overall weight	kg	10600
Max. traveling speed	km/h	6
Min. turning radius	m	6
Min. ground clearance	mm	230
Max. gradeability	%	45
Specification of tire		355/55D625
Engine model		Per kins 404D-22
Engine rated power	kW/(r/min)	38/(3000)
