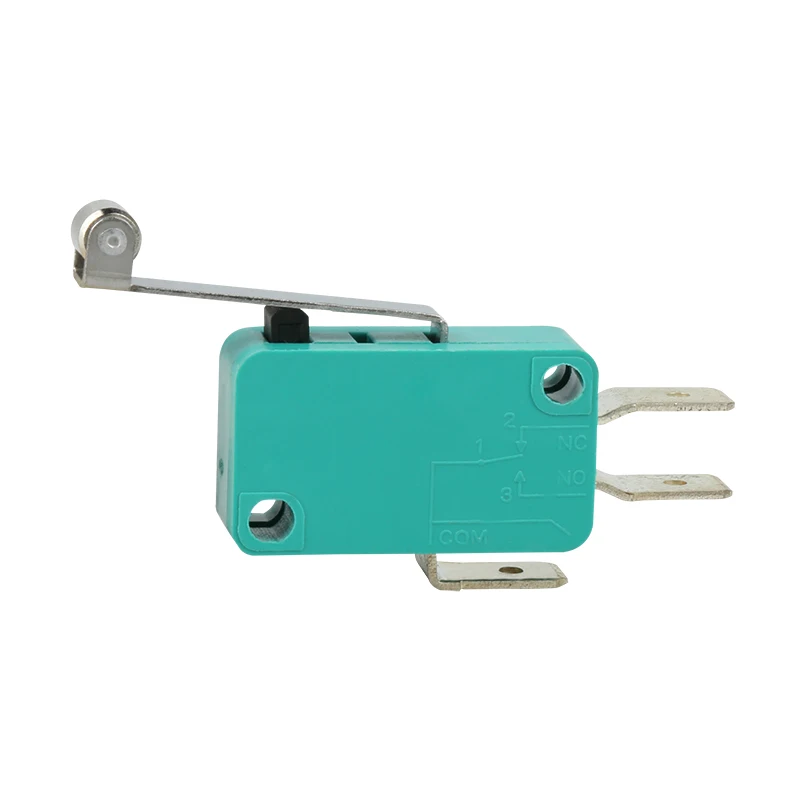

Микро концевой выключатель с коротким шарнирным роликом мгновенное действие spdt snap для
- Категория: Micro Switches >>>
- Поставщик: Shenzhen,Hongming,Qiang,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.77 $* | 0.72 $* |
| Aug-19-2025 | 0.50 $* | 0.7 $* |
| Jul-19-2025 | 0.1 $* | 0.94 $* |
| Jun-19-2025 | 0.3 $* | 0.18 $* |
| May-19-2025 | 0.77 $* | 0.75 $* |
| Apr-19-2025 | 0.98 $* | 0.59 $* |
| Mar-19-2025 | 0.69 $* | 0.7 $* |
| Feb-19-2025 | 0.91 $* | 0.22 $* |
| Jan-19-2025 | 0.73 $* | 0.31 $* |
Характеристики
micro limit switch with short hinge roller momentary spdt snap action for arduino
micro limit switch with short hinge roller momentary spdt snap action for arduino
Type | 3 PIN ROCKER SWITCH WITH ROLLER |
Mode | HM-KW11-3P |
Rating | 5A 125/250VAC 125 |
Operating frequency | Mechanical:60 times/min Electrical:25 times/min |
Contact Resistance | ≤30mΩ |
Mechanical life | 1,000,000 operations min. |
Electrical Life | 50,000 operations min.Cycles Min |
Operating Force | 15-250gf |
Dielectric Strength | 1,500Vrms, 50/60Hz for 1 min |
Enviroment humidity | 0-+125°C |
Operating travel | 0.7-1.2mm |
Insulation Resistance | ≥100mΩ |
Voltage withstand | AC250V 50Hz/min |
Push knorb | With roller.level,shape can be choosed |
fiammability | UL94V0 |
Heat an fire resistance | 850°C |
Function | SPDT change SPST normal open SPST normal close |
temperature range | 0℃+125- ℃ |
materials | Body PA/PC Terminal cooper alloy |
Operating speed | 0.1mm-1m/s |
Operating frequency | Electrical:25 times/min Mechanical:60 times/min |
MICRO SWITCH
Product Description
