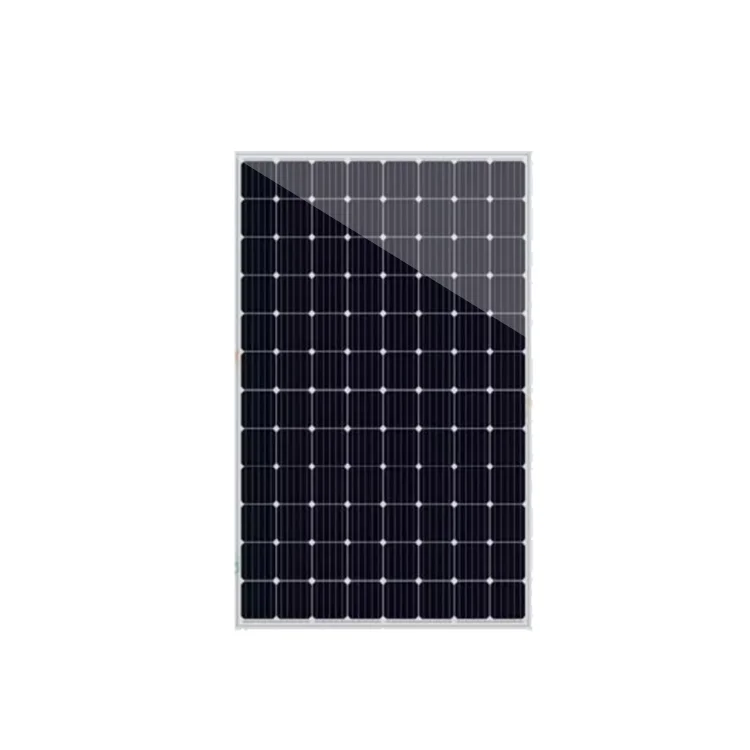

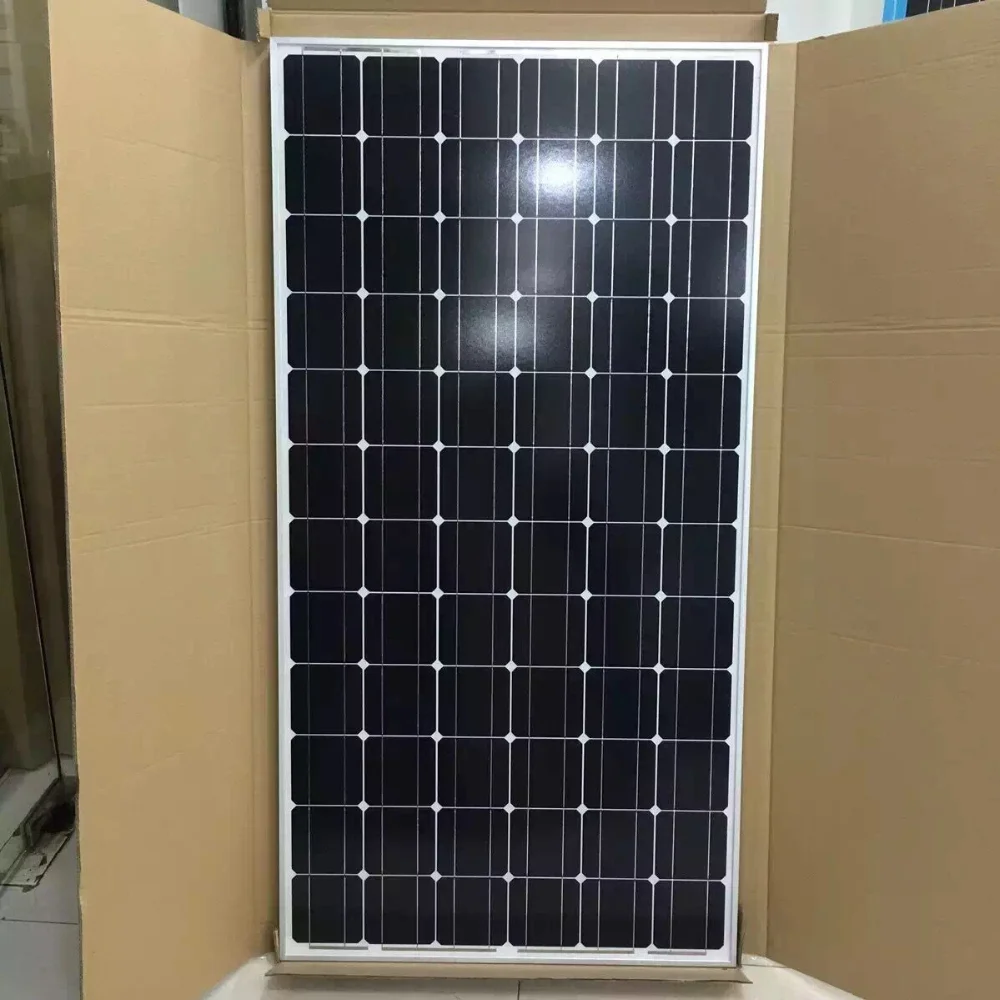

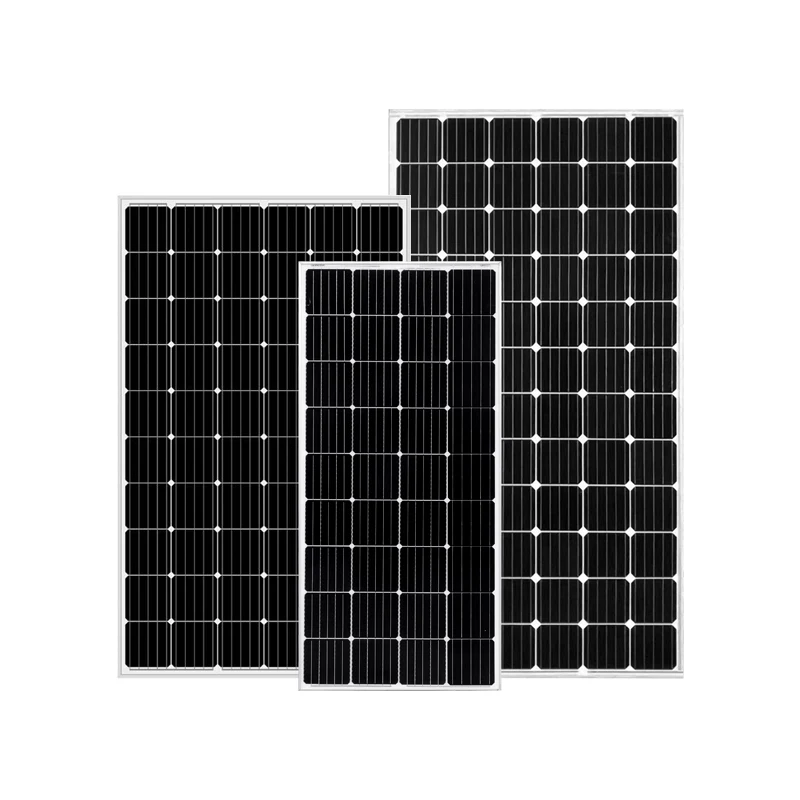

Лодка с тонкой пленкой 36 В 480 Вт 490 500 510 монокристаллические стеклянные панели монокристаллическая Гибкая солнечная
- Категория: Solar Cells >>>
- Поставщик: Suzhou,Junhui,Import,and,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.48 $* | 0.27 $* |
| Aug-19-2025 | 0.18 $* | 0.71 $* |
| Jul-19-2025 | 0.59 $* | 0.16 $* |
| Jun-19-2025 | 0.60 $* | 0.48 $* |
| May-19-2025 | 0.72 $* | 0.3 $* |
| Apr-19-2025 | 0.99 $* | 0.12 $* |
| Mar-19-2025 | 0.75 $* | 0.57 $* |
| Feb-19-2025 | 0.2 $* | 0.9 $* |
| Jan-19-2025 | 0.48 $* | 0.78 $* |
Характеристики
Product Description
Model | ES480W | ES490W | ES500W | ES510W | |||
Peak Power Watts(Pmax/W) | 480 | 490 | 500 | 510 | |||
Tolerance (%) | 0~+3% | ||||||
Open Circuit Voltage(Voc) [V] | 58.44 | 58.68 | 58.92 | 59.40 | |||
Short Circuit Current(Isc) [A] | 10.35 | 10.52 | 10.68 | 10.81 | |||
Maximum Power Voltage (V) | 48.70 | 48.90 | 49.10 | 49.50 | |||
Maximum Power Current (A) | 9.86 | 10.02 | 10.18 | 10.30 | |||
Maximum system voltage (V) | 1000V | ||||||
Operating Temperature(℃) | -40 -- +85 ℃ | ||||||
Electric Performance Typical Performance Characteristics | ES320W | |
Short Circuit Current Temperature Coefficient %/℃ | 0.048 | |
Open Circuit Voltage Temperature Coefficient %/℃ | -0.290 | |
Maximum Power Temperature Coefficient %/℃ | -0.370 | |
Performance Warranty: 90%output:12 years; 80%output:25 years | ||
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
TEVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Junction Box, Cable and MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
Company Information
Certifications
Projects

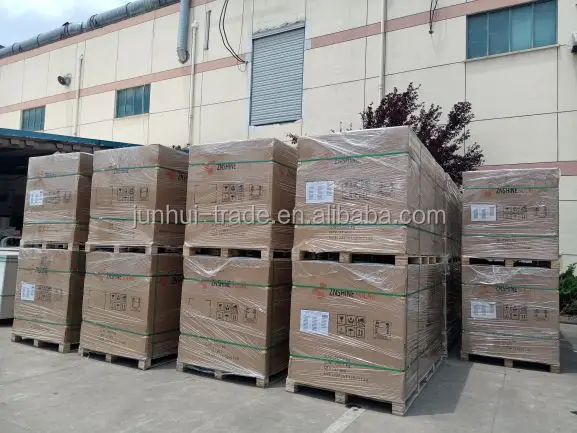

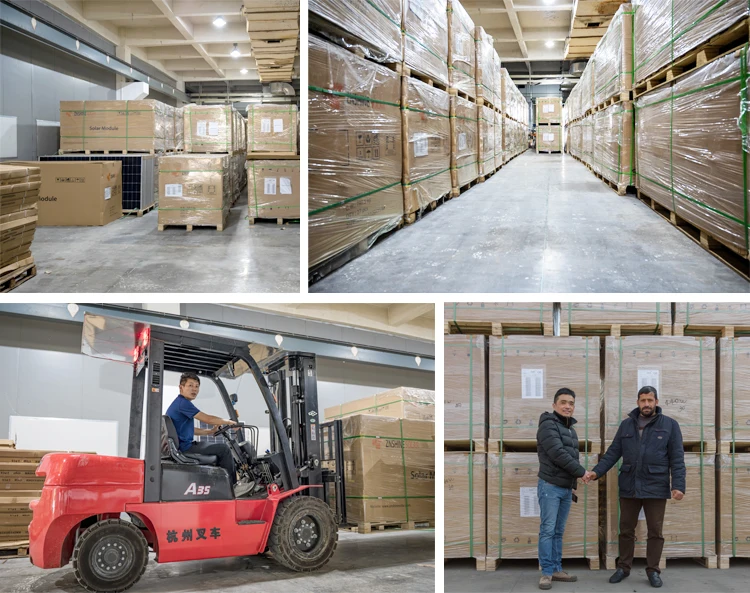

Packaging & Shipping
FAQ
1.Q:How many days will you send out about the goods?
A:About 3-7 days after receiving deposit.
2.Q:What is your MOQ?
A:Our MOQ is one pallet(30pcs).
3.Q:Are your goods genuine?
A:Sure. Our goods are original package, available warranty and certificate.
4.Q:How about your payment way?
A:We follow:30% T/T in advance and the balance paid before shipment, 100% T/T in advance for the sample order
5.Q:Could you accept the sample order?
A:Certainly. You only need to pay the shipping fee.
6.Q: Why choose Junhui?
A:1) We have become the largest Tier1 brand distributor in China;
2) We can meet you any needs of different brand, different types and different delivery times.
3) We accept various of inspection and payment way such as the third-party on-site inspection and Trade assurance of alibaba.com
4) We own our solar module factory,158mm&166mm&182mm solar panels are in stock ready to deliver at any time.
