Китай производитель легированной стали медное покрытие 0 8 мм сварочной проволоки CO2 газа ER70S-6 сварочная проволока для Доставка

Описание и отзывы

Трекер стоимости

Характеристики

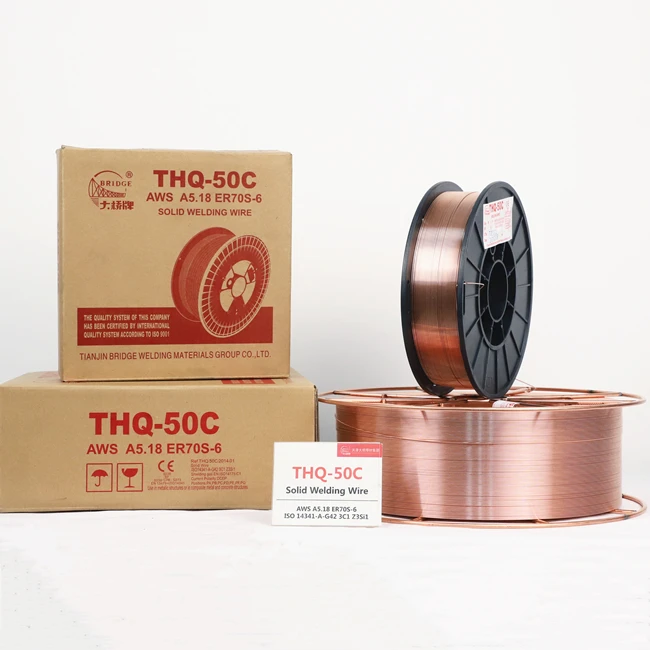

THQ-50C



GMAW Solid Wire

AWS A5.18 ER70S-6

ISO 14341-A-G42 3C1 Z3Si1

GB/T8110 ER50-6

Applications:

It is suitable for the welding of carbon steel and low alloy steel, such as Gr.50, and so on.

Characteristics:

This GMAW wire is for Rm 500MPa level carbon steel with shield gas of CO2 or M21. Small spatter, beautiful appearance, high deposition efficiency and small weld metal porosity sensibility.

All positions is suitable.

Attention:

1. The rust, oil, water and other impurities of the weld area must be removed before welding.

2. The mechanical properties of all weld metal be decided by heat input, normally the small heat input will better than larger one.





Chemical Composition of Wire:                                                (Wt. %)
Items	C	Mn	Si	S	P	Ni	Cr	Mo	V	Cu
Requirements	0.06-0.15	1.4-1.85	0.8-1.15	≤0.025	≤0.025	≤0.15	≤0.15	≤0.15	≤0.03	≤0.5
Typical Results	0.08	1.5	0.89	0.012	0.013	0.03	0.02	0.002	0.003	0.11







Mechanical Properties of All Weld Metal: (CO2)
Items	Rm/MPa	Rel/Rp0.2 /MPa	A/%	KV2 (-30℃) /J
Requirements	≥500	≥420	≥22	≥27
Typical Results	540	450	26	100







X-ray Radiographic Inspection: Level Ⅱ Typical Operating Procedures: (DC+)
Diameter(mm)	0.8	1	1.2	1.6
Current(A)	50-180	70-230	80-350	120-500







Classification of Society Certification:
Ship Inspection Agency	ABS	BV	CCS	DNV.GL
Level Of Recognition	3YSAH10	SA3YMHH	3YSH10	ⅢYMS(H10)
Ship Inspection Agency	LR	NK	KR	CWB
Level Of Recognition	3YSAH15	KSW53G(C)10	3YSG(C)10	B-G49A3CG6







EU Certification:
Certification Authority	CPD - CE certification of steel structure
Grade	ISO14341-A-G42 3 C1 Z3Si







  --- PRODUCT DISPLAY ---







Q: what is delivery time / lead time ?

A: 15 days

Q: what is your minimum order ?

A: 5000kgs

Q: what is your payment term ?

A: 30% down payment for order confirmation, 70% before shipment

Q: can we visit your factory ?

A: yes you can at your free time.
