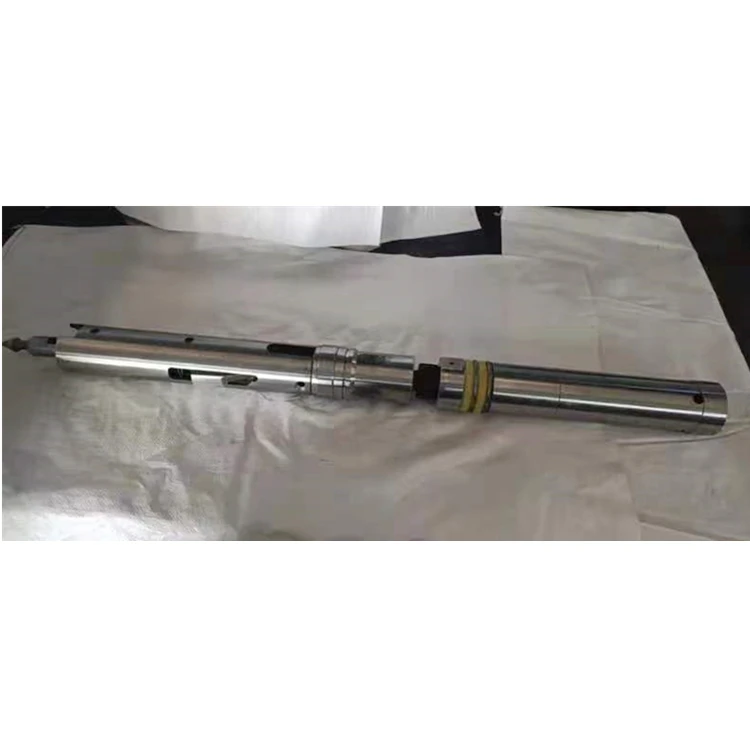

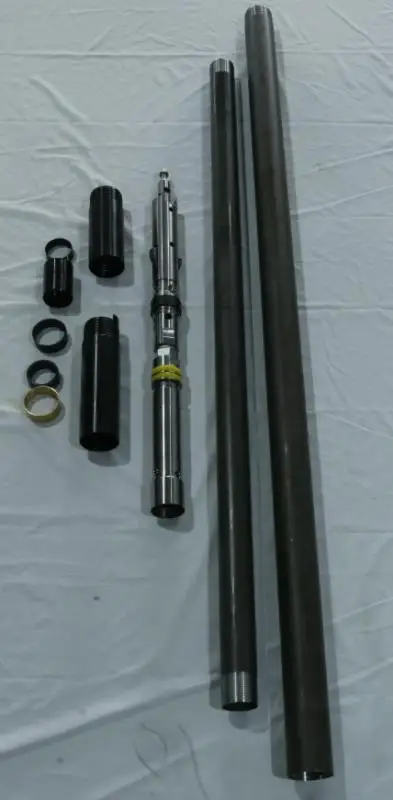

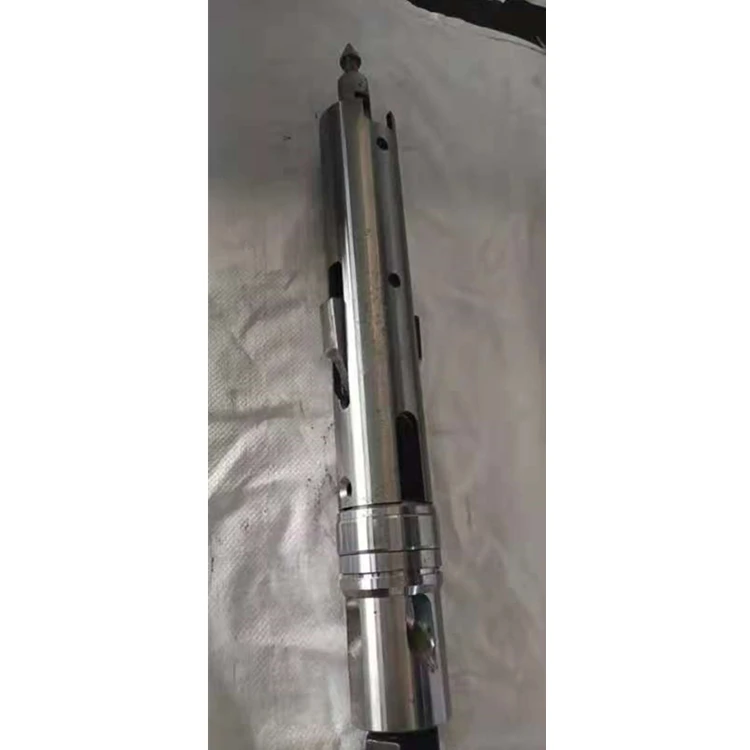

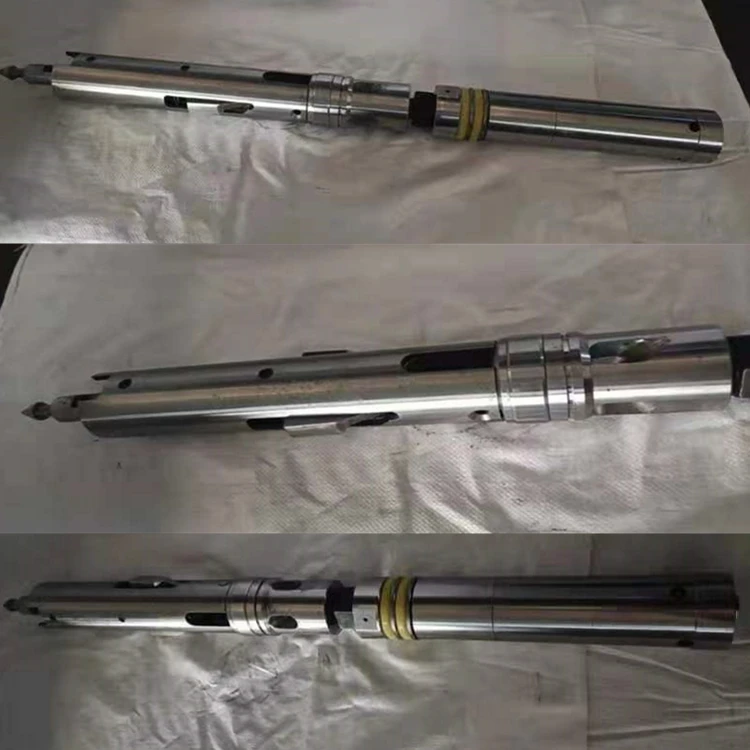

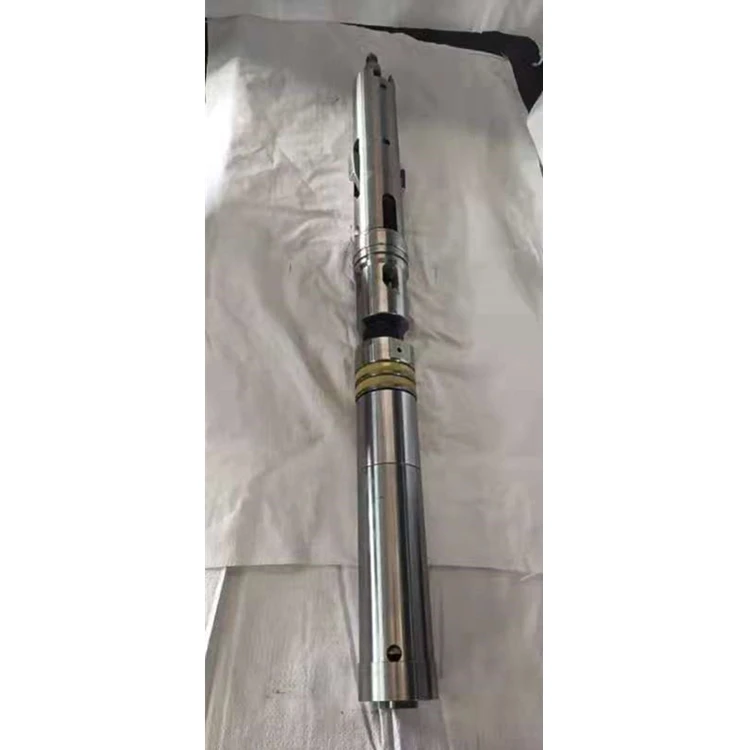

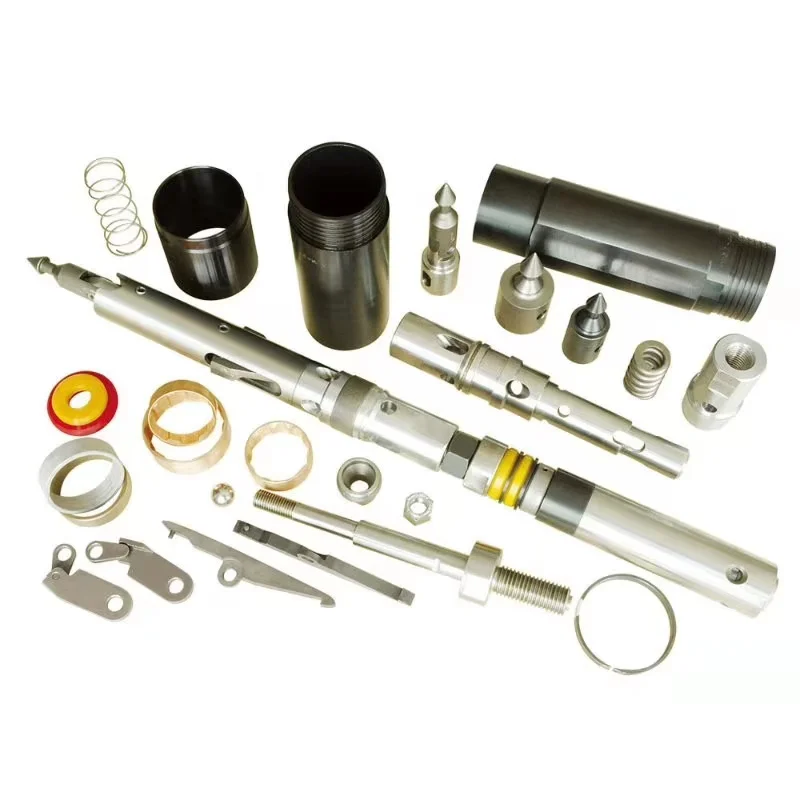

SML HQ PQ NQ BQ series Wireline Standard Core Barrel Head

Wireline core barrels eliminate the major time consuming operation of using standard double tube core barrels – pulling, stacking and lowering drill rods each time the core barrel is full.

Using a wireline system, core is recovered quickly by retrieving the core-laden inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has major cost advantages when drilling deep holes for mineral exploration.

These core barrels are available in industry standard hole sizes A, B, N, H and P. All parts are fully interchangeable with most other manufacturers’ wireline core barrels. Special requirements can also be met on request.

Notes:
1.The sizes of the above are standard.
2. Non-standard products can be customized according to cumtomer's requirements.

SML Drilling, loacated in Wuhan, was established in 2008. We manufacture drilling tools and provide varieties of accessories.

With more than 13 years of experience in drilling industry, we have a complete line to take care of your drilling needs and have always prioritized our customers'goals. Through promoting reliable drilling solutions at affordable prices, our business has slowly been able to add new products while maintaining the focus on customer service.

We strive to exceed customers’ expectations in affordability, quality and on-time delivery.

 SML research and produce the following range of drilling tools:

* PDC cutter/insert 0808, 1013, 1108, 1305, 1308, 1313, 1613, 1616, 1913, 1916...oil or mining type.

* PDC Bit for Oil Drilling, PDC Round Blade Bit, PDC Tip/Anchor Bit, PDC Matrix Body Bit, PDC Hole Opener, PDC Drag Bit, PDC Non bit, PDC Core Bit...

(Diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm, 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm...190mm, 216mm…)

* Tricone Bit with Milled tooth or TCI, Single roller cone bit

*Diamond Core Drill bit: impregnated diamond core bit, brazed diamond core bit, glass core bit, sintered core bit...

* Tungsten carbide drill bit: two wings coal bit, carbide drag bit, chisel bit, cross bit, button bit,

DTH hammer bit...

* PCD Insert & Cutting tools / PCD Blank, CBN&PCBN Insert & Cutting tools

* Metal Materials:

Metal Welding Material: silver solder, surfacing material and tungsten electrode

Other Nonferrous Metals:

pure tungsten, tungsten alloy (tungsten carbide insert, TSS super tungsten shot, Tungsten nickel copper / W-Ni-Cu alloy, W-Ni-Fe, W-Cu Alloy/Tungsten Copper Alloy), Mo Alloy, Copper Alloy..

* Drill bit accessaries: diamond burr, tungsten carbide nozzle, graphite displacement, adapter, TSP...

 * Drill rods – hex, twist, spiral…

 * Samplers

* Other drill tools: tungsten powder, silver solder, boron carbide sandbladster...
