Высококачественный высокочастотный Портативный индукционный нагреватель мощностью 25
- Категория: >>>
- Поставщик: Zhengzhou,Daqing,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1845.59 $* | 1937.4 $* |
| Aug-20-2025 | 1829.97 $* | 1920.5 $* |
| Jul-20-2025 | 1535.22 $* | 1612.74 $* |
| Jun-20-2025 | 1798.29 $* | 1888.70 $* |
| May-20-2025 | 1566.36 $* | 1644.68 $* |
| Apr-20-2025 | 1767.40 $* | 1855.29 $* |
| Mar-20-2025 | 1752.77 $* | 1840.25 $* |
| Feb-20-2025 | 1736.7 $* | 1823.79 $* |
| Jan-20-2025 | 1721.15 $* | 1807.25 $* |
Характеристики

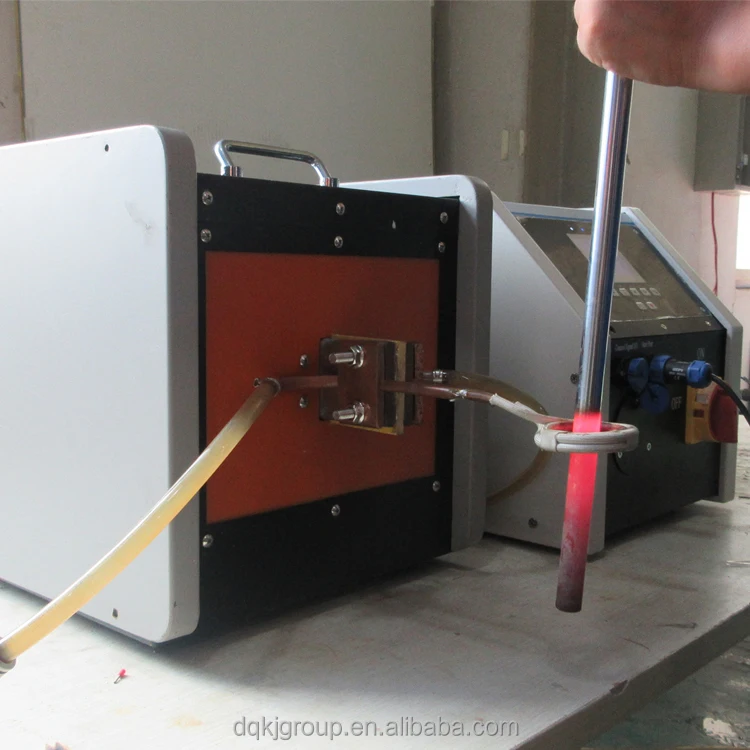

25kw High quality high frequency portable induction heater
Product Description
Working Principle for portable induction heater:
Based on the principle of electromagnetic induction,our machine could make induced current generate inside the metal material,which is in the alternating magnetic field.Then this current could heat the material up to the melting state.
Based on the principle of electromagnetic induction,our machine could make induced current generate inside the metal material,which is in the alternating magnetic field.Then this current could heat the material up to the melting state.
IGBT
Board
Product Paramenters
SMC-15KW
SMC-25KW
SMC-35KW
SMC-45KW
SMC-60KW
SMC-80KW
High Frequency Induction Heating Machine | ||||||
Model | SMC-15KW | SMC-25KW | SMC-35KW | |||
Input voltage | 220V,380V,480V | |||||
Output power | 15kw | 25kw | 35kw | |||
Frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | |||
Output current | 200-600A | 200-1200A | 400-1600A | |||
Timing | 1-99s | 1-99s | 1-99s | |||
Cooling water | 0.06-0.12Mpa 7.5L/min | 0.08-0.12Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | |||
Alarm temperature | 40°C | 40°C | 40°C | |||
Generator weight | 25kg | 18.5kg | 35kg | |||
Transformer weight | / | 15kg | 10kg | |||
Generator dimension(mm) | 535*245*550 | 560*235*520 | 595*275*580 | |||
Transformer dimension(mm) | / | 425*235*420 | 485*275*450 | |||
Model | SMC-45KW | SMC-60KW | SMC-80KW | ||
Input voltage | 220V,380V,480V | ||||
Output power | 45KW | 60kw | 80kw | ||
Frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | ||
Output current | 400-2000A | 400-2400A | 400-3200A | ||
Timing | 1-99s | 1-99s | 1-99s | ||
Cooling water | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 9L/min | ||
Alarm temperature | 40°C | 40°C | 40°C | ||
Generator weight | 35kg | 37kg | 54kg | ||
Transformer weight | 10kg | 36kg | 47kg | ||
Generator dimension(mm) | 595*275*580 | 650*320*590 | 745*345*600 | ||
Transformer dimension(mm) | 485*275*450 | 485*275*450 | 790*425*580 | ||
Application
Main application for induction heating machine:

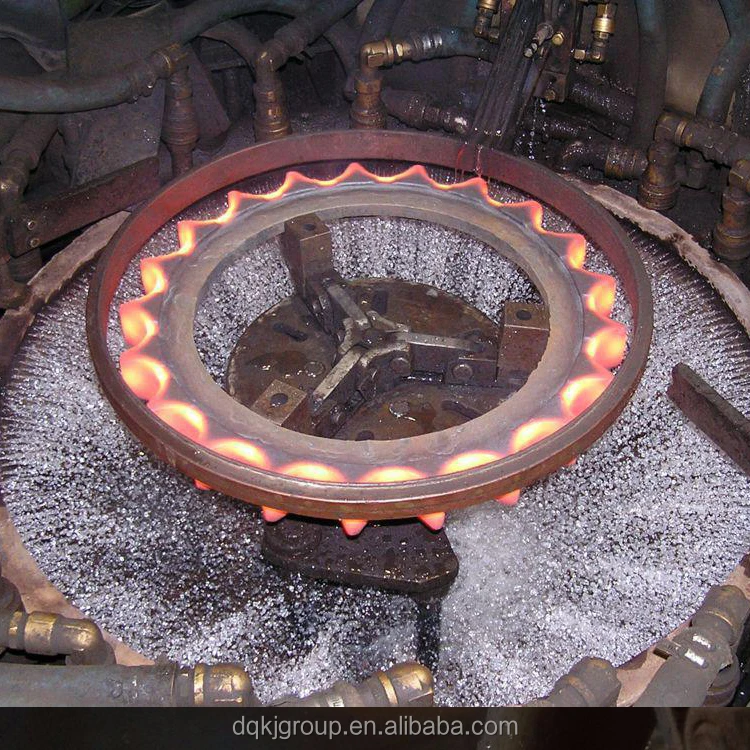

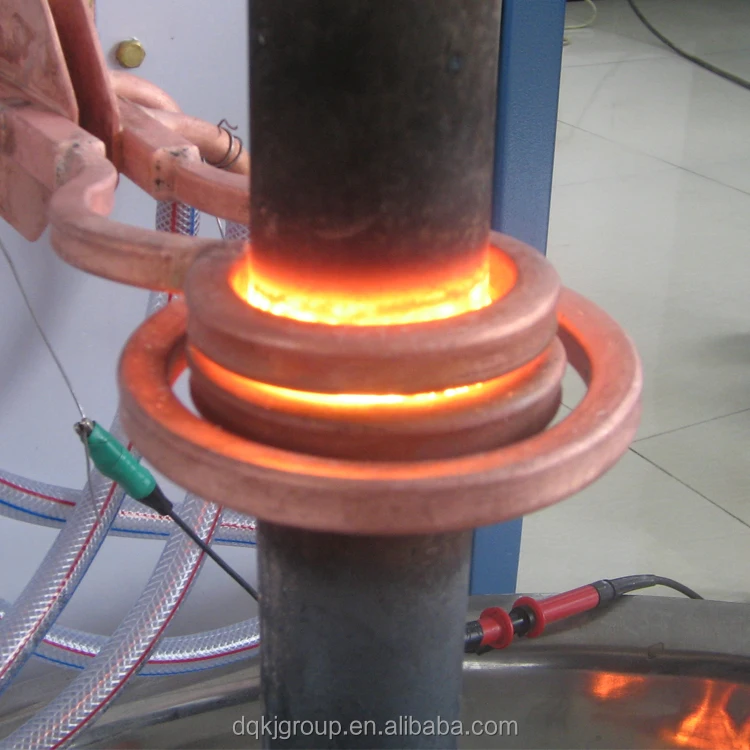

1. heat treatment of gear and shaft 2. brazing of diamond tools
1. heat treatment of gear and shaft 2. brazing of diamond tools
3. brazing of electrical kettle bottom 4. tube heating for coating
5. heating of stainless steel vessel for annealing

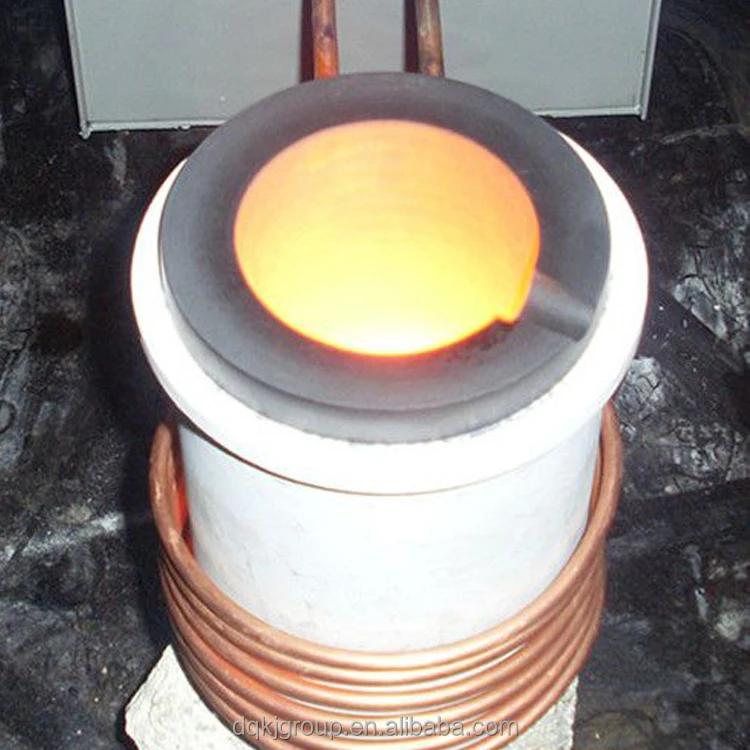

6. brazing of machining tools 7. melting of all kinds of metals
8.brazing of copper & brass tube and connectors in air conditioner manufacturing factories and so on.

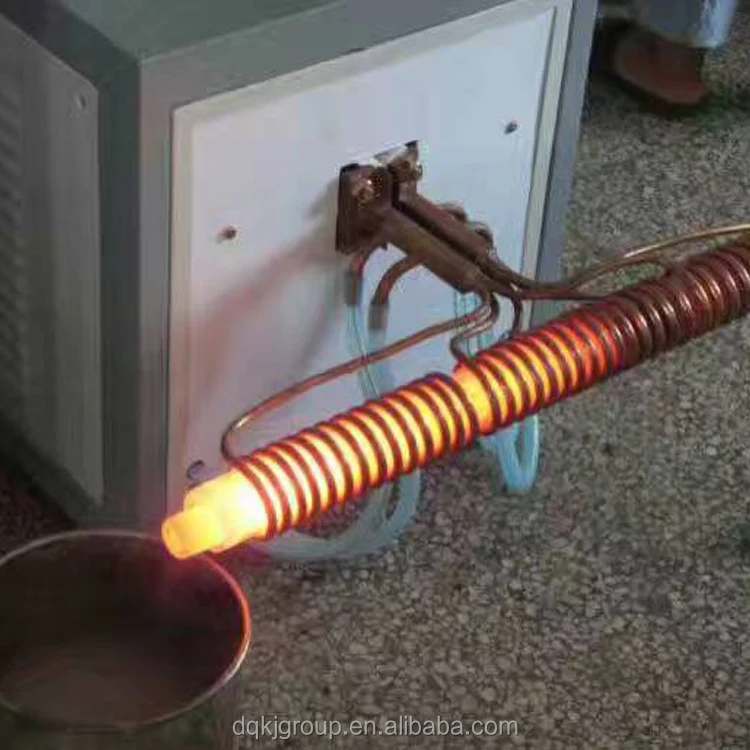

9. heating of rods for forging 10. quenching of parts. Etc.
TUBE WELDING
PIPE BRAZING
SHAFT HARDENING
INNER HOLE
STEEL BAR FORGING
ROUND ROD FORGING
MELTING GOLD SILVER
METAL METLING
Recommend Products
Production Process
Company Profile
DQAUTO company has been committed to the development, production as well as the sales of induction heating equipments since 2017. Our factory covers an area of 1000+ square meters. DQAUTO obtained the honor of national high-tech enterprise and more than 47+ patent certificates.
And we provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is DQAUTO's goal!
And we provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is DQAUTO's goal!
FAQ
1. If I have paid but can not receive the goods, how should I do?
Your can use the Trade Assurance Order to complete the transaction so as to ensure the safety of your funds.
2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3. How about the payment terms and delivery time ?
You can pay by T/T,L/C, Western Union or other ways.
The small machine delivery time is within 7 days.
The bigger one takes about 15-20 days,we will delivery goods on time.
The small machine delivery time is within 7 days.
The bigger one takes about 15-20 days,we will delivery goods on time.
4. What is your nature of your company: dealer or factory ?
We are manufacturer and have a big factory, welcome to visit our factory and contact us.
How to order ?
1. Kindly tell us your details job requirement, for heating? Brazing? Melting? Forging? Hardening, Annealing? Or ?
2. Confirm the details, then professionally advise you most suitable machine, send the offer to you with all details.
3. Confirm the order and invoice.
4. Receiving your payment, start production. (3-5days)
5. Express/ Air shipment (3-5days) or Sea shipment. (15-30days)
Send inquiry to us, for free to get technical support.
