Характеристики

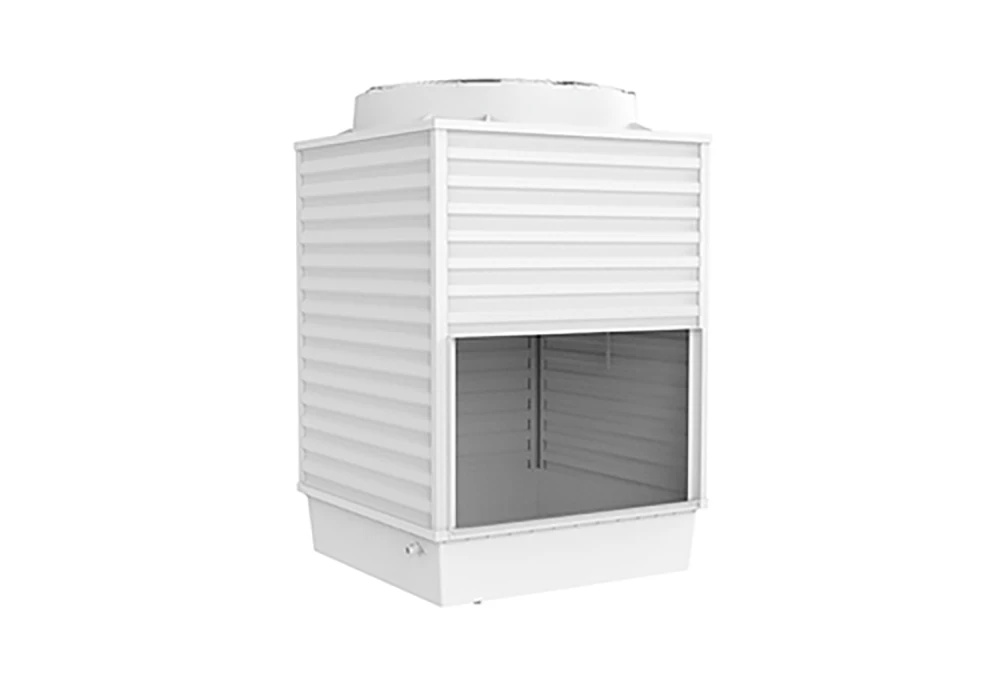

Product Overview

Air Deodorizing and Dusting System

This equipment has the function of deodorization and dust removal at the same time, the product can be widely used in animal husbandry, poultry breeding industry, effectively remove the smell in the farm to provide a good ventilation breeding environment for the farm;The modified products can also be used in light and heavy industrial factories to effectively remove dust, purify air, and provide high quality air quality for the factory.

FEATURES AT A GLANCE

1. Easy to installation: the factory does not need big changes, standardized installation, fast and convenient.
2. Intelligent control: network intelligent environment controller, mobile phone, computer can be online control, can set the
opening time, speed and so on.
3. Deodorizing and dusting: keep the factory environment dust-free and tasteless.

PRODUCT SPECIFICATIONS

No	Model	OFS-106ATC	OFS-160ATC
1	Voltage/Frequency	220V/380V 50Hz	220V/380V 50Hz
2	Motor Power	1.05KW	1.5KW
3	Rotational Speed	220-780RPM	220-750RPM
4	Max. Air Flow	23000M³/H	38000M³/H
5	Water Pump Power	0.55KW	0.75KW
6	Housing Material	SMC Fiberglass	SMC Fiberglass
7	Impeller Material	3-blade Aluminum Alloy	3-blade Aluminum Alloy
8	Product Dimension	106510502450mm	160515902450mm

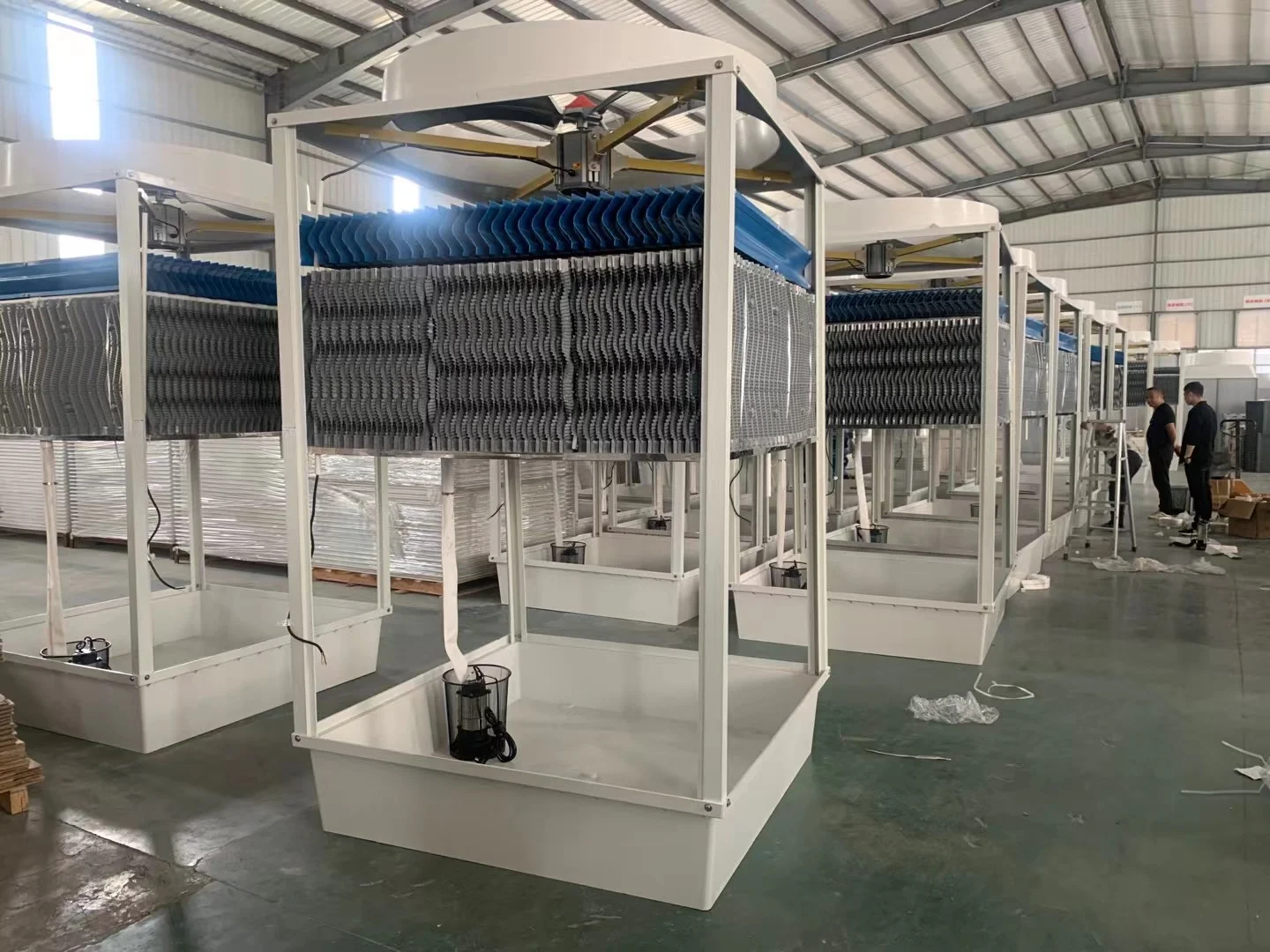

PRODUCT CONFIGURATION

V-type fog removal system.

It can effectively block the water particles in the above, making the circulation potion effective savings, increase economic efficiency.

Sprinkling system.

High quality PVC pipes are selected to evenly distribute the water holes to make the sprinkling more uniform, and the blocking port is easier to set and maintain.

Water pump.

Large flow water pump, built-in cutting
function is not easy to jam.

Fan system.

Brushless motor, energy saving, the wind blade matching 3 aluminum alloy.

“S” wave cooling pad.

It make deodorant potion stay in the cooling pad for a longer time, the channel is set with resistance ripples, making the potion
film more effective to remove harmful substances in the air.

SALES AND SERVICE NETWORK

Working Principle.

The water containing mixed deodorant liquid medicine is automatically fed into the water tank through the automatic drug delivery equipment, and the water tank is full when the liquid medicine is stopped. The water pump and the fan start at the same time, and the water pump pumps the liquid medicine into the water pipe, and the water flows down through the deodorant curtain to form a water film;The fan starts to pump out the polluted air in the factory. After the first blue purification area, the harmful particles are precipitated, and then the air and the harmful particles are purified and precipitated through the water curtain water film in the second green area. The water vapor then evaporates upwards, and the water drops are collected and fall through the defogging system, and then the purified air is discharged.

First layer purification:

light blue water purification layer: through the dense water drop area, after the water drop collision to produce large

and small water drops, the air will further reduce the

harmful substances.

Second layer purification:

green deodorant curtain purification layer: after the air of the water purification layer, through the S cross water curtain, the air interacts with the water film on the resistance ripple in the S wave, making the harmful substances in the air removed, and the discharged air is basically tasteless.

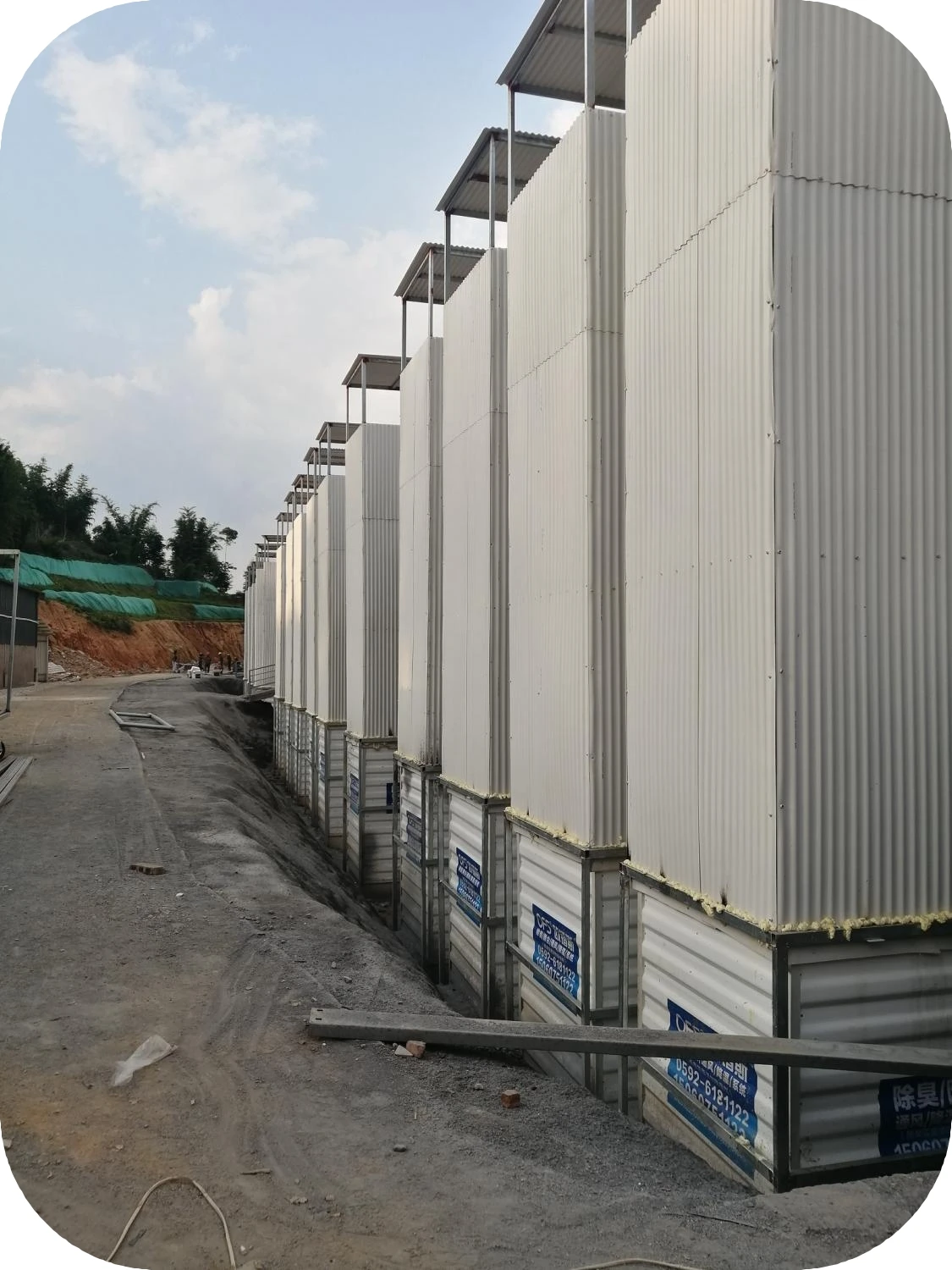

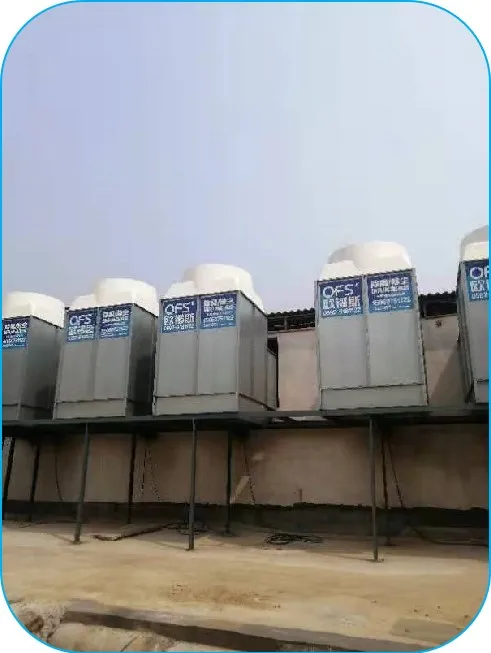

Successful Project
