Пульс 4-20 мА RS485 выходной гелиевый азот природный газ Паровой расходомер воздушный
- Категория: Flow Meters >>>
- Поставщик: Kaifeng,Aft,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 500.51 $* | 525.27 $* |
| Aug-19-2025 | 496.94 $* | 521.62 $* |
| Jul-19-2025 | 416.3 $* | 437.33 $* |
| Jun-19-2025 | 487.88 $* | 511.27 $* |
| May-19-2025 | 424.76 $* | 445.66 $* |
| Apr-19-2025 | 479.39 $* | 503.54 $* |
| Mar-19-2025 | 475.89 $* | 499.92 $* |
| Feb-19-2025 | 470.24 $* | 494.85 $* |
| Jan-19-2025 | 466.56 $* | 489.91 $* |
Характеристики
AFTLUGB Series Vortex Flowmeter:
1. No corrosive liquid or liquid that is not corrosive, such as: water, alcohol, etc.
2. Various clean gases, such as hydrogen, oxygen, biogas, nitrogen, etc.
3. High temperature gas or liquid, such as steam, heat transfer oil, etc.
Product Description

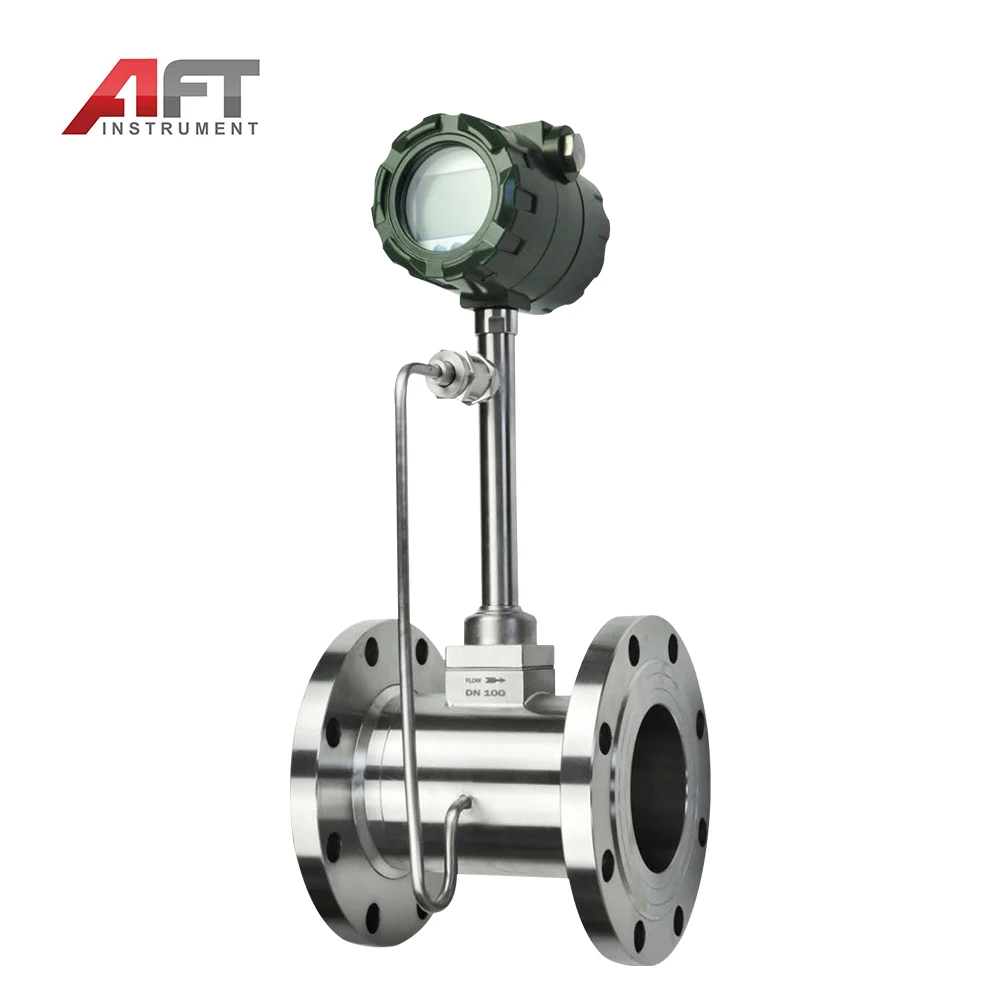

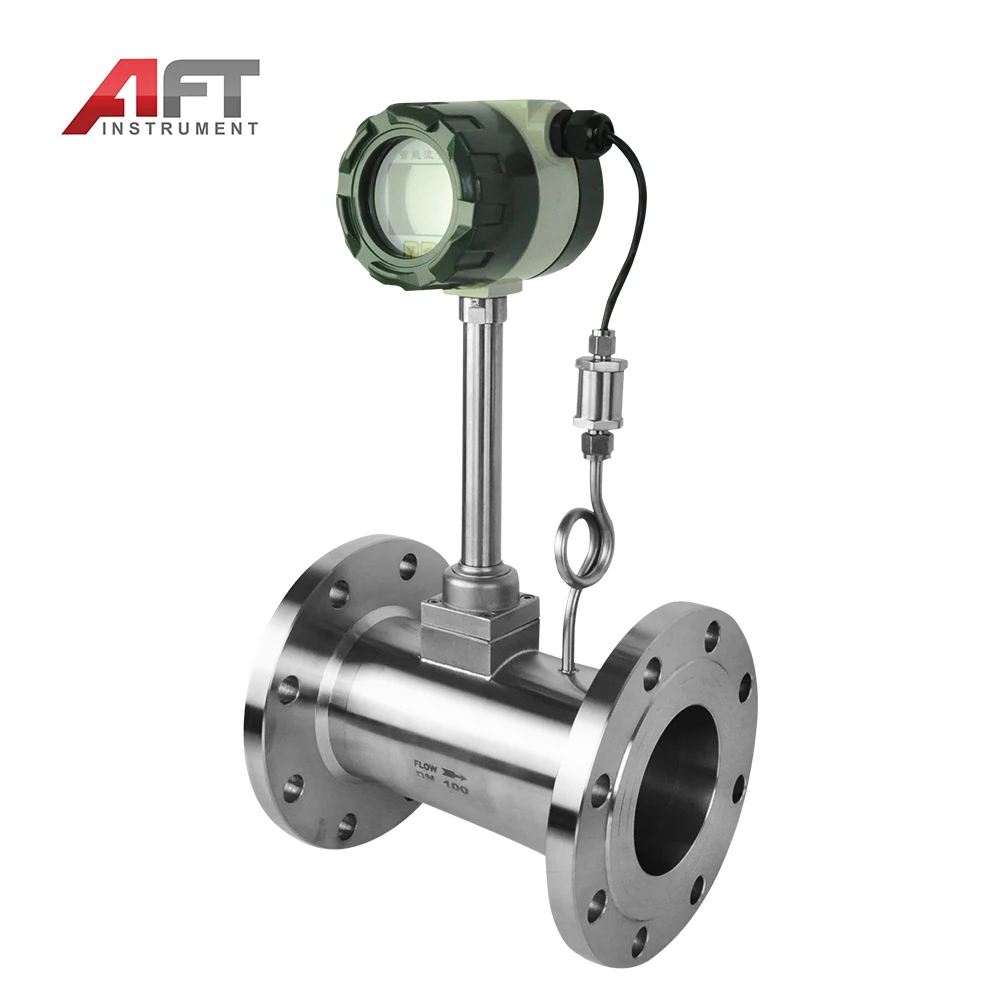

Temperature and pressure compensation type vortex flowmeter
Application: gas, steam
LCD display type vortex flowmeter
Application: liquid, gas

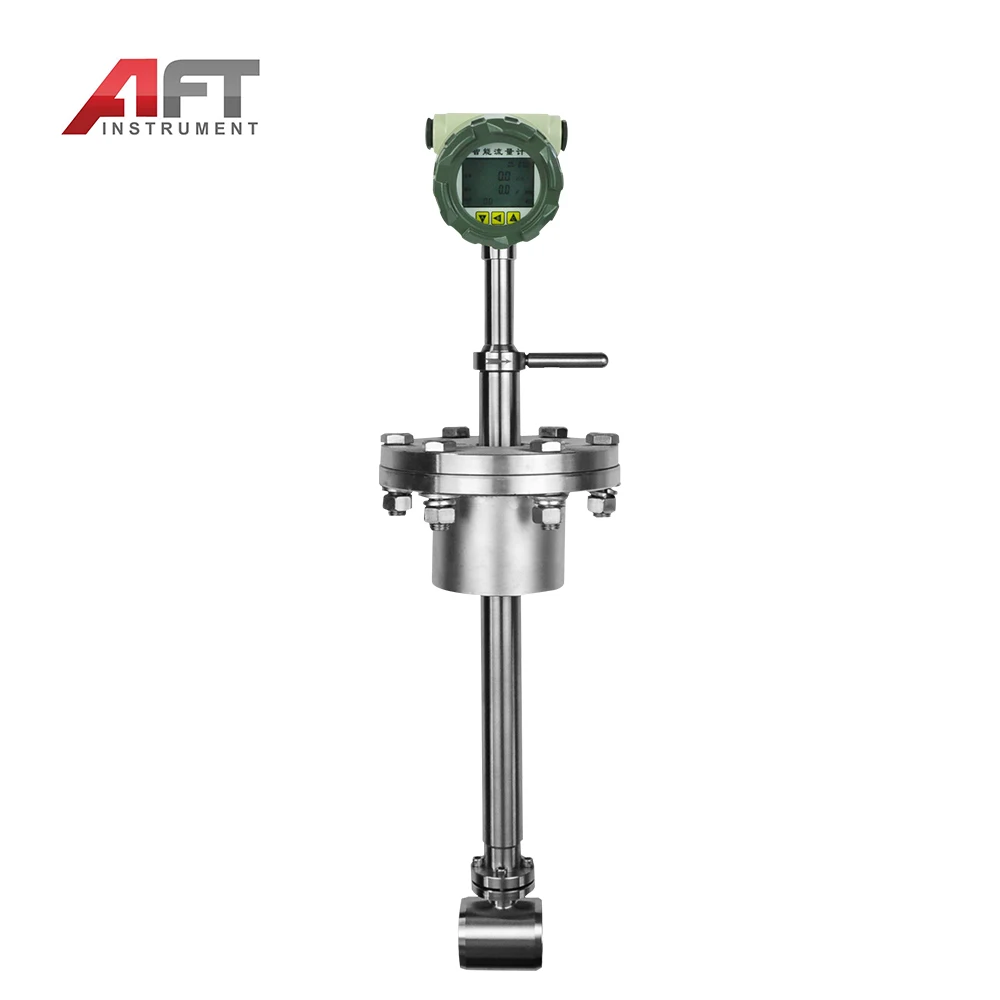

Insert type vortex flowmeter
Application: above DN300 pipeline
Power supply: 3.6V lithium battery
Lifespan: 2 years
Power supply: 24V DC
Output: 4-20MA, RS485, MODBUS protocol, etc.
Display: LCD
Content: instantaneous flow, cumulative flow, temperature, pressure, etc.
Nominal diameter (mm) | Flange type: DN15-DN300 Insert type: above DN300 |
Temperature range: | Normal temperature type: -40-250℃ High temperature type: -40-350℃ |
Pressure range: | Dn25-DN200 4.0（＞4.0agreement supply） DN250-DN300 1.6（＞1.6agreement supply） |
Body material | 304SS ,316L（Optional） |
Accuracy： | Flange connection type： Liquid: 1.0% FS ；Gas: 1.5%FS Insert type: liquid: 2.0% FS ；Gas: 2.5%FS |
Power supply： | 24V DC or battery power supply |
Output : | pulse; 4-20MA; RS485, MODBUS protocol, HART |
Protection level: | IP65 |
Vortex flowmeter flow range table：
When choosing a suitable vortex flowmeter, the flow range table will be the content you need to focus on.
You can choose your pipe size according to the flow range, you can also check whether your flow is within this flow range,
and get whether your parameters meet the requirements of the vortex flowmeter!

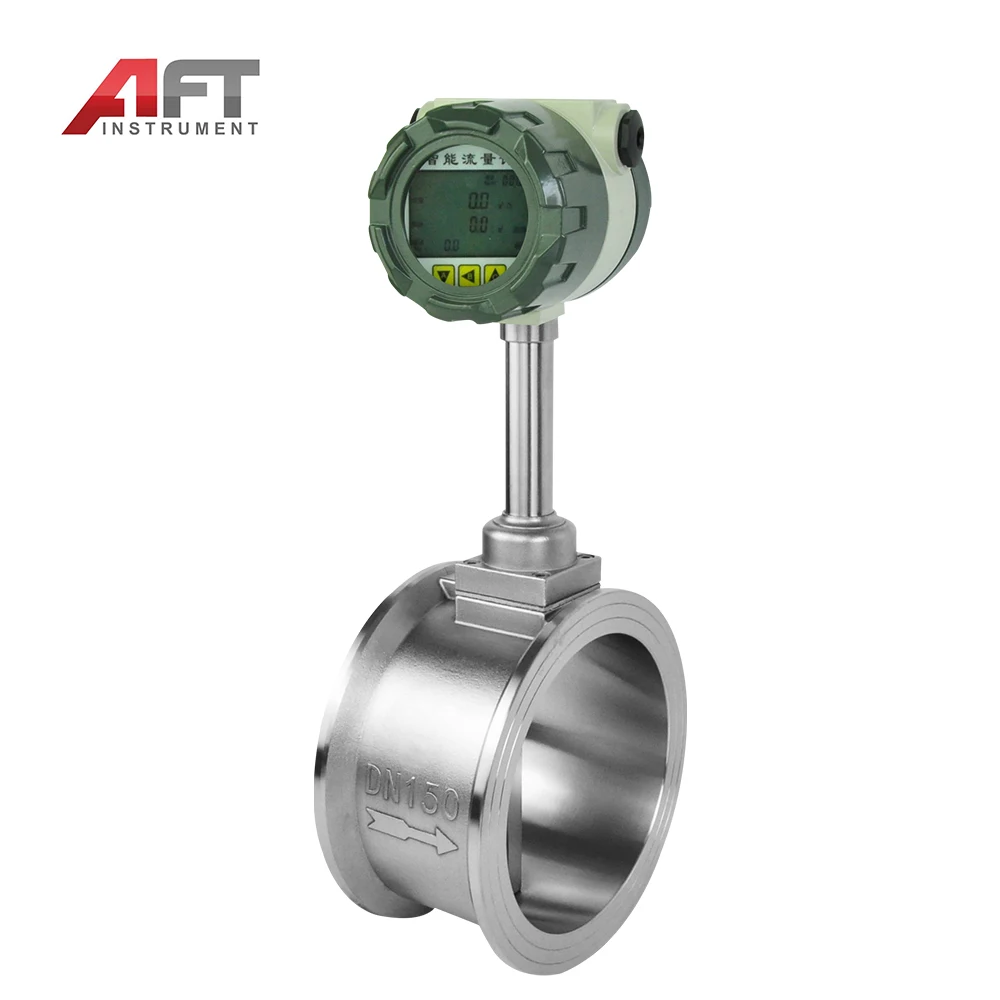

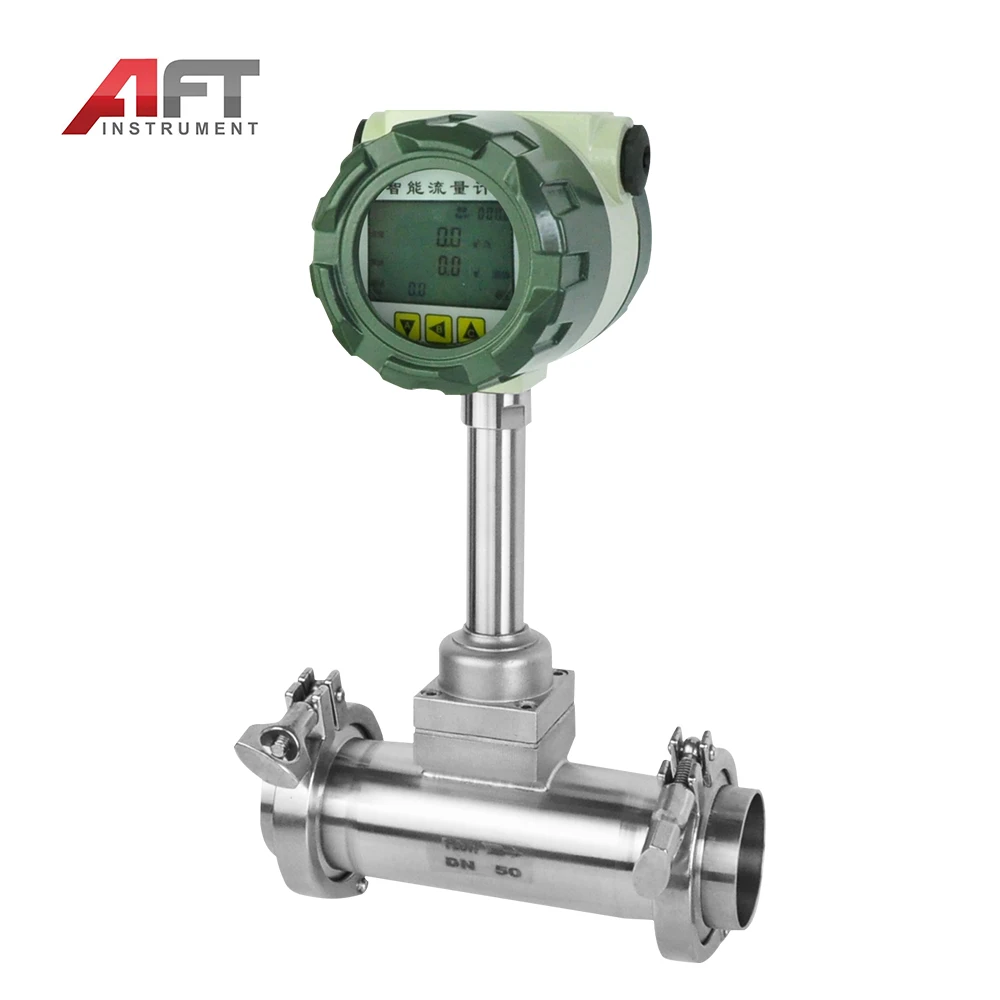

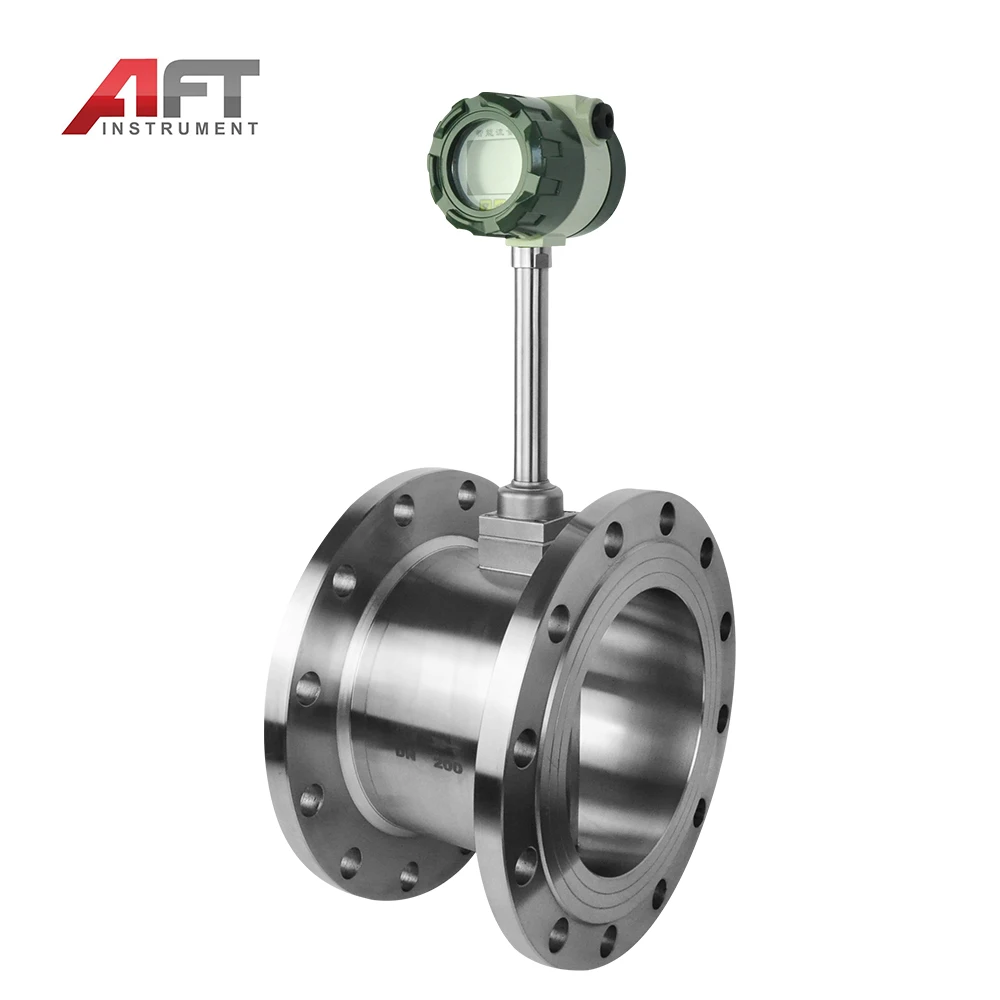

Real figure
Why Choose Us
Certificate of Vortex Flowmeter
1. CE certification is certified by ECM, No.OP170404.KAI0O86
2. The explosion-proof certificate is certified by CCRITC, No.CCRI 19.2415X
3. The ISO certificate is certified by ACM.
2. The explosion-proof certificate is certified by CCRITC, No.CCRI 19.2415X
3. The ISO certificate is certified by ACM.
Alibaba has certified us on the spot! Please rest assured to buy our products!
FAQ
1. How to guarantee the quality of vortex flowmeter?
Our warranty period is 12 months. Quality problems caused by non-human factors or force majeure factors are borne by our company, and customers only need to bear the freight.
2. Do our products recruit agents?
Yes. We recruit agents from various countries, if you want to become our agent, please contact us!
3. Do we provide OEM service?
Yes. We can provide OEM service
4. How do you usually do after-sales?
We provide free after-sales service through telephone, video, files, etc. If you need to go to the scene for guidance, you need to charge an additional technical service fee.
Our warranty period is 12 months. Quality problems caused by non-human factors or force majeure factors are borne by our company, and customers only need to bear the freight.
2. Do our products recruit agents?
Yes. We recruit agents from various countries, if you want to become our agent, please contact us!
3. Do we provide OEM service?
Yes. We can provide OEM service
4. How do you usually do after-sales?
We provide free after-sales service through telephone, video, files, etc. If you need to go to the scene for guidance, you need to charge an additional technical service fee.
