Беспроводной шлюз ble-wifi bluetooth poe для приемника данных ble
- Категория: IoT Solutions & Products >>>
- Поставщик: Shenzhen,Moko,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 81.23 $* | 85.80 $* |
| Aug-18-2025 | 80.8 $* | 84.24 $* |
| Jul-18-2025 | 67.41 $* | 70.11 $* |
| Jun-18-2025 | 79.25 $* | 83.4 $* |
| May-18-2025 | 69.62 $* | 72.24 $* |
| Apr-18-2025 | 78.53 $* | 82.19 $* |
| Mar-18-2025 | 77.13 $* | 81.47 $* |
| Feb-18-2025 | 76.55 $* | 80.17 $* |
| Jan-18-2025 | 75.55 $* | 79.31 $* |
Характеристики
Wireless gateway ble-wifi gateway bluetooth poe gateway for ble raw data receiver

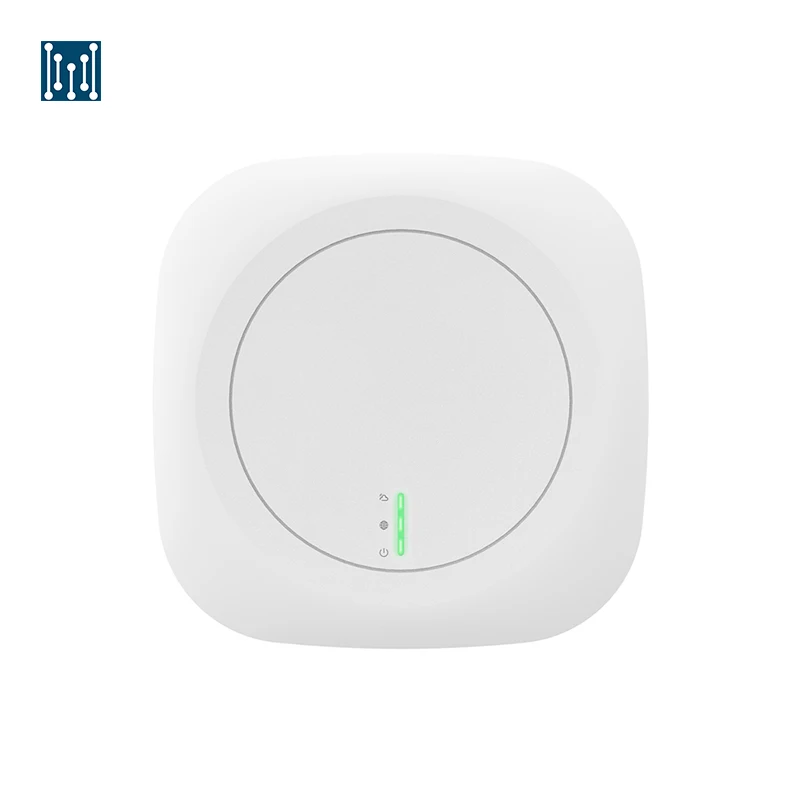

MKGW1 is a multi-wireless IoT gateway with Bluetooth LE (BLE) and Wi-Fi.
MGKW1 is mainly used to captures BLE advertising data such as iBeacon, Eddystone, Sensor data from MOKO Beacons, or other BLE devices. MKGW1 can send all the data to the cloud server by MQTT or HTTP via Wi-Fi or Ethernet connection.
MGKW1 is mainly used to captures BLE advertising data such as iBeacon, Eddystone, Sensor data from MOKO Beacons, or other BLE devices. MKGW1 can send all the data to the cloud server by MQTT or HTTP via Wi-Fi or Ethernet connection.
Product Description
• MediaTek MT7688 & Nordic nRF52833
• Multi-power supply – 48V PoE/ 9V DC/ 5V USB
• Ethernet and WiFi to access the internet
• Support MQTT and HTTP protocol
• Provide SDK for custom software development
• Multi-power supply – 48V PoE/ 9V DC/ 5V USB
• Ethernet and WiFi to access the internet
• Support MQTT and HTTP protocol
• Provide SDK for custom software development

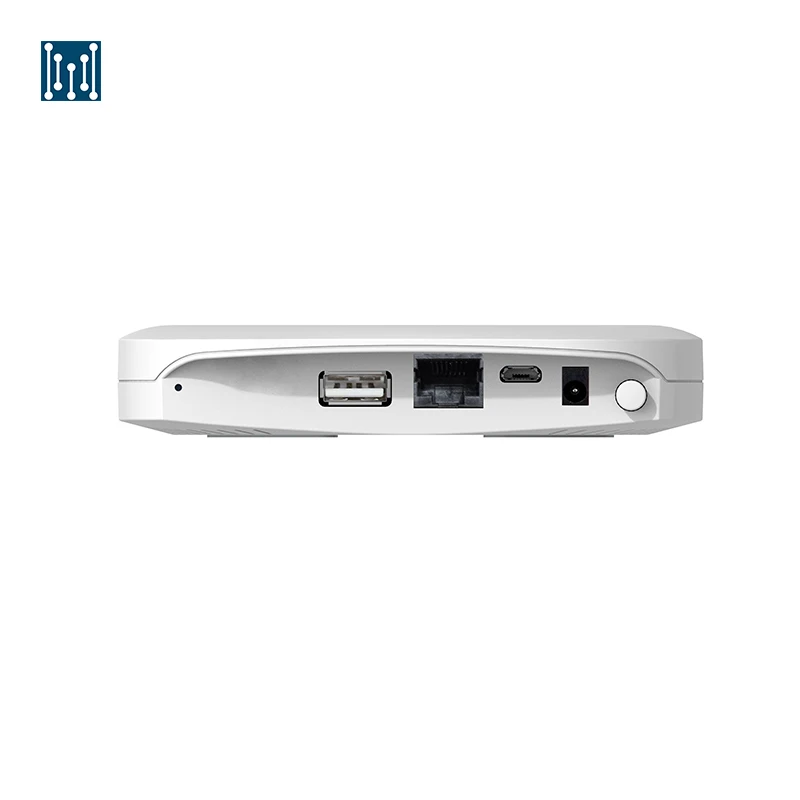

1. Reset Button; 2. USB Port; 3. PoE Port; 4. Micro USB; 5. DC Power Port; 6. Switch Button

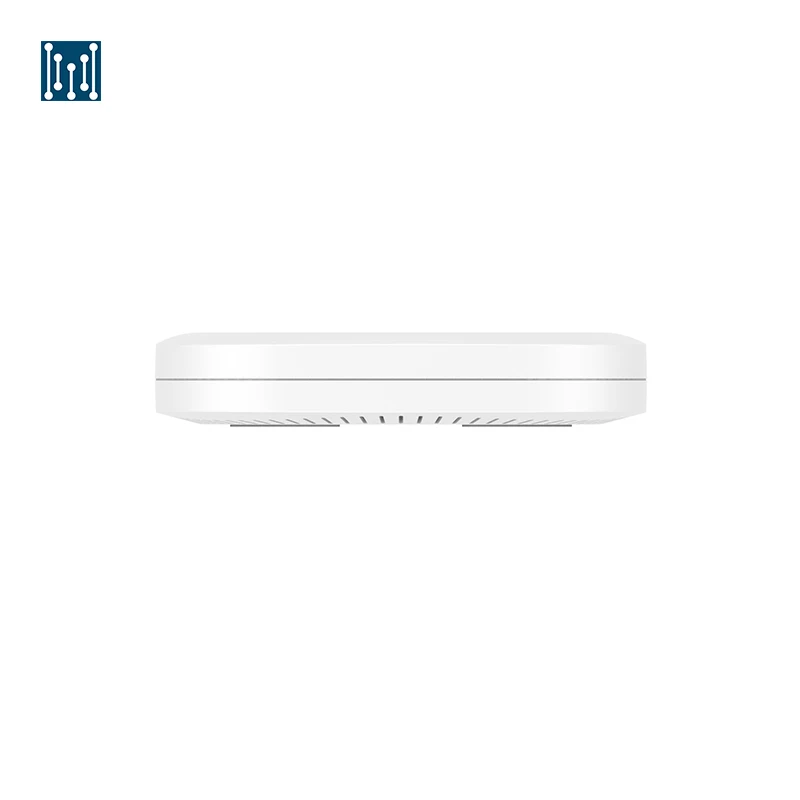

Dimensions (diameter x height):
120mm*120mm*22.5mm
120mm*120mm*22.5mm
Specification
NO. | Item | Remarks |
Hardware | Chipset | MOKO MK07B Nordic nRF52833 BLE module MediaTek 7688AN (low-spec, default) MediaTek 7628NN (high-spec) |
Wi-Fi Performance | Wireless | IEEE 802.11b/g/n |
Memory | DDR2 128MB/32MB SPI Flash | |
Data rate | 1T1R with 150 Mbps PHY (low-spec MT7688AN) 2T2R with 300 Mbps PHY (high-spec MT7628NN) | |
Security | 64/128bit WEP, AES, TKIP, WPA, WPA2, WPA PSK, WPA2-PSK | |
Bluetooth Performance | Bluetooth version | Bluetooth 5.1 low energy (support 1M/2M/Coded LE PHY) |
Memory | 128kB RAM and 512kB Flash | |
Bluetooth roles | Observer role for scanning Central role for connecting | |
Scanning PHY | Legacy BLE 4.2 1M PHY Bluetooth 5 1M PHY Bluetooth 5 2M PHY Bluetooth 5 Coded PHY (long range) | |
Scanning capability | Max: 319 BLE advertising packets per second | |
Environmental Ranges | Operating temperature | -20°C to 45°C |
Storage temperature | -40°C to 70°C | |
Humidity | Maximum 95% non-condensing RH |
Application and Solution
Remark
1. The gateway scans the advertising data of surrounding BLE devices；
2. The gateway uploads the BLE data to the server in “JSON” format according to the established network communication protocol.
2. The gateway uploads the BLE data to the server in “JSON” format according to the established network communication protocol.
Product usage
1. Power on the gateway；
2. Use PC or mobile phone, open WIFI to search gateway SSID (Default: MKGW-BW-XXXX), verify the password (Default: Moko4321) and connect to the gateway；
3. Use a browser① to open the link http://192.168.22.1 (Default）；
4. Enter the password (Default: admin) to go to the gateway configuration web UI. Note that the configuration web UI will be automatically logged out if there is no operation within 1 hour.
2. Use PC or mobile phone, open WIFI to search gateway SSID (Default: MKGW-BW-XXXX), verify the password (Default: Moko4321) and connect to the gateway；
3. Use a browser① to open the link http://192.168.22.1 (Default）；
4. Enter the password (Default: admin) to go to the gateway configuration web UI. Note that the configuration web UI will be automatically logged out if there is no operation within 1 hour.
Packaging&Shipping
Packing:
Dimension: 190mm(L) x 160mm(W) x 47mm(H)
Weight: 282g
Content: 1 x MKGW1 Gateway; 1 x Micro USB cable(1 meter); 2 x Screw(KA 3.5*25mm); 2 x Plastic Wall Plug
Content: 1 x MKGW1 Gateway; 1 x Micro USB cable(1 meter); 2 x Screw(KA 3.5*25mm); 2 x Plastic Wall Plug
Delivery:
The batch delivery time needs to be negotiated
