Product Description
K Band Doppler Radar Speed Detector for Speed Signs

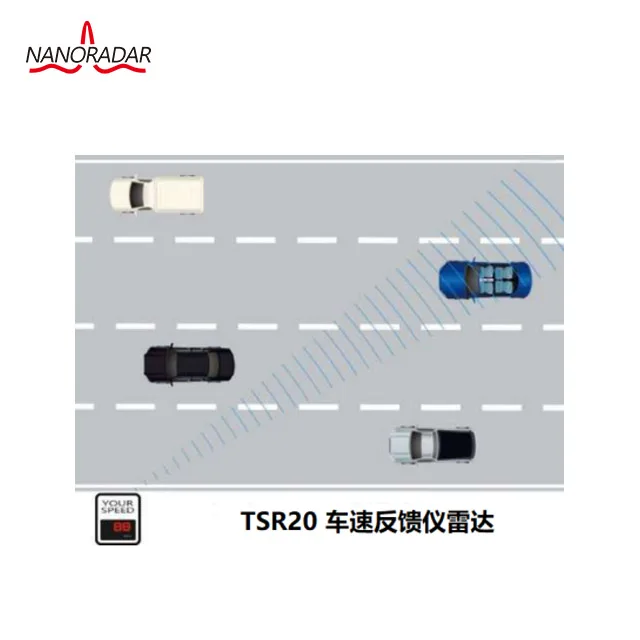

Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.

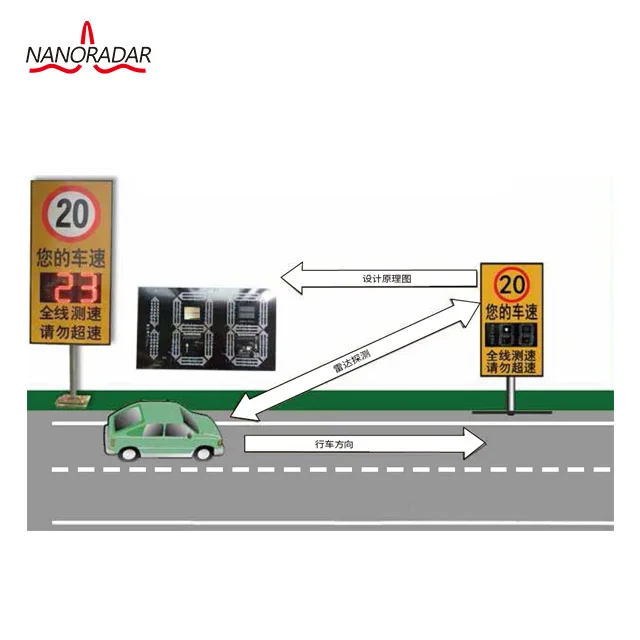

The speed sign system is made up of following:
Speed detection: K Bnad Doppler Radar
Video Records: Camera, Lights
Front Data Process
Unit: Identification on Server
Networking Unit: Switch, Optical Transmitter & Receiver
Multiple installation is controlled at the management center.
The speed sign system is made up of following:
Speed detection: K Bnad Doppler Radar
Video Records: Camera, Lights
Front Data Process
Unit: Identification on Server
Networking Unit: Switch, Optical Transmitter & Receiver
Multiple installation is controlled at the management center.
Application:
Speed warning of school zones, construction zones, residential areas, and college campuses etc.
Features:
* Advanced AI algorithm technology, which can distinguish vehicle features and avoid target miss & re-catch.
* Distance & speed accuracy enhanced by spectrum zoom
* Vehicle catching location range in ±0.5m, accuracy up to 99%
* Vehicle driving direction recognizable
* Comfort installation design, built-in with level instrument
* Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh
environment
* It comes with interface:RS485, RS232 & Wi-Fi for easy configuration
Features:
* Advanced AI algorithm technology, which can distinguish vehicle features and avoid target miss & re-catch.
* Distance & speed accuracy enhanced by spectrum zoom
* Vehicle catching location range in ±0.5m, accuracy up to 99%
* Vehicle driving direction recognizable
* Comfort installation design, built-in with level instrument
* Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh
environment
* It comes with interface:RS485, RS232 & Wi-Fi for easy configuration
Installation Cases on Real Site
Snapshot Photos
Introduction of product advantages or application effect or application mode
产品优点or使用效果or使用方式的介绍说明

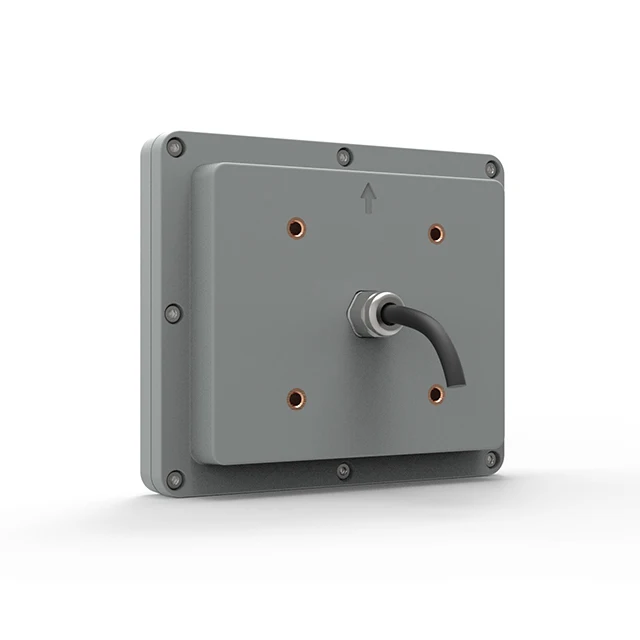

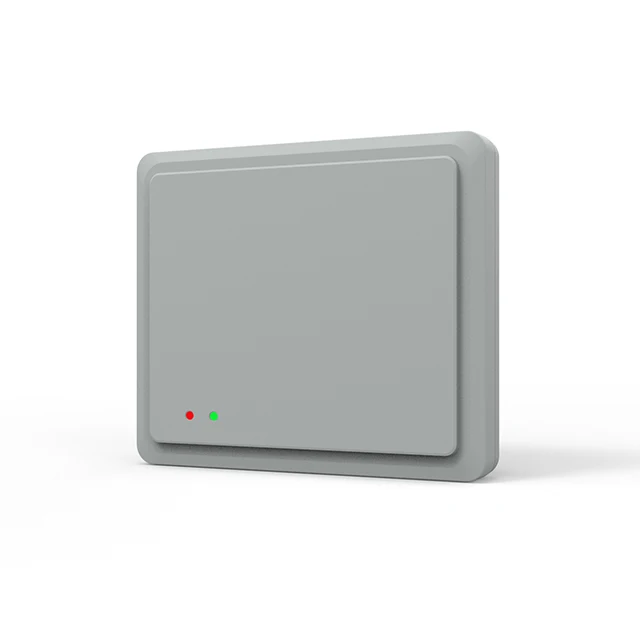

Product Presentation
Product Name | 24GHz TSR20 |
Transmit power | 20 dBm |
Power | 1.6W |
Speed rang | 1~300km/h |
Communication interface | RS485/RS232/Switch |
Detection rang | 1-300m |
Direction | Distinguish car coming and going |
Speed accuracy | -1~0km/h |
Beam width/TX | Azimuth(-6dB) 7 deg |
Beam width/TX | Elevation(-6dB) 28 deg |
Distance range | 1~300m |
Distance accuracy | ±0.5 m |
Size | 148*124.5*26.5mm |
Protection class | IP66 |
Certificate
We acquired the internationally recognized Quality Management System ISO/TS16949:2009 in 2017 , Our products manufacturing strictly accords with the RoHs rules of EU. Our products are compliant with EMC certification like CE, FCC
Related Products
Company Introduction
Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV,
automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. CAR28T / 28F---Vehicle BSD/LCA radar Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 170 meters Automotive ADAS radar ( ACC/AEB)
5. NSR80W/NSR100W/NSR300W---Security perimeter intrusion detection
automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. CAR28T / 28F---Vehicle BSD/LCA radar Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 170 meters Automotive ADAS radar ( ACC/AEB)
5. NSR80W/NSR100W/NSR300W---Security perimeter intrusion detection
