Быстрая доставка самоустанавливающийся шарикоподшипник Koyo
- Категория: >>>
- Поставщик: Shandong,Sparta,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.44 $* | 0.90 $* |
| Aug-15-2025 | 0.67 $* | 0.14 $* |
| Jul-15-2025 | 0.34 $* | 0.36 $* |
| Jun-15-2025 | 0.80 $* | 0.61 $* |
| May-15-2025 | 0.88 $* | 0.34 $* |
| Apr-15-2025 | 0.22 $* | 0.46 $* |
| Mar-15-2025 | 0.84 $* | 0.63 $* |
| Feb-15-2025 | 0.79 $* | 0.25 $* |
| Jan-15-2025 | 0.88 $* | 0.61 $* |
Характеристики
Fast delivery Koyo self aligning ball bearing 2204
Bearings details
Product characteristics:
1.The self-aligning ball bearing mainly accepts radial load, but also accepts smaller axial load.
2.The self-aligning ball bearing achieves high strength and high precision.
3.Self-aligning ball bearings can be used under special conditions such as acid and water resistance.
High mechanical strength and load capacity
It has the characteristics of anti-rust, good flexibility, high speed and long service life.
Self-aligning ball bearings 2204
Bearing number : 2204
Size (mm) : 20x47x18
Brand : KOYO
Bore Diameter (mm) : 20
Outer Diameter (mm) : 47
Width (mm) : 18
Bearing dimensions and specification in KOYO catalogue:
d - 20 mm
D - 47 mm
B - 18 mm
C - 18 mm
r min. - 1 mm
da min. - 25 mm
Da max. - 42 mm
ra max. - 1 mm
Weight - 0.140 Kg
Basic dynamic load rating (C) - 12.6 kN
Basic static load rating (C0) - 3.30 kN
(Grease) Lubrication Speed - 14000 r/min
(Oil) Lubrication Speed - 17000 r/min
Calculation factor (e) - 0.48
Calculation factor (Y0) - 1.37
Calculation factor (Y1) - 1.31
Calculation factor (Y2) - 2.02
| Fast delivery Koyo self aligning ball bearing 2204 | |||
 | Model | 1204 | |
| Material | Gcr15 chome steel | ||
| Cage | Brass ,Steel,Nylon | ||
| Seal Type | Open | ||
| Quality | ISO9001 2000 Standard;CE | ||
| Port | Qingdao,Shanghai,Beijing,Tianjin,Guangzhou,Shenzhen | ||
| Package | Standard exported package or according to our customers' requirement | ||
| Delivery Time | within 3 days after confirm, it will be 3~7 days if the goods are not in stock , The specific time need refer to the quantity | ||
Feature
1.With self-aligning feature
2. Strong Load capacity
3. Less Noise
4. Long operating life

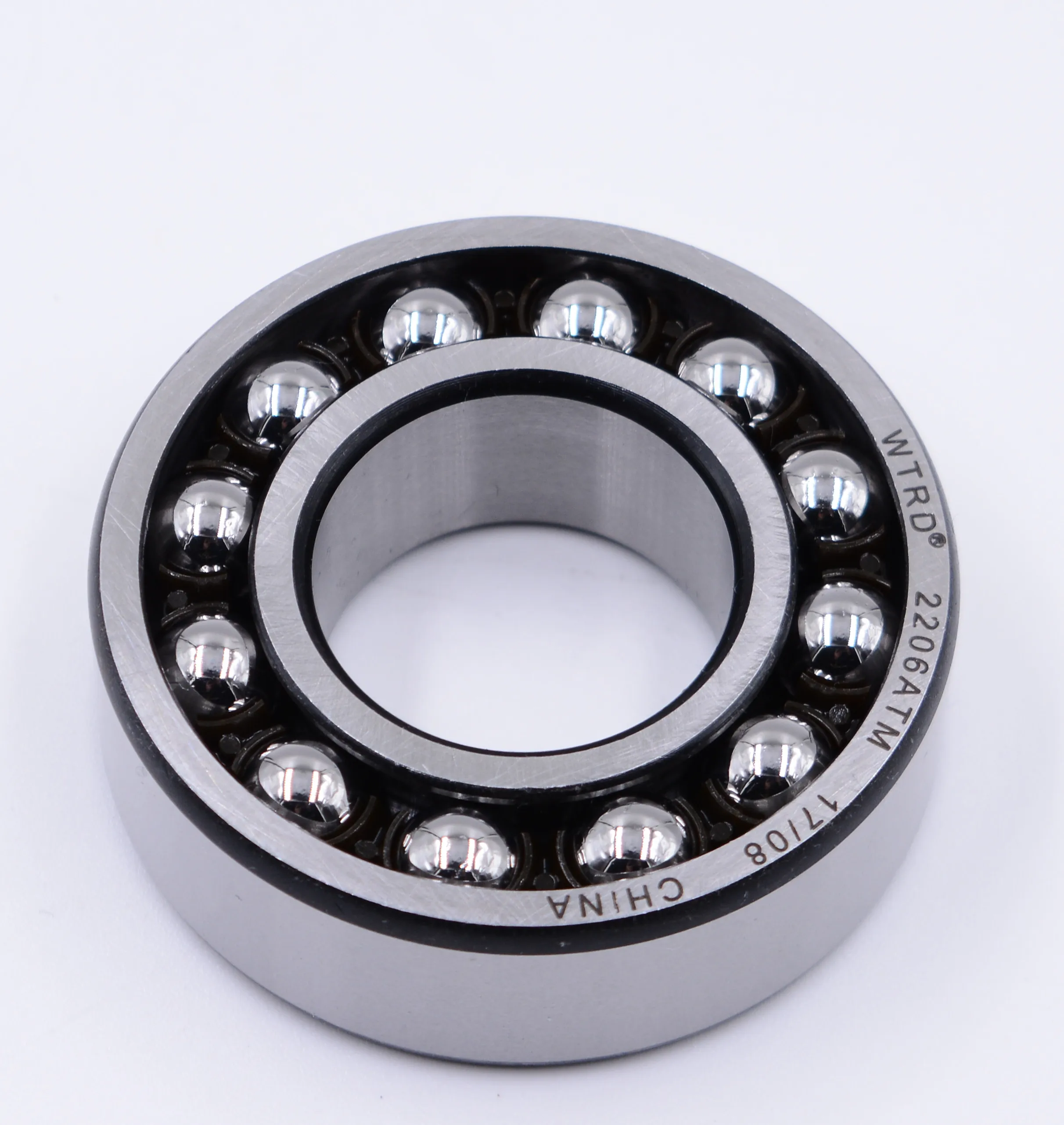

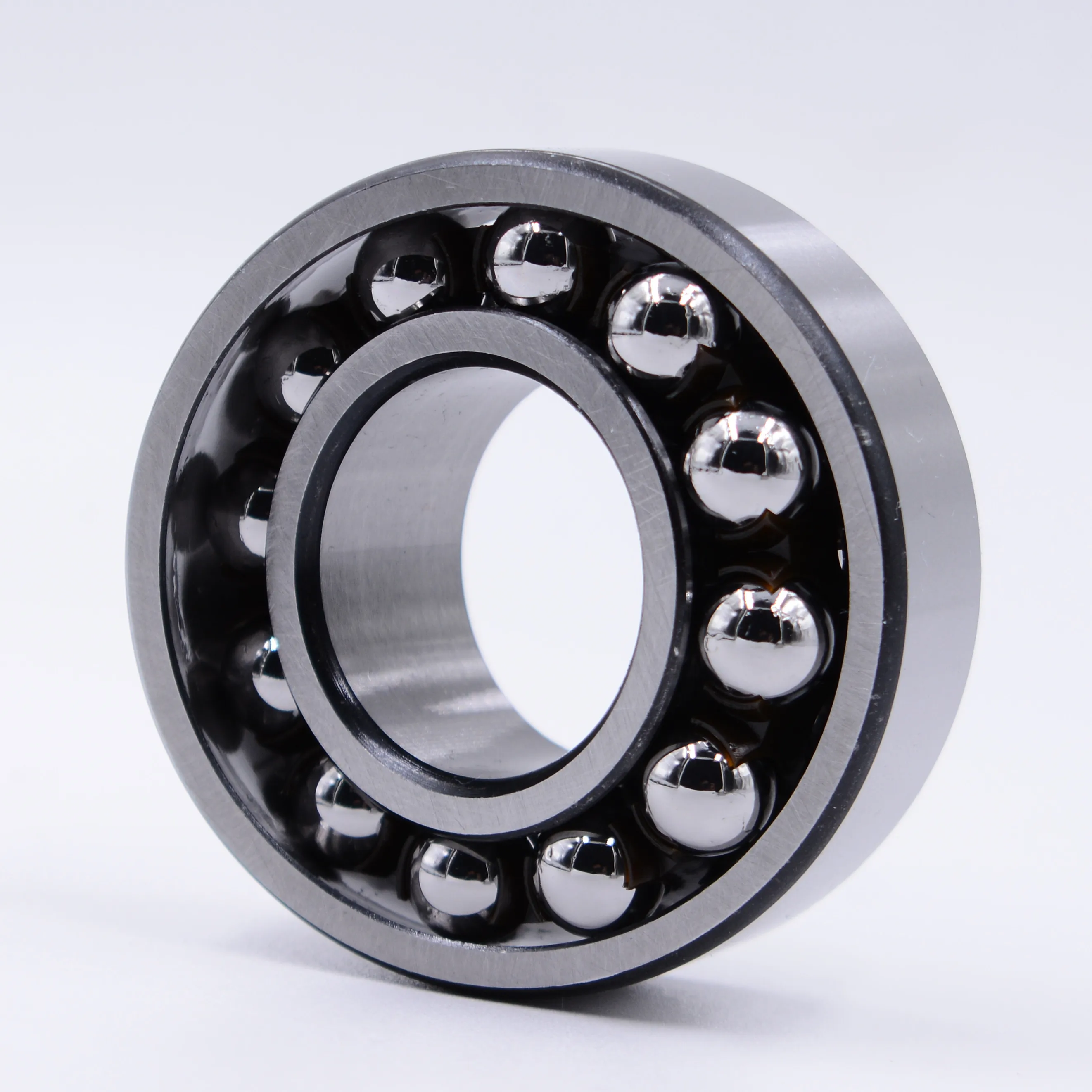

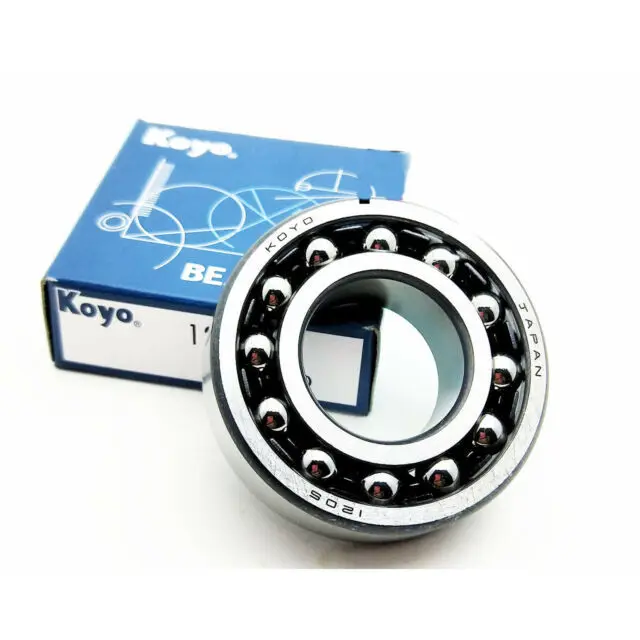

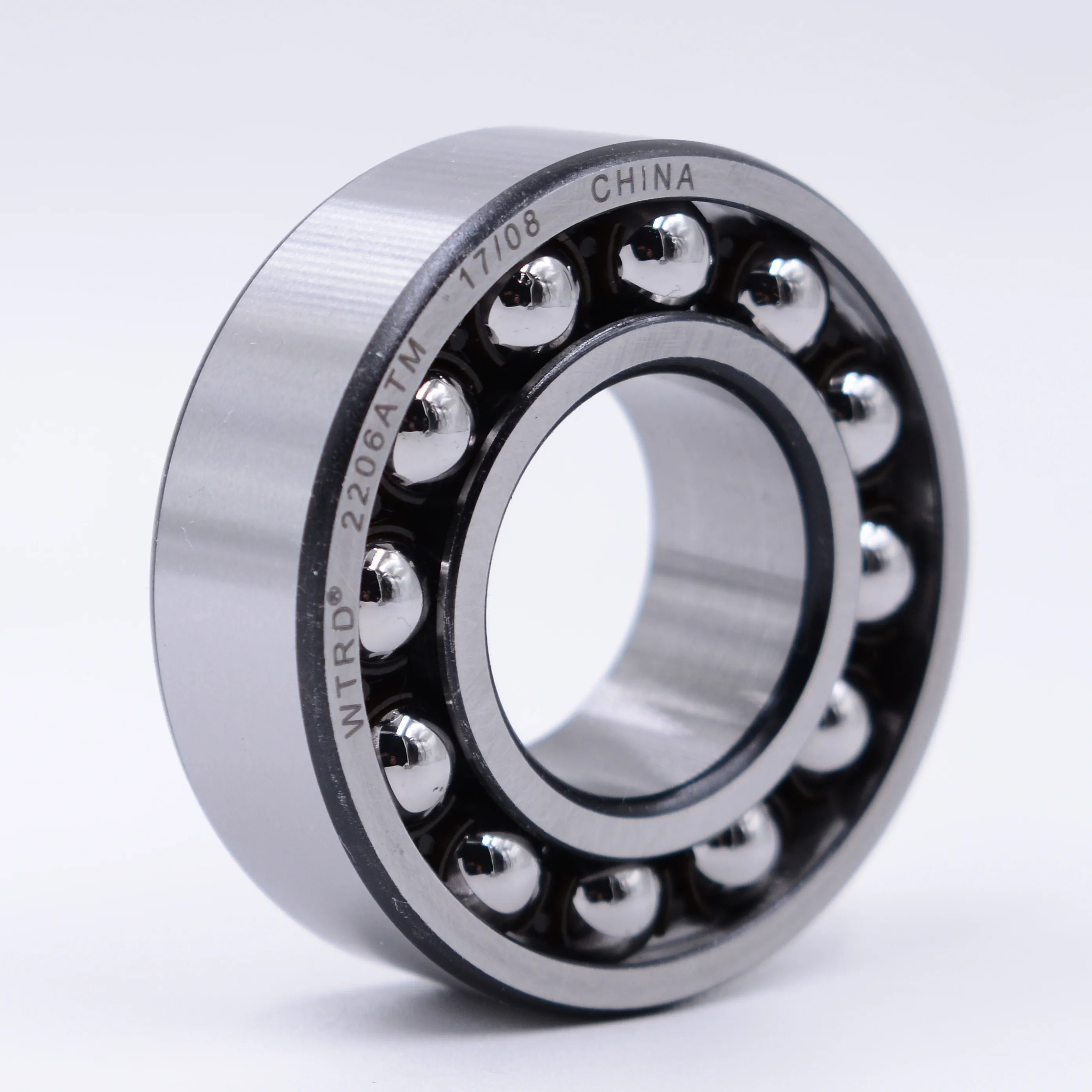

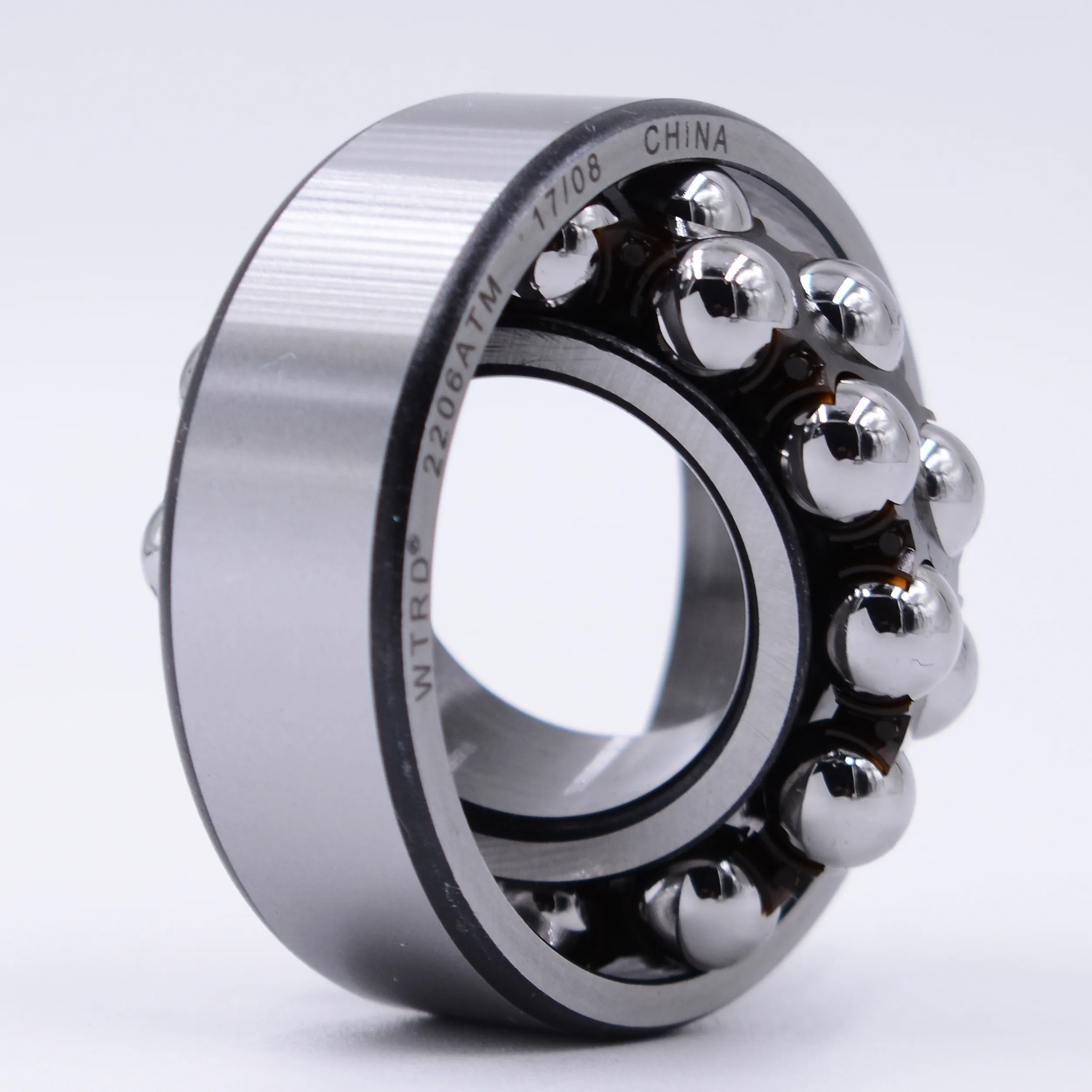

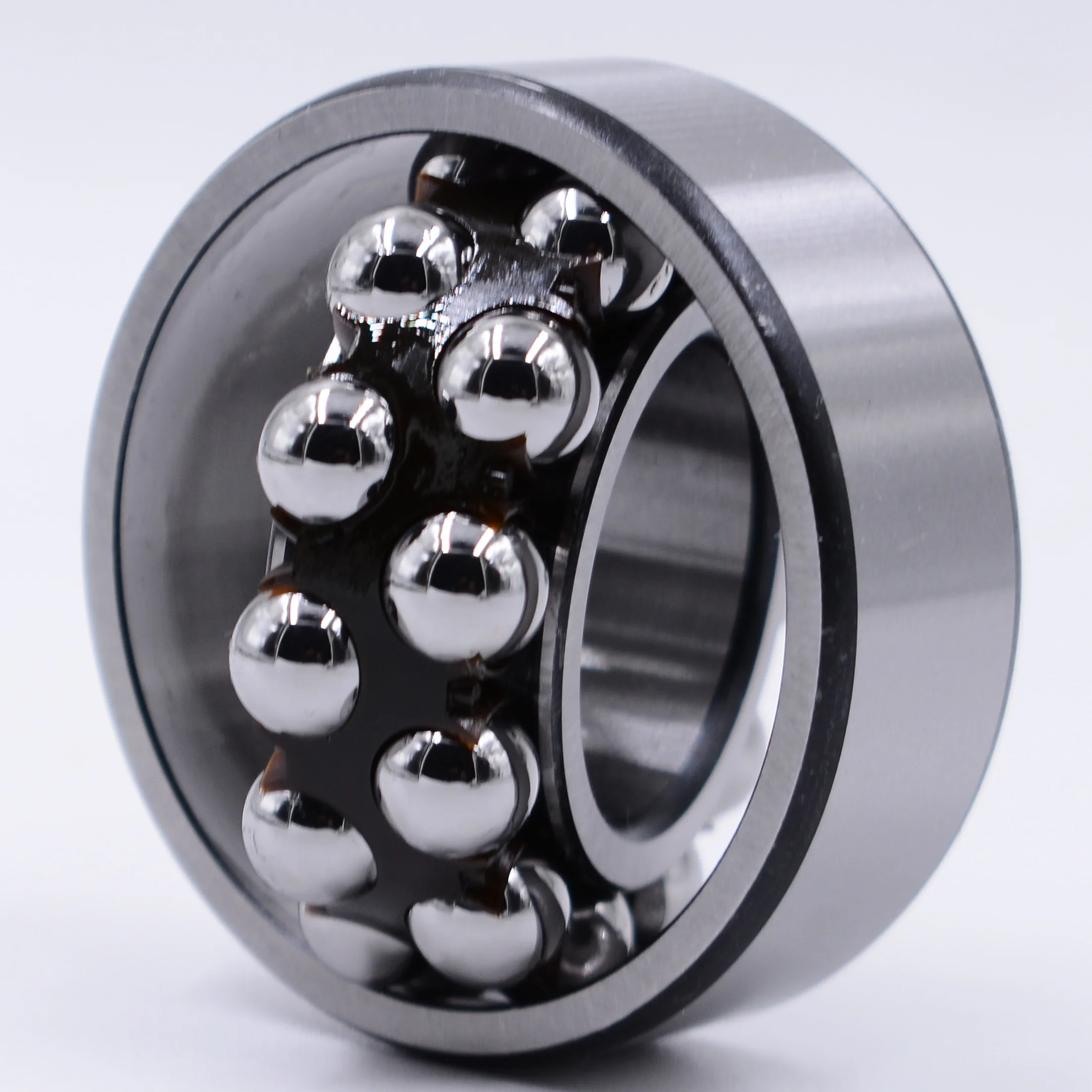

photo of Spherical Self-aligning Ball Bearings
Company details
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize packaging box as per your requirements.
Q:Do you offer free samples?
A: Yes we offer free small samples to distributors and wholesalers, pls note,if your bearings are bigger,we will send you same materials/same brands as for sample.however customers should bear freight.
We DO NOT offer free samples to end users.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance.
Q:How long is the lead time?
A: Normally lead time is about 3-7days,if it is customized order ,the lead time will be reconfirmed, about 10-15days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
