CGZ10325-45 10 мотор стекло многоступенчатая для прямолинейной скругленной кромки изменение угла наклона 45 градусов полировальный станок
- Категория: >>>
- Поставщик: Cgtech,Glass,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.23 $* | 0.35 $* |
| Aug-16-2025 | 0.62 $* | 0.28 $* |
| Jul-16-2025 | 0.34 $* | 0.68 $* |
| Jun-16-2025 | 0.44 $* | 0.57 $* |
| May-16-2025 | 0.57 $* | 0.94 $* |
| Apr-16-2025 | 0.21 $* | 0.79 $* |
| Mar-16-2025 | 0.95 $* | 0.51 $* |
| Feb-16-2025 | 0.89 $* | 0.57 $* |
| Jan-16-2025 | 0.39 $* | 0.23 $* |
Характеристики
Products Description
Description:
● CGZ10325-45° is suitable for grinding flat glass with arris, variable angle and 45° edging. 5 motors from front beam can adjustable 0~45°and as a whole to move in /out to achieve angle adjustment.
● Coarse grinding, fine grinding, polishing and chamfering can be completed in one time.
● The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation),Which can bear large loads and has stable performance.
● With reasonable design, and high precision processing, It is the best glass grinding equipment for processing the mass production of craft glass, home appliances glass, decoration and furniture glass, doors and architecture glass.
● Coarse grinding, fine grinding, polishing and chamfering can be completed in one time.
● The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation),Which can bear large loads and has stable performance.
● With reasonable design, and high precision processing, It is the best glass grinding equipment for processing the mass production of craft glass, home appliances glass, decoration and furniture glass, doors and architecture glass.
Max.Glass size | 3000×3000mm |
Min.Glass size | 80×80mm |
Glass thickness | 3-25mm |
Transmission speed | 0.5-5m/min |
Bevel angle | 0-45° |
Max.hemline grinding | 3mm |
Max. arris grinding | 2.5mm |
Power | 21KW |
Weight | 3500kg |
Land occupation | 7800×1000×2500mm |
glass diagonal error | ≤0.5mm/m |
glass parallelism error | ≤0.3mm/m |
Details Images

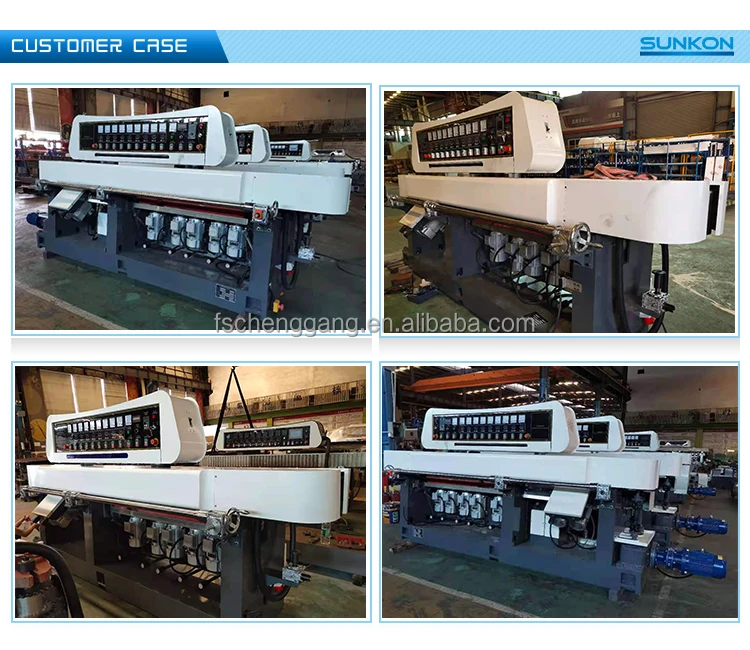

Our Case
Product packaging
Company Profile
Why Choose Us
Product Catalog
FAQ
