Кабель зарядного устройства для электромобиля типа 2-типа 2
- Категория: Charging Cables >>>
- Поставщик: Chengdu,Yunqiao,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 108.20 $* | 110.93 $* |
| Jul-16-2025 | 88.16 $* | 90.51 $* |
| Jun-16-2025 | 106.56 $* | 108.99 $* |
| May-16-2025 | 105.22 $* | 107.45 $* |
| Apr-16-2025 | 84.93 $* | 86.63 $* |
| Mar-16-2025 | 104.34 $* | 106.39 $* |
| Feb-16-2025 | 103.52 $* | 105.70 $* |
| Jan-16-2025 | 102.75 $* | 104.12 $* |
Характеристики
Product Description

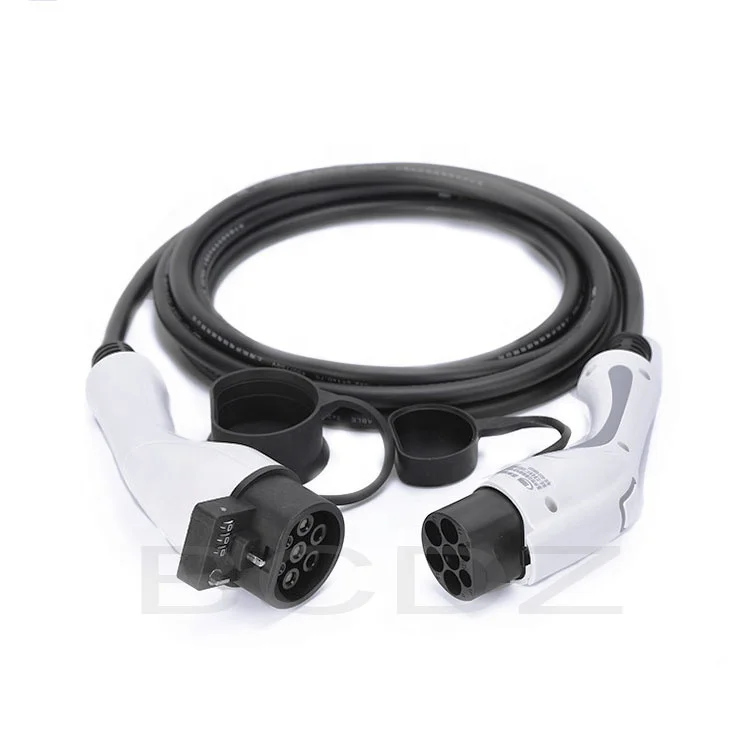

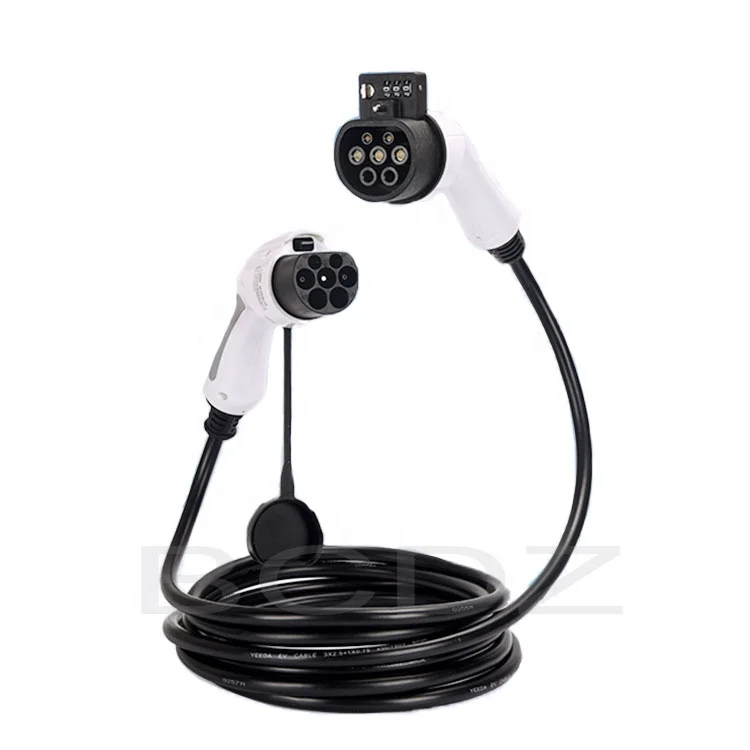

Electric vehicle car charging type 2 to type 2 EV charger cable
Specification
EV charger parameter | ||
In put Power: | 110V-250V AC | |
ChargingCurrent : | 6A/8A/12A/14A/16A | |
Length : | 5 meters | |
Output Power: | 3.5KW | |
Mechanical life: | plug in/out > 10000 times | |
Impact of external force: | can afford 1m drop and 2t vehicle run over pressure | |
Insulation resistance: | > 1000MD (DC500V) | |
Terminal temperature rise: | < 50K | |

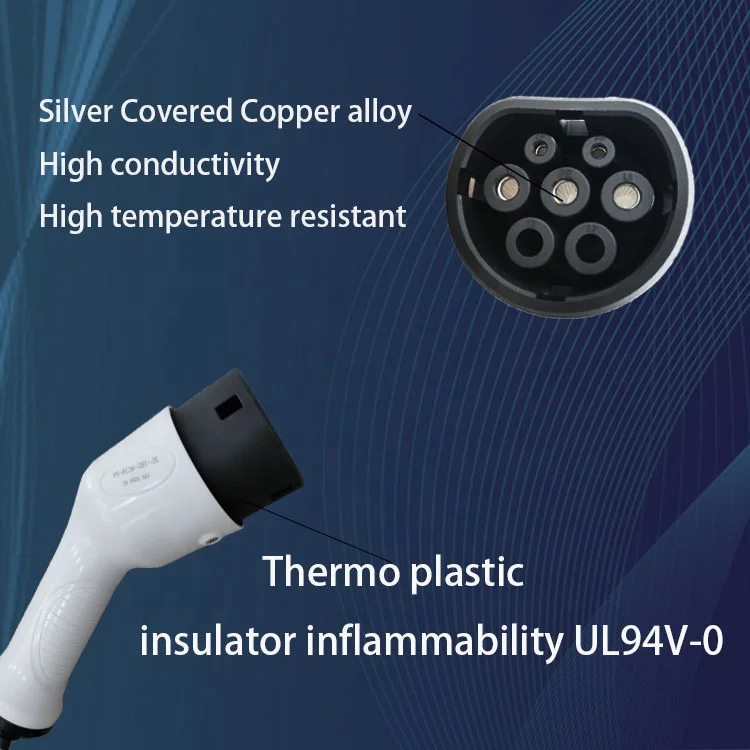

Housing Fire Rating： | UL94V-0 | |
Wellcom contact us for more details.
PS:customize service is provided.Certifications

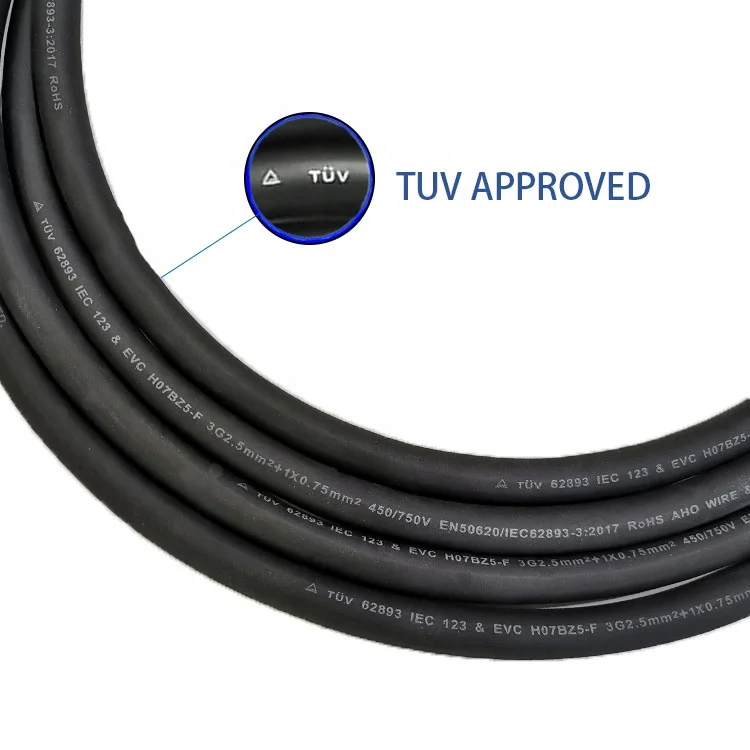

Cerdified by ISO9001:2008 | CE | ROHS | FCC | TUV
All products must pass the following inspection before leaving the factory:
1.Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test
2、Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.
3, control guide test:
3, control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message does not match the test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.
Company Profile
Established early in 2007,Our company is a professional enterprise engaged in R & D, production and processing of new energy vehicle harness, electric vehicle harness, charging pile harness, BMS harness and other products.
4 R & D personnel and 200 employees
FAQ
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific
solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific
solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
