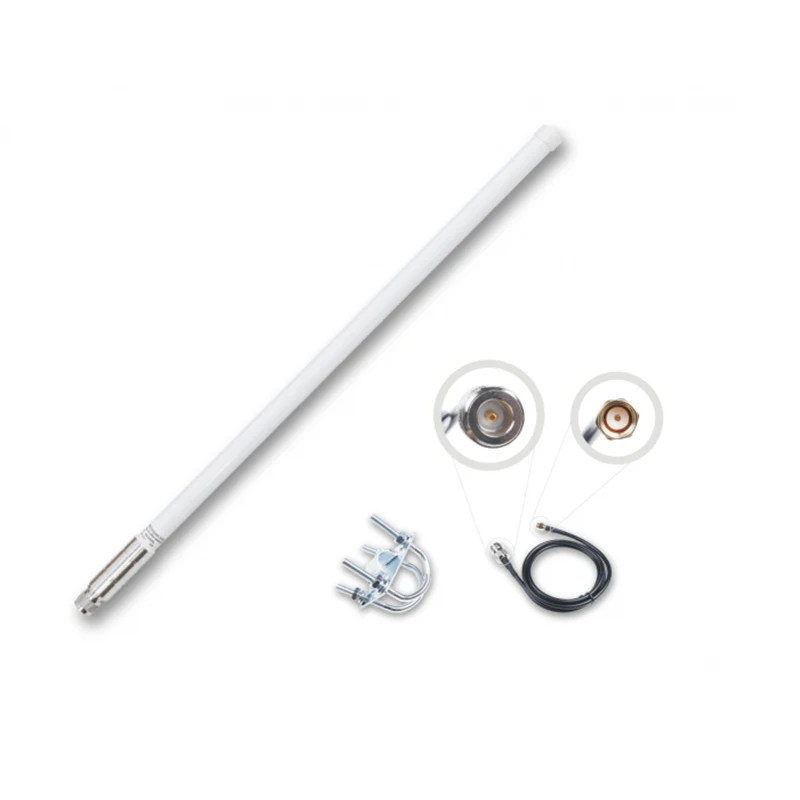

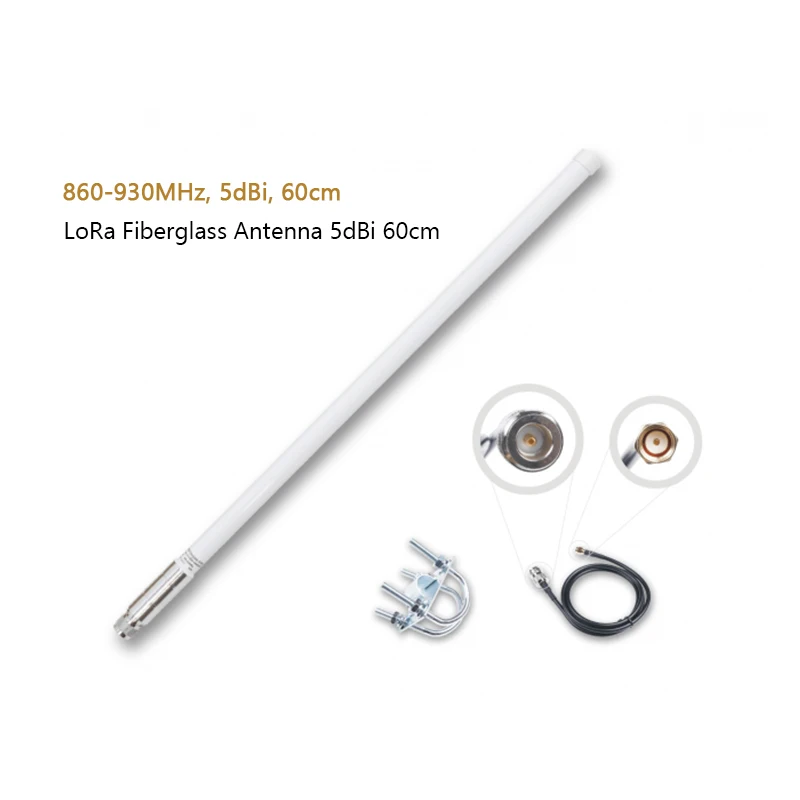

LoRa Стекловолоконная антенна 860-930 МГц 5dBi 600

• Average gain dBi: 5.8dBi


• Frequency range: 860-930MHz


• Length of 60cm


• Robust enough to withstand the harsh outdoor environment


• Can connect to the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway

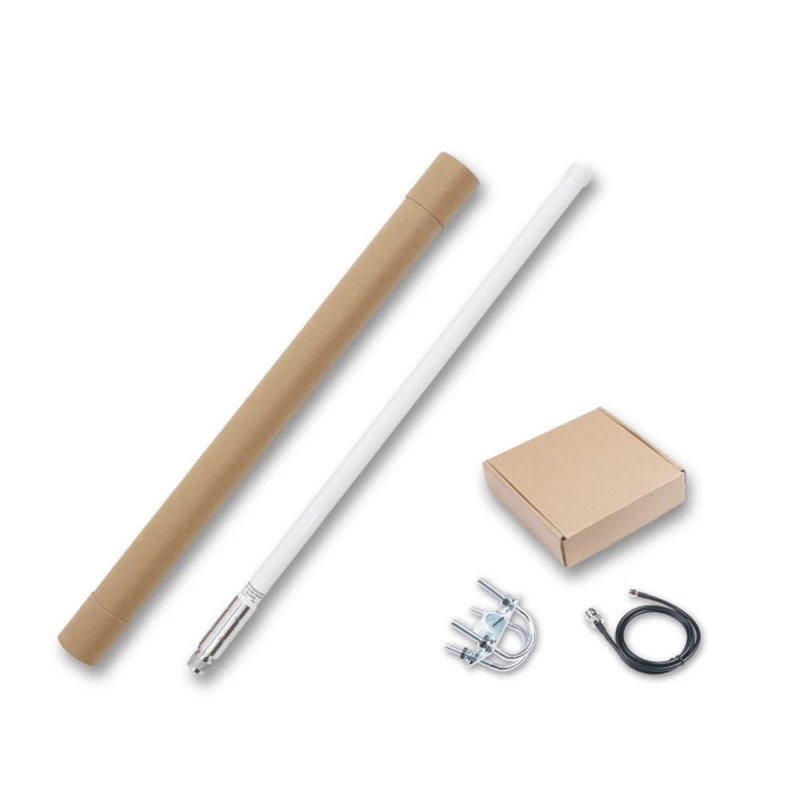

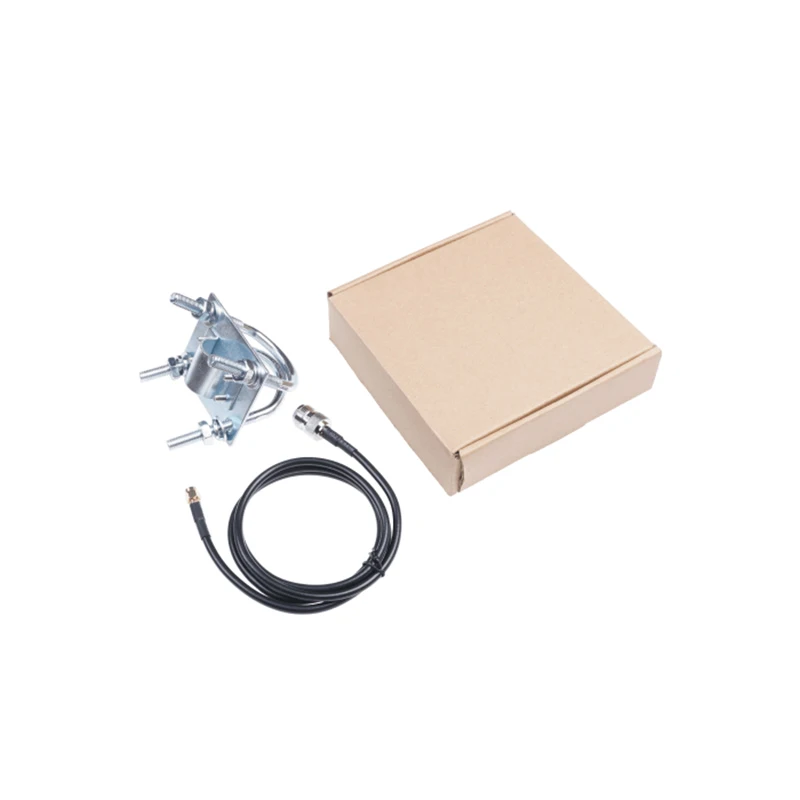

• Includes hardware for mounting


• Comes with a 1m cable

For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system.  It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 6dBi, a length of 60cmand a frequency range from 860-930MHz and it comes with hardware for pole and wall mounting.

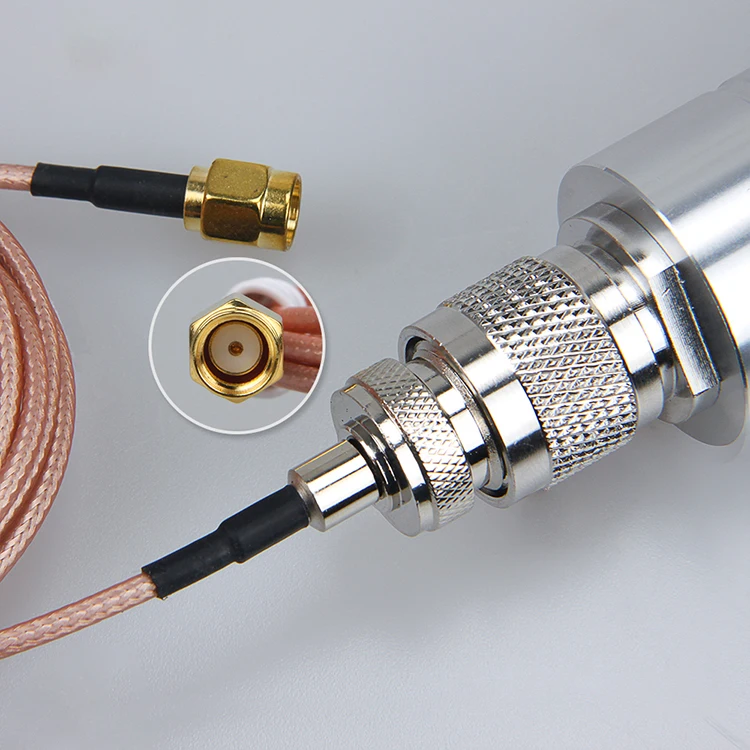

The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.

Application

The antenna can be used in any environment where long-range LoRa connections are required.

• Agriculture


• Environmental Monitoring


• Urban Monitoring
