Характеристики
EMV PBOC 13.56 MHz Smart Magnetic RF IC Kiosk Motor Card Reader with SAM Card
Product Description
What is the Overview of EMV PBOC 13.56 MHz Smart Magnetic RF IC Kiosk Motor Card Reader with SAM Card ?

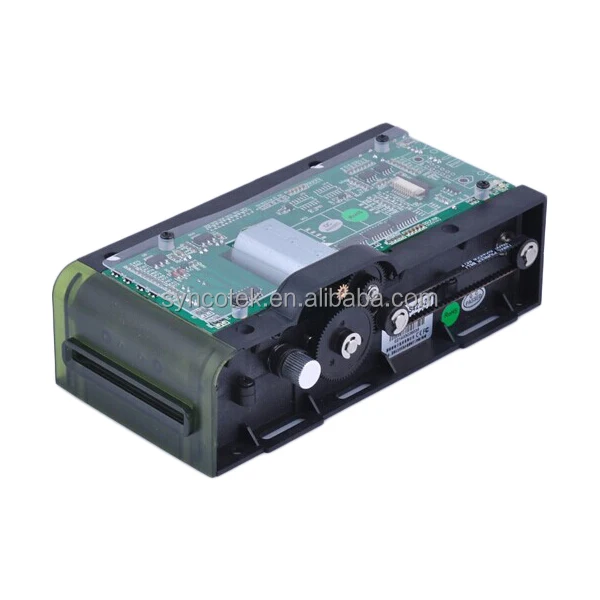

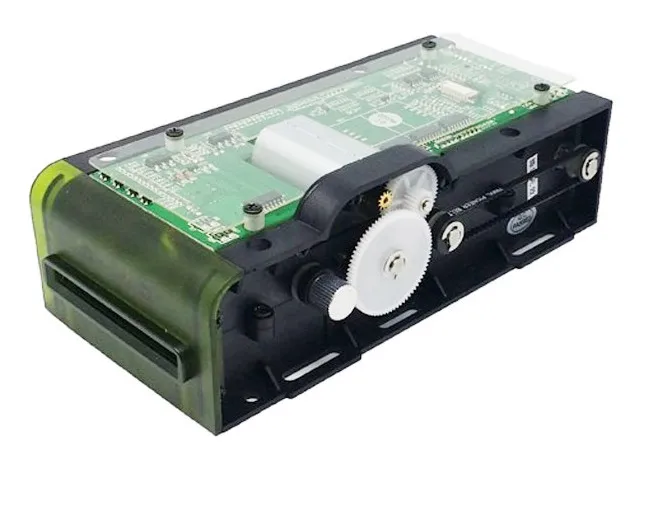

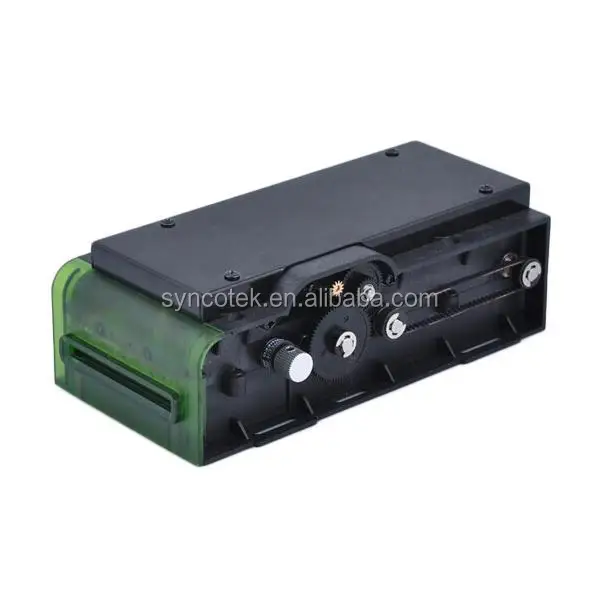

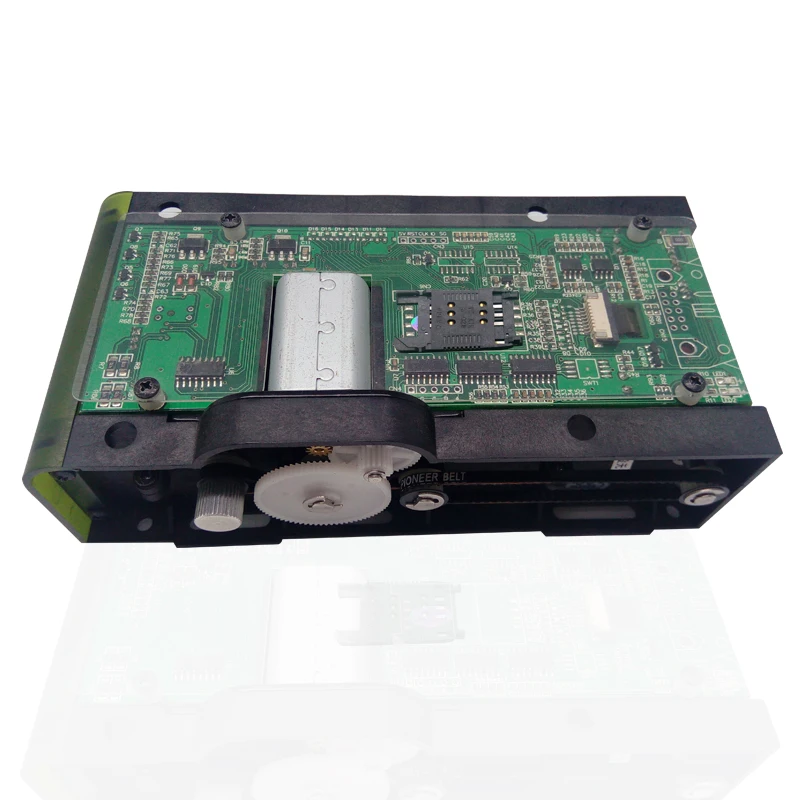

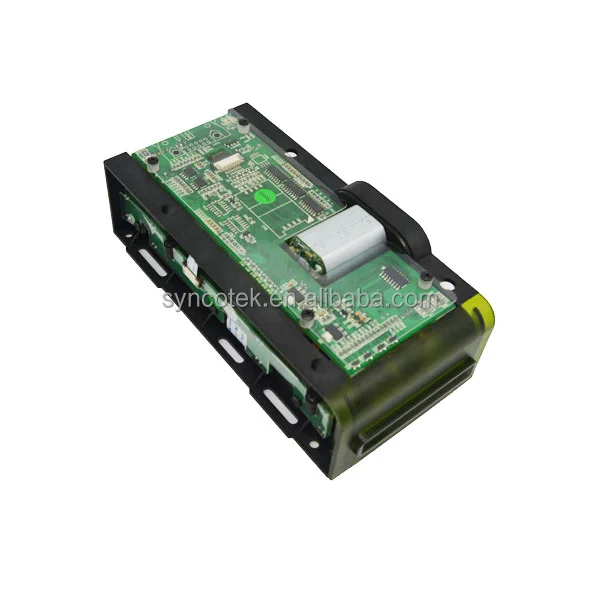

SK-AR6 series motorized card reader/writer supports RF/IC card R/W and magnetic card R, which is a product created from many years of technology and experience accumulation and the market demand. AR6 is designed based on the development concept that integrates multiple functions. Careful material selection, rational structure and stable circuit design make it a highly reliable product, meanwhile, its bezel is designed with a user-friendly LED; all these enable AR6 to better meet the market requirements for motorized card reader/writer.
What is the key features of EMV PBOC 13.56 MHz Smart Magnetic RF IC Kiosk Motor Card Reader with SAM Card ?
1.Read ISO standard magnetic stripe cards, read / write RFID cards and IC card
2.Electric card latch and release function. Card could be retrieved once latched if you pull by over 15 N of pulling
force
3. RS232/USB interface (automatically detect interface)
4. Agile magnetic stripe reading type: Read when insert/withdraw and uploaded passively /actively
5.Long Life time (500,000 times)
What is the application of EMV PBOC 13.56 MHz Smart Magnetic RF IC Kiosk Motor Card Reader with SAM Card?
*Information kiosk *Payment kiosk *Access control terminal *Parking kiosk
What is the detailed specification of EMV PBOC 13.56 MHz Smart Magnetic RF IC Kiosk Motor Card Reader with SAM Card?
Physical Characteristics | In conformity with ISO 7810 /7811 | |
Card Size | In conformity with ISO 7810ID-1 | |
Embossing Card | In conformity with ISO 7811-1 /-3 | |
Recording Format | In conformity with ISO 7811-2 /-4 /-5 /-6 | |
Recording Capacity | Track 1 (IATA) | Max. of 79 characters (6 bits + 1 parity) |
Track 2 (ABA) | Max. of 40 characters (4 bits + 1 parity) | |
Track 3 (MINTS) | Max. of 107 characters (4 bits + 1 parity) | |
Recording Method | Dual-frequency phase-coherent method | |
Height of Warped Card | ≤ 2mm | |
Magnetic Coercivity | 24k~320k A/m (300~4000 Oe)+/-10% | |
Card Supported | 86L x 55W mm (0.76mm standard card) | |
Anti-theft Function | By protruding bezel and jitter card-in pattern. | |
Communication Method | RS232 /USB (optional) | |
Operating Conditions | Power Supply | DC12V±5%, 2A |
Quiescent Current | 100mA | |
Default Baud Rate | 9600BPS/sec. | |
Service Life | Magnetic Head | 800,000 passes min. |
IC Contact | 500,000 passes min. | |
Operation /Storage Environment | Operation Temperature / Humidity | 0°C to 50°C, 0 to 90% RH without condensation |
Storage Temperature / Humidity | -25°C to 80°C, 0 to 90% RH without condensation | |
Net Weight | Approx. 390g | |
Dimension | C/R Dimension | 161L x 85W x 54H mm (with flat bezel) |
Package Dimension | 245L x 137W x 93H mm | |

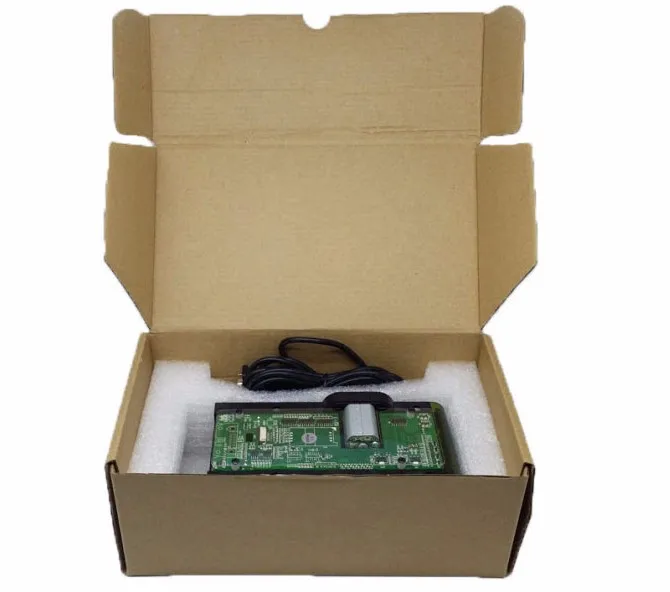

Packaging & Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Trade Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our Services
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. SYNCO has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
