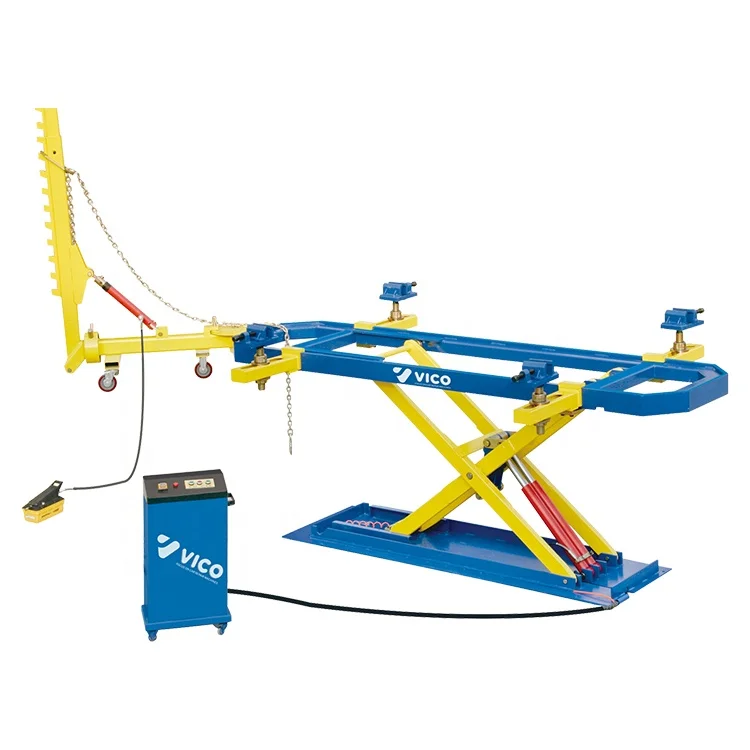

VICO автомобильный подъемник ножничный машина для рамы кузова автомобиля скамья выпрямления и ремонта фургона # VF6000 быстрый

Описание и отзывы

Трекер стоимости

Характеристики

1.Main Features



(1) Frame-style bench with European technology adopts cold-drawing high alloy rectangular tube, making it with high flatness and strong strength.

(2) The working height of scissor lifting bench can be adjusted between 120mm and 1700mm as needed. Bench can be down to 120mm from the floor, which makes car can be driven on it directly without ramps.

(3) The hydraulic pulling tower can move 360 degrees around the bench rail, making work on all sides of the vehicle fast and efficient. Heavy-duty pulling tower with high strength are always ready multi direction straightening for demanding structures.

(4) The universal clamps are suitable for the positioning and clamping of various imported and domestic cars.

(5) Equipped with electrical pump for bench up/down, the lifting cylinders are operated electrically by hand-held remote control, which speeds up and down.

(6)  The imported hydraulic system has reliable performance and long use-life. patent general Lord clamp jaw tiger unique design. Mechanics streamline design of the jaw, through osmosis, heat treatment process, to ensure the fast clamping of various models, improve the working efficiency and service life.

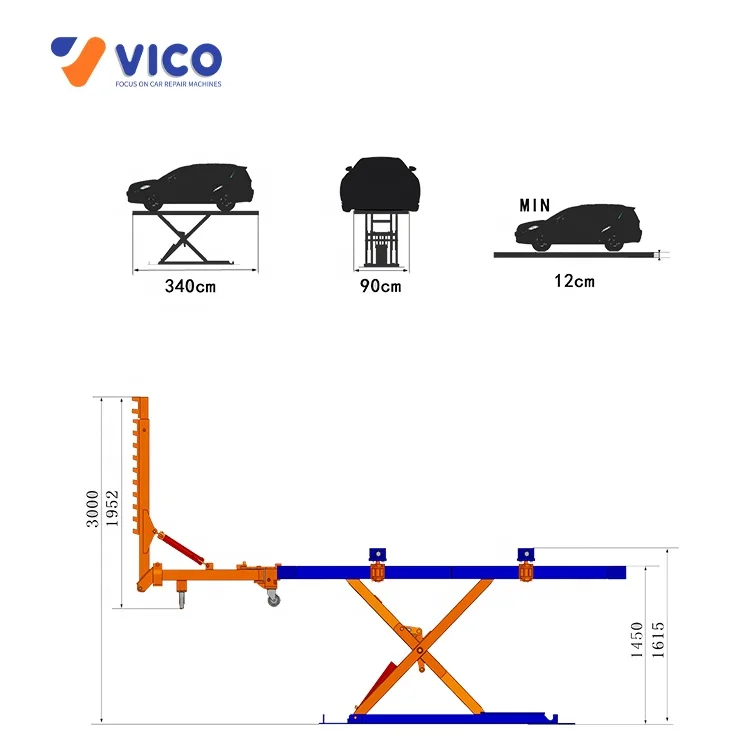

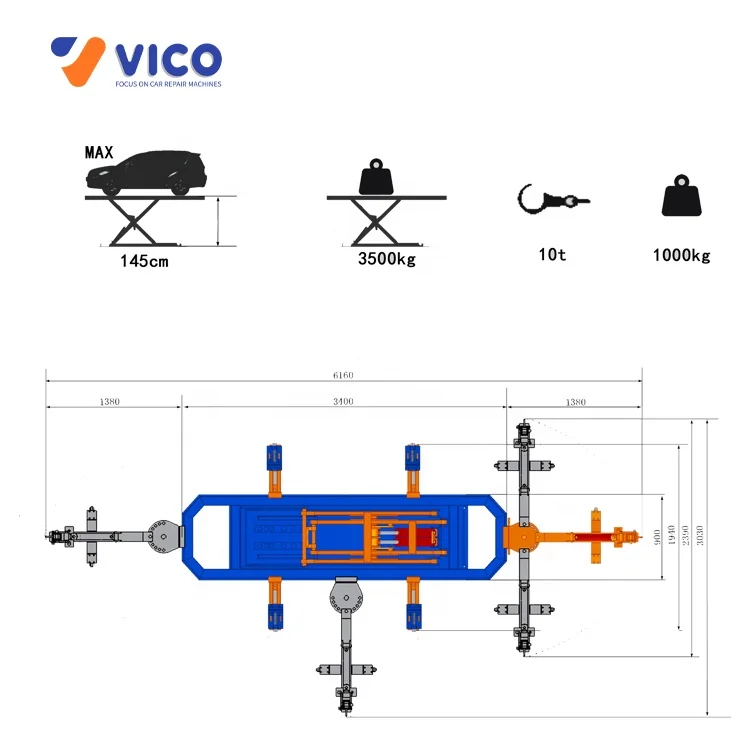

2.Specification



Platform Length	3400mm
Platform width	890mm
Platform height	120mm~1700mm
Post Max. tension	95KN
Pneumatic pressure range	0.8Mpa
Post working range	360° full around
Cylinder capacity	10T
Maximum lift capacity	3000kgs
Packing size	3445x980x240mm+580x400x1010mm   2100x680x530mm /1.8cbm
Weight	1350kgs

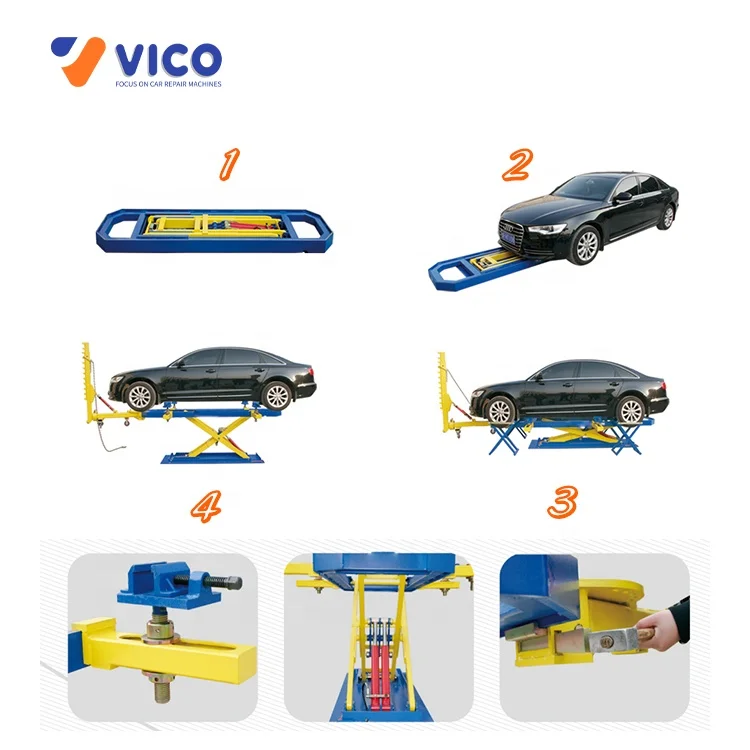

3.Pictures for the detail

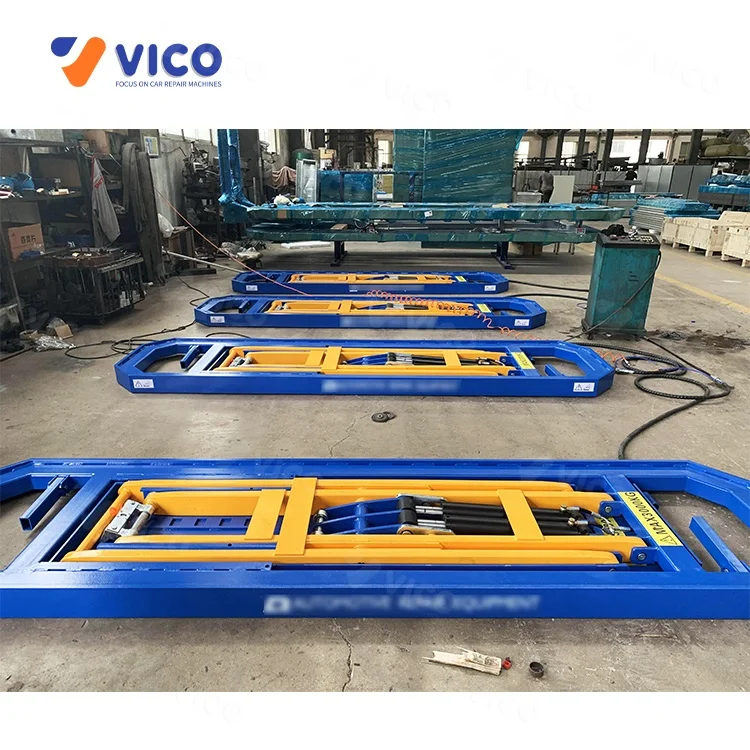

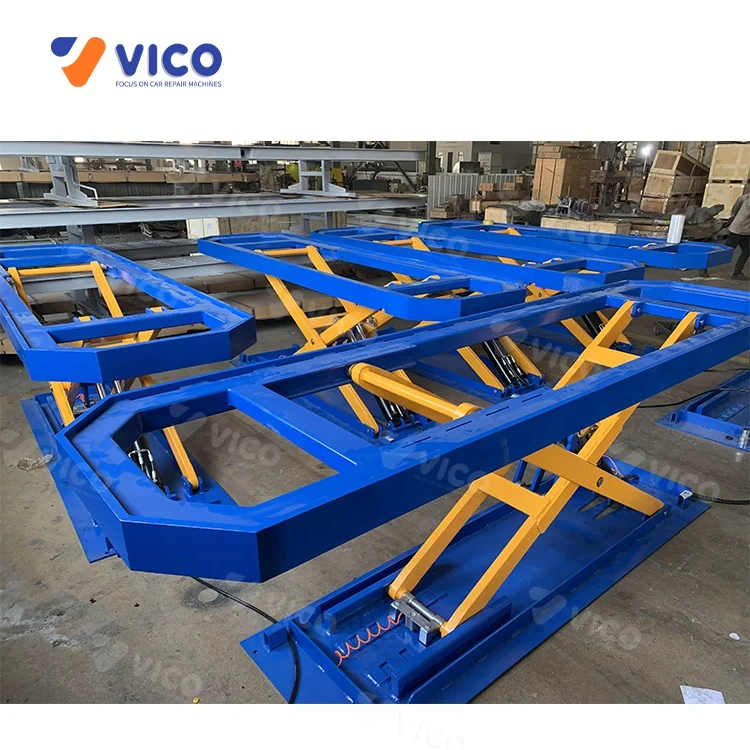

4. Factory production and customer feedback view

 5. More different models of the auto body frame machine and car benches



According to your Auto body shop, we can suggest you different models which can meet your inquiry, we also can do custom design or OEM

for wholesalers.  We do whole shop planning solutions.

Here are more models listed, you can check on website with more details or contact our sales directly.



Electricl control / Full lift Luxury model #5500	Electric control / Mid full lift model #5300
Frame liner type car lift and puller model #6000	Car bench straightening rack #7100
Quick puller , light straightening puller #2100	Heavy truck frame machine #9000
