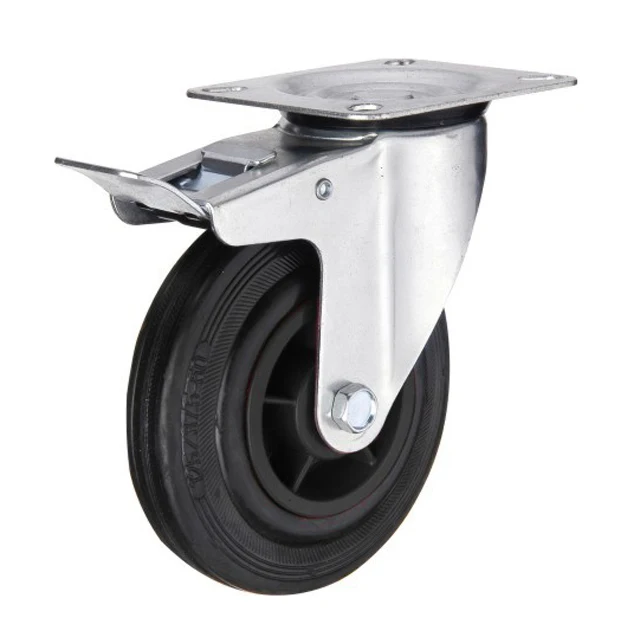

hot sale manufacturer 4inch black rubber plastic core caster wheel for industrial application
Product Description

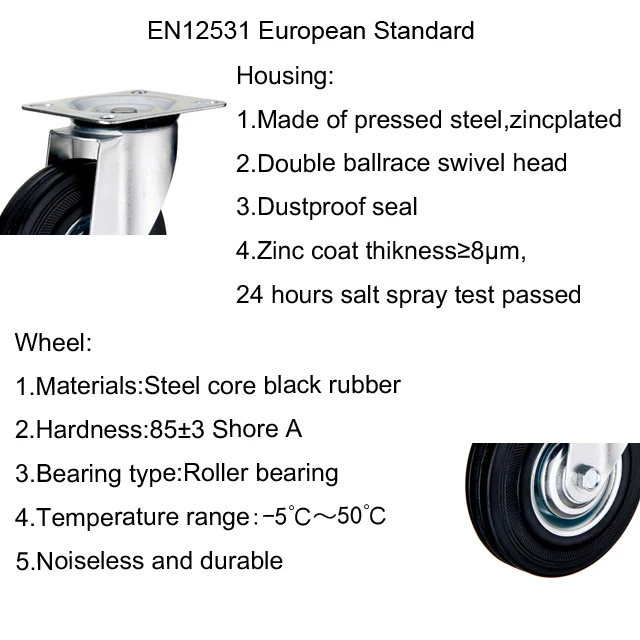

SPECIFICATIONS FOR PRODUCT
Housing:
Made of pressed steel, zinc plated,
double ballrace swivel head, dustproof seal，24 hours salt spray test passed
Wheel:
Materials: Steel core gray rubber
Hardness: 85±3 Shore A
Bearing type: Roller bearing
Temperature range: -5℃ to 50℃

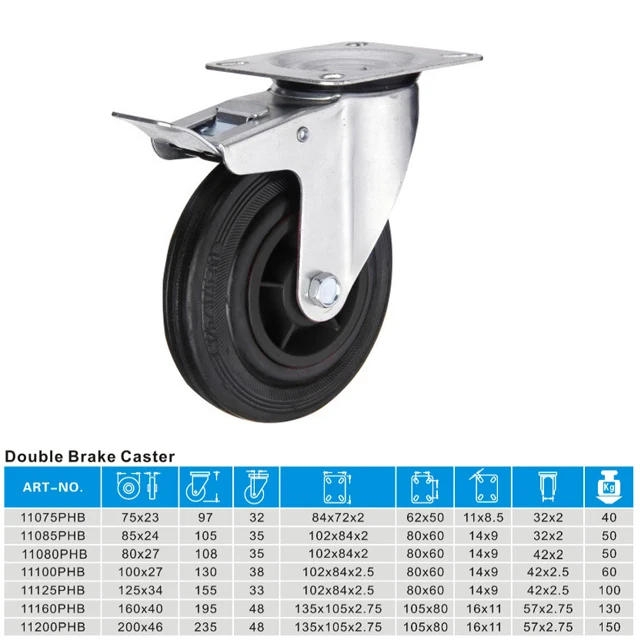

Type | 11 Series (Size: 75mm/80mm/85mm) | ||||
Artical NO. | 11075PHB | 11080PHB | 11085PHB | ||
Wheel Diameter | 75mm(3 inch) | 80mm(3 inch) | 85mm(3 inch) | ||
Wheel Width | 23mm | 27mm | 24mm | ||
Mounting height | 97mm | 108mm | 105mm | ||
Bearing Type | Roller bearing | Roller bearing | Roller bearing | ||
Offset | 32mm | 40mm | 40mm | ||
Top Plate Size | 84*72mm | 102*84mm | 102*84mm | ||
Hole To Hole | 62*50mm | 80*60mm | 80*60mm | ||
Bolt Hole Size | 11*8.5mm | 14*9mm | 14*9mm | ||
Wheel Material | Nature rubber + Steel | Nature rubber + Steel | Nature rubber + Steel | ||
Plate Thickness | 2.0mm | 2.0mm | 2.0mm | ||
Housing Thickness | 2.0mm | 2.0mm | 2.0mm | ||
Loading Capacity | 40KG | 50KG | 50KG | ||
Type | 11 Series (Size: 100mm/125mm/160mm) | ||||
Artical NO. | 11100PHB | 11125PHB | 11160PHB | ||
Wheel Diameter | 100mm(4 inch) | 125mm(5 inch) | 160mm(6 inch) | ||
Wheel Width | 27mm | 34mm | 40mm | ||
Mounting height | 130mm | 155mm | 195mm | ||
Bearing Type | Roller bearing | Roller bearing | Roller bearing | ||
Offset | 37mm | 35mm | 43mm | ||
Top Plate Size | 102*84mm | 102*84mm | 135*105mm | ||
Hole To Hole | 80*60mm | 80*60mm | 105*80mm | ||
Bolt Hole Size | 14*9mm | 14*9mm | 16*11mm | ||
Wheel Material | Nature rubber + Steel | Nature rubber + Steel | Nature rubber + Steel | ||
Plate Thickness | 2.5mm | 2.5mm | 2.75mm | ||
Housing Thickness | 2.5mm | 2.5mm | 2.75mm | ||
Loading Capacity | 60KG | 100KG | 130KG | ||
Type | 11 Series (Size: 200mm) | ||||
Artical NO. | 11200PHB | ||||
Wheel Diameter | 200mm(6 inch) | ||||
Wheel Width | 46mm | ||||
Mounting height | 235mm | ||||
Bearing Type | Roller bearing | ||||
Offset | 49mm | ||||
Top Plate Size | 135*105mm | ||||
Hole To Hole | 105*80mm | ||||
Bolt Hole Size | 16*11mm | ||||
Wheel Material | Nature rubber + Steel | ||||
Plate Thickness | 2.75mm | ||||
Housing Thickness | 2.75mm | ||||
Loading Capacity | 150KG | ||||
Company Profile
FLYWHEEL CASTER. THE QUALITY YOU CAN TRUST!
Flywheel Caster Manufacturing Ltd., established in 1981, which is located in Yangjiang city, Guangdong of China, with 168,000 square-meter beautiful scenery factory.
We pay great attention to the quality. We are the first to be ISO 9001:2008 certified in this industry in 2001. All of our products go through 5,000 brake test and load capacity test conforms to the caster standard EN 12531.And they are subjected to salt-spray and finish treatment testing to ensure high corrosion-resistance.
Now it already has become a professional caster company which integrates design, manufacture, assemble, inspection and exportation.
Our 20 R&D team can work with you on your drawings or special requirements. 360 sets of equipments and 600 workers ensure our monthly output 3 million pcs. The incoming, processing and final inspection can guarantee the good quality products. 90% of our products are exported to Euro and Americans, our turnover of 2011 is USD27,000,000.

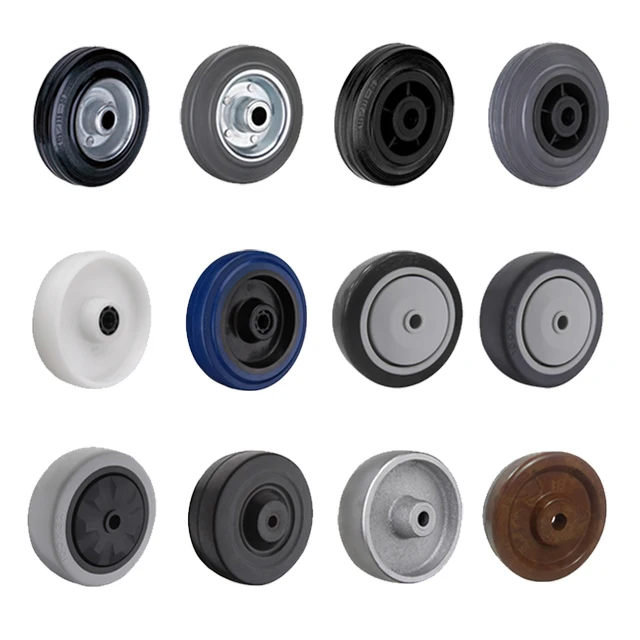

Our wheel diameter is from 15mm to 300mm, materials include rubber, TPR, PU, plastic, nylon, cast iron, pneumatic and phenolic, etc. Our housings have special sizes for different areas, such as Euro type, American type, and the popular type.

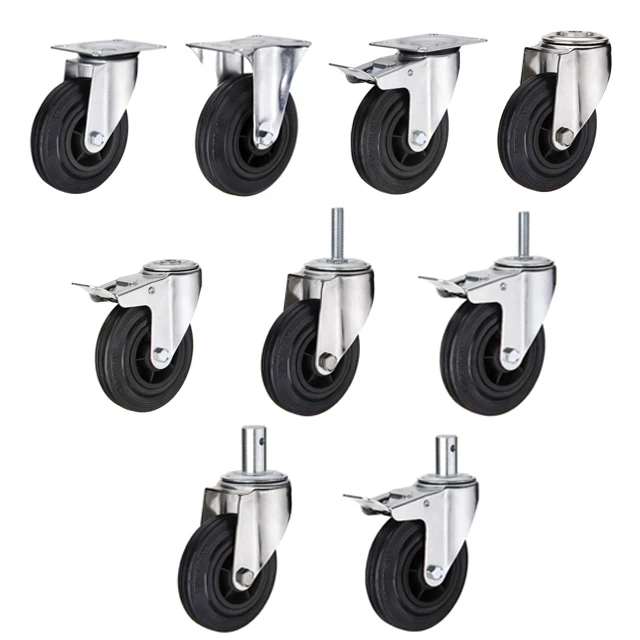

Casters are more than 50 series, 1000 types for customers’ choices and wide different usage, such as, for industrial machine, medical facility, furniture, trolley, shopping cart, forklift, scaffold, shelf, etc.
Welcome to our company to know more about us!
We pay great attention to the quality. We are the first to be ISO 9001:2008 certified in this industry in 2001. All of our products go through 5,000 brake test and load capacity test conforms to the caster standard EN 12531.And they are subjected to salt-spray and finish treatment testing to ensure high corrosion-resistance.
Now it already has become a professional caster company which integrates design, manufacture, assemble, inspection and exportation.
Our 20 R&D team can work with you on your drawings or special requirements. 360 sets of equipments and 600 workers ensure our monthly output 3 million pcs. The incoming, processing and final inspection can guarantee the good quality products. 90% of our products are exported to Euro and Americans, our turnover of 2011 is USD27,000,000.
Our wheel diameter is from 15mm to 300mm, materials include rubber, TPR, PU, plastic, nylon, cast iron, pneumatic and phenolic, etc. Our housings have special sizes for different areas, such as Euro type, American type, and the popular type.
Casters are more than 50 series, 1000 types for customers’ choices and wide different usage, such as, for industrial machine, medical facility, furniture, trolley, shopping cart, forklift, scaffold, shelf, etc.
Welcome to our company to know more about us!
Productive Process
Packing&Delivery

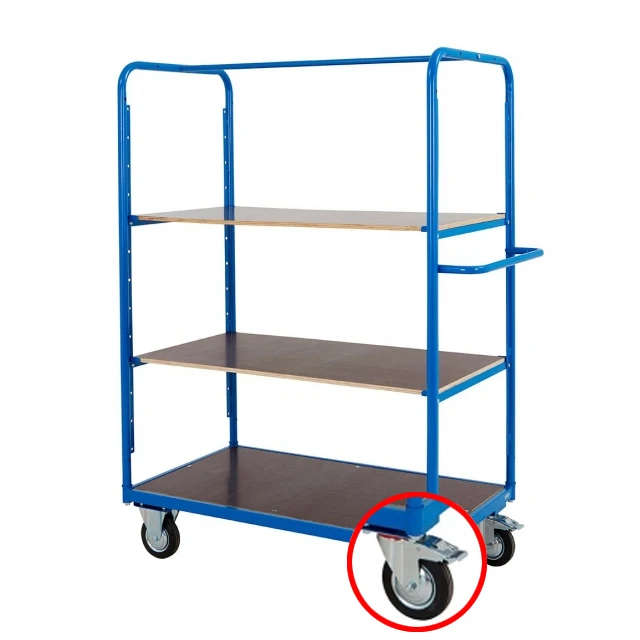

Application
Customer Feedback
Certifications
FAQ
1.Q: Are you manufacture or trading company?
A: We are manufacture. Our factory has been specializing in all kinds of caster wheels since 1981.
2.Q: Where is your factory? Can I visit?
A: Our factory is located in Yangjiang, Guangdong. 3 hours near Guangzhou, You are warmly welcome to visit whenever you are available. We can arrange pick-up from Guangzhou Baiyun Airport.
3.Q: What is your delivery time?
A: In general, within 30 days. It also depends on the order quantity.
4.Q: Can I get some samples?
A: Yes, samples are available at any time.
5. Q: What other products do you have?
A: Wide range caster wheels, trolleys, aluminum scaffold accessories, aluminum ladder holder and aluminum basket for cranes, etc.
A: We are manufacture. Our factory has been specializing in all kinds of caster wheels since 1981.
2.Q: Where is your factory? Can I visit?
A: Our factory is located in Yangjiang, Guangdong. 3 hours near Guangzhou, You are warmly welcome to visit whenever you are available. We can arrange pick-up from Guangzhou Baiyun Airport.
3.Q: What is your delivery time?
A: In general, within 30 days. It also depends on the order quantity.
4.Q: Can I get some samples?
A: Yes, samples are available at any time.
5. Q: What other products do you have?
A: Wide range caster wheels, trolleys, aluminum scaffold accessories, aluminum ladder holder and aluminum basket for cranes, etc.
