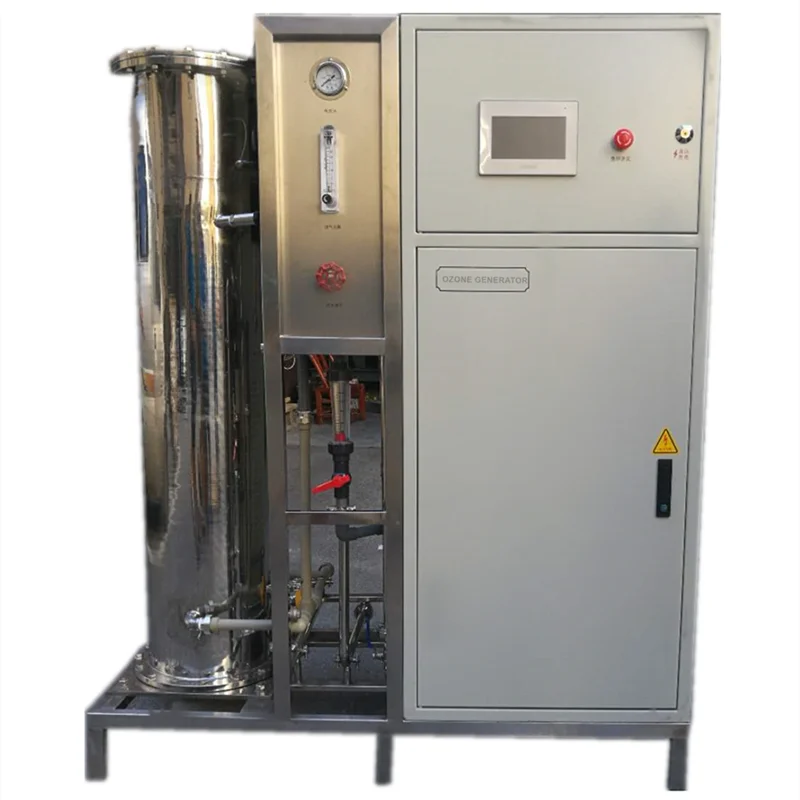

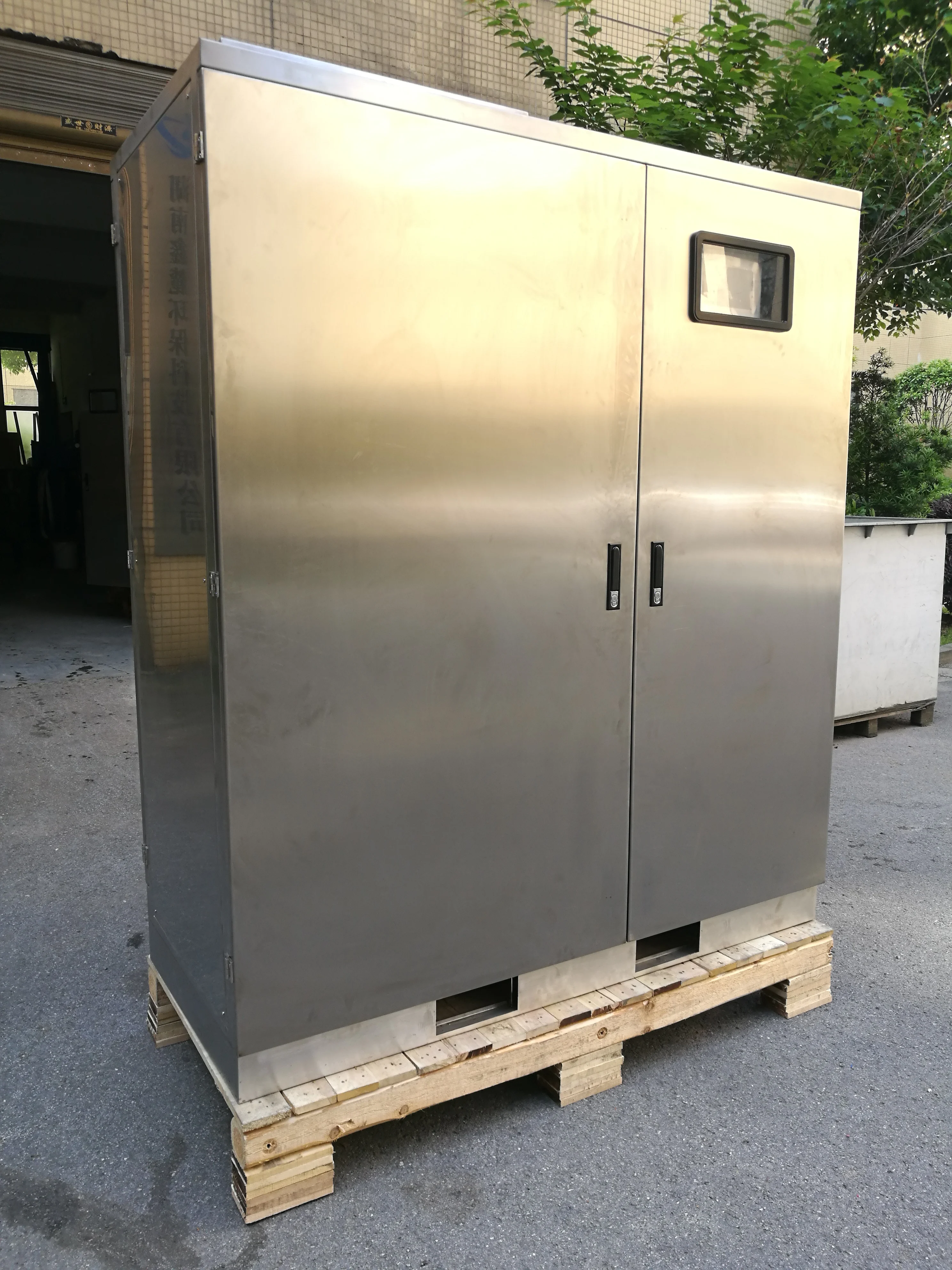

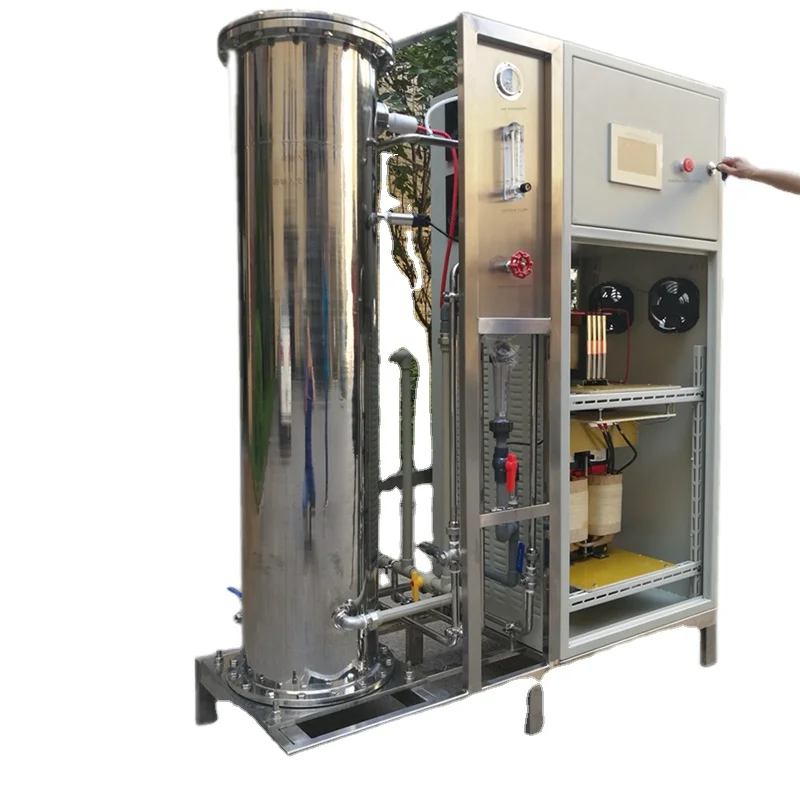

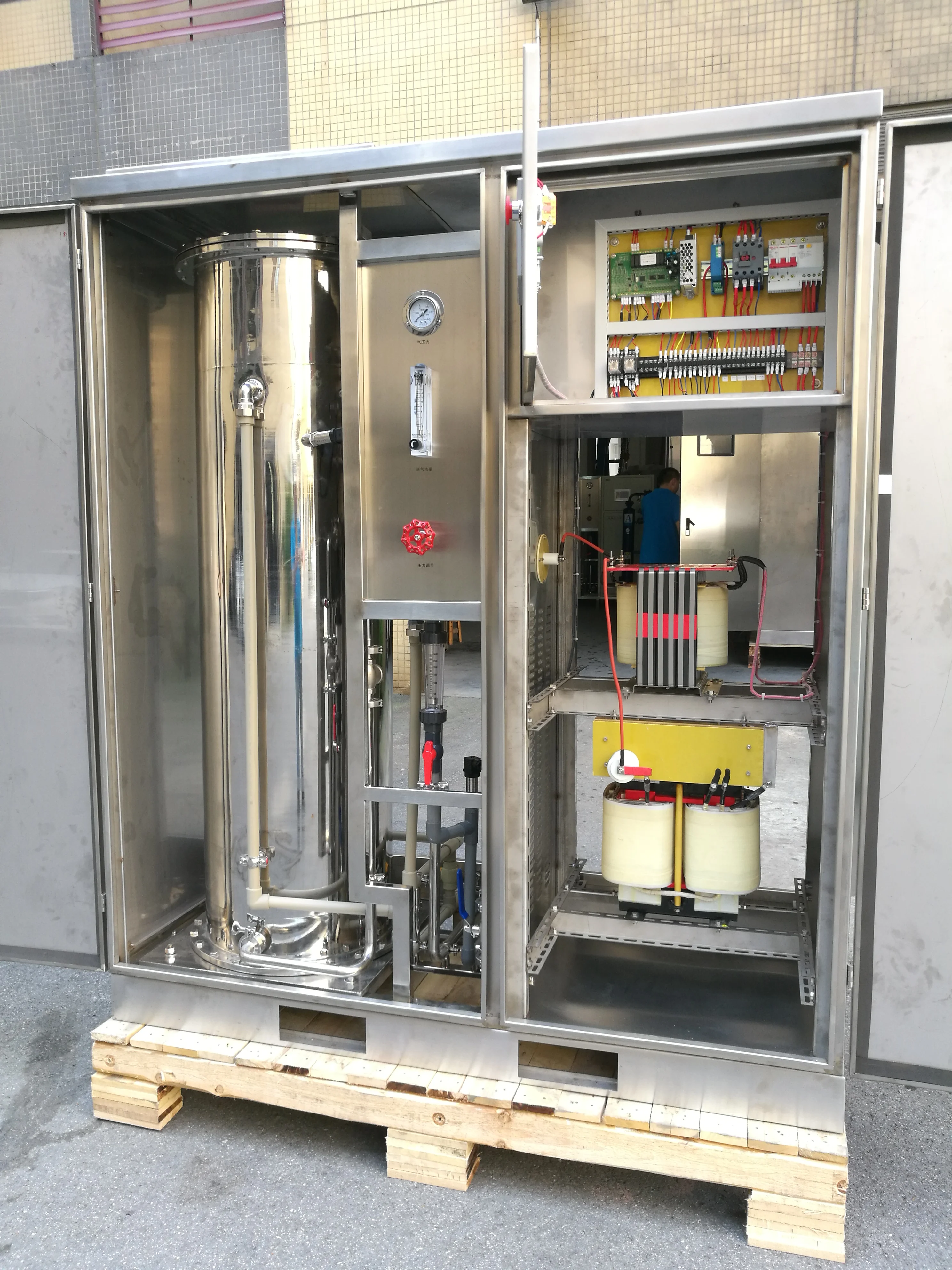

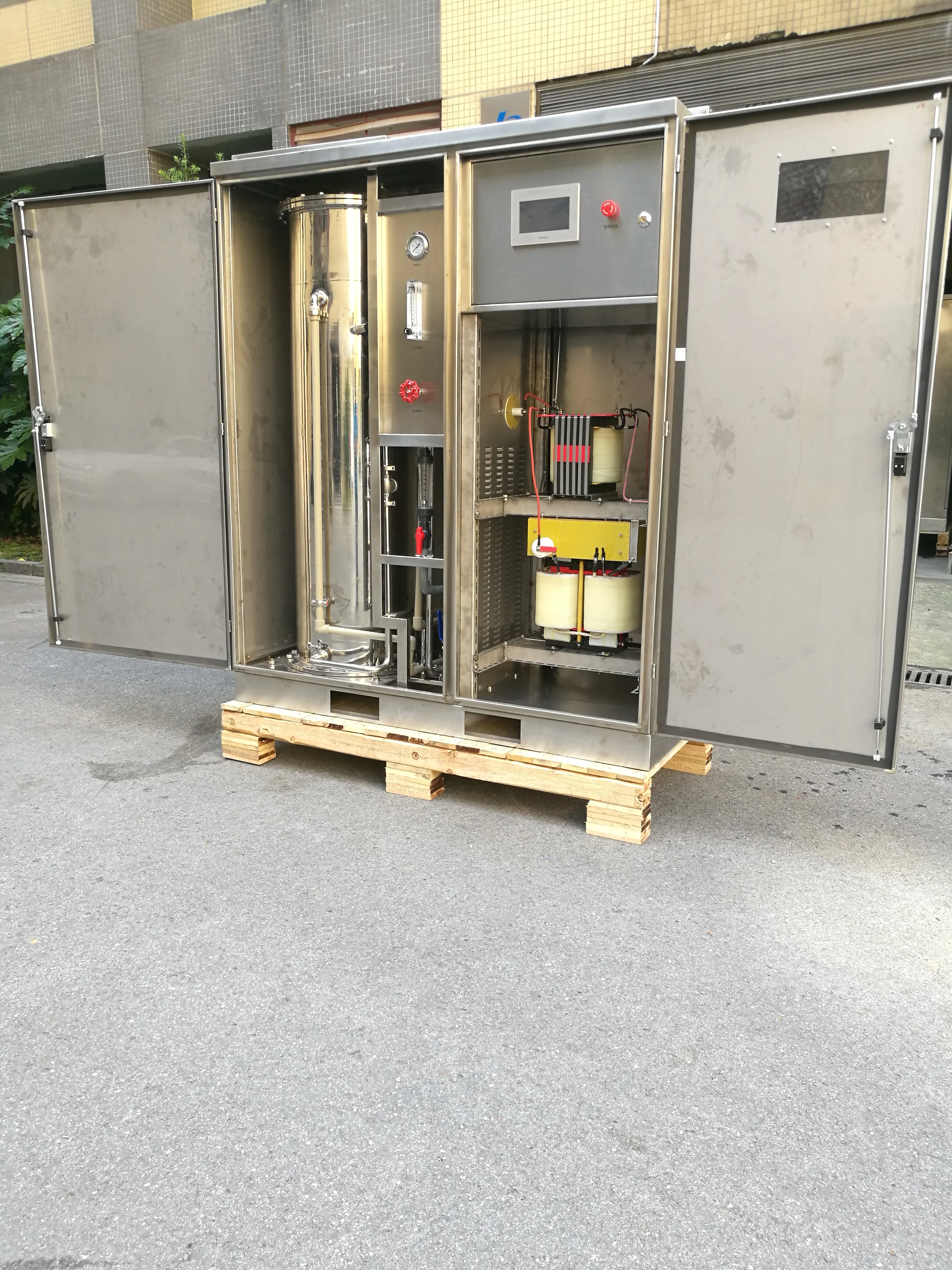

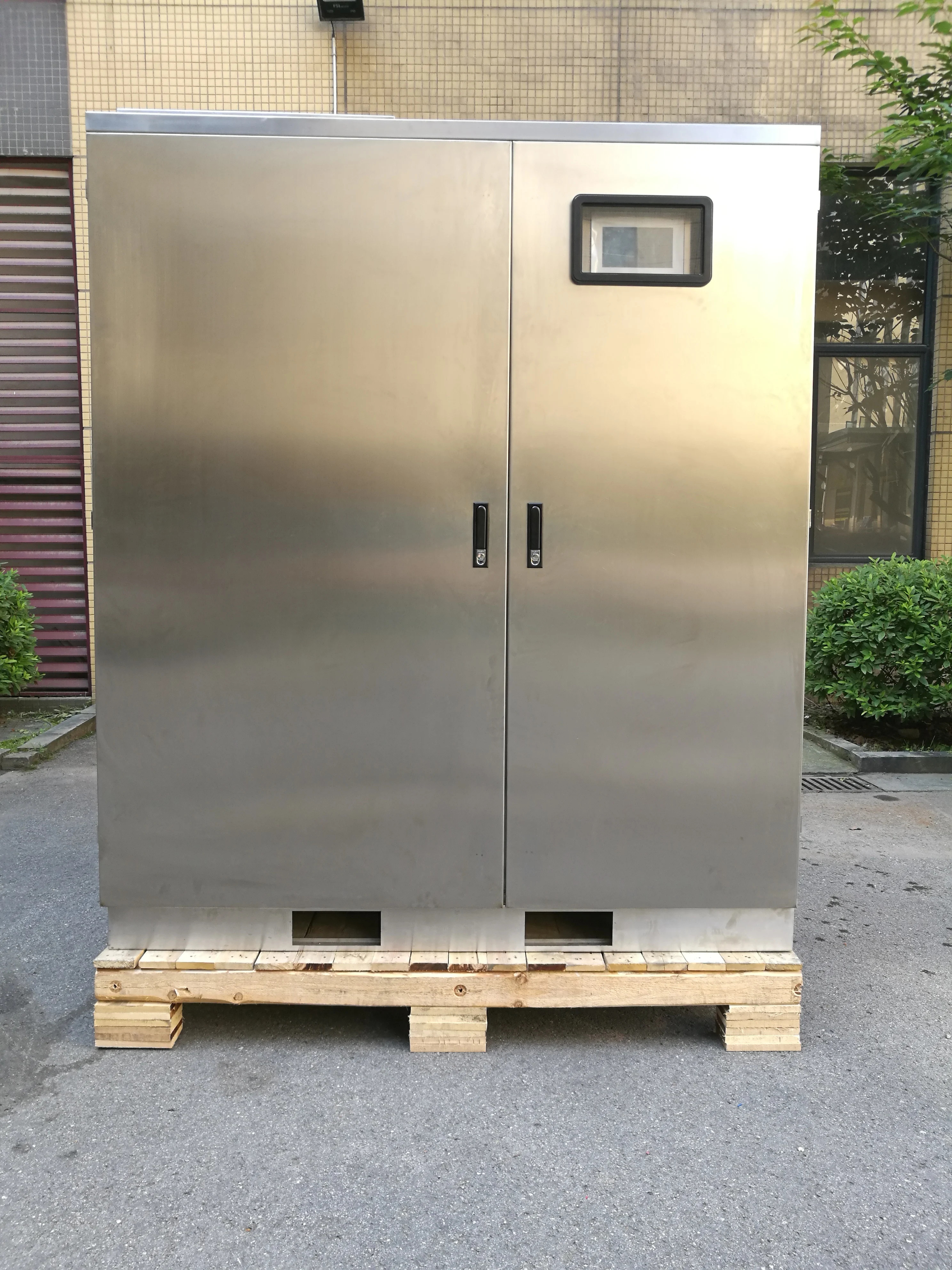

    OZOTEK 1000G Water cooling KG ozone generator

80-130mg /L for Water Treatment





Technology Parameter:



1. Overall dimension: 1480mm x 610mm x 1720mm;

2. Power supply: 380V, 50Hz, three-phase, five wire power supply;

3. Grounding resistance:≤5Ω;

4. Drive circuit: single ozone generator power 8kw, pulse frequency 0.8 ~ 5.5KHz;

5. Type of gas source: clean oxygen rich gas (oxygen concentration above 90%);

6. Gas supply flow: 8-10m3 / H;

7. Dew point of gas source:≤- 45℃;

8. Ambient temperature:≤35℃;

9. Environmental humidity:≤80%;

10. Working pressure in generator: 0.10MPa;

11. Cooling water inflow: 1.5-2.0m3/h;

12. Inlet temperature of cooling water:≤28℃;

13. Temperature rise of cooling water:≤3℃

13. Ozone gas concentration:≥ 80-130mg / L;

14. Ozone production: 1000g /H;

15. Rated power of the whole machine:≤8.5KW.



Environmental Requirements for Ozone Generator System;



1. Temperature: the temperature range of ozone generator is 0-40℃.

2. Humidity: the relative humidity of the working environment of the ozone generator is required to be less than 85%.

3. Atmospheric pressure: the atmospheric pressure of the ozone generator is required to be the standard atmospheric pressure,

    that is, the atmospheric pressure is 101.3kPa.

4. Do not set long-term office space without partition in the room where the ozone generator is installed.

5. The room where the ozone generator system is installed shall be dry and well ventilated. It shall not be installed in the completely

     open air, cold and humid place, with direct sunlight or more dust, and it shall not be installed in the environment with chemical

    corrosion.

6. When the ozone generator is working, there must be water in and out, and there must be no flammable, corrosive gas or

    conductive dust around, otherwise it will cause certain degree of damage.

7. The equipment uses the rich oxygen produced by the oxygen generator as the gas source. The ozonized gas can promote the

    combustion process. Do not let the ozonized gas or the tail gas after reaction close to flammable and explosive materials and fire

    sources.



Rated parameters of air compressor



1. Overall dimension: 1025mm × 930mm × 1280 mm (subject to the receipt of the material object);

2. Power supply: 380V, 50Hz;

3. Exhaust volume: 3.1m3/min;

4. Exhaust pressure: 0.7MPa;

5. Gas storage tank: 0.6m3;

6. Exhaust port: G1 ″;

7. Rated power of the whole machine: ≤18.5KW.



Cold Dry Filtration Oxygen Production System



1. Overall dimension: 1950 mm × 1680mm × 2050 mm (subject to the receipt of the real object);

2. Power supply: 220 V, 50 Hz;

3. Inlet pressure: ≥ 0.40MPa;

4. Refrigerant: R22;

5. Treatment gas volume: 3.8m3/min;

6. Pressure dew point: - 10~- 40 ℃;

7. Inlet temperature: ≤ 45℃;

8. Ambient temperature: ≤ 38℃;

9. Oxygen production: 10m3 / h;

10. Oxygen concentration: ≥90%;

11. Rated power of the whole machine: ≤1.85KW.



Closed Circuit Circulating Water Chiller



1. Overall dimension: 1140 mm × 560mm × 1040 mm (subject to the receipt of the real object);

2. Power supply: 380V / 3Ph / 50Hz three-phase five wire power supply;

3. Cooling capacity: 6.6KW;

4. Refrigerant: R22;

5. Temperature control range: 5 ~ 35℃;

6. Water tank volume: 30L;

7. Circulating cooling water flow: 2.26m3/h;

8. Rated power of the whole machine: 4.9KW.



List of wearing parts and consumable parts
