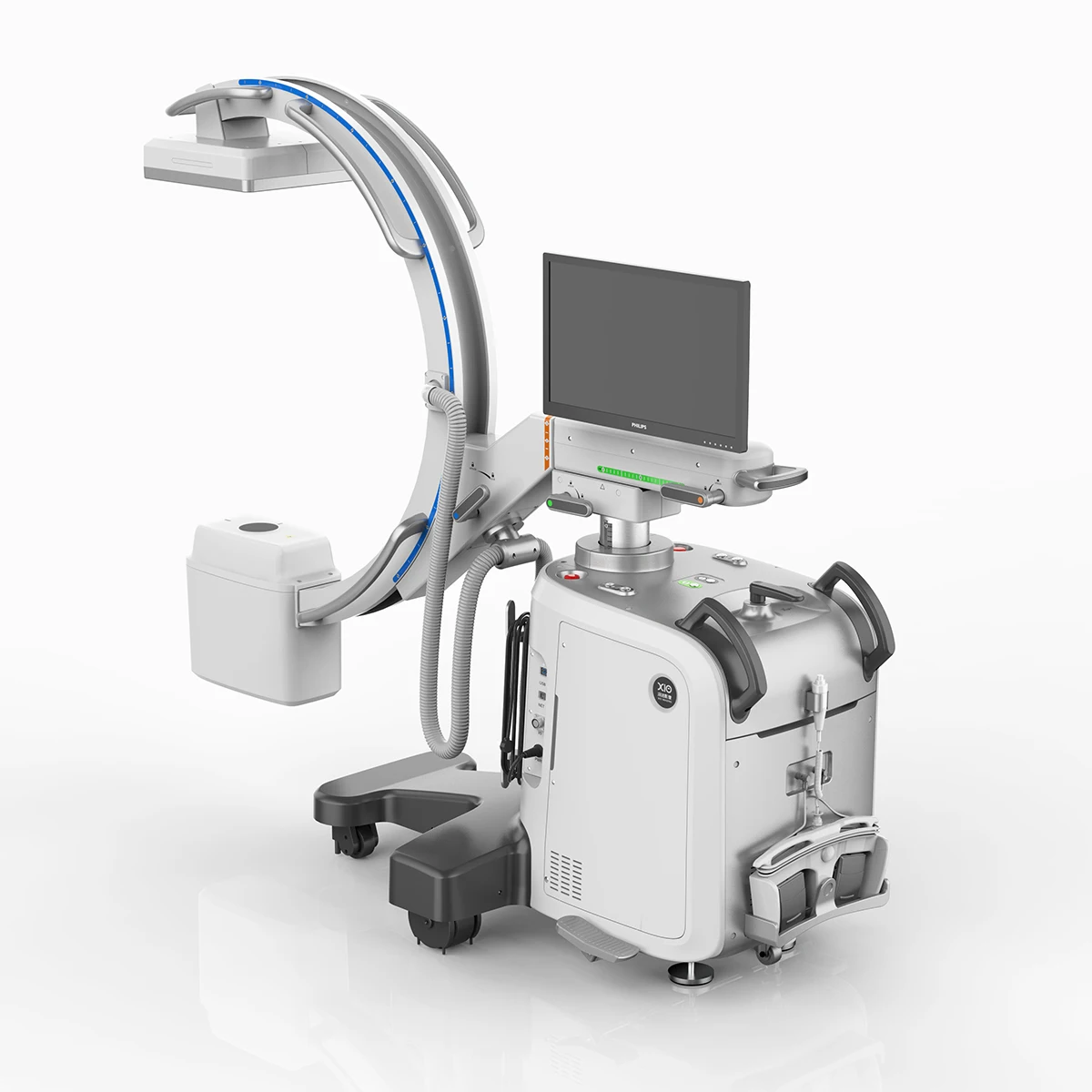

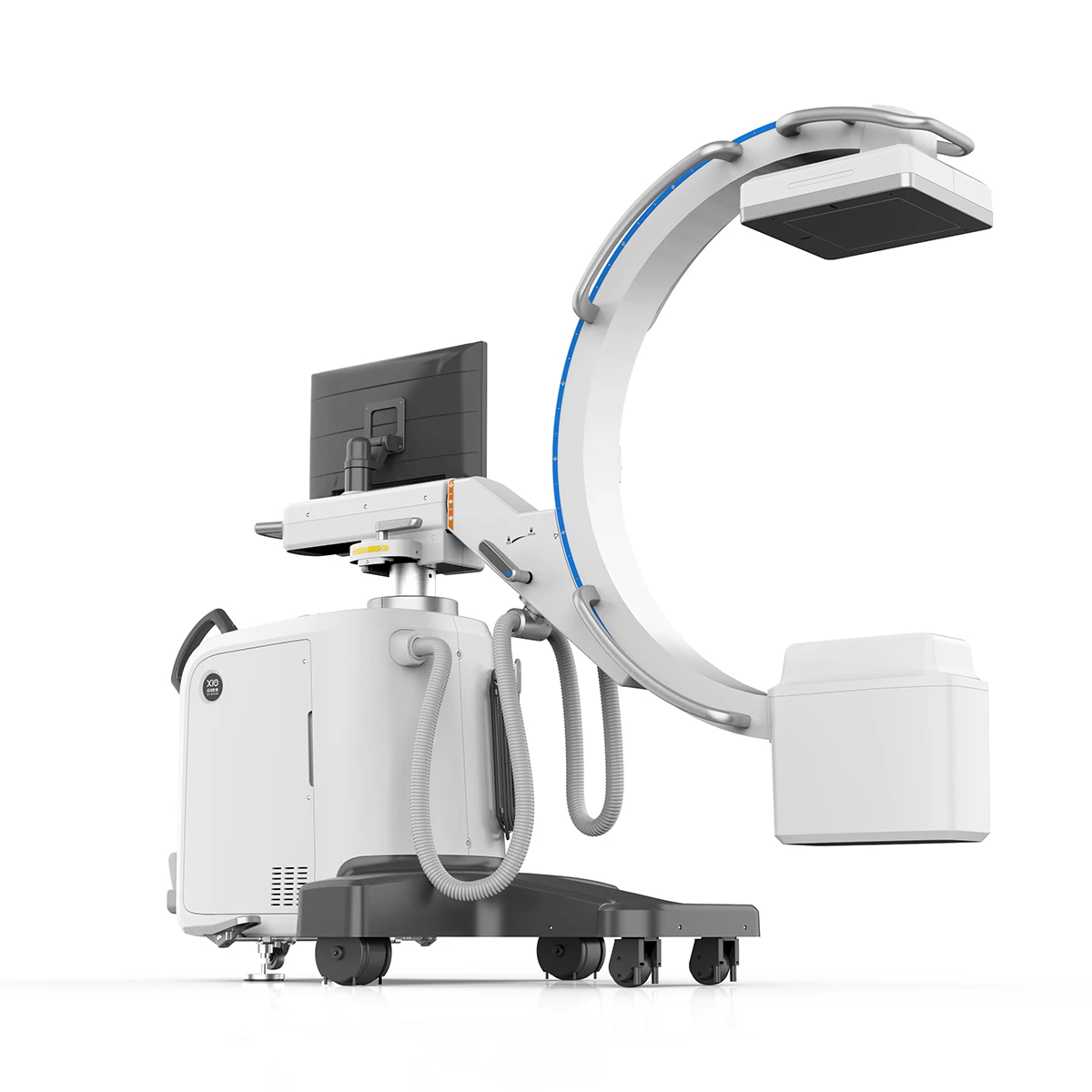

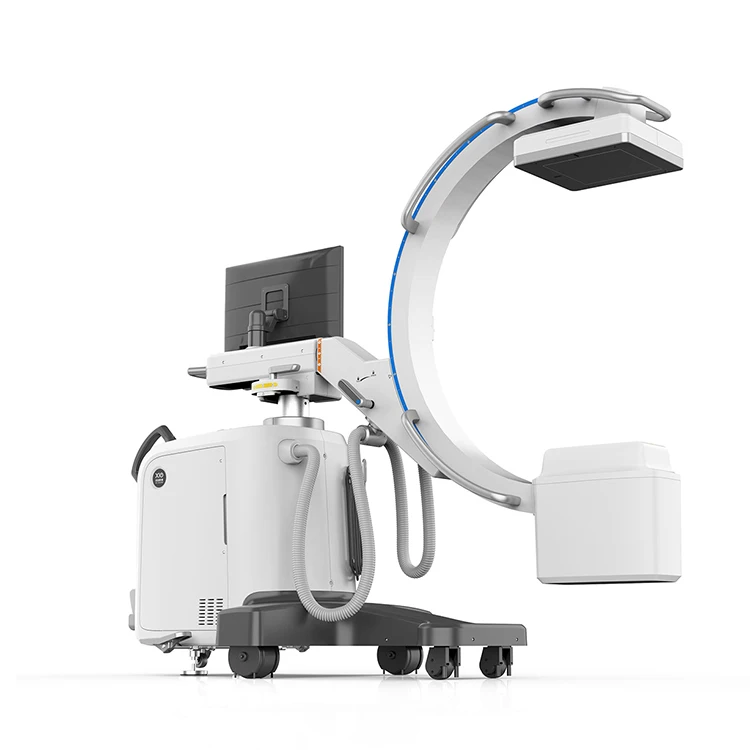

5 кВт с c-образным коромыслом сенсорным ЖК-дисплеем высокочастотная Мобильная рентгеновская машина цифровой рентгеновский

1.1

High frequency inverter power supply and combined tube

1.2

Power 5kW

1.3

Focus size: 0.6mm( small focus )/1.2mm( large focus )

1.4

Heat capacity of tube cover: 480kJ ( 648kHU )

1.5

Anode heat capacity: 60kJ(81kHU)

1.6

Inverter frequency: ≥200kHz

2.1

The system has a color human body graphic LCD touch screen, real-time adjustment of exposure parameters

2.2

Tube voltage: 40-120kV

2.3

Maximum tube current: 10mA( continuous perspective ); 50mA( pulse perspective)

2.4

Maximum pulse acquisition rate 25f/s

2.5

Maximum photographic current: 80mA
