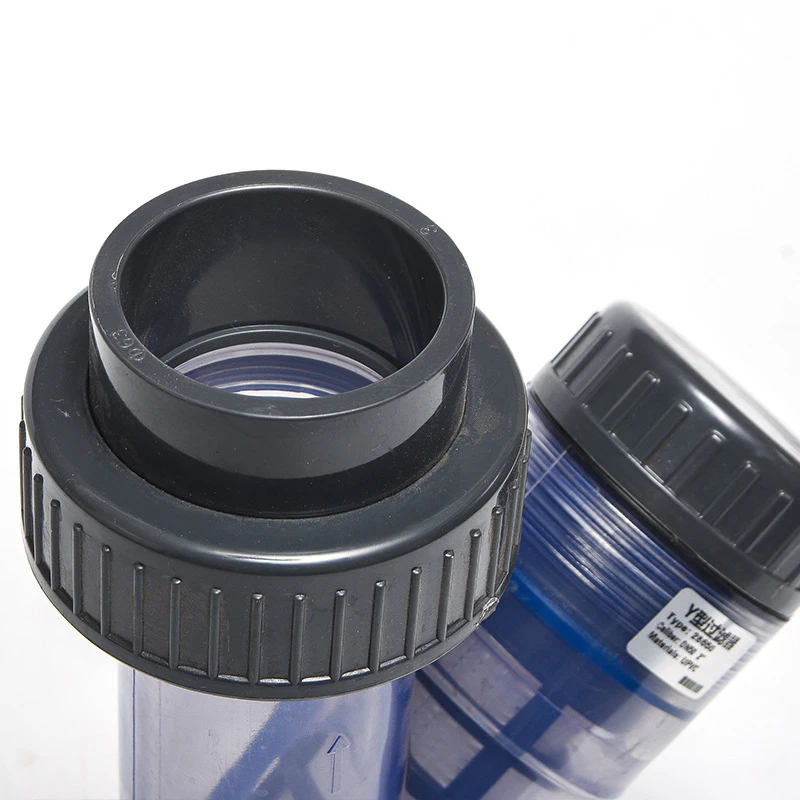

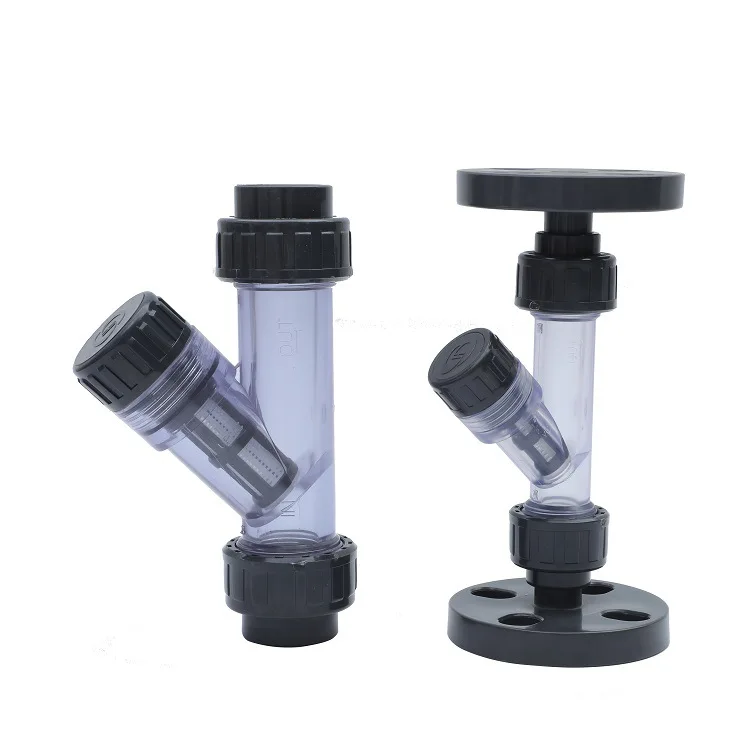

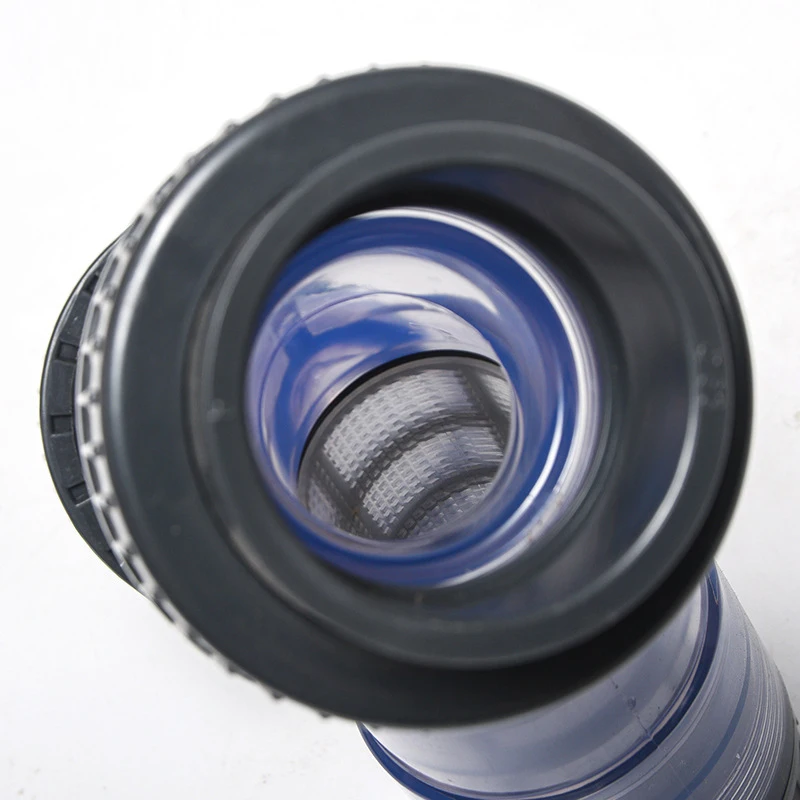

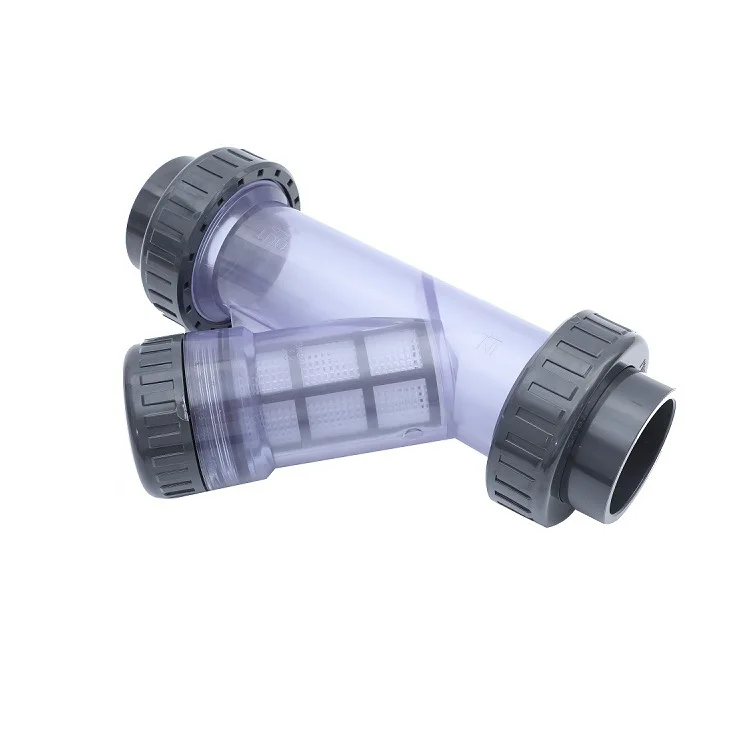

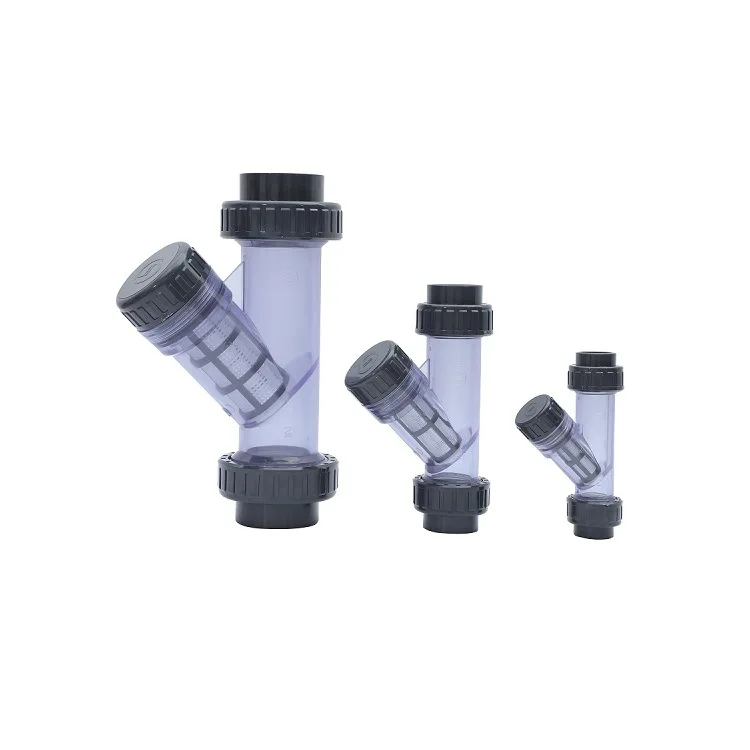

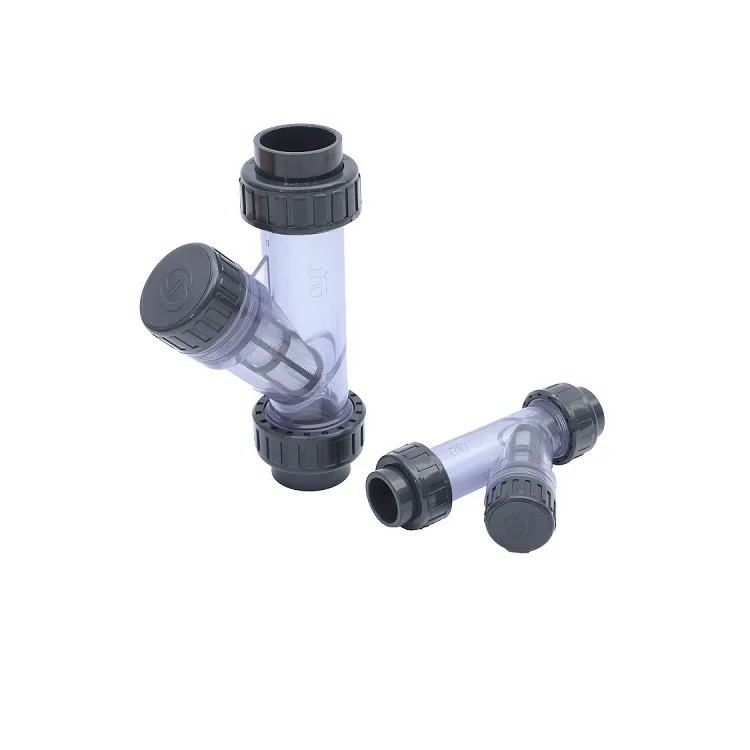

1/2-4 дюйма фланцевый прозрачный фильтр из ПВХ с Y-образным соединением для труб химической
- Категория: Valve Bodies >>>
- Поставщик: Jiashan,Yiqi,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.77 $* | 5.2 $* |
| Aug-16-2025 | 5.64 $* | 5.88 $* |
| Jul-16-2025 | 4.25 $* | 4.25 $* |
| Jun-16-2025 | 5.52 $* | 5.21 $* |
| May-16-2025 | 4.95 $* | 4.65 $* |
| Apr-16-2025 | 5.44 $* | 5.2 $* |
| Mar-16-2025 | 5.94 $* | 5.31 $* |
| Feb-16-2025 | 4.86 $* | 4.42 $* |
| Jan-16-2025 | 4.62 $* | 4.80 $* |
Характеристики
Packing & Delivery
Selling units:Single item
Single gross weight:0.900 kg
Port:Shanghai,Shenzhen&Ningbo
Lead Time:1~300units:10~15days,
≥300Meters:To be negotiated
Specification
Y type filter valve
Feature
Structural advantage: Y type filter material structure with advanced structure, small resistance, convenient discharge
Applicable medium: V filter, medium for water, chemical, oil
Filter accuracy: 30 mesh (routine), 60 mesh
Summary
The filter is an indispensable device in the pipeline of a conveying medium, usually installed at the inlet of pressure reducing valve and pressure relief valve, water level valve or other equipment. Used to eliminate impurities in the media to protect the normal use of valves and equipment.
Scope of application
Pipe filter is suitable for filtration of liquid and gas materials in chemical, petroleum, metallurgy, light industry, medicine,
food and other industries. Usually installed at the entrance of a pump, compressor or pipe in front of a flow meter. It is a
device for protecting such equipment and meters, increasing purity of the product and purifying the medium.
Working principle
When the fluid flows through the filter, the impurity is blocked by the filter element in the filter, and the ideal fluid is
discharged from the filter outlet to achieve the purpose of purification.
UPVC material type Y filter structure size
When purchasing UPVC material Y type filter, please provide the following data:
1. UPVC material the caliber of the filter and the way of connection
2. UPVC material filter material
3. It is best to inform the medium and temperature at the same time
Structural advantage: Y type filter material structure with advanced structure, small resistance, convenient discharge
Applicable medium: V filter, medium for water, chemical, oil
Filter accuracy: 30 mesh (routine), 60 mesh
Summary
The filter is an indispensable device in the pipeline of a conveying medium, usually installed at the inlet of pressure reducing valve and pressure relief valve, water level valve or other equipment. Used to eliminate impurities in the media to protect the normal use of valves and equipment.
Scope of application
Pipe filter is suitable for filtration of liquid and gas materials in chemical, petroleum, metallurgy, light industry, medicine,
food and other industries. Usually installed at the entrance of a pump, compressor or pipe in front of a flow meter. It is a
device for protecting such equipment and meters, increasing purity of the product and purifying the medium.
Working principle
When the fluid flows through the filter, the impurity is blocked by the filter element in the filter, and the ideal fluid is
discharged from the filter outlet to achieve the purpose of purification.
UPVC material type Y filter structure size
When purchasing UPVC material Y type filter, please provide the following data:
1. UPVC material the caliber of the filter and the way of connection
2. UPVC material filter material
3. It is best to inform the medium and temperature at the same time
SIZE | L | d | D | I | H |
DN15 | 190 | 20 | 52.6 | 22 | 106 |
DN20 | 183 | 25 | 52.6 | 19 | 106 |
DN25 | 199 | 32 | 60.8 | 21 | 124.4 |
DN32 | 258 | 40 | 83.5 | 34 | 173 |
DN40 | 258 | 50 | 83.5 | 31 | 173 |
DN50 | 292.6 | 63 | 104 | 40 | 204 |
DN65 | 420 | 75 | 122 | 41 | 251 |
DN80 | 430 | 90 | 155 | 50 | 260 |
Product Description
FAQ
Q1: Are you manufacturer or trading company?
A: We are a manufacturer, not trading company. We guarantee all of our products are of stable quality and stable price. We focus on the quality and new technologies through a thorough system of quality control and management.
Q2. How long will it take for sample order and official order?
A:• Sample time takes 3-5 working days.
• Mass production depends on order quantity, usually it takes 7-10 days for small order ,and 15-23 days for big order.
A:• Sample time takes 3-5 working days.
• Mass production depends on order quantity, usually it takes 7-10 days for small order ,and 15-23 days for big order.
Q3. What's your shipping way?
A:• By Sea ( it's cheap and good for big order)
• By Air ( it's very fast and good for small order)
• By Express, free choice Fedex, DHL, UPS,TNT, EMS, etc.( door to door service)
