Многофункциональный монитор контроля потребляемой мощности 20A 100A цифровой AC 110 ~ 220V напряжение переменного тока коэффициент частоты счетчик
- Категория: Energy Meters >>>
- Поставщик: Shenzhen,Shengtaixin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.0 $* | 0.74 $* |
| Aug-17-2025 | 0.17 $* | 0.96 $* |
| Jul-17-2025 | 0.66 $* | 0.71 $* |
| Jun-17-2025 | 0.78 $* | 0.97 $* |
| May-17-2025 | 0.1 $* | 0.99 $* |
| Apr-17-2025 | 0.90 $* | 0.10 $* |
| Mar-17-2025 | 0.60 $* | 0.6 $* |
| Feb-17-2025 | 0.87 $* | 0.95 $* |
| Jan-17-2025 | 0.24 $* | 0.66 $* |
Характеристики

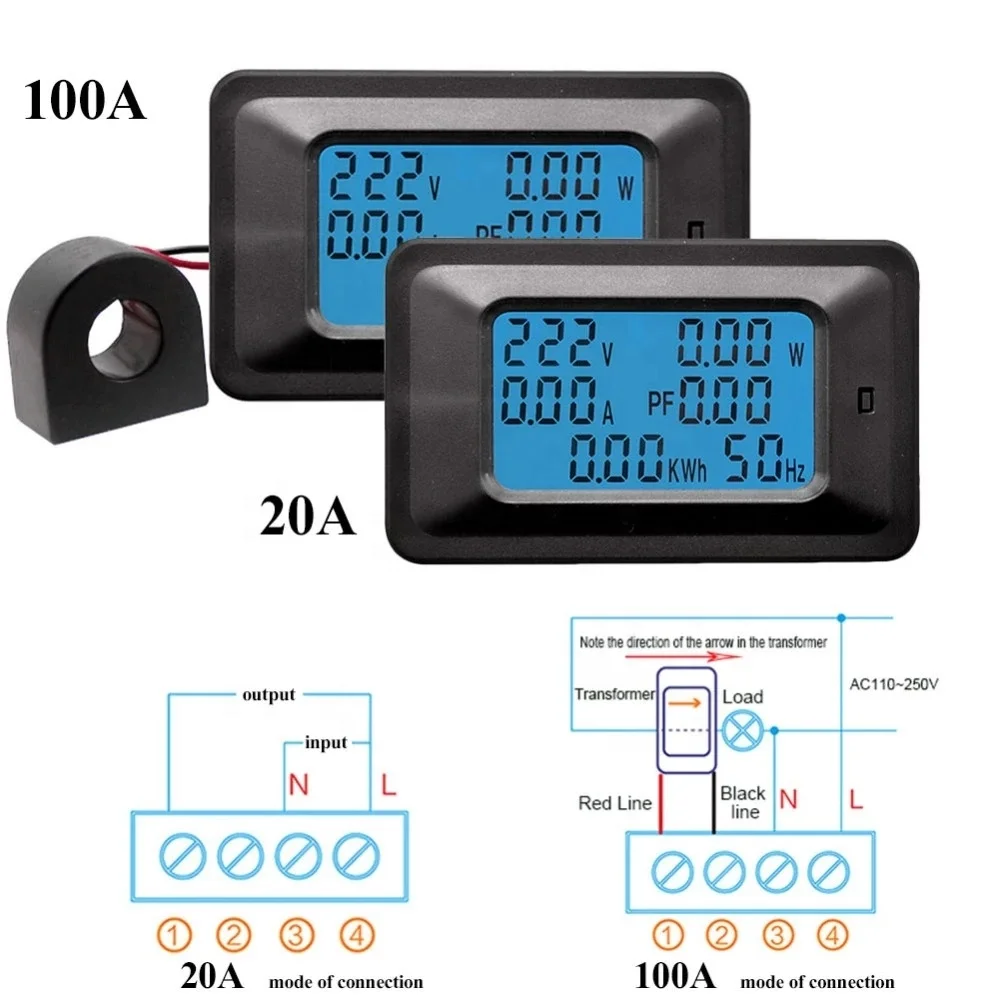

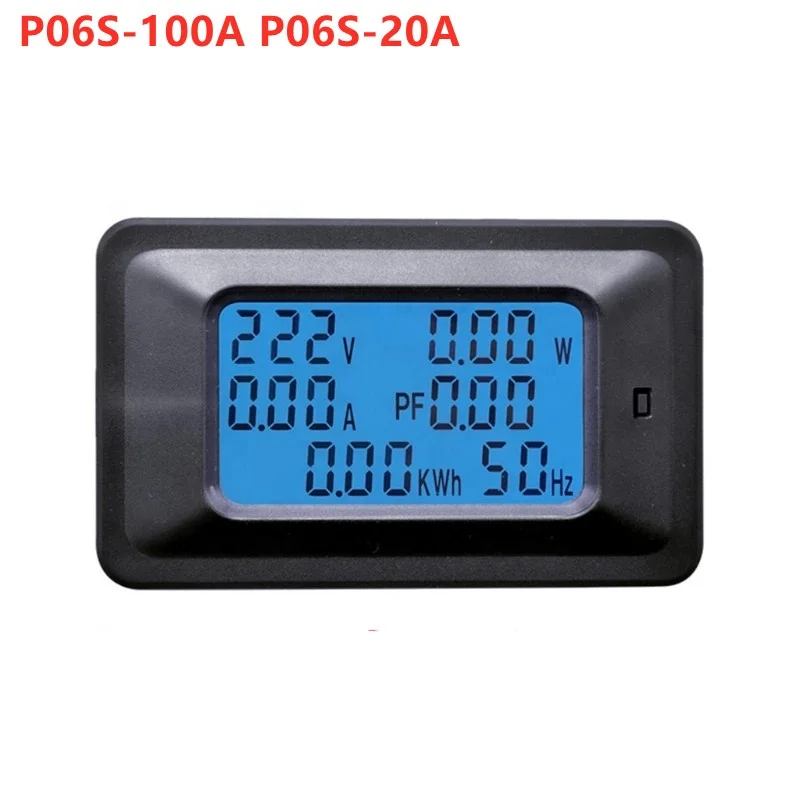

Multi-Function Power Monitor 20A 100A Digital AC 110~220V Voltage Current Power Monitor Power Factor Frequency Energy Meter
Feature:
Can display voltage , current , power , power factor , energy and frequency at the same time
Made of PC flam retardant material , which will be more safe for using ,Backlight control , short press to turn on/off backlight
Hold press for 3 second to enter the over-load power setting , hold press for 5 second , system reset , cumulative capacity turns zero , overload power setting restore default value
Voltage measurement range is AC 50-300V , current measurement range is 0.01-100A , frequency measurement range is 45-65Hz , energy measurement range is 0.01Wh-99999kWh
Note
1 The total power resistance load of the electrical equipment connected to this product shall not exceed the rated power, otherwise the product may be damaged.
2 This product has no waterproof function and can only be used in indoor dry environment.
3 Beware of children's contact, keep away from fire, and do not insert objects into the terminal block.
Description:
Active power is calculated as: P = U I cos, cos represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U I; test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.) when, P Less than U I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.
Specification

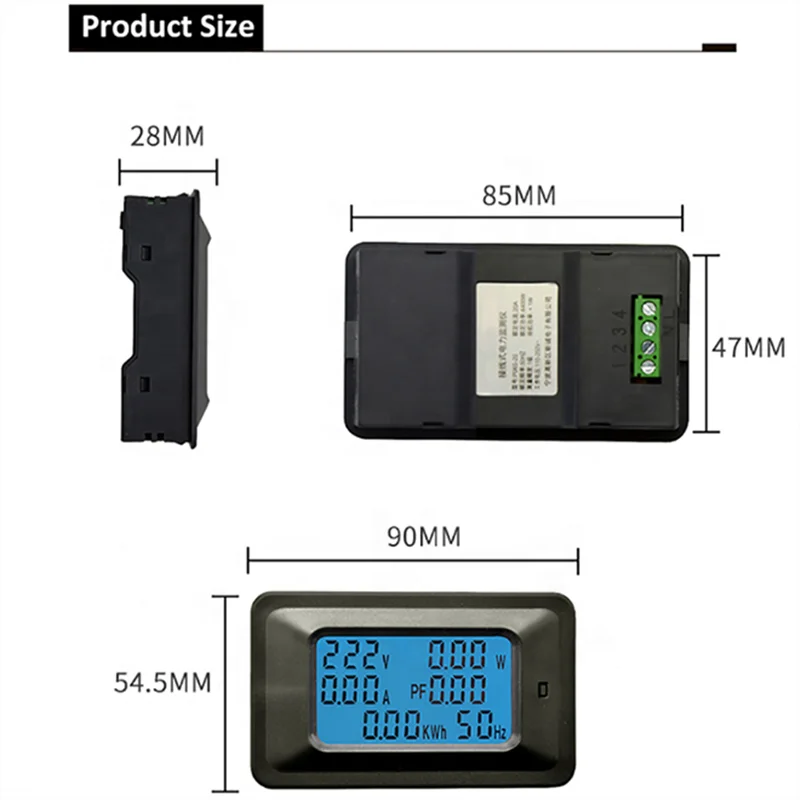

Size: 90x50x25mm
Apply to power grid voltage range 110V-220V
Working voltage: 85 ~ 250VAC
Test voltage: 85 ~ 250VAC
Rated power: 20A / 5000W
Working Frequency: 45-65Hz
Measurement accuracy 1.0
Feature
network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.
A. Function
1. electrical parameter measurement function (voltage, current, active power, power).
2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).
The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.
B. display and key

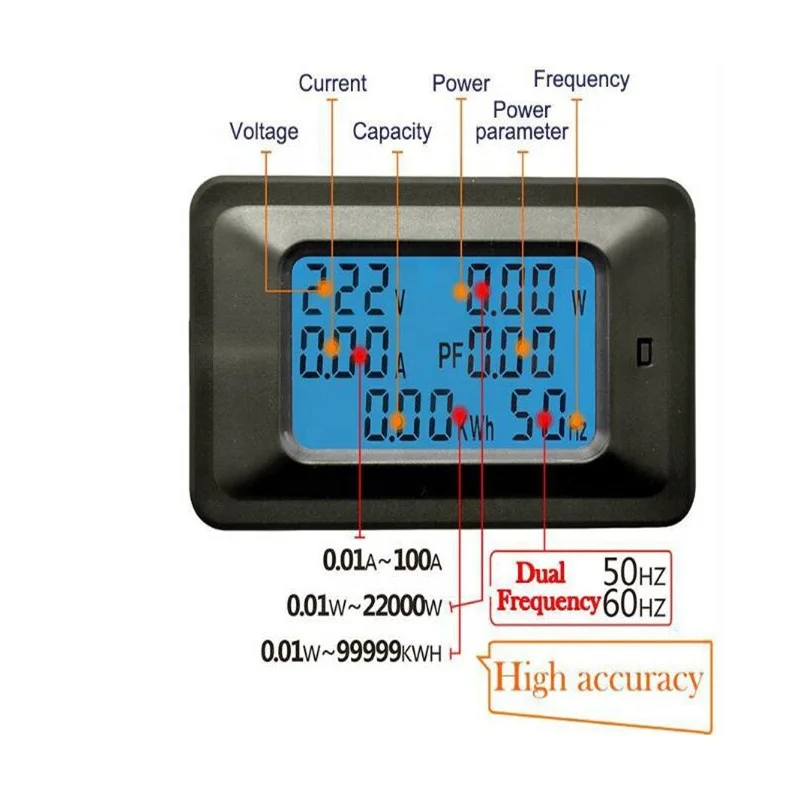

Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.
