Description
Product features:
The product is widely used in clinical application, suitable for all large, medium and small animal inspections. The bed surface is made of high-tech composite materials, scratch-proof, easy to clean, computer program control, simple operation and high intelligence.
Using imported original generation of amorphous silicon digital flat panel detector, large size , with higher stability and resolution, taking into account the characteristics of high quality, long life, higher cost performance, no worries.
The product is widely used in clinical application, suitable for all large, medium and small animal inspections. The bed surface is made of high-tech composite materials, scratch-proof, easy to clean, computer program control, simple operation and high intelligence.
Using imported original generation of amorphous silicon digital flat panel detector, large size , with higher stability and resolution, taking into account the characteristics of high quality, long life, higher cost performance, no worries.

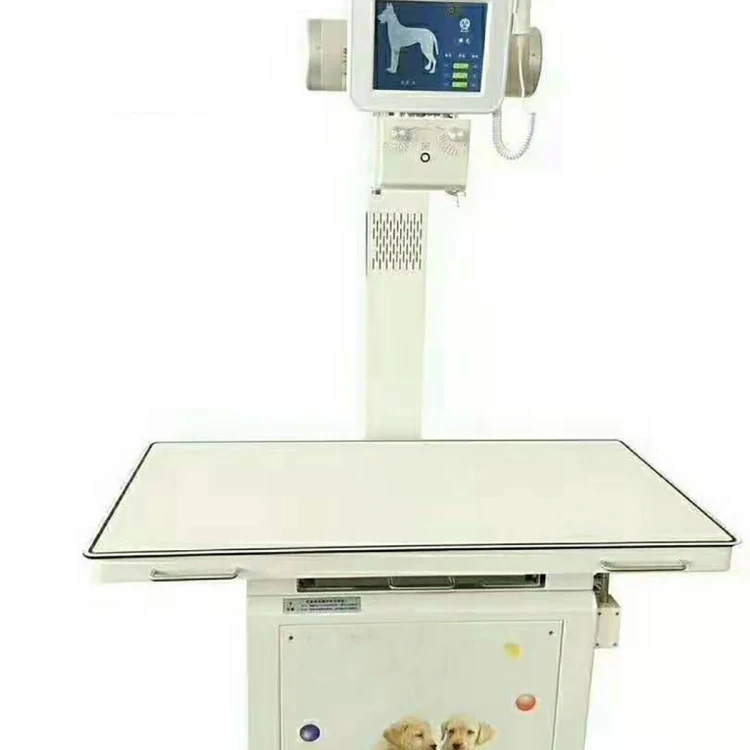

Product Type: | Digital veterinary X-ray | |
Application: | all large, medium and small animal inspections | |
Flat panel detector detailed parameters | ||
Origin | Toshiba, Japan | |
Sensor type | Amorphous silicon germanium iodide TFT (single panel) | |
Pixel pitch | 127 microns | |
Imaging time | 2-5 seconds | |
X-ray generator | ||
Power supply voltage | AC220V | |
Power frequency | 50Hz/60Hz±1Hz | |
Maximum current | 200 mA | |
Tube current adjustment range | in the range of 10mA ~ 320mA, the voltage regulation range of the 14-speed adjustment tube: in the range of 40kV ~ 120kV | |
Exposure time range | 0.002s ~ 6.3s | |
Microcomputer console length × width × thickness | 340mm × 250mm × 70mm | |
X-ray tube | ||
Tube | Japan Toshiba E7239X | |
Maximum tube voltage | 150kV | |
Intrinsic filtration | 1.3mmAL/75kV | |
Double focus | 0.6mm (small focus) / 1.2mm (large focus) | |
Anode input power | 20KW (small focus); 40KW (large focus) | |
Anode rotation speed | 7200 rpm / anode | |
X-ray tube assembly heat capacity | 1000kJ (1350kHU) | |

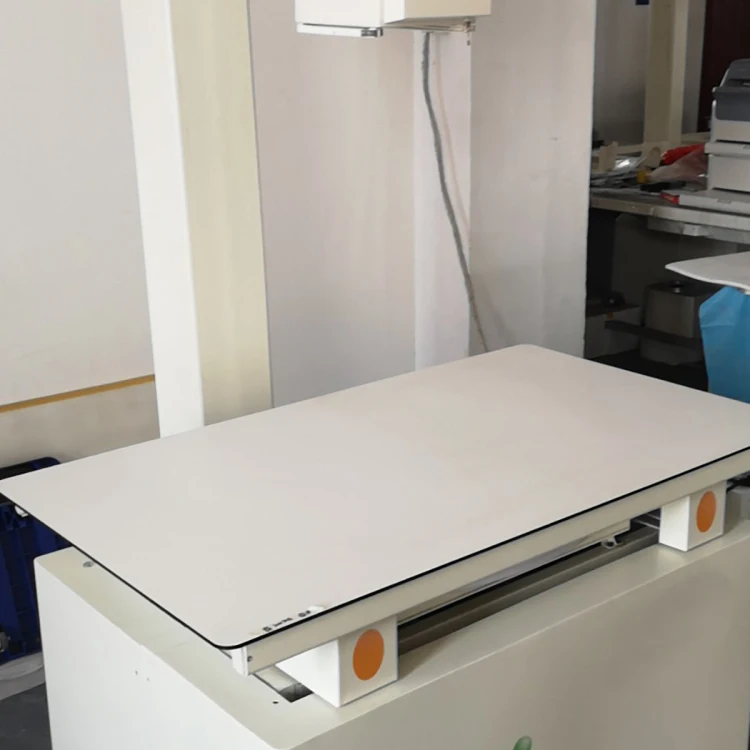

Photography bed | ||
Power supply voltage | single-phase AC220V±22V | |
power supply frequency | 50Hz±1 Hz | |
Input power | ≤1kVA | |
Bed size | A-1 type 120×700 four-way floating A-2 type 130×700 floating around | |
Exposure method | ||
Exposure method | Manual exposure, remote exposure, foot exposure | |
