Wide Streched Bar LCD Display Case Second 4K Advertising Monitors IPS Super Thin Earphone Embedded

Описание и отзывы

Трекер стоимости

Характеристики

Wide Streched Bar LCD Display Case, Second Display 4K Advertising Monitors IPS LCD SuperThin Display Earphone Embedded Monitor



Specification:



Screen Type: LCM, a-Si TFT-LCD
Pixel Number: 3840(RGB)×1100 283PPI
Active Area(mm): 344.218 × 98.604 (H×V)
Outline(mm): 350.52 × 118.65 × 2.5 (H×V×D)
Luminance: 300 cd/m² (Typ.)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10
Good View at: Symmetry
Work Mode: ADS, Normally Black, Transmissive
Color Depth: 16.7M 72% NTSC
Backlight: 10S6P WLED , 15K hours , With LED Driver
Outline Shape: Slim (PCBA Flat, T≤3.2mm)
Signal Type: eDP (2 Lanes) , eDP1.3 , HBR2 (5.4G / lane) , 30 pins Connector

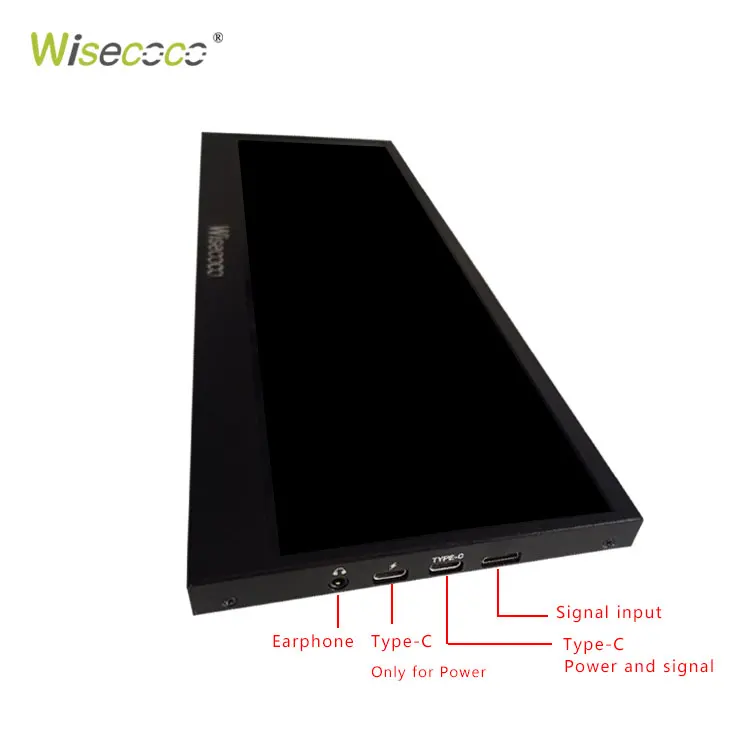

Interfaces introduction:



 2 * USB type-C interface.

One Type-C- interface with "lightning mark", it is only for power supply;

Another Type C , it's for power and touch function.

1* mini h-dmi interface for signal input.

1* button : brightness adjustment and volume.

1* button : Turn on or turn off.

1* earphone interface

2* Built-in speaker





Advantages:

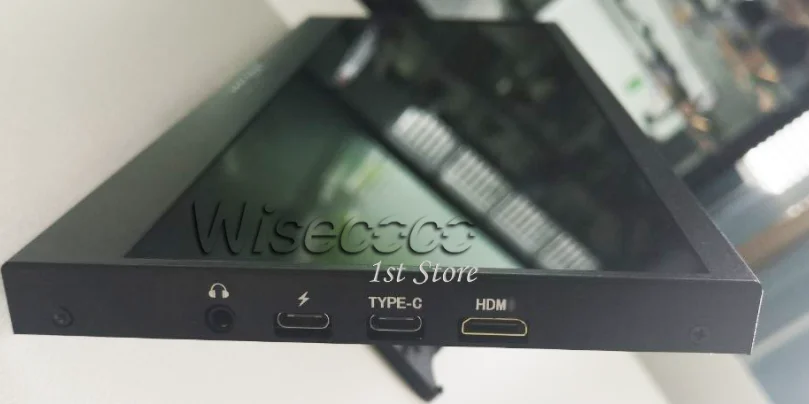

1. There are 4 interfaces on the right side monitor, including: Mini h-dmi*1, USB Type-C*2, earphone interface.

2. Real 4K resolution images or video, enjoy high definition visual experience.

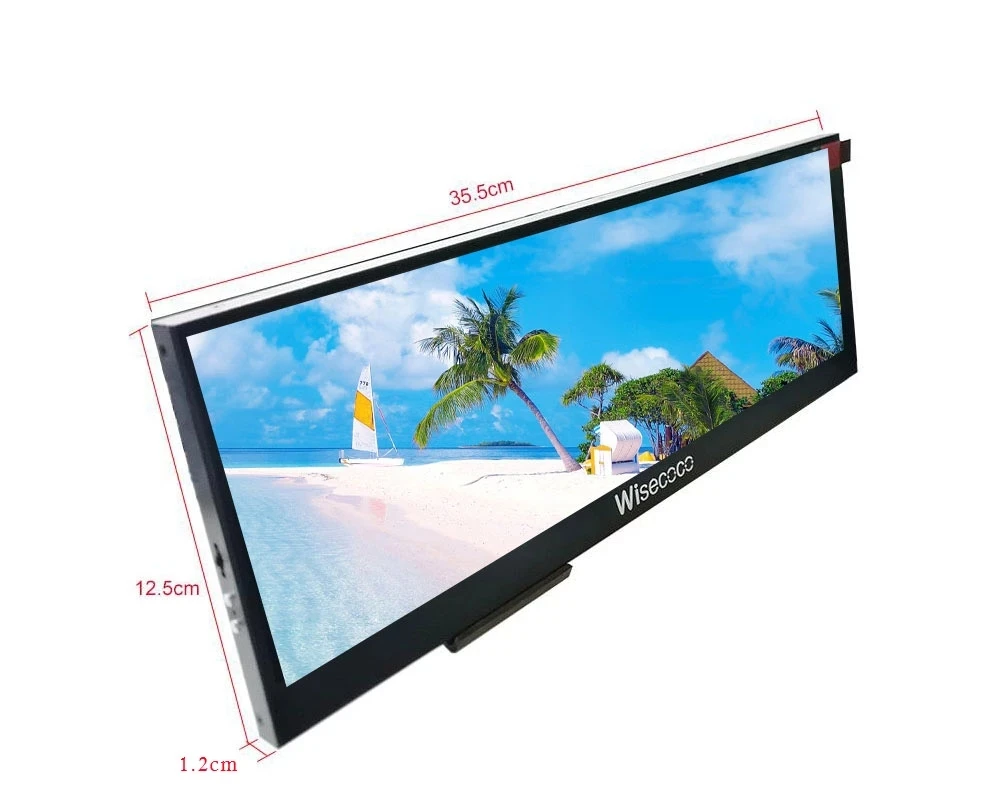

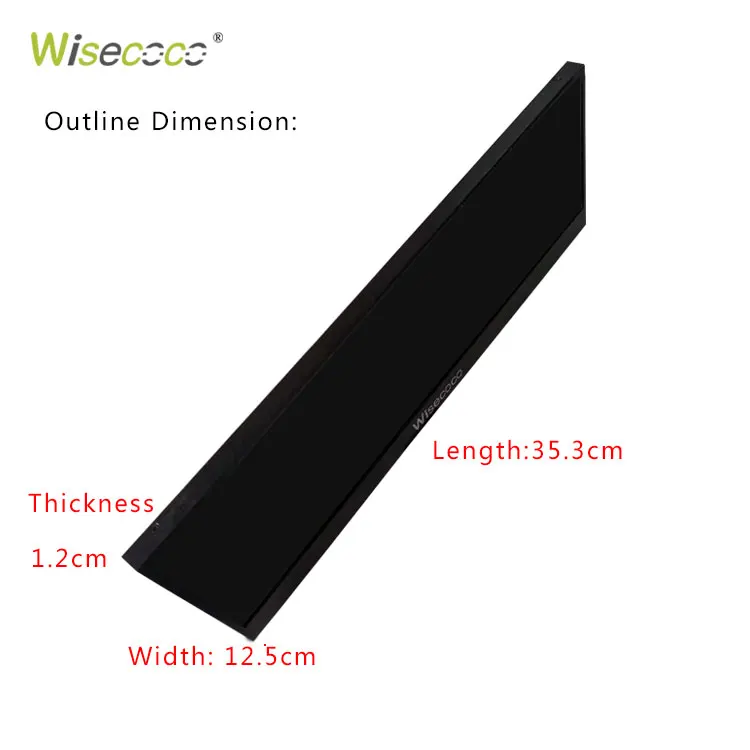

3. Dimension: 35.5cm*12.5cm*1.15cm. It's very handy, thin and light.

4. IPS technology: full viewing angle.

5. You will have 3 modes when using this 14 inch 4K monitor:

1) Connecting with PC (Windows system), you can have extended mode or copy mode.

The Logo "lightning" Type-C only for power supply. when you only coneect this interface, this monitor don't have touch function.

When you use 3 cables as the above video, it will have touch function.

2) Connecting with mobile phone by USB type-C.

1) Connecting it with PC (Windows system), you can have extended mode or copy mode.

The Logo "lightning" Type-C only for power supply. when you only use this interface, only offer power for the monitor.



2) Connecting it with mobile phone by USB type-C. (ONLY some special models of mobile phone with type-C interface supported.) It will have mobile phone mode and computer mode.

• 2.1 computer mode

It works as a second monitor. Choose computer mode, you can use your mobile phone for entertainment and this monitor for business at the same time. work separately, they display different pictures (Wireless function has not finished yet, if you need, for bulk order, we can make customize for you.)

• 2.2  mobile phone mode

It works as a second monitor. Choose mobile phone mode, you will get the same image or video as your mobile phone.





Packing List  :



Without touch function (Built-in speaker):



 14 inch Monitor *1 ;   Micro USB Cable *1 : 5V/2A ;   Micro HDM i Cable *1



With touch function (Built-in speaker):



14 inch TOUCH Monitor *1 ;  Micro USB Cable *1: 5V/2A ;    Micro HDM i Cable *1

 If you need touch function, pls let us know. price will be different.
