Product Description
Main Features
1) Anti-Bumping Function: In process of gate closing, if infrared detector sensed people or obstacles, the sliding gate will immediately stop to assure of security.
2) Anti-Climb-Over Alarming: If infrared detector sensed anybody to climb over gate, alarm in control cabinet will auto turn on, and the alarm can be turned off by stop-button or open-button of controller.
3) If any emergency happened, you can press Emergent ON/OFF button to cut off power and make the working gate stop immediately to assure of safety.
4) Once gate-motor temperature exceeds 120 degree or the gate is working for a limited time, then the motor will auto stop working for protection and prolong its life time.
5) The gate is with desktop-controller and handheld-controller for remote control, and during the time of maintenance or power failure, gate clutch can be released and then the gate can be controlled manually.
6) The gate is with leakage protection to protect over voltage or current in control system to connect ground.
7) The gate works smoothly, stable and quiet with high security, low noise, low failure rate and long service time.
8) The gate is used to circumstances of -30℃ to +70℃ of high or low temperature, wind, rain, ice, snow, slope, over railway or track and even some other tough conditions.
9)It is widely used to factory gate, resident entrance gate, villa gate, garden gate etc. and the sliding gate is very popular in European and American markets as it's very easy installation (without rails or tracks), nice appearance, compact structure, safe and security.

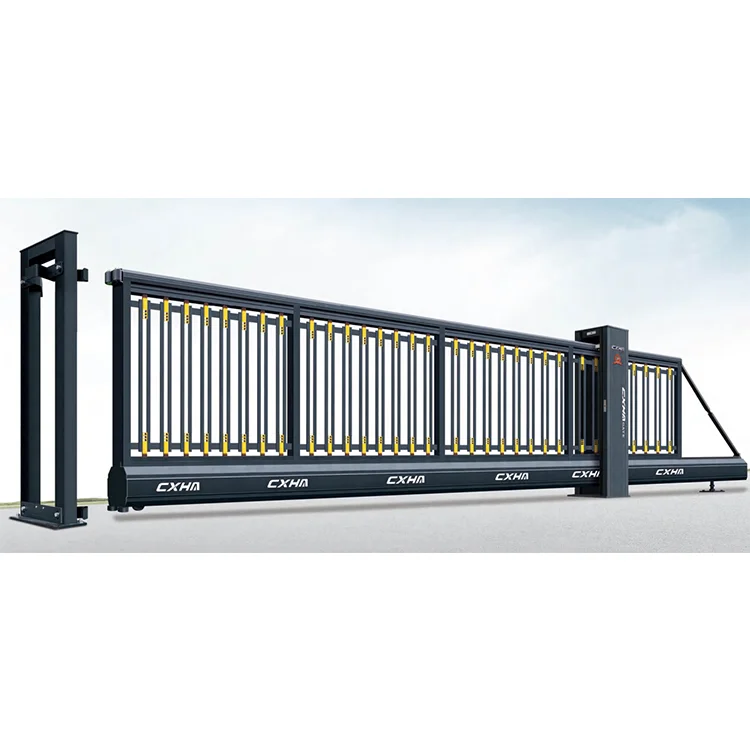

Making understand the cantilever automatic sliding gate
Gate Parts | Material | Size(mm) | Treatment |
Base Beam | Aluminum Alloy 6063-T5 | 205x286mm | Powder Coated |
Upper Beam | Aluminum Alloy 6063-T5 | 123x80mm | Powder Coated |
Gate Pillar | Aluminum Alloy 6063-T5 | 80x80mm | Powder Coated |
Gate Grille | Aluminum Alloy 6063-T5 | 50 x 30mm | Powder Coated |
Crossing Pull Rod | Q195 Steel | 20 x 4.0mm | Powder Coated |
Rear Pull Rod | Aluminum Alloy 6063-T5 | Ø18mm Solid | Powder Coated |
Back Pull Rod | Stainless Steel | W700xD570mm | Powder Coated |
Gate Post | Aluminum Alloy | W700xD570mm | Powder Coated |
Gate Length Description
L1: Total Installation Length (the requested length for the status of fully open gate and close gate)
L2: Gate Clearance Length (the length between of two-sides gate post)
L3: Gate Body Length (gate clearance length < gate body length < installation length)
Note: We can calculate the Installation Length and Body Length according to Clearance Length provided.
Detailed Images
Heavy Duty Chain Drive Motor
Position: Fixed in Control Cabinet
The motor is with leakage/short-connection/overheat protection, it can make cantilever sliding gate work stable between -30°c to 70°c and in tough environment.
Low power consumption, and stable performance
Sliding Gate Base Beam
Material: Aluminum 6063-T5
Size: 205*286mm
Surface Treatment: Powder Coated
This base beam is with good industrial Al-alloyed material and compact structure design, which can make cantilever sliding gate will be with long-lasting usage life, no abrasion, color fading away or out of shape.
Control Board & Remote Controller
Frequency: 433MHz
Remote Distance: Less than 50m
Mater Control Board is with industrial standard design, stable and without failure.
Handheld remote controller is elegant and easy for operation.
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Side Swing Gate
Model: CH-04
Swing Gate Height: 1700mm / by order required
Swing Gate Width: 1500mm / by order required
The swing side gate fixed with electric sliding gate for people is the same with aluminum material, and optional with access card reader, electric lock and auto door closer.
Side Swing Gate CH-06
Height: 1700mm / by order required
Width: 1500mm / by order required
Options: access card reader, electric lock, auto door closer
Side Swing Gate CH-07
Height: 1700mm / by order required
Width: 1500mm / by order required
Options: access card reader, electric lock, auto door closer
Side Swing Gate CH-08
Height: 1700mm / by order required
Width: 1500mm / by order required
Options: access card reader, electric lock, auto door closer
Certifications
Product packaging
The seaworthy sturdy packaging protects the product and avoids violent transportation
· Packing Materials: PE bubble film, cardboard carton and wooden crate if required
· As the gate package is huge, we recommend shipping by FCL
· We will pack each gate in parts of gate body, gate posts, electric motor, installation accessories
· We will contact container here in our factory for loading once goods is ready
· We will send all required documents for destination customs by DHL on time
· We will keep tracking in the whole shipping process and inform you details
· As the gate package is huge, we recommend shipping by FCL
· We will pack each gate in parts of gate body, gate posts, electric motor, installation accessories
· We will contact container here in our factory for loading once goods is ready
· We will send all required documents for destination customs by DHL on time
· We will keep tracking in the whole shipping process and inform you details
How do customers evaluate CXHA products & service
Our Company
Foshan City Chancheng Dis C.X.H.A Gate Co., Ltd.
Established in 1997, we are one of the earliest and biggest factories for Automatic Retractable Gate and Cantilever Sliding Gate. We are many times granted as the TOP10 Famous Brand, the TOP10 Largest Enterprise, the China Famous Brand, many patents for new technology and appearance and so on in the industry of automatic gate.
With 30000 square meters modern factory and 8000 square meters office building, We have 480 staff members and 20 R&D people (including 5 senior engineers), and 15 full automatic production lines which are all equipped from international famous brand.
In 1997, Established for Production of Flexible Shutter Gate.
In 1998, Develop and Produce Stainless Steel Folding Gate.
In 2001, Develop and Produce Aluminum Folding Gate.
In 2004, Passed ISO9001:2000 Quality System Certification.
In 2006, Develop Smart Motor for Trackless Automatic Gate.
In 2008, Develop Casting Aluminum Villa Folding Gate.
In 2009, New Factory Base Applied for Production.
In 2011, Cantilever Sliding Gate Developed for Large Scale Production.
In 2013, Villa Cantilever Sliding Gate Developed for Large Scale Production.
In 2014, Intelligent Car Parking System Developed for Production.
In 2015, The Second Factory (Jiangxi) Base Applied for Production.
ls it easy to install?
Yes,the gate is suspension linear slidingno need any rails prelaid on the ground,so it's very easy and simple for installation and maintenance.
Can it be used where there is a slope?
The gate is widely used in the circumstances of windrain,ice,snow, slope,over railway or track and even some other tough conditions
Can you customize the color, size of the model for the gate?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
How about your delivery time?
Generally, it will takes 5 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Can we use our shipping agent?
Yes, you can. And we had cooperated with many forwarders. If you need, we can recommend some forwarders to you and you can compare the prices and service.
