Гидравлический 3-х осный полуприцеп самосвал прицеп 70 тонный для
- Категория: Commercial Truck Trailers >>>
- Поставщик: Jinan,Mettlead,Auto,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 17850.27 $* | 18743.26 $* |
| Aug-15-2025 | 17700.87 $* | 18585.78 $* |
| Jul-15-2025 | 14850.22 $* | 15593.46 $* |
| Jun-15-2025 | 17400.67 $* | 18270.20 $* |
| May-15-2025 | 15150.44 $* | 15908.23 $* |
| Apr-15-2025 | 17100.51 $* | 17955.69 $* |
| Mar-15-2025 | 16950.3 $* | 17798.72 $* |
| Feb-15-2025 | 16800.64 $* | 17640.34 $* |
| Jan-15-2025 | 16650.46 $* | 17483.11 $* |
Характеристики
Product Overview
THREE AXLES SIDE DUMP TRAILER
3 axles dumper aggregate side dump tipper trailers 60ton tipper gooseneck grain dumping semi trailers for sale
We are the top one and professional semi-trailer supplier.
We can give you better product and favorable price.
SINOTRUK Vehicle has successfully entered into over 50 countries around the world.
We are the top one and professional semi-trailer supplier.
We can give you better product and favorable price.
SINOTRUK Vehicle has successfully entered into over 50 countries around the world.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Left elevation
Right elevation
Rear elevation
PRODUCT SPECIFICATIONS
Manufacturer | SINOTRUK SIDE DUMP TRAILER | |
Type | Dump semi trailer | |
Semi trailer Dimension | 12500*2495*3970 mm(Outside Dimension)11500*2300*1700 (Inside Dimension) | |
Tare Weight | About 10-15T | |
Total Volume | 37m3 or less than 80tons | |
Side wall thicknes(mm) | 3mm-6mm Q235 steel | |
Bottom plate thickness(mm) | 5mm-8mm Q235steel or can be optional | |
Lifting system | Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder | |
Chassis | ||
Main beam | Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel | |
Axle | 13T/16T,FUWA/BPW/Huajing Brand | |

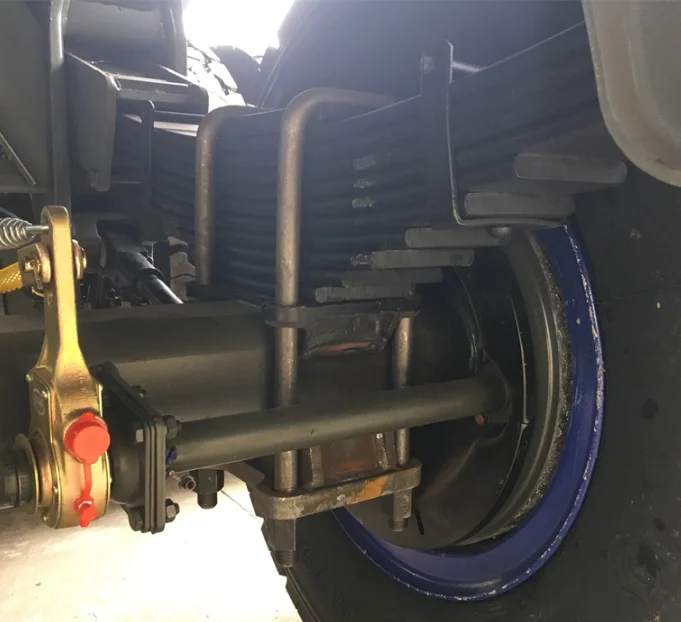

Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 | |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type | |

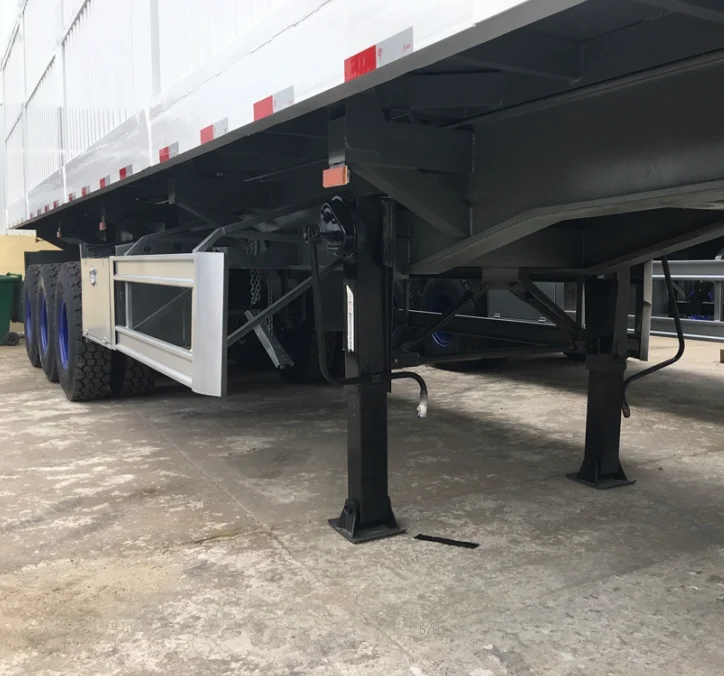

Landing Gear | JOST brand C200T or China brand 28Tons (Double speed) | |

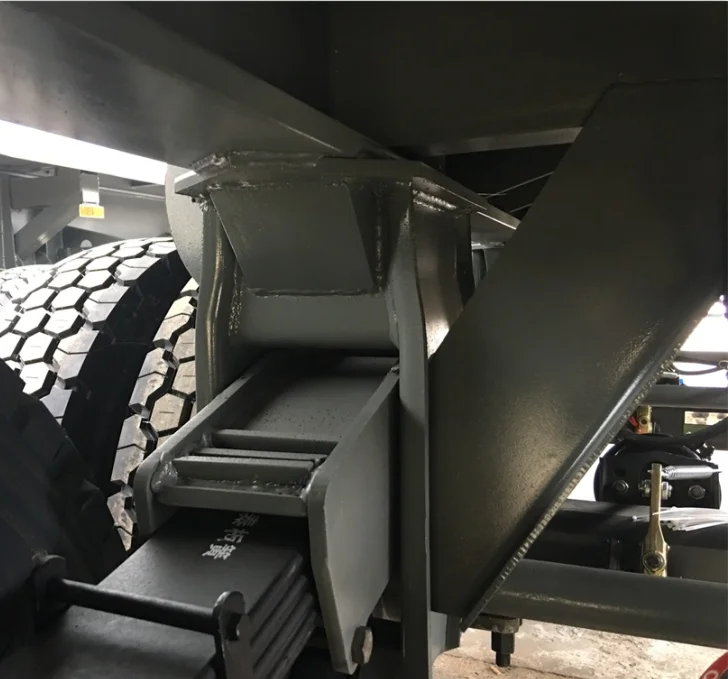

Suspension | Mechanical suspension/America Type/Germany Type | |
Rim | 9.00-22.5/8.00-20/8.5-20China Brand | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available | |

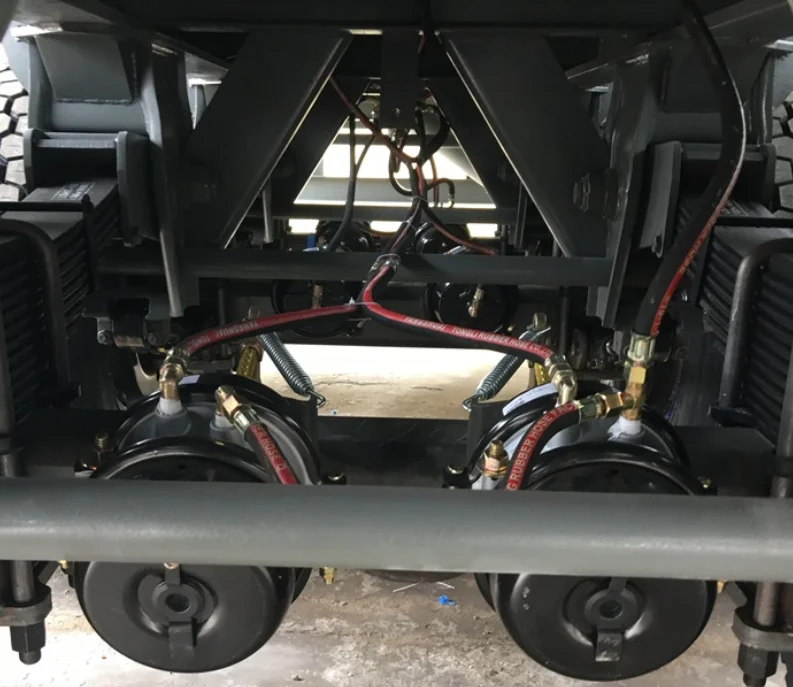

Pneumatic Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank | |
ABS | Optional | |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint | |
Shipping term | Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your dump semi trailer | |
SHIPPING
SALES AND SERVICE NETWORK
FAQ
Q1. What is your terms of packing?
A: Container or Nude packing with waterproof paint(wax) on ro-ro ship
Q2. What is your terms of payment?
A: T/T .We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
A: Container or Nude packing with waterproof paint(wax) on ro-ro ship
Q2. What is your terms of payment?
A: T/T .We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
