Полностью автоматическая высокоскоростная индивидуальный дизайн двойной склеивания угловой круглый предварительно фрезерный станок Кромкооблицовочный для пришивки

Описание и отзывы

Трекер стоимости

Характеристики

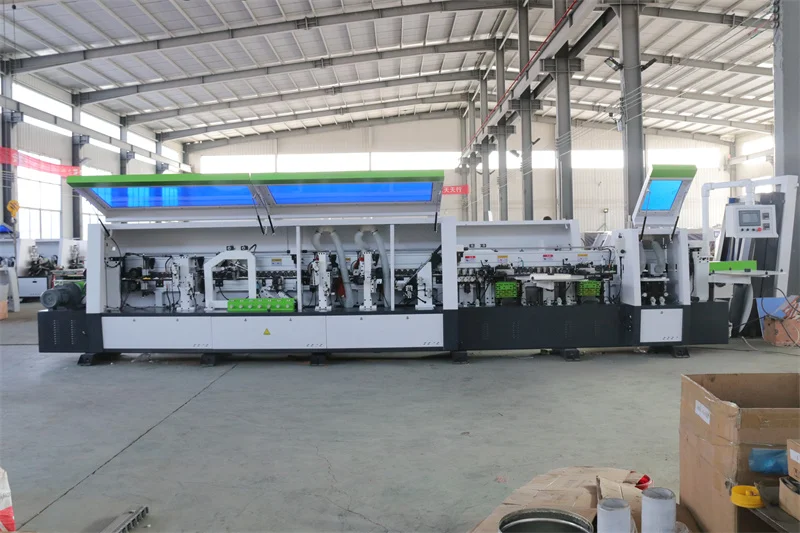

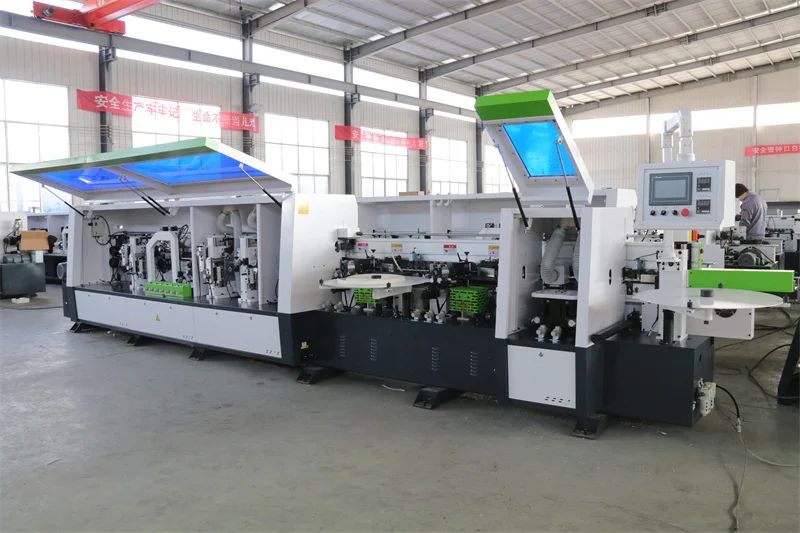

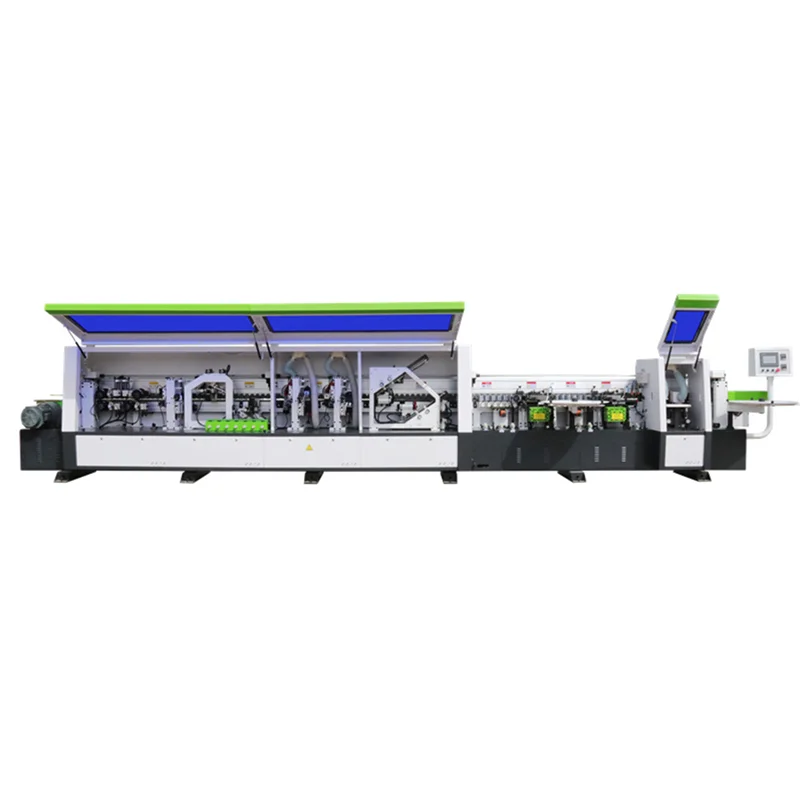

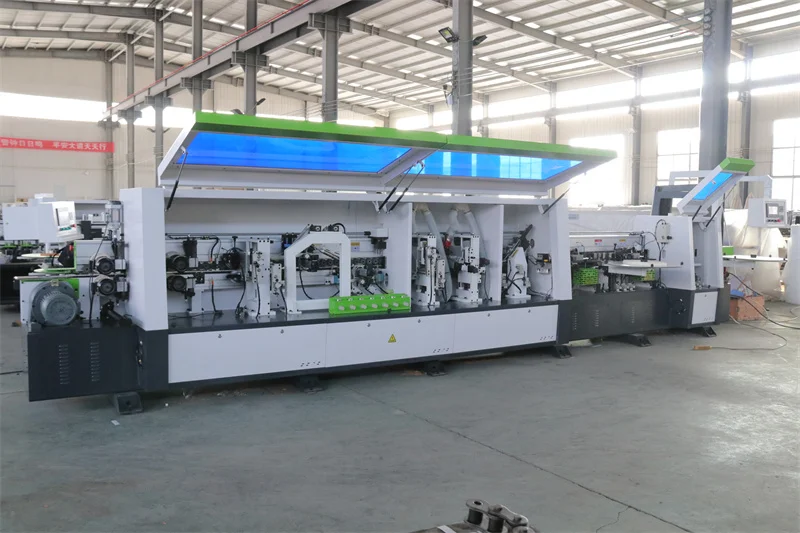

Fully automatic high speed customized design double gluing corner round pre-milling banding edge machine



































Technical Parameter

Model name	LW 468
Dimension	6680*1100*1600mm
Weight	2600kg
working pressure	0.6mpa
feeding speed	12-24m/min
Sheet thickness	10-60mm
Sheet length	≥150mm
Sheet width	≥80mm
edge band thickness	0.4-3mm
edge band width	12-60mm
Total power	16.5kw



Configuration

Conveying motor	Taiwan Wanxin	Cylinder	Airtac
High-speed motor	Tianjin Anquan	Solenoid valve	Yiri
Touch screen	Taiwan Taida	Inverter	Siemens
Travel switch	Omron	Pressure regulating	Yiri
Flush rail	Taiwan Shangyin	Other configuration	Electric lift

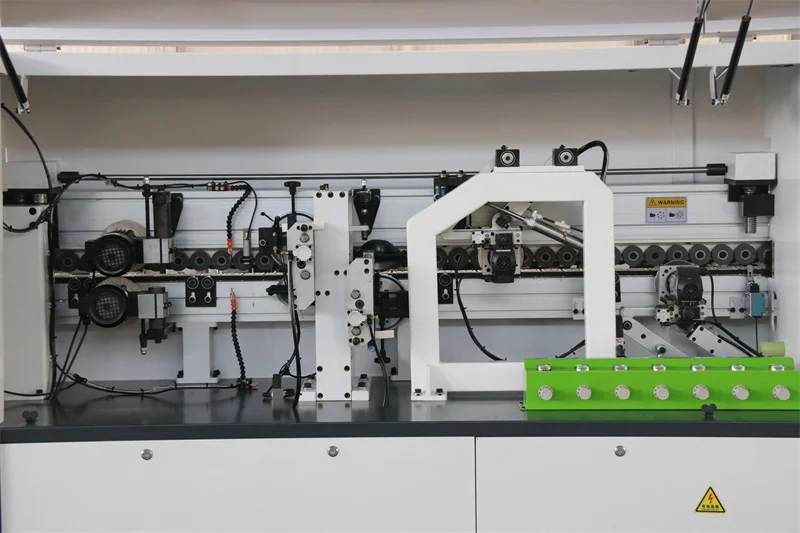

Detail Description

1 100% Copper motor ,Long service life, one year quality assurance, strong power

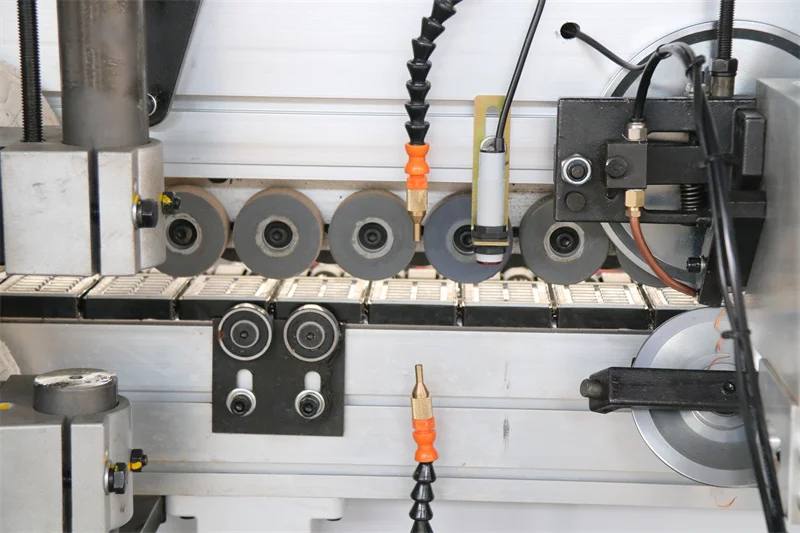

2 Gluing device,The glue pot is heated to melt the glue, and the glue is evenly spread on the board and the edge band through a special conveying structure. Press the edge band and the board tightly by the pressing wheel





3 Front and back flush device .Through the structure of automatic profiling and high-frequency high-speed motor, the cut surface is smooth





4 Roughly repair device .The rough trimming knife is a flat knife, which is used to repair and process the excess edge banding material on the upper and lower parts of the sheet edge band. The high-frequency and high-speed motor is used to realize fast cutting. If the thickness of the edge band exceeds 1.2mm, it is recommended to choose a rough repair.





5 Finishing device ,The finishing is an R-shaped knife, which is used to repair the excess edge banding material after rough trimming of the upper and lower edge bands of the processed plate, and at the same time make the arc transition between the plate and the edge band naturally





6  Scraping edge device .It is used to eliminate the ripple marks caused by the cutting process of the non-linear motion of the trimming (trimming knife and the knife marks left by the r-shaped fillet), so that the upper and lower parts of the plate are smoother and tidy





7 Polishing device .The cotton polishing wheel polishes and cleans the processed plates, removes the excess amount of glue between the edge banding tape and the plate, and makes the edge banding end surface more natural and smooth





The effect

FAQ

1,Can you offer good price with fine quality also?



Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.

we are not sure if it is lowest or highest,But we will be offering reasonble.We don’t want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines



2,We will be protetcted if we are paying for orders?



Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.





3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don’t be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .



4,What's your production time? we want faster shipping time also.



mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
