Преобразователь питания высокой мощности 200 Вт переменного тока 110 В 220 в постоянный ток 5 12 24 40

Описание и отзывы

Трекер стоимости

Характеристики

200W ac 110V 220V  to dc 5v 12v 24v high power converter  power supply 40a





OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	OUTPUT POWER	200W	200W	200W	200W	240W	240W
	CURRENT RANGE	40A	16A	13A	8.3A	6.6A	5A
	RIPPLE & NOISE(max.)	100mVp	120mVp	150mVp	150mVp	200mVp	240mVp
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms

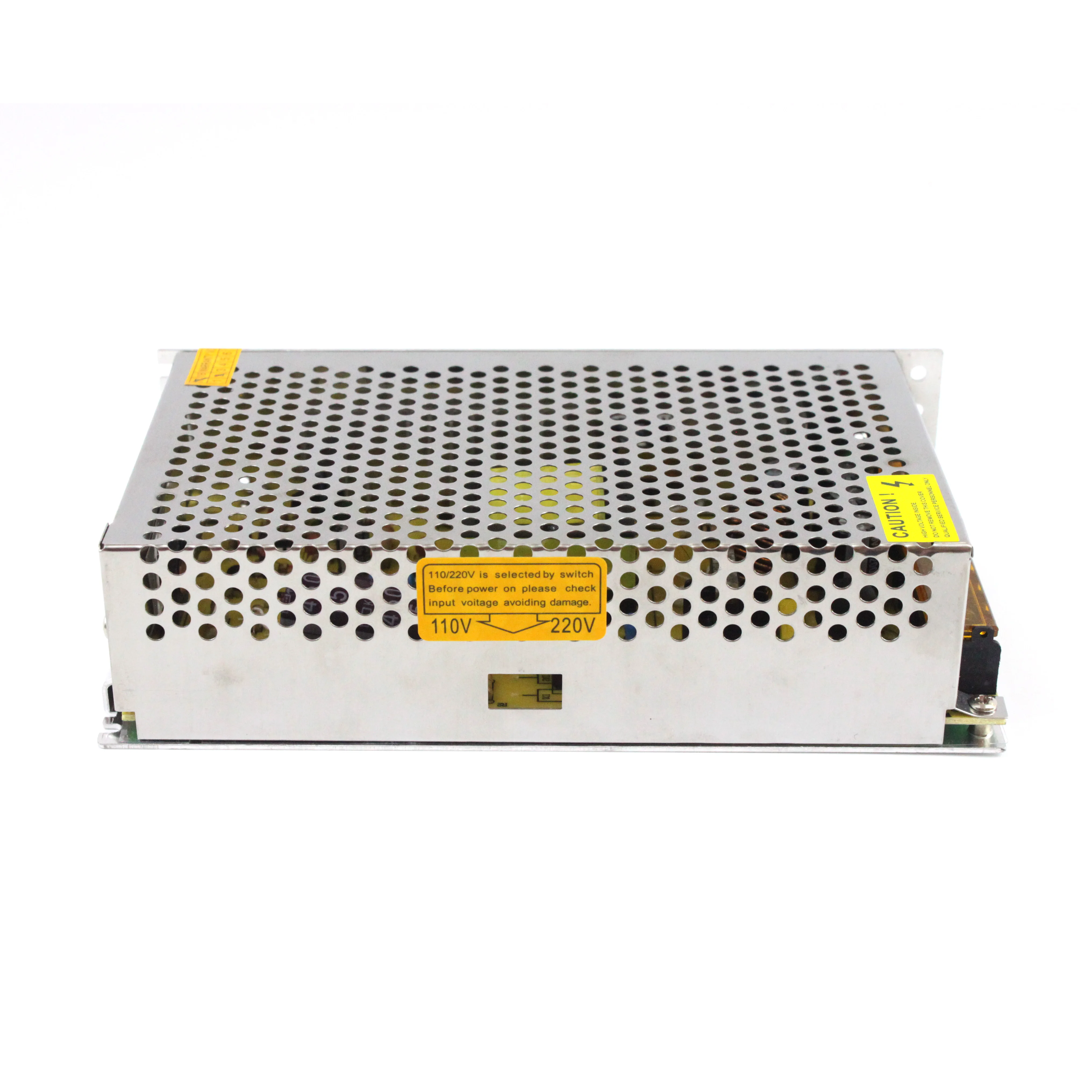

INPUT	VOLTAGE RANGE	88 ~ 132VAC/176 ~ 264VAC selected by jumper or switch
	AC CURRENT(Typ.)	3.15A/115VAC          1.5A/230VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	72%	78%	78%	80%	82%	82%
	INRUSH CURRENT(Typ.)	COLD START 20A/115VAC          40A/230VAC
	LEAKAGE CURRENT	<2.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated output voltage
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	DIMENSION	L200*W110*H50MM
	WEIGHT	20PCS/Carton/14.5KG
	SHELL MATERIAL	Aluminium





MOQ-

No limited



Many power models-

5 Watts - 1800 Watts



Many voltage output-

5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).



New Design-

We have professional engineer to make new design as your speical requirment.



Good quality-

We have the best professional and experienced engineer and the strict QC system.



Fast delivery-

The delivery time is 1-25 days which depend on quantity and details items.



Payment term-

T/T, L/C, Paypal, Western Union, Money Gram.



Solutions-

With more than 10 years experience,we can provide professional design solution for power supply according your requirement.



Cooperation-

You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
