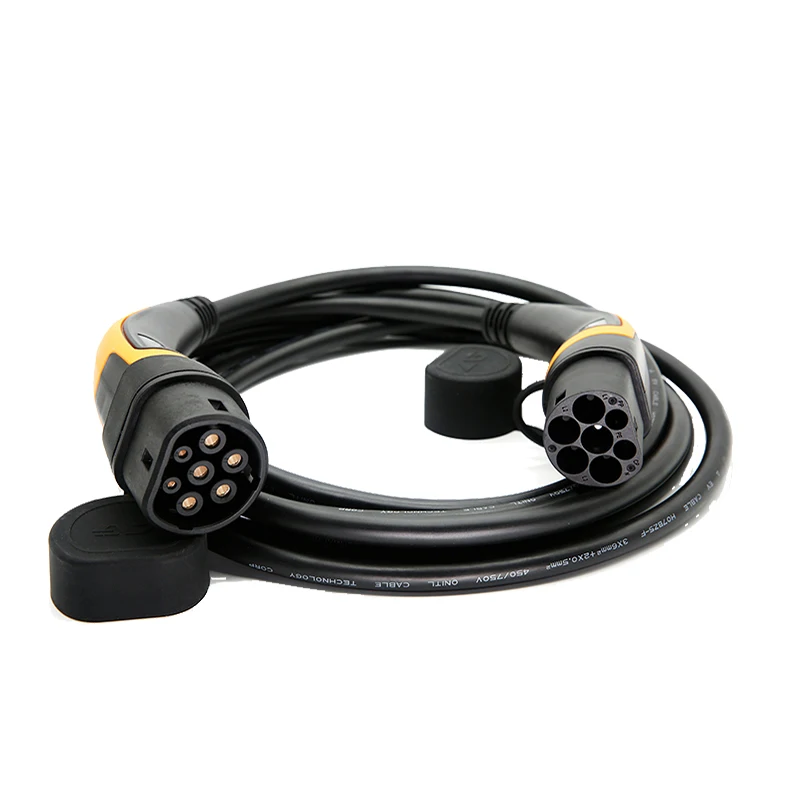

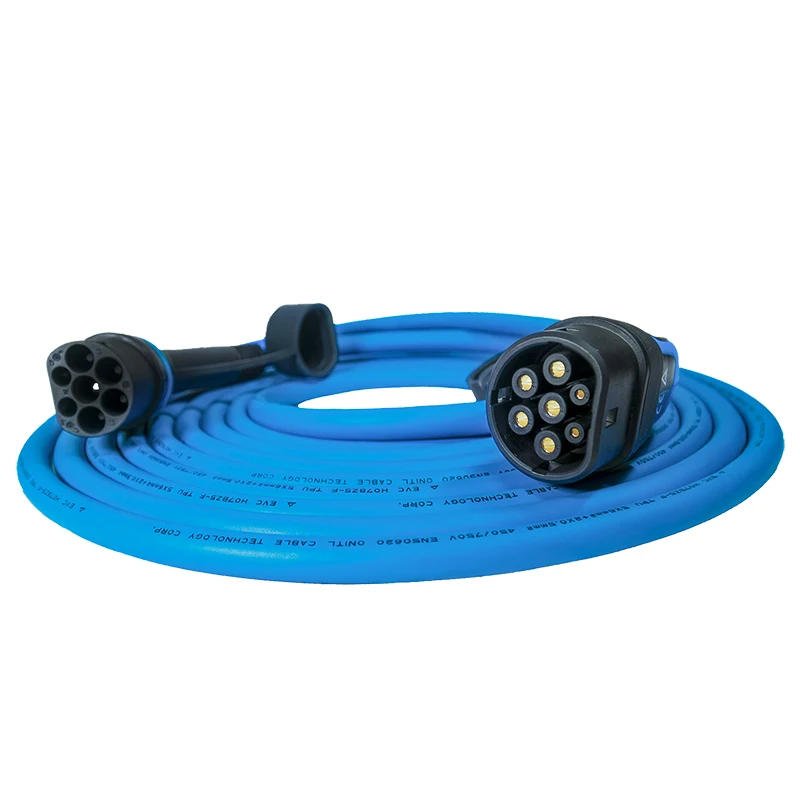

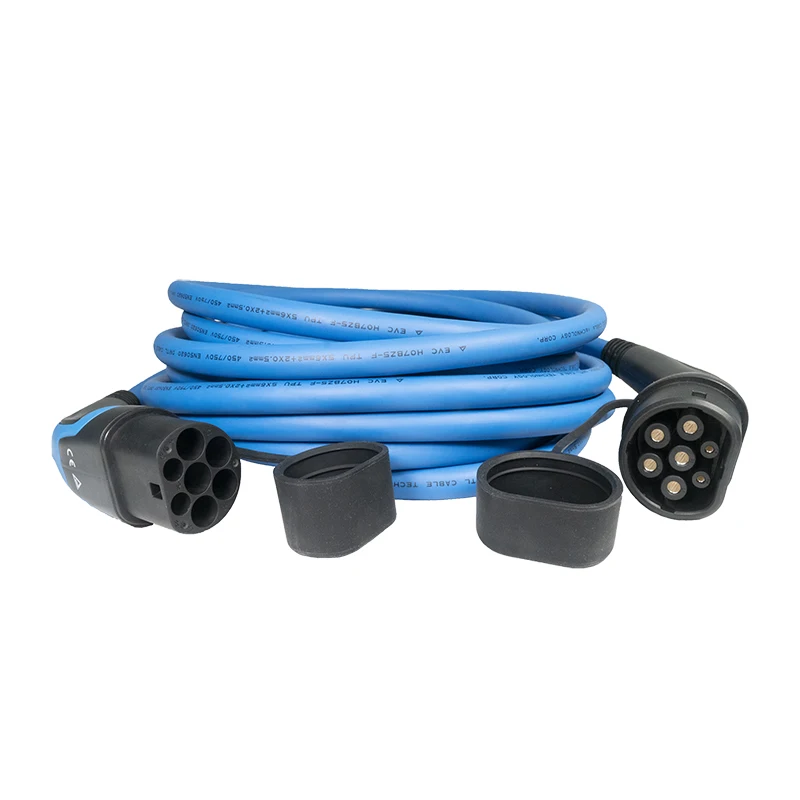

Трехфазный зарядный кабель для электромобилей типа 2-Type 2 32a 5
- Категория: Charging Cables >>>
- Поставщик: Benbv,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 129.38 $* | 135.99 $* |
| Aug-16-2025 | 127.36 $* | 133.59 $* |
| Jul-16-2025 | 107.88 $* | 112.81 $* |
| Jun-16-2025 | 125.93 $* | 131.72 $* |
| May-16-2025 | 109.61 $* | 114.13 $* |
| Apr-16-2025 | 123.5 $* | 129.18 $* |
| Mar-16-2025 | 122.25 $* | 128.64 $* |
| Feb-16-2025 | 121.87 $* | 127.65 $* |
| Jan-16-2025 | 120.85 $* | 126.23 $* |
Характеристики
TYPE2 / TYPE 1
Product Type | TYPE2 EV Charging Cable / TYPE1 EV Charging Cable |
Rated Current | 16A, 32A / 16A, 20A,3 2A |
Rated Voltage | 250V, 480V / 120V/250V |
Power | 3.7KW, 11KW,7.4KW,22KW |
Phase | One Phase/Single Phase, Three Phase |
Cable Specification /T1（Wire length and the end of treatment according to the client configuration) | H07BZ5-F3X2.5mm²+2x0.5mm² / H07BZ5-F3X2.5mm²+2x0.5mm² |
H07BZ5-F5X2.5mm²+2x0.5mm² / H07BZ5-F3X6mm²+2x0.5mm² | |
H07BZ5-F3X6mm²+2x0.5mm² | |
H07BZ5-F5X6mm²+2x0.5mm² | |
Length | Regular 5 m,custom length accepted |
Color | orange,blue,green,grey, white, custom color accepted |
Warranty | 12 months |
Certificate | CE/TUV(Rheinland) /CE |
Packaging Details | Standard export wooden case or carton. Or as customer requirements |
Product Type | Rated Current/ voltage | Cable Specifications |
type 1 to type 2 | 16A/250V | H07BZ5-F3X2.5mm＾2+2x0.5mm＾2 |
type 1 to type 2 | 32A/250V | H07BZ5-F3X6mm＾2+2x0.5mm＾2 |
Mechanical Properties
Mechanical life: no-load plug>10000times
Impact resistance: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force:<100N
Impact resistance: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force:<100N
Electrical Performance
Rated current: 16A/20A/32A
Rated voltage: 250V/250V/480V
Insulation resistance:>1000MΩ (DC500V)
Pins temperature rise:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax
Rated voltage: 250V/250V/480V
Insulation resistance:>1000MΩ (DC500V)
Pins temperature rise:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax
Raw Material
Shell material: thermoplastics, flame retardant grade UL94-0
Pin:Copper alloy, silver+top thermoplastic
Pin:Copper alloy, silver+top thermoplastic
Environmental Performance
Temperature: -30℃~+50℃

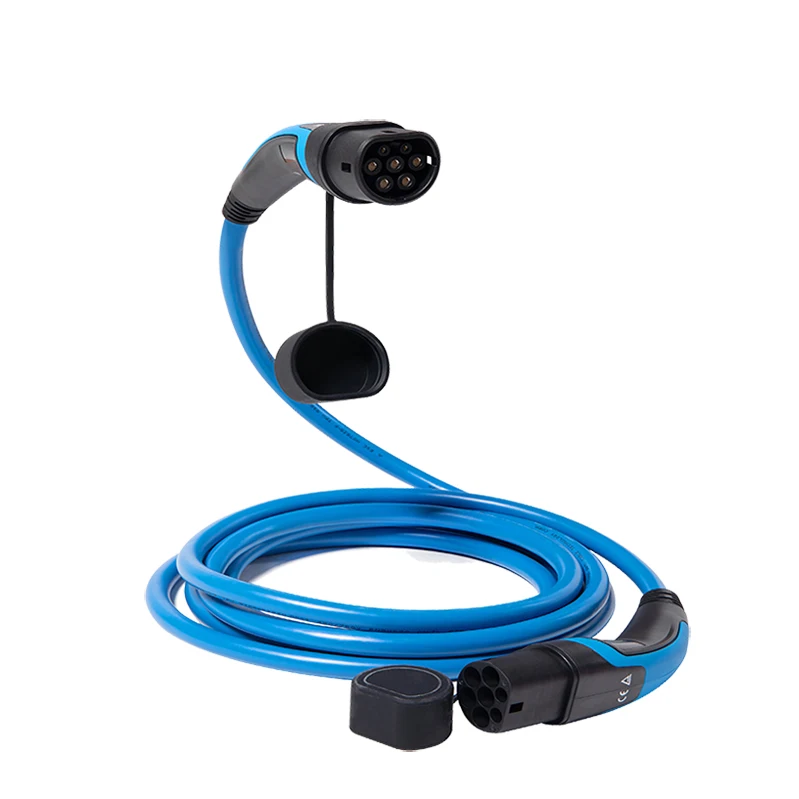

TYPE2-TYPE2 Spiral Charging
Product Type | Rated Current/ voltage | Cable Specifications |
type2-SP-16A | 16A/250V | H07BZ5-F3X2.5mm＾2+2x0.5mm＾2 |
type2-SP-32A | 32A/250V | H07BZ5-F3X6mm＾2+2x0.5mm＾2 |
type2-SP-16B | 16A/480V | H07BZ5-F5X2.5mm＾2+2x0.5mm＾2 |
type2-SP-32B | 32A/480V/ | H07BZ5-F5X6mm＾2+2x0.5mm＾2 |
Features
1.Conform to the provisions and requirements of IEC62196-2 2016 2-llb, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.

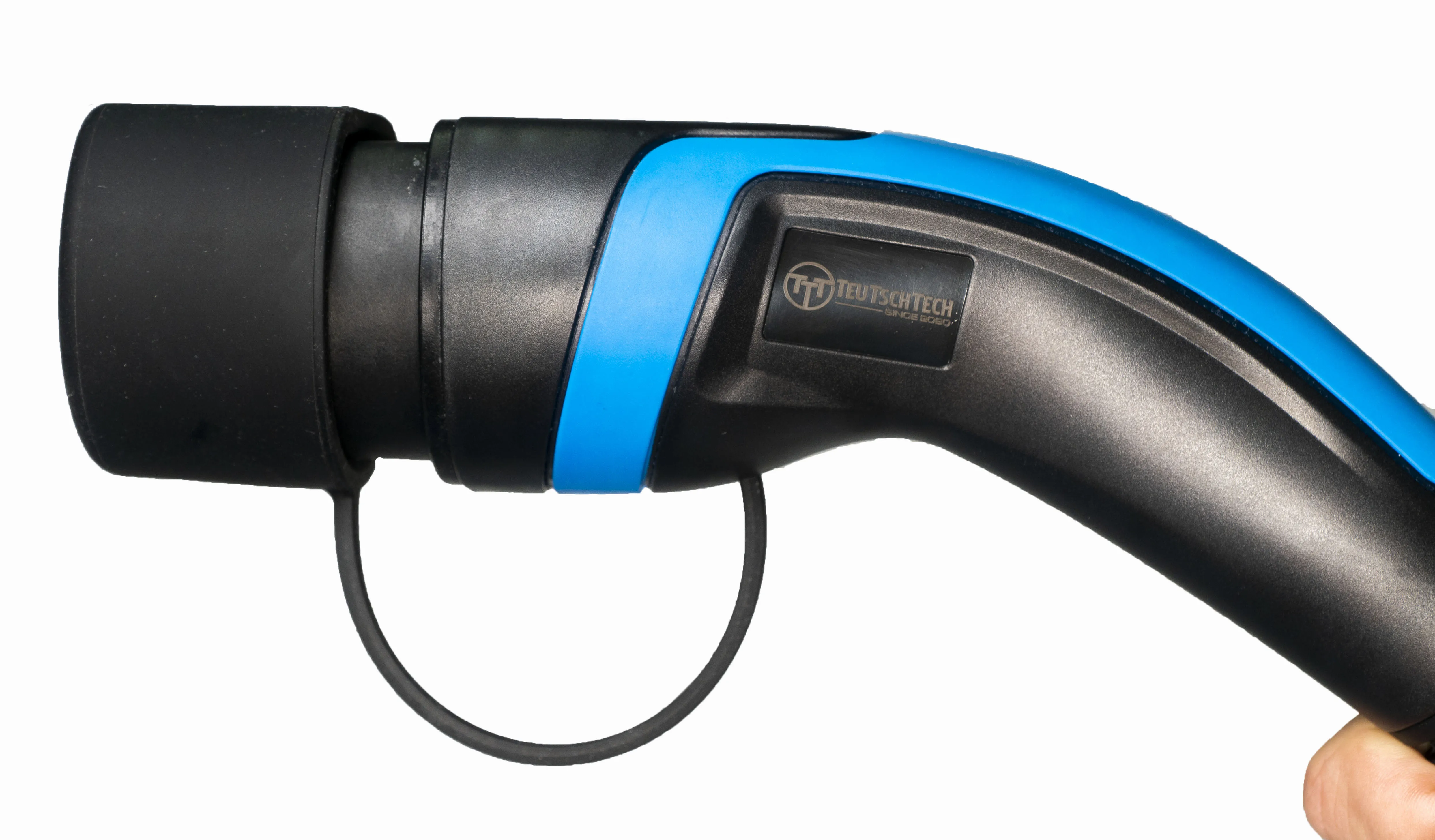

2.Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.
3.XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
4.Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
5.Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
6.Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier
2.Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.
3.XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wear resistance of cable. The best material in the market at present, conforms to the latest European Union standards.
4.Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
5.Adopted double color coating technology, custom color accepted (regular color orange, blue, green, grey, white)
6.Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier
Application of EV Charging Cable Type 2
Apply to Vehicle
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series,for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV,for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV,for Great Wall Ora R1 EV.
For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series,for SAIC Roewe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV,for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV,for Great Wall Ora R1 EV.
