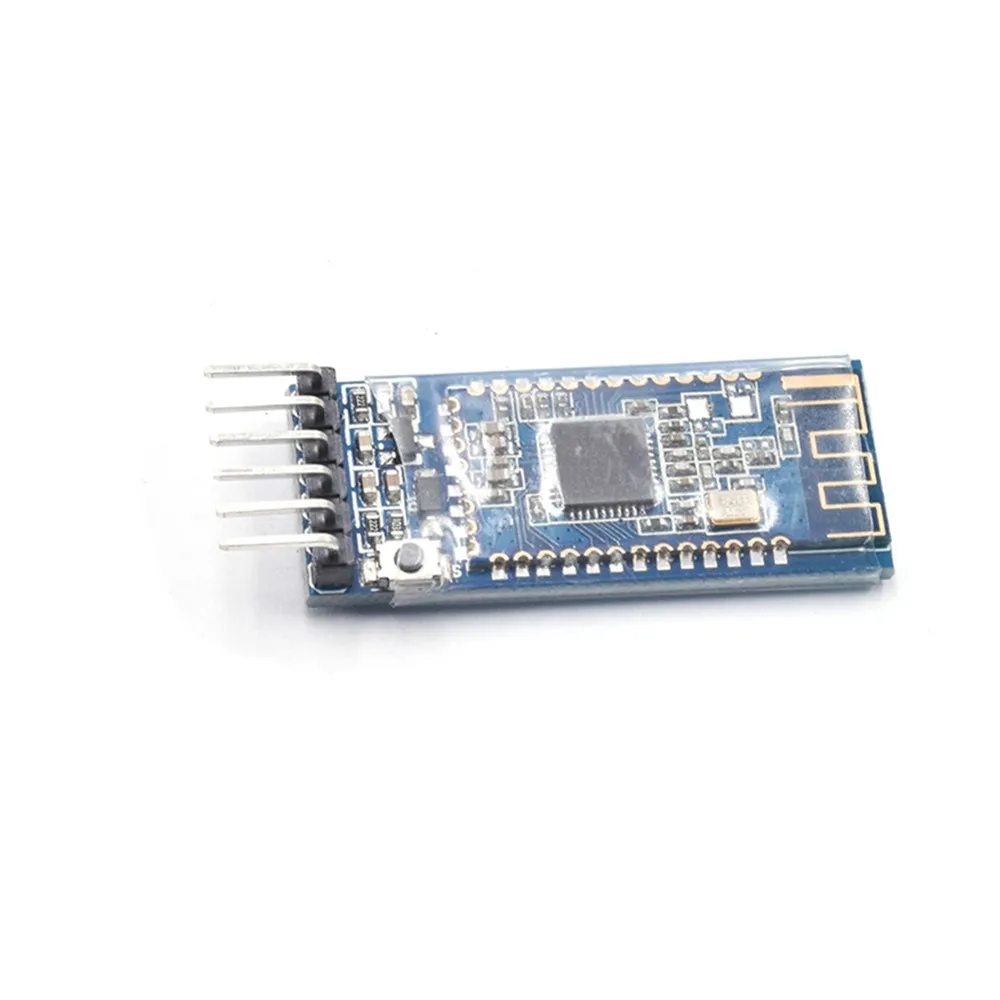

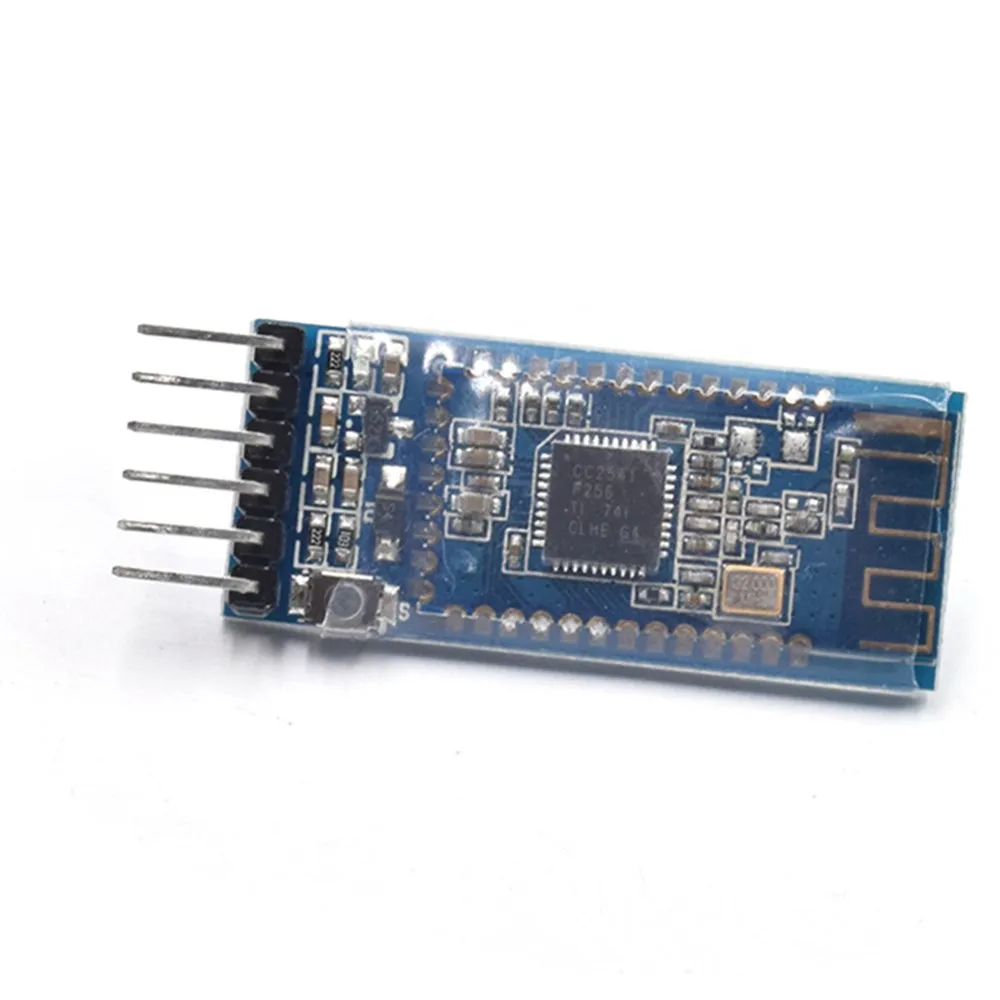

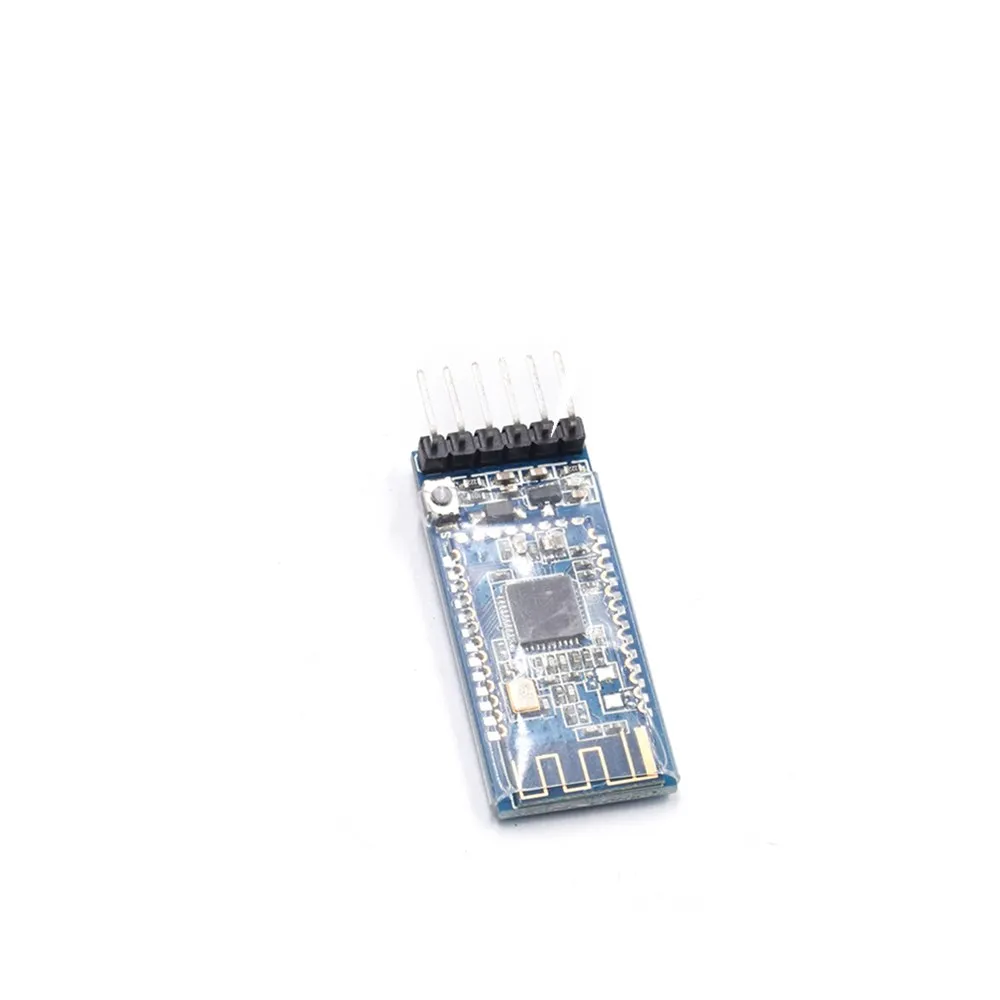

JDY-08 BLE Bluetooth 4 0 Uart модуля приемопередатчика CC2541 центральной коммутации беспроводного

Описание и отзывы

Трекер стоимости

Характеристики

Description:
1: We Chat through (support AirSync protocol, used in micro-H5 or factory server communications, including long packet data analysis transceiver).
2: APP transparent transmission (to support Android, IOS data transparent).
3: IBeacon mode (support WeChat shake shake the agreement with the Apple iBeacon protocol).
4: Sensor mode (temperature, humidity, and many other sensor data acquisition applications).
5: Host transparent mode (data transmission between modules, the host and slave communication).
6: Host observer mode (application sensor, indoor positioning).
7: PWM mode (applied to the motor speed, LED light brightness adjustment).
8: IO mode (applied to mobile phone control relay or LED light off).
9: indoor room applications (application of iBeacon data acquisition to achieve the range of positioning)
Two technical parameters.
1: The communication speed is 3K Bytes / second.
2: APP transparent transmission serial port support 1024Bytes write.
3: Effective communication distance of 15 to 30 meters.
4: Support PWRC pin control sleep.
5: support IO port control disconnect.
2 pin function description.
DISC pin: used to automatically disconnect the Bluetooth connection (the default high, low disconnect).
PWRC pin: used to wake-up sleep (the default in the sleep state), which use this pin to ground AT command
VCC pin: for the module's power supply pin, the supply voltage range of 3.6V to 6V.
GND pin: Power ground.
TXD pin: Serial output pin.
RXD pin: Serial input pin .
Package Included:
1 * ESP8266 Serial Port WIFI Wireless Module.







We Chat through (support AirSync protocol, used in micro-H5 or factory server communications, including long packet data analysis transceiver)

APP transparent transmission (to support Android, IOS data transparent)

iBeacon mode (support WeChat shake shake the agreement with the Apple iBeacon protocol)

Host transparent mode (data transmission between modules, the host and slave communication)

PWM mode (applied to the motor speed, LED light brightness adjustment)
