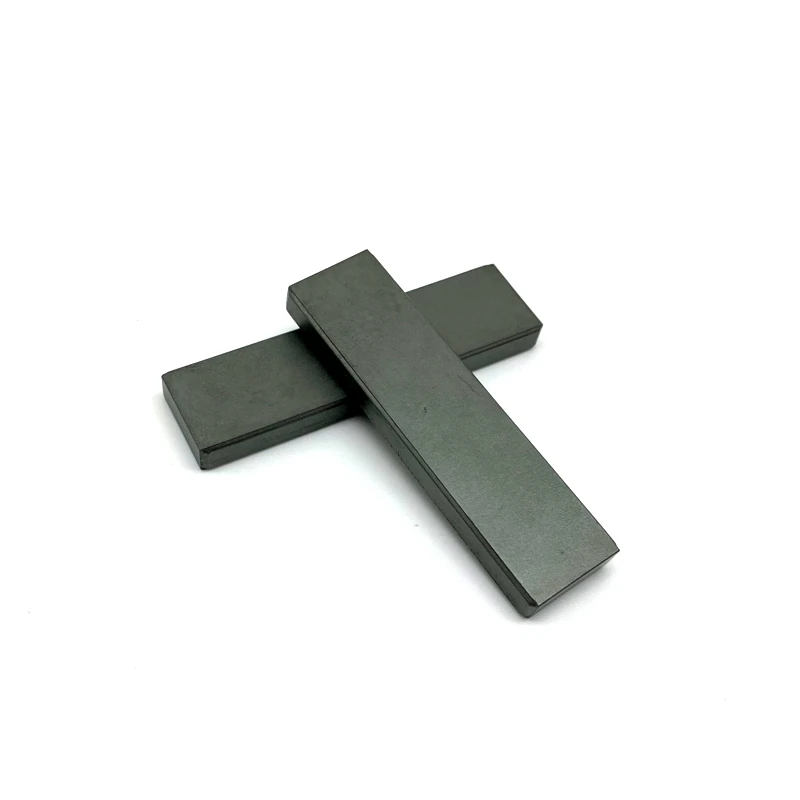

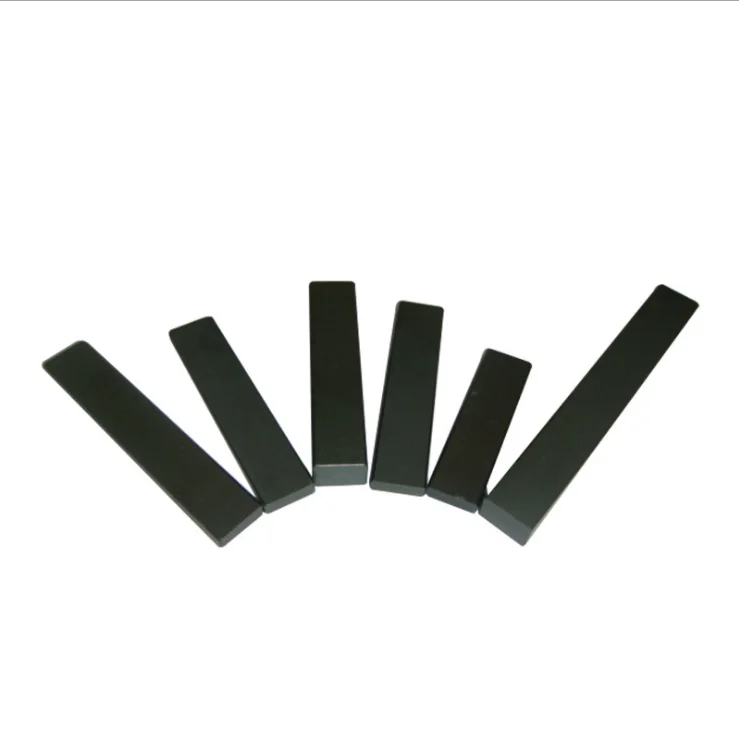

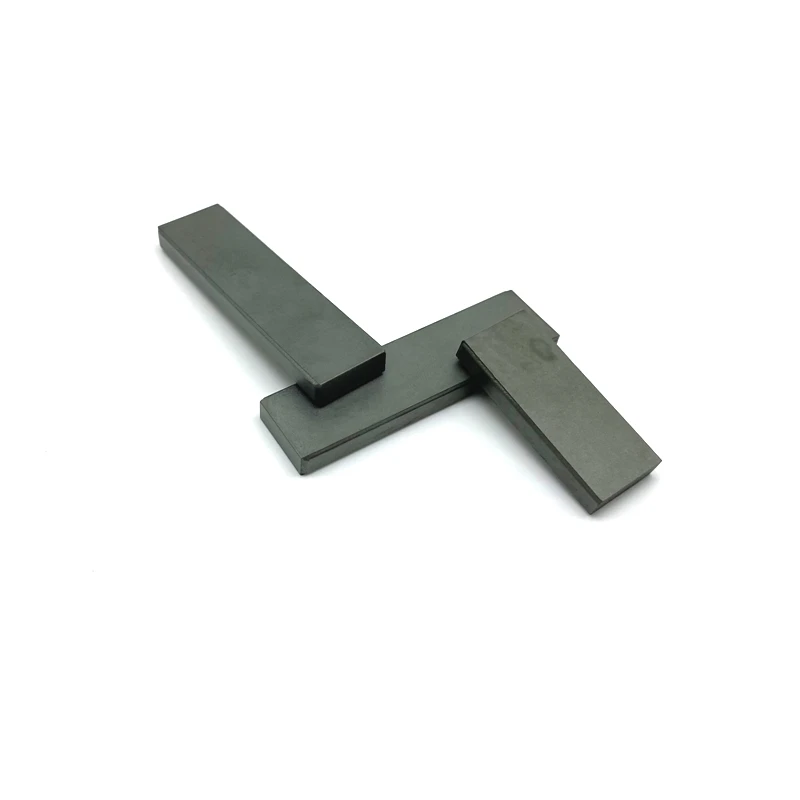

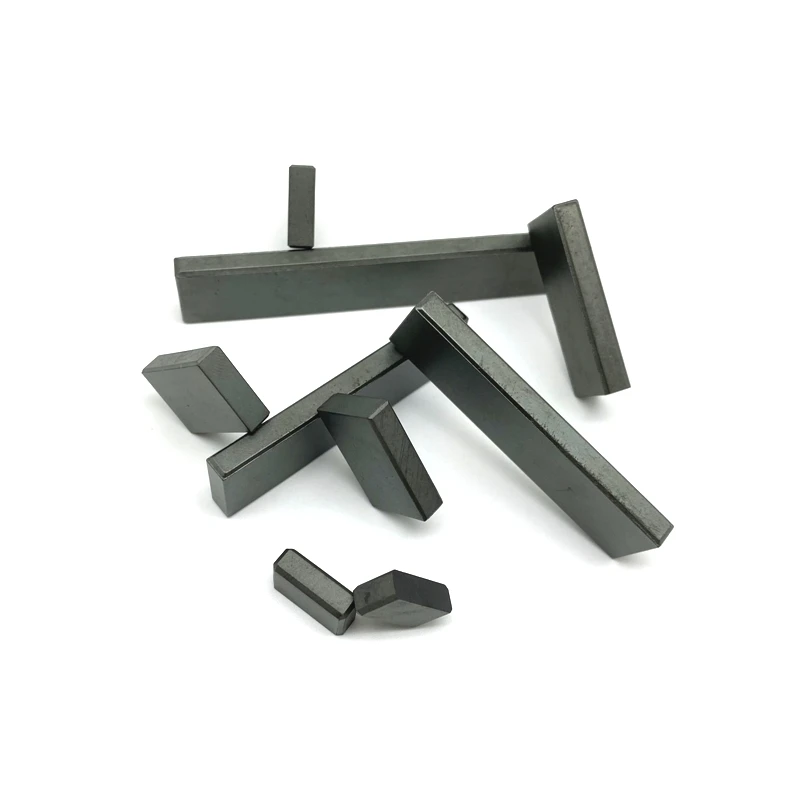

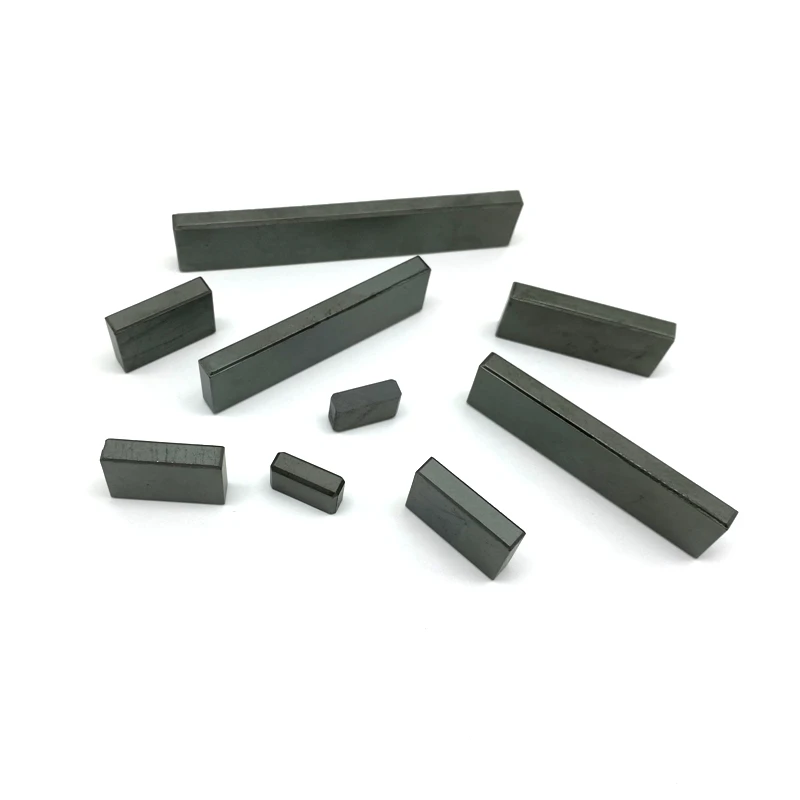

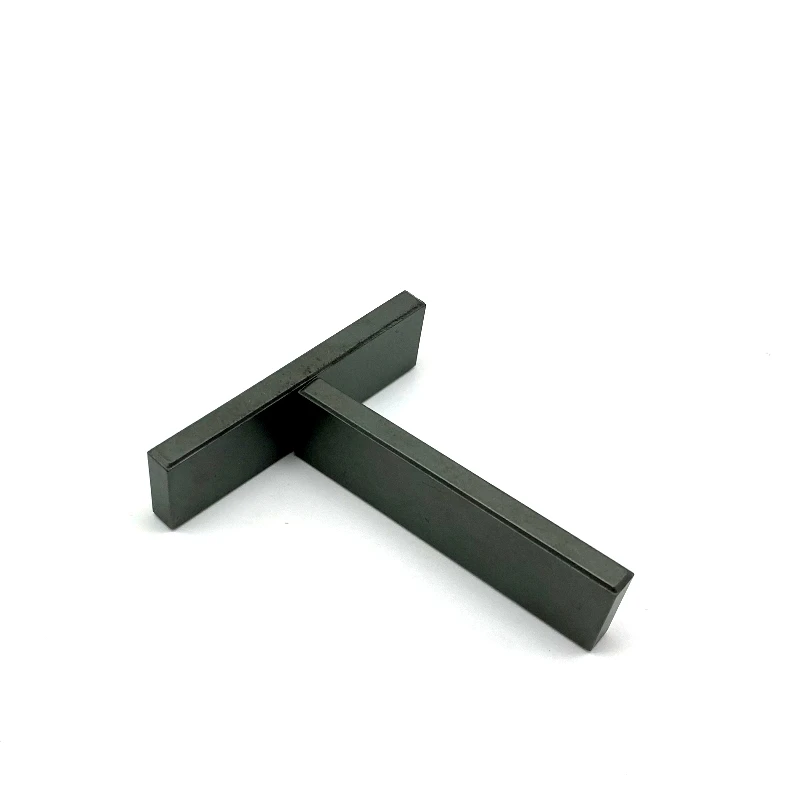

Ферритовый сердечник PC40 I Type 80*15*5 для индукционной
- Категория: Ferrites >>>
- Поставщик: Chongqing,Great,Well,Magnet,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.66 $* |
| Aug-16-2025 | 0.3 $* | 0.45 $* |
| Jul-16-2025 | 0.81 $* | 0.93 $* |
| Jun-16-2025 | 0.13 $* | 0.40 $* |
| May-16-2025 | 0.16 $* | 0.37 $* |
| Apr-16-2025 | 0.63 $* | 0.48 $* |
| Mar-16-2025 | 0.49 $* | 0.9 $* |
| Feb-16-2025 | 0.10 $* | 0.23 $* |
| Jan-16-2025 | 0.7 $* | 0.79 $* |
Характеристики
Product Showcase
| Spec and Models | ||||
| Ferrite Core | Magnetic ring | |||
| UF9.8 | T6X3X2 | T10X5X6 | T14X9X5 | T18X10X10 |
| UF10.5 | T6X3X3 | T10X6X4 | T16X9X5 | T22X14X8 |
| UF15.7 | T8X5X3 | T10X6X5 | T16X9X7 | T22X14X10 |
| SQ12/12 | T8X4X4 | T12X6X4 | T16X12X8 | T25X10X10 |
| SQ15/15 | T9X5X3 | T12.7X7.9X6.35 | T18X10X7 | T31X9X13 |
| SQ19/18 | T10X5X5 | T14X8X7 | T18X10X8 | T36X23X15 |
| T33X18XH | T37X23XH | T45X30XH | T56X36XH | T80X50XH |
| T33X23XH | T38X19XH | T47X27XH | T58X40XH | T87X55XH |
| T35X22XH | T38X20.5XH | T48X30XH | T60X38XH | T102X66XH |
| T36X19XH | T39X25XH | T49X31XH | T63X38XH | H can be changed. |
| T36X23XH | T40X23XH | T51X31XH | T68X44XH | |
| T36X25XH | T42X21XH | T56X32XH | T74X40XH | |
| Initial Permeabity | μi | 25/56% f=1KHZ U=0.25V TH2816B | 2300±25% | ||
| Magnetic density | Bs | MT | 25℃ | 450 min | |
| Coercivity | Hc | A/m | 25℃ f=1KHZ H=1194A/m | 15 max | |
| Curie Temperature | Tc | ℃ | f=1KHZ U=0.25V | 210℃ min | |
| Power Loss | PL | KW/m3 | 25℃ | 25KHZ,200mT | 130max |
| 100KHZ,200mT | 700max | ||||
| 100℃ | 25KHZ,200mT | 110max | |||
| 100KHZ,200mT | 500max | ||||
| Electrical Resisitvity | Ρ | Ω.cm | 25℃ | 6.5 | |
| Density | D | g/cm3 | 4.8±0.1 | ||
Other Products
Production Flow
Company Information
Packaging & Shipping
FAQ
1. We will help you with your order. Usually we ask for the following information.
A.
1). Product material,size, grade, surface coating, quantities required. etc..if available, a sketch or drawing with dimensions and tolerances.
2). Delivered magnetized or unmagnetized? Magnetization direction?
3). Information on what you want to use the magnet for?
2. Can you do OEM and ODM?
A. OEM and ODM are acceptable. You can inform us of your requirements for reference.
3. What about the sample lead time and charge?
A. If OEM or ODM, it will take about 1-2 weeks for our factory to calculate the charge. If items are available or in stock, it will be 5-10 days to be sent. The charge depends on your final confirmation of the draft.
4. How can I place an order?
A: You can contact us by email about your order details, or place order on line.
5. What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
6. How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using, L/C, D/A and D/P are also available.
7. Can we visit your factory?
A: Visiting our factory is high appreciated. We will send you the invitation as you make sure of the schedule.
