GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Световой барьер авиации (AOL) типа a 10cd низкая интенсивность красный светодиод фиксированный световой препятствия на ATC
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 155.77 $* | 163.88 $* |
| Aug-18-2025 | 153.46 $* | 161.83 $* |
| Jul-18-2025 | 129.21 $* | 135.22 $* |
| Jun-18-2025 | 151.56 $* | 159.85 $* |
| May-18-2025 | 131.86 $* | 138.38 $* |
| Apr-18-2025 | 148.43 $* | 155.88 $* |
| Mar-18-2025 | 147.81 $* | 154.40 $* |
| Feb-18-2025 | 146.4 $* | 153.39 $* |
| Jan-18-2025 | 144.98 $* | 151.62 $* |
Характеристики
Product Description

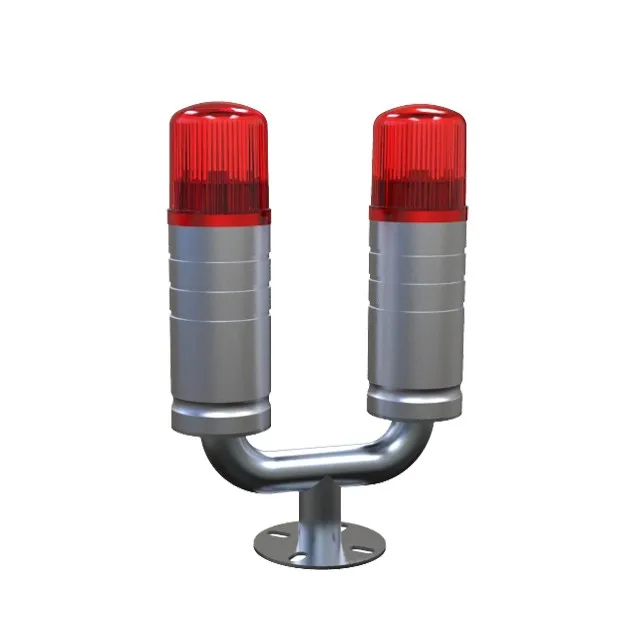

Aviation Obstruction Light (AOL) Type a 10cd low intensity red led fixed obstacle light on ATC /GSM /Radio tower
Suit for install on Pipe Line,Bridge ,Radio Television Tower , power line, airport building Low intensity aviation obstruction light comply with Annex 14 of ICAO regulations
Options:
* Type A (intensity >10cd, red steady burning)
* Type B (intensity >32cd, red steady burning)
* Type E (intensity >32cd, red flashing)
Options:

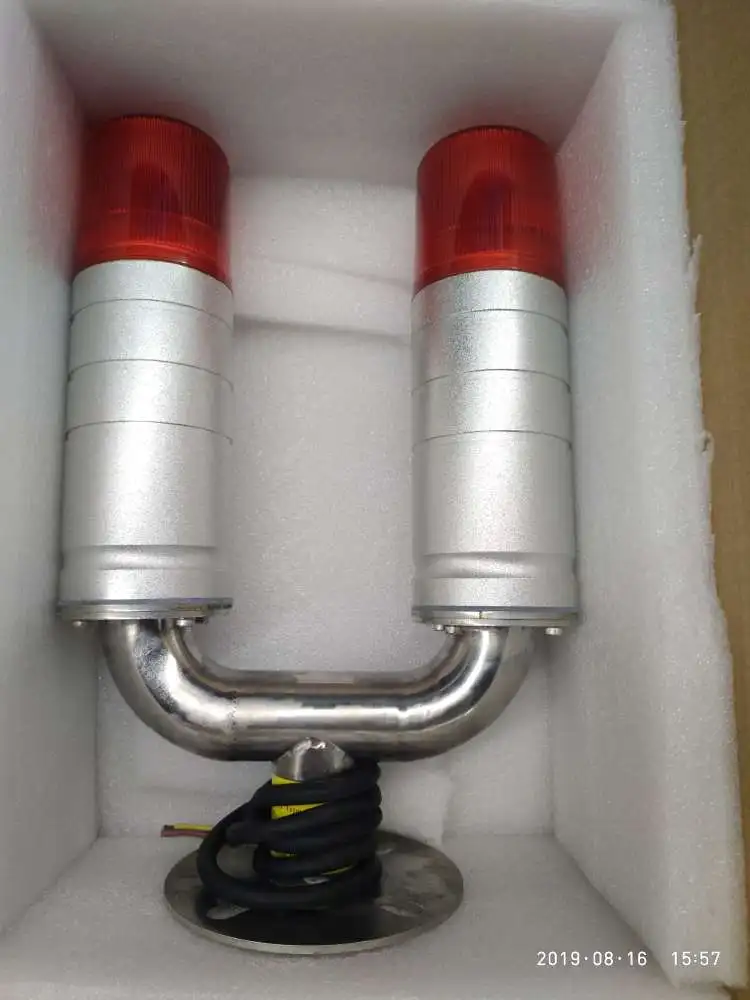

*Dual aviation obstruction light (one duty on+ one standby)
*Solar Powered
For more details :
emma@chendongtech.com
Phone/Whatsapp/Wechat:+86-13342512879
Item | Parameter |
Model | CK-11L-S |
Operating Voltage | AC220V(other available) |
Power consumption | ≤5W |
Flashing frequency | Steady Burning |
Light Source | Red LED |
Light Intensity | >10cd |
Life span | >100,000 hours |
Emitting color | Red |
Beam angle | 360° horizontal beam angle |
≥10° vertical beam spread | |
Method of synchronization | Same power supply voltage signal mode |
Ingress protection | IP65 |
Salt spray | Salt spray in the air |
Environment humidity | 0%---95% |
Operating temperature | -40℃~55℃ |
Net weight | 3KG |
Wind load | 240km/h |
Specification
1. The lampshade is made of UV (UV) resistant PC (polycarbonate) material with a transparency of over 95%. It has flame
retardant, non-toxic, excellent electrical insulation, dimensional stability, corrosion resistance, high temperature
resistance and cold resistance.
2. The lamp base is characterized by high strength, corrosion resistance and aging resistance.
3. Reflector based on the principle of reflection, the light utilization rate is over 95%, and the light exit angle can be more
accurate, the visible distance is farther, and the light pollution is completely eliminated.
4. The light source uses a high-efficiency, low-power, long-life, high-brightness LED cold light source.
5. The power supply is designed for equal supply voltage synchronization signal levels and is integrated into the
power cable to eliminate damage caused by incorrect installation.
6. Lightning protection: The internal self-contained anti-surge device makes the circuit work more reliable.
7. The complete set of lamps and lanterns adopts full packaging technology, which is resistant to impact, vibration and
corrosion, and can be used in harsh environments for a long time. The structure is light and firm, and the installation is
simple.

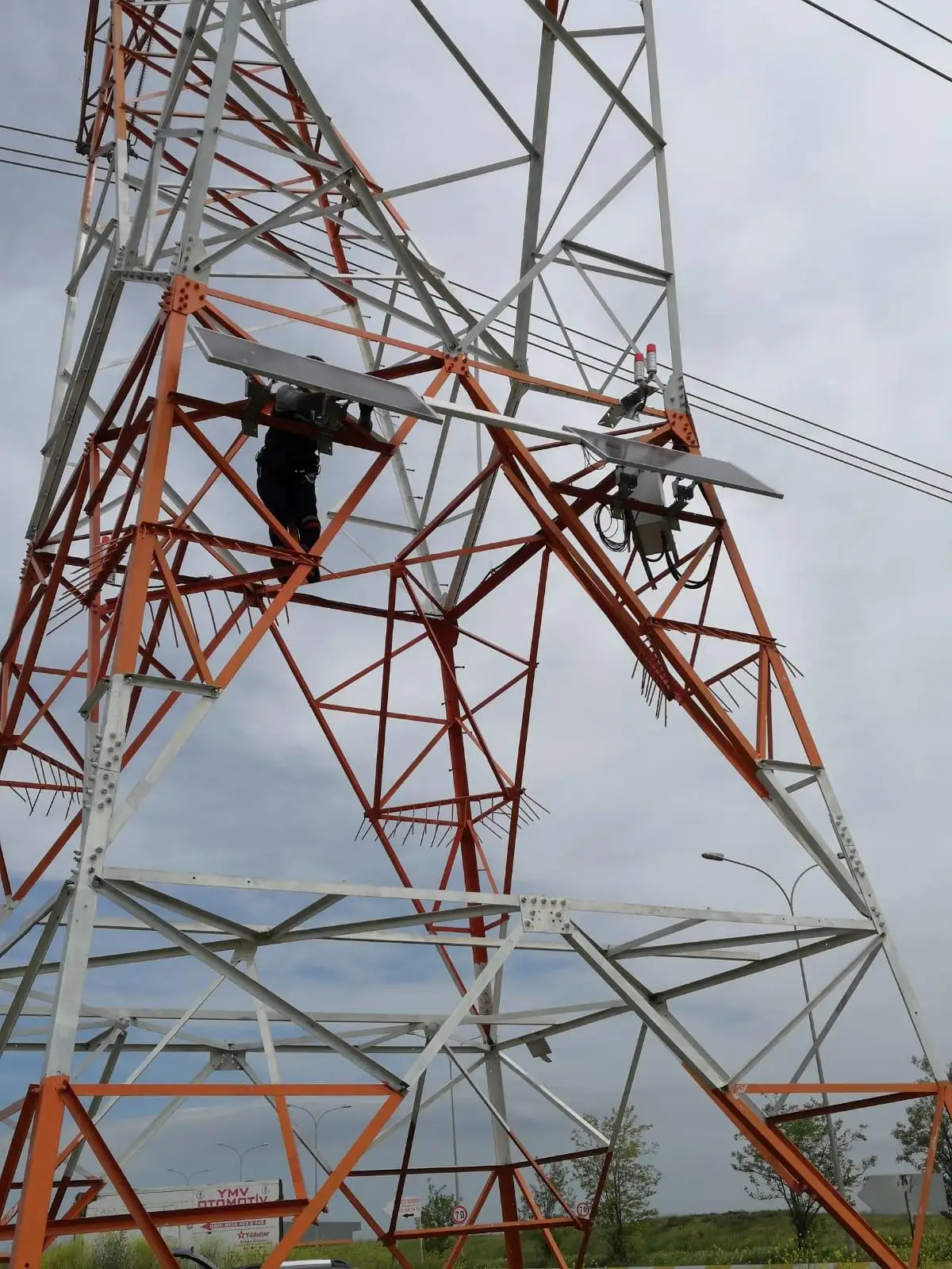

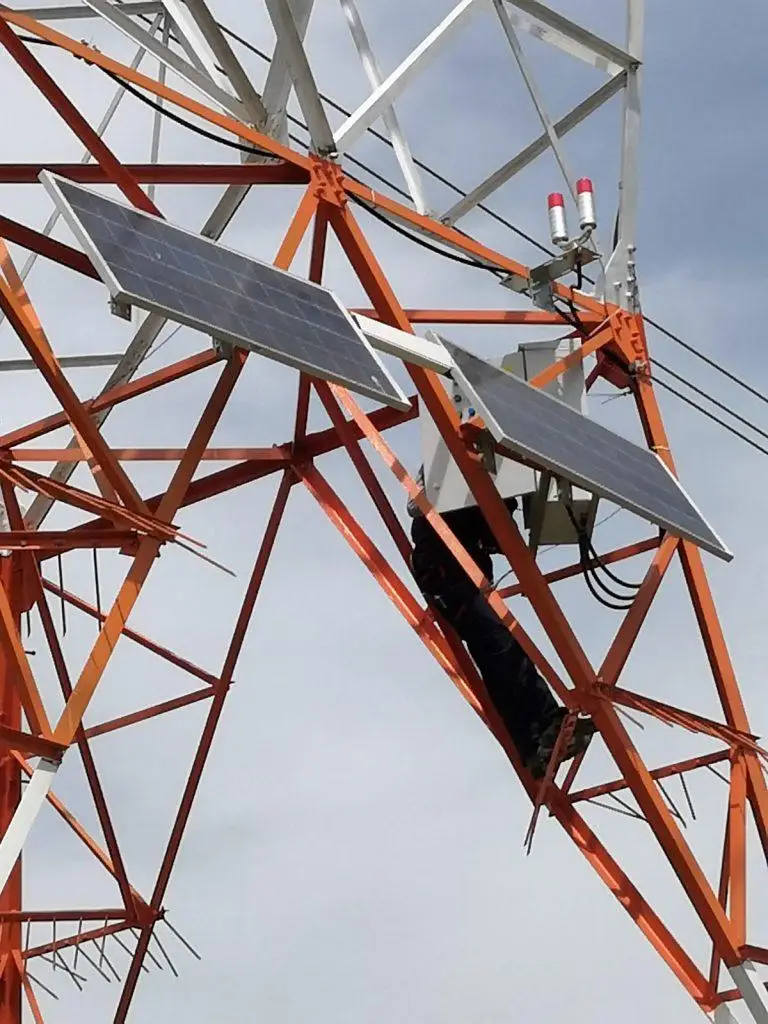

Installation Project
Related Products
Company Introduction
Hunan Chendong Technology Co.,LTD
Shorted as CDT a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the
first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
OverView:
April 23rd,2012: Hunan Chendong Technology Co., Ltd (CDT) was found
2013: Approved by ISO9001, got Independent Import & Export Right, obtained many patents.
2014 : Moved to new self-proprietorial factory with over 3,000㎡ area.Approved ICAO certificate low intensity and Medium Intensity obstruction light.
2015: Has cooperated with more than 80 airports, and the sales of Low visibility Operations are the first one in the country.
2016: Exported to over 50 countries in the world, and cooperated with ZTE, State Grid Corporation of China , PEK, CR Power ,achieving more than RMB 50 million sales.
2017 : CDT Got CE certificate for All aviation obstruction lights,It has
meeted the Turkey market demand.
2018 : Approved ICAO certificate of Type A medium intensity,Type A high intensity,Type B High Intensity obstruction light.Attended
the Dubai Exhibition,Got CE Certificate for all helipad lights.
2019 : Attended the Dubai Airport Exhibition,Germany Airport Exhibition.and get the ICAO for Helipad lights.
2020 : Please look forward
first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
OverView:
April 23rd,2012: Hunan Chendong Technology Co., Ltd (CDT) was found
2013: Approved by ISO9001, got Independent Import & Export Right, obtained many patents.
2014 : Moved to new self-proprietorial factory with over 3,000㎡ area.Approved ICAO certificate low intensity and Medium Intensity obstruction light.
2015: Has cooperated with more than 80 airports, and the sales of Low visibility Operations are the first one in the country.
2016: Exported to over 50 countries in the world, and cooperated with ZTE, State Grid Corporation of China , PEK, CR Power ,achieving more than RMB 50 million sales.
2017 : CDT Got CE certificate for All aviation obstruction lights,It has
meeted the Turkey market demand.
2018 : Approved ICAO certificate of Type A medium intensity,Type A high intensity,Type B High Intensity obstruction light.Attended
the Dubai Exhibition,Got CE Certificate for all helipad lights.
2019 : Attended the Dubai Airport Exhibition,Germany Airport Exhibition.and get the ICAO for Helipad lights.
2020 : Please look forward
Packing&Shipping
FAQ
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
