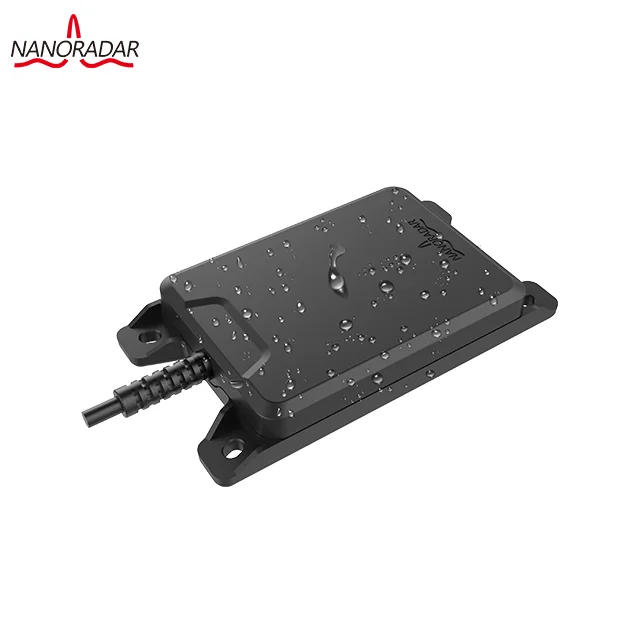

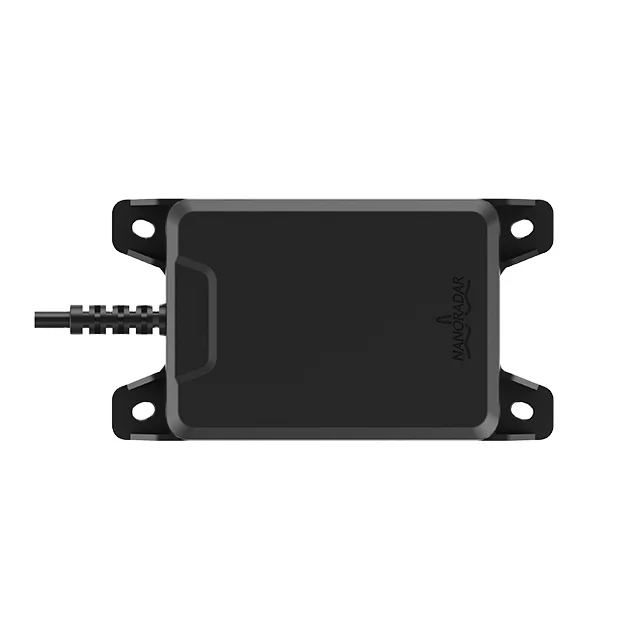

Аксессуары для дрона БПЛА 50 ~ 200 м радиолокационный датчик измерения расстояния
- Категория: Drones Accessories >>>
- Поставщик: Hunan,Nanoradar,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.5 $* | 0.2 $* |
| Aug-17-2025 | 0.1 $* | 0.30 $* |
| Jul-17-2025 | 0.27 $* | 0.83 $* |
| Jun-17-2025 | 0.78 $* | 0.28 $* |
| May-17-2025 | 0.6 $* | 0.43 $* |
| Apr-17-2025 | 0.34 $* | 0.49 $* |
| Mar-17-2025 | 0.48 $* | 0.35 $* |
| Feb-17-2025 | 0.93 $* | 0.52 $* |
| Jan-17-2025 | 0.2 $* | 0.48 $* |
Характеристики
| About Nanoradar Company |
Nanoradar is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for Security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.
Nanoradar's radar sensor detect range is 30~450meters, the accuracy is up to 85% for security radar to identify human, our product is hotselling in theworldwide. Nanoradar is a major mmW radar manufacture in China.
| About Radar Working Principle |
Radar sensors operate by transmitting low power electromagnetic energy. Any energy that strikes an objectreflects a certain amount of this energy back to the radar sensor.
If the returned energy is of sufficient magnitude, it is used to indicate object presence and determine the object's distance, angle, speed.![_16285811586765.png]()
| Target information |
| Sets on MissionPlanner Ground Station for Pixhawk Ardupilot flight control |
1. Set the TELEM2 serial port parameters, the SERIAL2 baud rate is set to 115200bit/s (SERIAL2_BAUD is set to 115), and the communication protocol is set to Lidar (SERIAL2_PROTOCOL is set to 9), as shown in the following figure:
2.Set the radar library parameters, set the radar type to ulanding (RNGFND_TYPE is set to 11), and set the radar installation direction to vertical downward (RNGFND_ORIENT is set to 25), as shown in the following figure:
| Application: Safety distance measurement and collision avoidance |
Features:
* Work in 24GHz-ISM-Band for the detection of moving targets
* Adaptable for grasslands and other environment
* With CAN/UART interface
* With measurement accuracy of 4cm
* With the measurement range of 30m, 100m, 50m, 200m.
* CE, RoHS compliant
Specification:
| PARAMETER | CONDITIONS | MIN | TYP | MAX | UNITS |
| System performance | |||||
| Transmit band | 24 | 24.2 | GHz | ||
| Output power(EIRP) | adjustable | 25 | dBm | ||
| Modulation type | FMCW | ||||
| Update rate | 50 | Hz | |||
| Power consumption | @5V DC 25℃ | 1.4 | 1.5 | 1.8 | W |
| Communication interface | CAN/UART | ||||
| Range-measuring performance | |||||
| Distance range | @0 dBm | 0.1 | 30 | meters | |
| Distance accuracy | ±0.04 | meters | |||
| Antenna features | |||||
| Beam width/TX | azimuth(-6dB) | 41 | deg | ||
| elevation(-6dB) | 37 | deg | |||
| Other characteristics | |||||
| Power supply | 5 | 12 | 20 | V DC | |
| Weight | includeing shell and wire line | 81 | g | ||
| Outline dimensions | including shell | 102x56x16.5 (LxWxH) | mm | ||
| Recommend products |
Affordable K band surveillance 24GHz radar for proximity warning 77GHz radar sensor for
radar for perimeter protection system on heavy duty equipment auto front colliosn warning
Doppler indoor and outdoor Radar video surveillance 24GHz microwave radar
motion detection radar sensor system for ground surveillance for parking access control
About Nanoradar a Major millimeter wave radar manufacturer in China |
Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV, automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. SR73---Vehicle BSD/LCA radar Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 160 meters Automotive ADAS radar ( ACC/AEB)
5. NSR60W/NSR100W/NSR300W/NSR200---Security perimeter intrusion detection
Professional Nanoradar team produce professio radar products! |
| FAQ |
(1) Q: What about the angle accuracy of NRA24?
A: NRA24 is a 24GHz millimeter radar altimeter with 1T1R antenna, it cannot measure the target angle.
For the radar with more than two receiving antennas, it has the ability to measure the angle. Besides, the more antennas it has, the higher accuracy of angle resolution it could realize.
(2) Q: What is the height accuracy of NRA24 at a height of 0.5 meters?
A: TNRA24 adopts one transmitting and one receiving antenna, and the separation design of antennas makes the radar have a high isolation in transmit / receive link, to improve the dynamic range of radar target detection.
At the same time, NRA24 utilizes the advanced integrated planar microstrip array antenna, which contains 40 vertical polarization radiation units for transmitting and receiving antennas.
Therefore, it could achieve height accuracy during the effective measurement range of 0.1-50 meters.
(3) Q: In the height measurement, when there is vegetation and ground, which will it be subjected to? When there is water on the ground, which will it be subjected to, the ground surface or water surface?
A: In practical application, if the height is less than 3m, there would be great air flow below the plane, and the vegetation is likely to be blown away, so the reference point is the ground or water surface.
If the airplane reaches over 5m, the airflow would not affect the vegetation below.
And in case that the vegetation density is large, then the reference point should be vegetation.
