Хит продаж 4 Pin 5 водонепроницаемый разъем Led свет силовой кабель

Описание и отзывы

Трекер стоимости

Характеристики

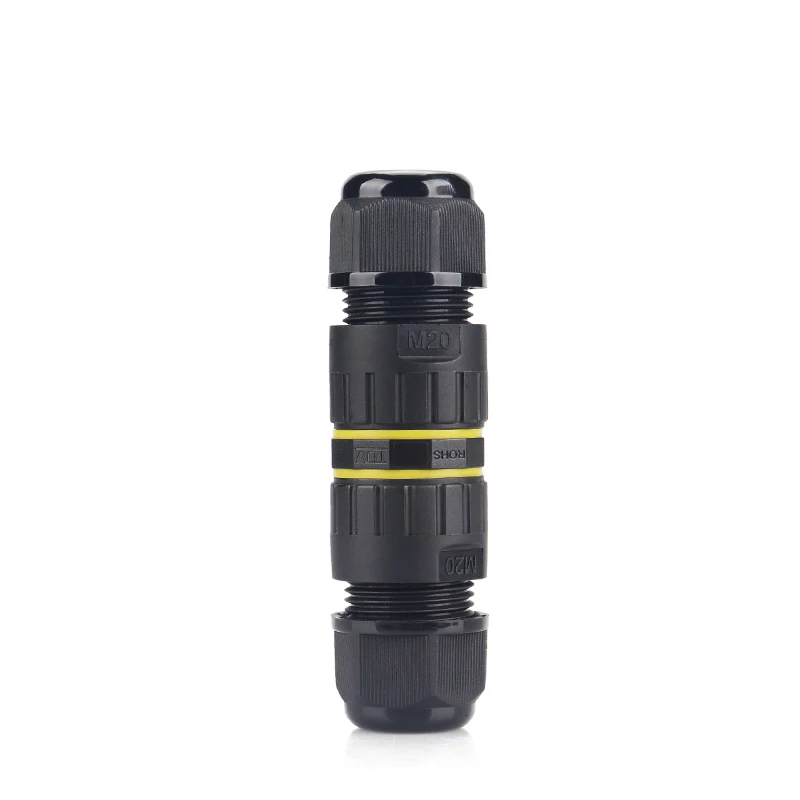

Best Sell 4 Pin 5 Pin Waterproof Connector Led Light Power Cable M20 Connector

WHAT ARE THE DETAILS OF E-WEICHAT WATERPROOF CONNECTORS?
Number of Poles	2 Pin/ 3 Pin/4 Pin /5 Pin/ 6 Pin
Operating current	24A
Operating voltage	450V
MECHANICAL CHARACTERISTICS

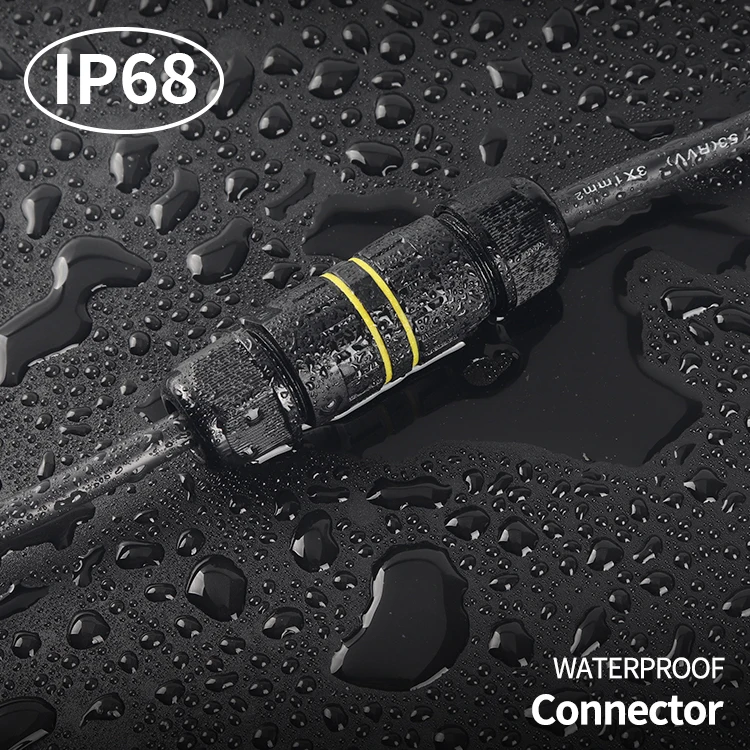

Protection against solid/water (IP)	IP68(4m, 365 days)
CABLE CHARACTERISTICS

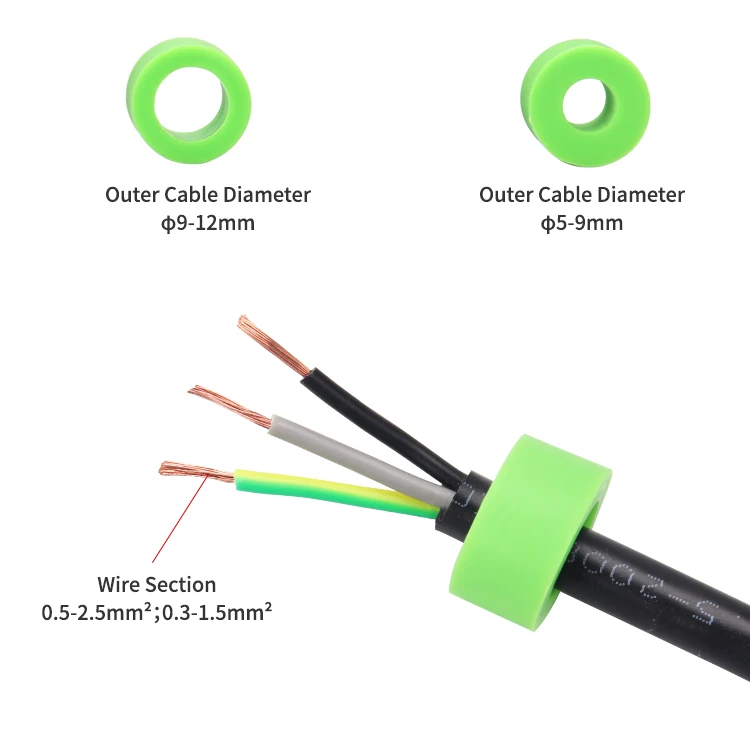

Wire cross-section min.-max. (stranded cable)	0.5mm² - 2.5mm²-(2P/3P/4P);0.3-1.5mm² -(5P/6P)
Wire cross-section min.-max. (solid cable)	0.5mm² - 2.5mm²-(2P/3P/4P);0.3-1.5mm² -(5P/6P)

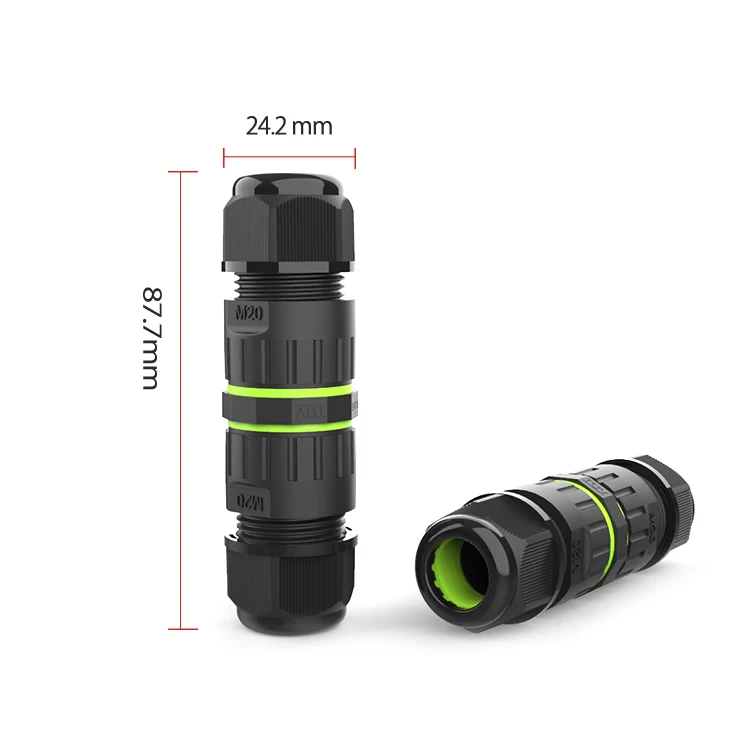

Cable Diameter min-max	5-9mm; 9-12mm (for cables with diameter cables please take the proper accessory)
WORKING CHARACTERISTICS
Temperature	-40℃ - 105℃
MATERIAL CHARACTERISTICS
Connector housing	PA66 UL94-V2
Cable gland
Sealing	Silicone
Contacts	Nickel-plated Brass
Screws	Zinc
Material properties	Halogen Free
