ZZX потрясающий термальный силиконовый гель смазка радиатор


Поделиться:


Цена:0,28 $ - 1,28 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.87 $* 0.79 $*
Aug-16-2025 0.91 $* 0.23 $*
Jul-16-2025 0.69 $* 0.64 $*
Jun-16-2025 0.82 $* 0.73 $*
May-16-2025 0.2 $* 0.35 $*
Apr-16-2025 0.23 $* 0.98 $*
Mar-16-2025 0.19 $* 0.68 $*
Feb-16-2025 0.22 $* 0.4 $*
Jan-16-2025 0.13 $* 0.17 $*

Характеристики



Product Description


Product Name
one component thermal silicone
Material
liquid silicone
Function
High thermal conductivity, fast heat dissipation
Package
as orders


  • Quick Details
Guangdong, China
Classification:Other Adhesives
Main Raw Material:Silicone
Usage:electronics
Brand Name:zzx
Model Number:zzx-gel3500
Type:rtv silicone glue
TFT min (min℃):≤10
Appearance:White, Semiliquid
Adhesion (cps):80000~90000
Curing Time(d):3~7
Tensile Strength(MPa):≥1.5
Hardness(Shore A):35~45
Permittivity (1.2MHz):2.8
Peel Strength(N/mm:≥5
Relative Density:1.6-1.65
MOQ:100Pcs

Thermal Conductivity: 3.5W/m.k

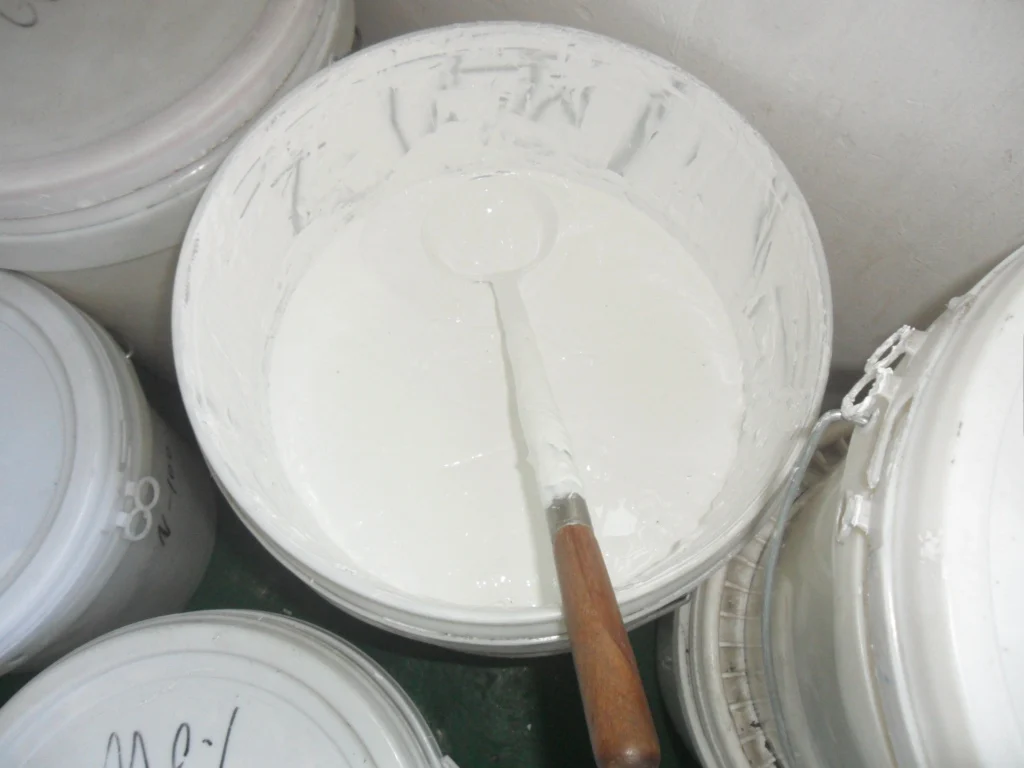

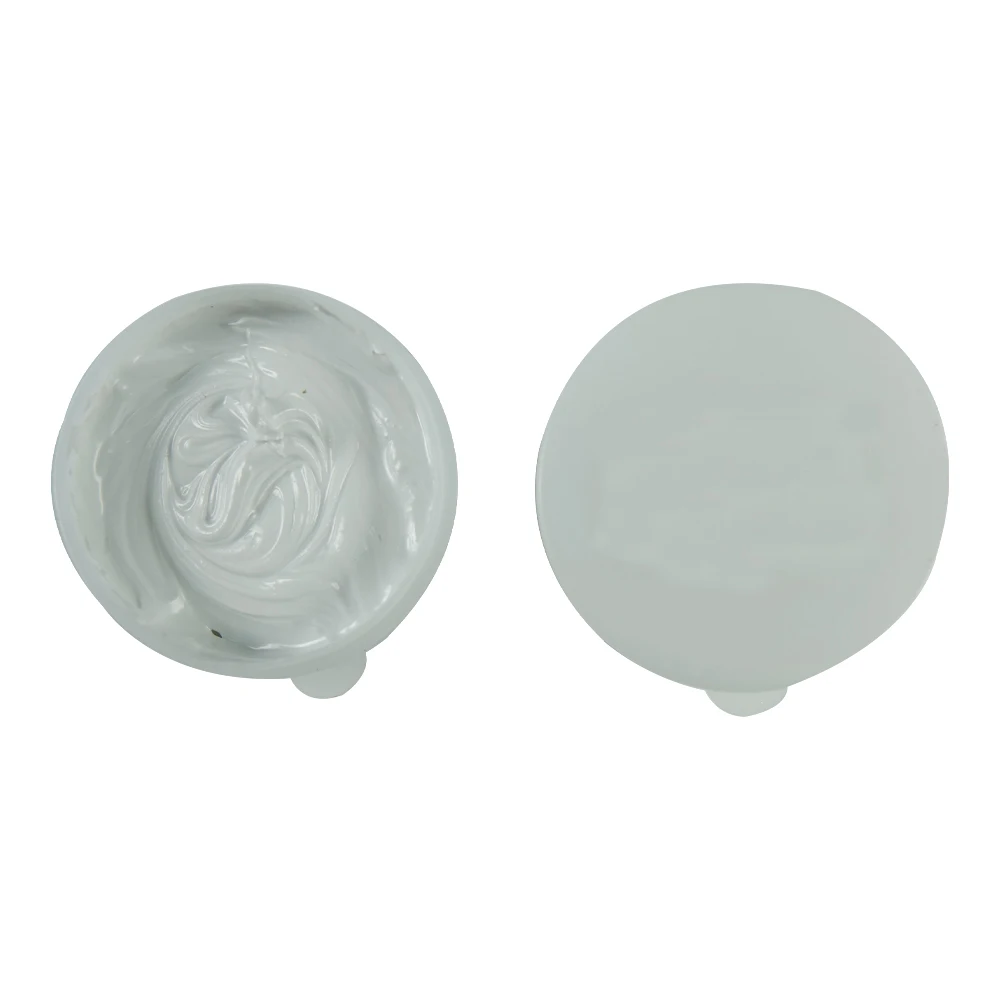

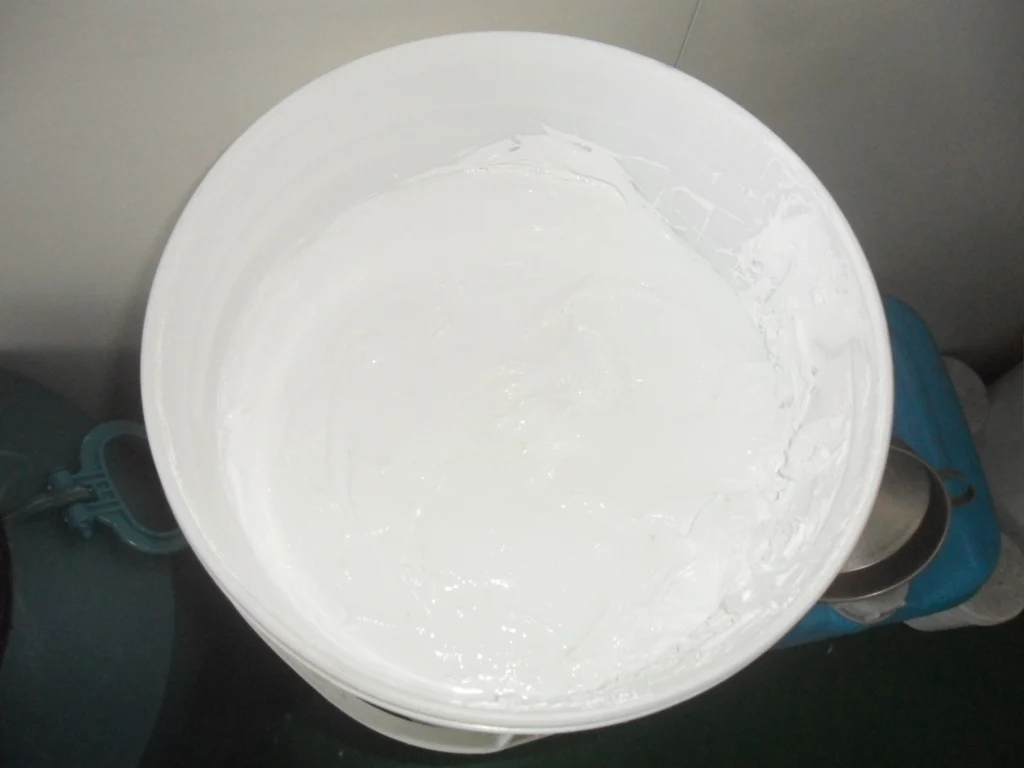

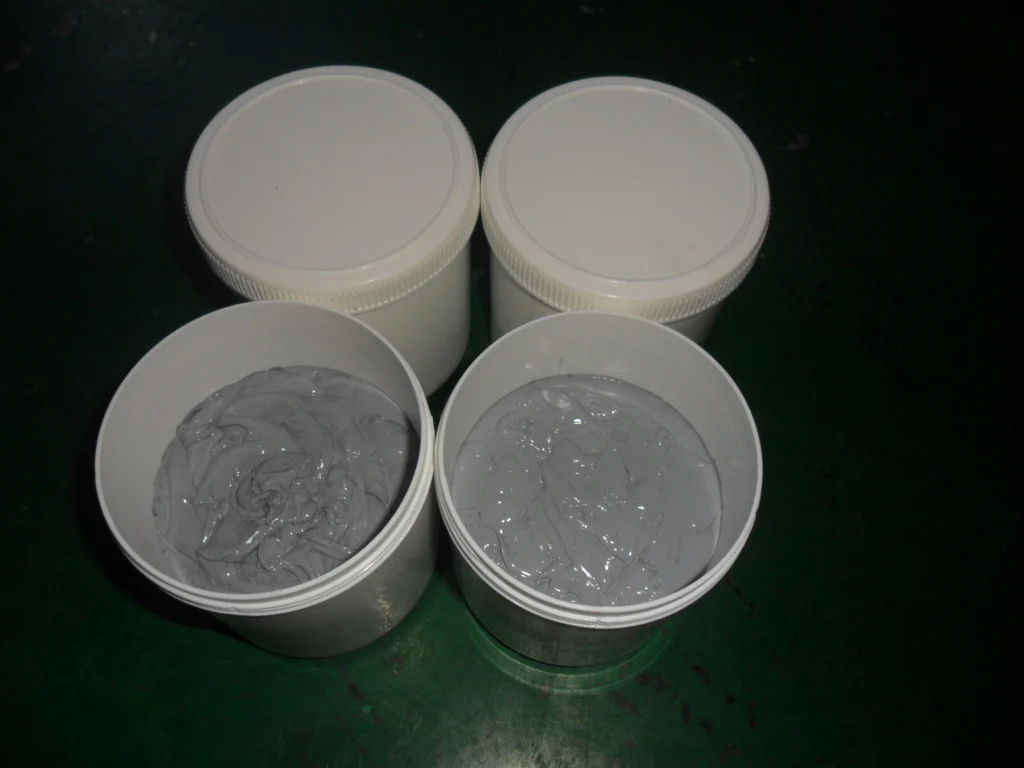

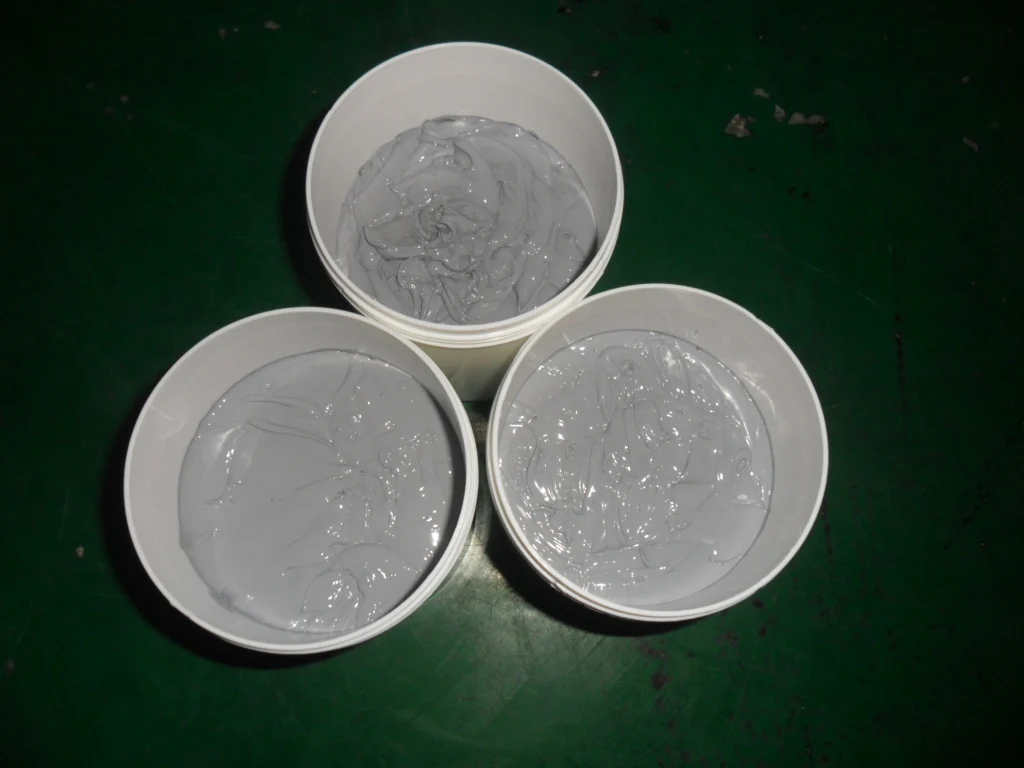

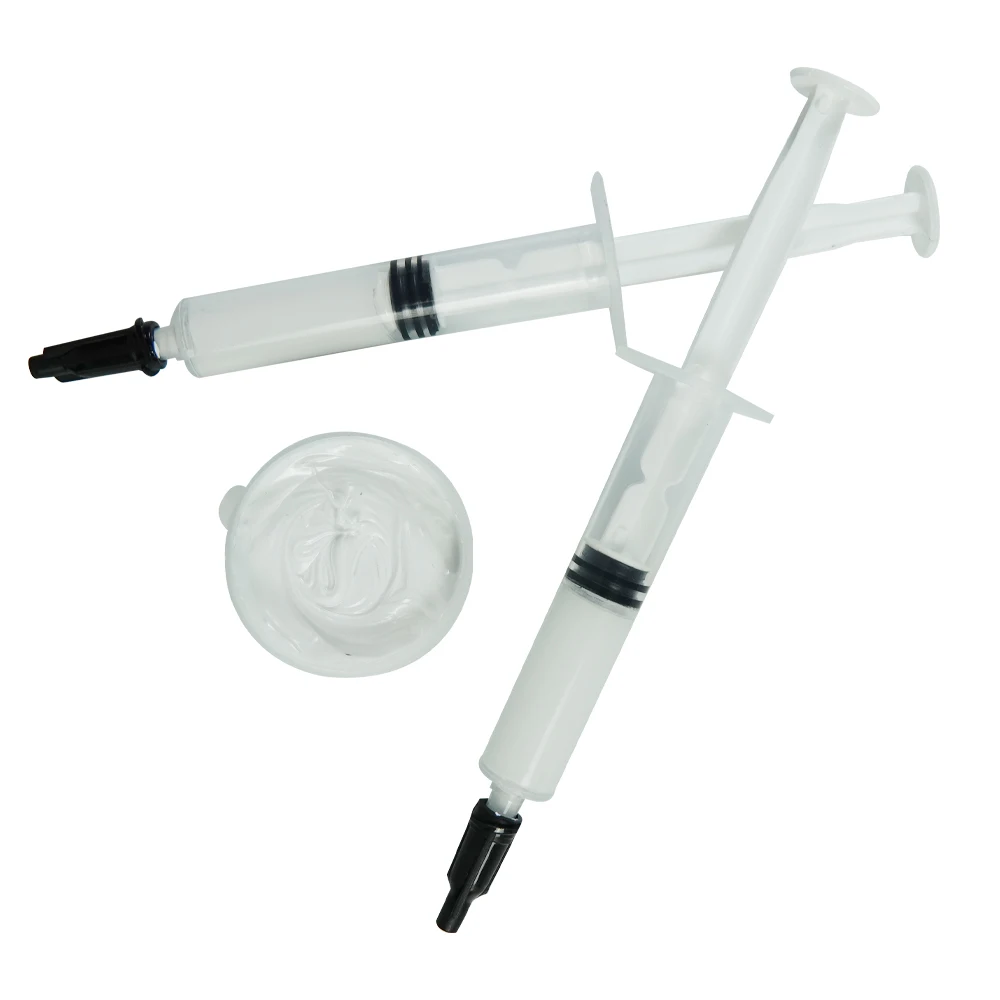

Details Images


zzx-601 is the semi-flowing heat-resistant silicone adhesive sealant which is made of special silicone rubber material the addition of thermal powders. With excellent conductivity, V0 flame retardant grade, excellent temperature resistance,
can be in the range of 60 ~ 280 ℃ Long-term use. As well as good adhesion, long term use will not fall off,
will not produce Contact gap to reduce thermal conductivity, moisture-proof, anti-seismic, anti-leakage and aging .
The properties are widely used for the adhesion and sealing of the electronic components with high thermal conductivity,
which is a single part of the acetone oxime type, It can be cured silicone rubber and conforms to the requirements of ROHS REACH UL.





    • Typical Applications

High power LED lamps and lanterns, electrical power, microwave oven, electronic components and other industrial products of
thermal conductive adhesive sealing, alternative thermal conductive silicone used in high-power electric module and radiator
thermal conductivity between fixed filling adhesive, no card buckle screw, more reliable filling heat, simple process and lower
cost.




    • Applying Process




Product Usage


  • Description of working  theorem

1. Surface clean : Clean the surface of the adhesive object and remove the rust, dust and oil.
2. Sizing: Twist the cap of the hose, squeeze the gel into the clean surface, and make it natural.
3. Curing: Place the bonded or sealed parts in the air while them to solidify naturally. Curing is a process from surface to the
internal, within 24 hours (at room temperature and 55% relative humidity) will cure the depth of the 2 ~ 4 mm, if the site
location is deeper that completely curing time will be postpone, especially it is not easy to come into contact with air. if the
temperature is low, cure time also will be postpone .Prior to further processing or wrapping the bonded parts, it is recommended
that the user wait long enough to ensure that the adhesion and integrity of the adhesion are not affected.


Related Products




Packing&Shipping


Selling Units:Single itemSingle package size: 400*200 mm Single gross weight:10.000 kg. 50 pcs /cartoon




Company Introduction


Shenzhen Zhenzhixing Technology Co.,Ltd., is founded in 2009, now it owns Shenzhen factory and new R&D production
base in Jiangxi province. Its total registered capital is eleven million RMB Yuan, it has 120 employees. The company has passed
ISO 9001:2008 international quality management system certification, company products through UL94-VO, main products
include artificial graphite sheet, natural graphite sheet, high thermal conductive grease(paste), high thermal conductive silicone
pad, pouring silicone sealant, thermal transfer tape, thermal silicone gel mud, thermal liquid silicone, electric conductive
grease
and other electronic materials(Developing custom for the customer is available), it is one of the largest and most complete heat
conducting materials, insulating materials and shielding materials comprehensive solution providers in China.
.
Shenzhen Zhenzhixing Technology Co.,Ltd. focuses on meeting customer needs, and wins with high quality, quick response
and flexibility, has partnership with Changhong,Panasonic, Foxconn, Midea, ZTE, Huawei and other long-term customers.








FAQ


Q1: Do you have MOQ?
A1: No MOQ for the standard product.

Q2: Do you provide samples?
A2: Yes, we do, and could delivery in 24 hours after confirmation for stock.

Q3: Are you factory or trading company?
A3: We are a professional GRAPHITE PRODUCT manufacturer for over 14 years.

Q4: What is the lead time for mass production?
A4: The lead time of mass production is about 7- 10 days.

Q5: What is your payment method?
A5: Accept TT, Paypal, West Union, L/C, ect.

Q6: Can you provide finished product processing service?
A6: Yes, we can provide the finished product after die-cutting.
