 5MP NVR Poe 4 8 16 Channel Cctv Security Camera Set 32 Nvr Kit With Poe



Main picture:



Product introduction

















Parameter:



NVR Specifications:

Video/Audio Input
IP Video Input:	4-ch 5.0MP
Audio Input:	1-ch network audio input
Video/Audio Output
VGA Output:	1-ch, resolution: 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
Recording resolution:	720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Audio Output:	1-ch BNC assisted output
Playback Resolution:	UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF
Synchronous Playback:	Any 1-ch 1080p playback
Hard Disk Driver
Interface Type:	1 SATA Interface
Capacity:	Up to 4TB capacity for each disk
External Interface
Network Interface:	1 RJ45 10M/100Madaptive Ethernet Interface
USB Interface:	2 USB 2.0 Interfaces
General
Power Supply:	DC 12V4A
Consumption:	≤ 25 W (without hard disk)
POE Port	4CH
Working Temperature:	-10 °C ~ +55°C
Working Humidity:	10%~90%
Chassis:	Stand-alone 1U chassis
Dimensions:	260 × 228 ×45mm(W x D x H)
Weight:	≤2 Kg(without hard disk)



Camera Specifications:

Camera	Sensor	1/3“ 3.0 mega pixel
	Image compression processor	Dual-core 32bits DSP,hardware decoding,watchdog
	IR	18pcs Φ5 LED,IR distance 20~30M
	Minimum illumination	0 LUX(IR open)
	Lens	3.6mm
	Day and night conversion mode	Automatically
Compression standard	Video compression standard	H.265
	Video compression technique	Dual-code compression technique,include local view stream,remote view stream and phone view stream
	Compression output code rate	32Kbps~8000Kbps
Image	Resolution	Main stream : 1280×720;Sub stream:640*360,320*180
	Image parameter set	Brightness,contrast,chroma,saturation,image quality grade adjustable
Network function	Protocol	RTSP ,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,SIP,DDNS,DNS
	Area shield	support
	Remote monitoring	Supports P2P,all smart phone system and PC
Common standard	Working temperature and humidity	-10℃~60℃90%RH
	Power supply mode	Network cable supply power  No.4-5 and No.7-8 cable group
	IP grade	IP66

Product Description:

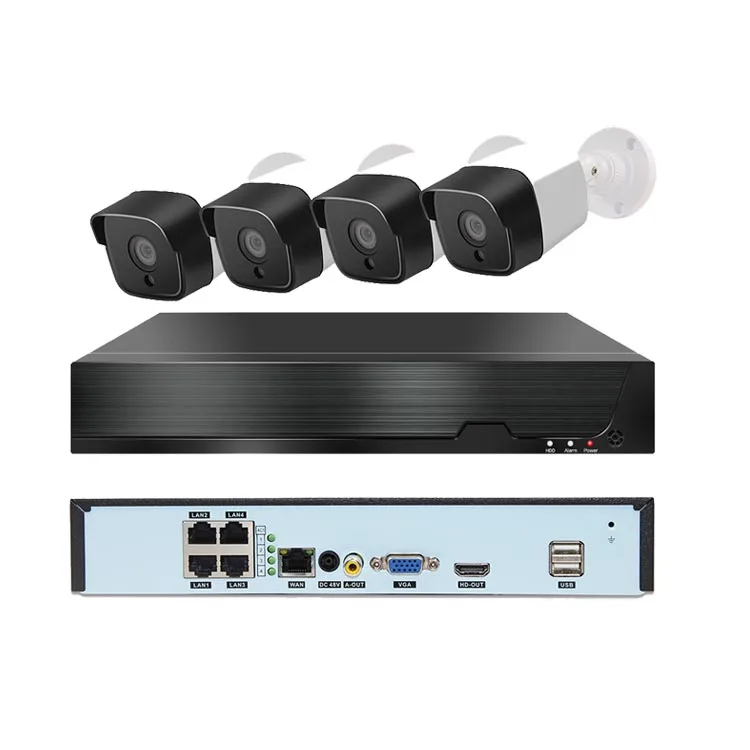

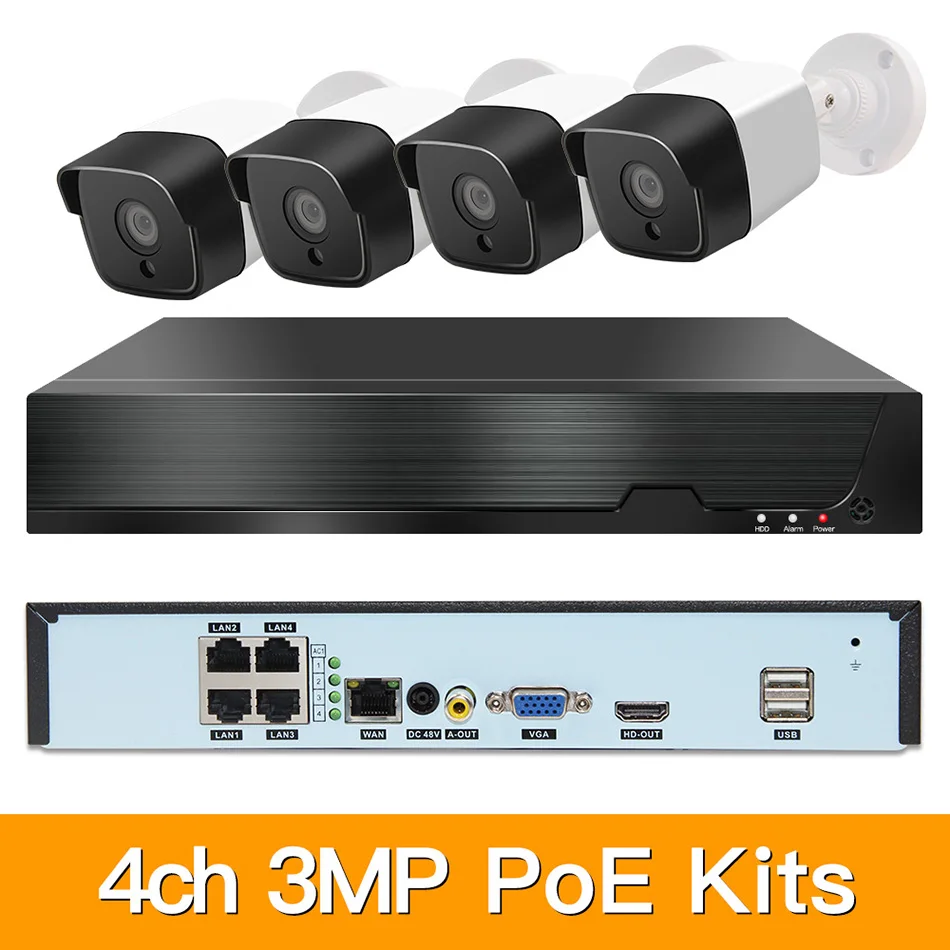

Full models list of  P2P IP Camera System

1. 4pcs HD 3.0MP Camera

2. 1pc H.265  POE NVR

3. 4pc Power Supply: 12V 4A

4. 1pc Mouse





If you are searching for poe nvr kit,just feel free to let us know,we will offer high-quality product with nice price to you,as we are manufacturer and quality is our culture,welcome to consult!
