Термосиликоновая подкладка под заказ для охлаждения
- Категория: Electronic Accessories & Supplies >>>
- Поставщик: Suzhou,Dasen,Electronics,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7.50 $* | 7.83 $* |
| Aug-16-2025 | 7.76 $* | 7.46 $* |
| Jul-16-2025 | 6.96 $* | 6.22 $* |
| Jun-16-2025 | 7.6 $* | 7.54 $* |
| May-16-2025 | 6.13 $* | 6.71 $* |
| Apr-16-2025 | 7.24 $* | 7.96 $* |
| Mar-16-2025 | 7.0 $* | 7.97 $* |
| Feb-16-2025 | 7.0 $* | 7.75 $* |
| Jan-16-2025 | 7.38 $* | 7.17 $* |
Характеристики

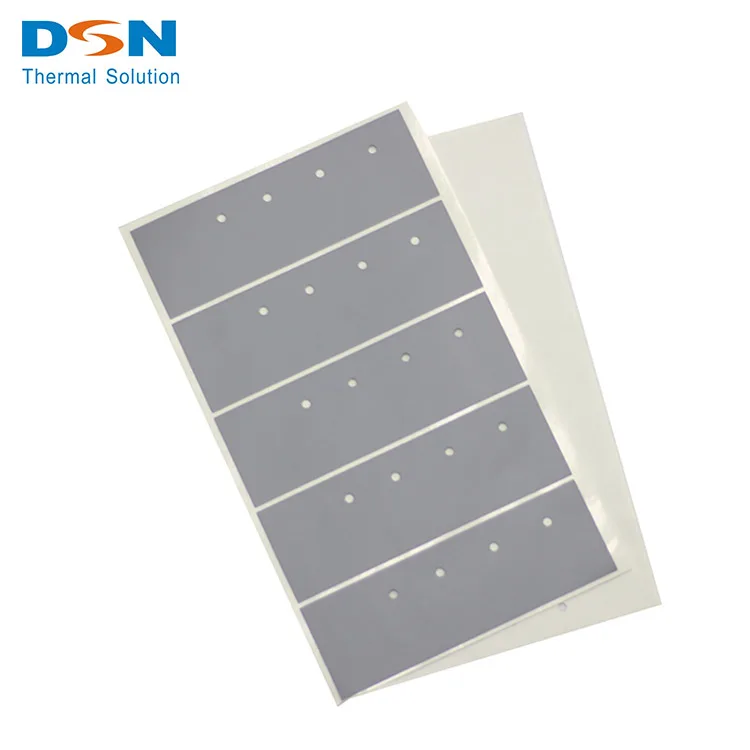

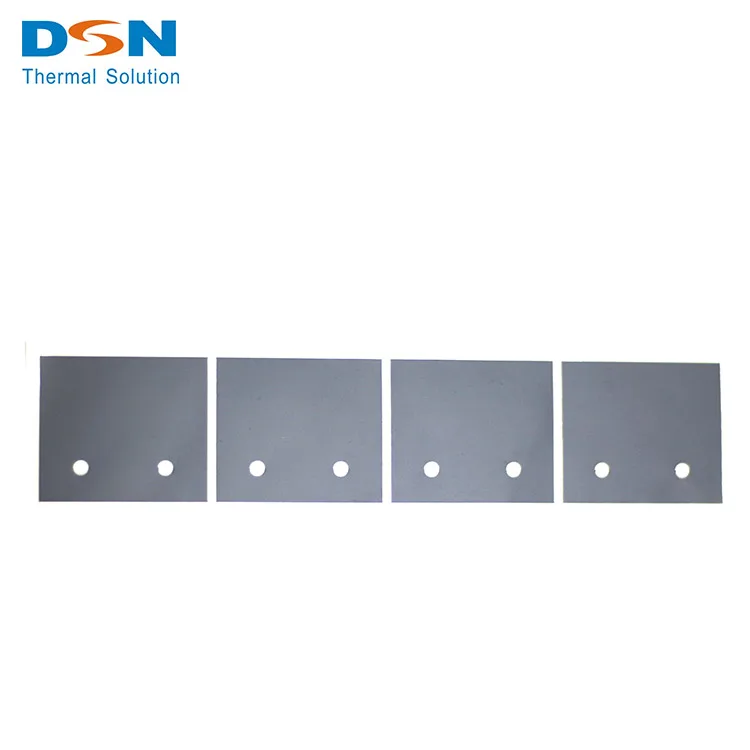

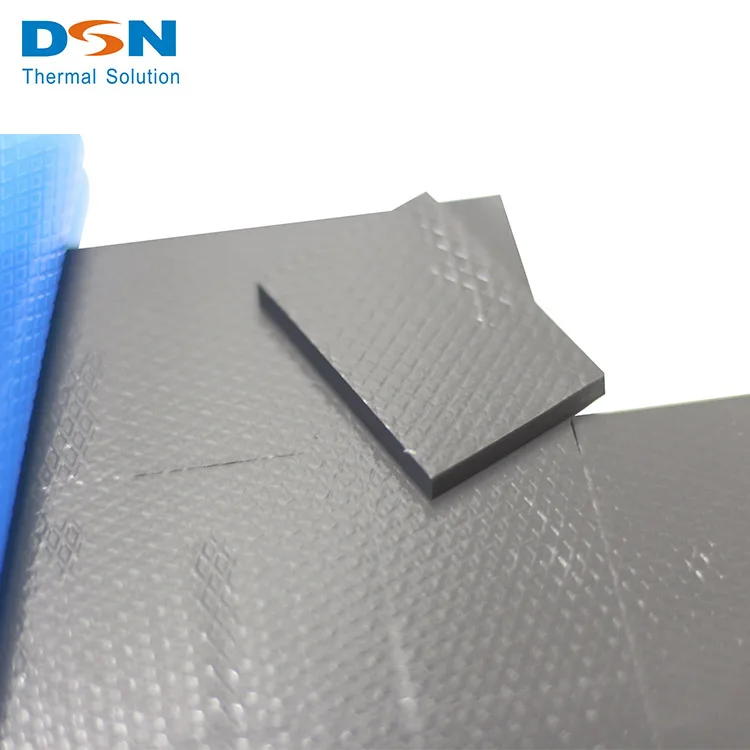

Silicone thermal pad
Thermal conductive silicone gap pad is specially designed for the purpose of high performance thermal conductivity.
Standard size: 400mm*200mm, according to customer needs to cut the shapes.
Basic thickness 0.2~10mm, special thickness can be customized.
The product itself is slightly viscous, if need to strengthen the adhesive can be according to customer's requirement.
Product color is mass production, if need special color can be adjusted to the actual situation.
Features of silicone thermal pad
* Thermal Conductivity: 1.2~15.0W/m.K
* Low Compression application
* Easy in assembly and reusable
* Superior Temperature endurance
* Excellent electrical isolation
* Double side in natural inherent tack
Name | Series | Thermal conductivity (W/m-K) (±10%) | Hardness (±5°) (Shore 00) | Color | Thickness (mm) (±10%) |
Thermal silicone pad SK series | SK12 | 1.2 | 50 | White Grey | 0.2-10 |
SK15 | 1.5 | 50 | White Grey | 0.2-10 | |
SK20 | 2.0 | 50 | Grey | 0.2-10 | |
SK25 | 2.5 | 50 | Orange | 0.3-5 | |
SK30 | 3.0 | 50 | Blue | 0.3-5 | |
SK40 | 4.0 | 50 | Brown | 0.5-5 | |
SK50 | 5.0 | 60 | Dark Red | 0.5-5 | |
SK60 | 6.0 | 60 | Light Grey | 0.5-5 | |
SK80 | 8.0 | 70 | Grey | 0.5-5 | |
Thermal pad + fiberglass | FSK12 | 1.2 | 20~25 | Dark Red+Pink | 0.5-5 |
FSK20 | 2.0 | 20~25 | Grey+Grey | 0.5-5 | |
High toughness thermal pad | HSK12 | 1.2 | 60 | White Grey | 0.3-5 |
HSK20 | 2.0 | 60 | Grey | 0.3-5 | |
PI thermal pad | PSK15 | 1.5 | 50 | Golden+White Grey | 0.3-5 |
PSK20 | 2.0 | 50 | Golden+Grey | 0.3-5 | |
Absorbing wave thermal pad | ESK20 | 2.0 | 50 | Black Grey | 0.2-5 |
Low volatile thermal pad | LSK30 | 3.0 | 50 | Blue | 0.3-5 |
LSK50 | 5.0 | 55 | Grey | 0.3-5 | |
Thermal conductive insulation pad | TF15 | 1.5 | 80 | Dark Red | 0.2 |
TF35 | 3.5 | 90 | White | ||
Ultra soft gap pad | SK12 Ultra Soft | 1.2 | 5 | Dark Red + White | 0.5~6 |

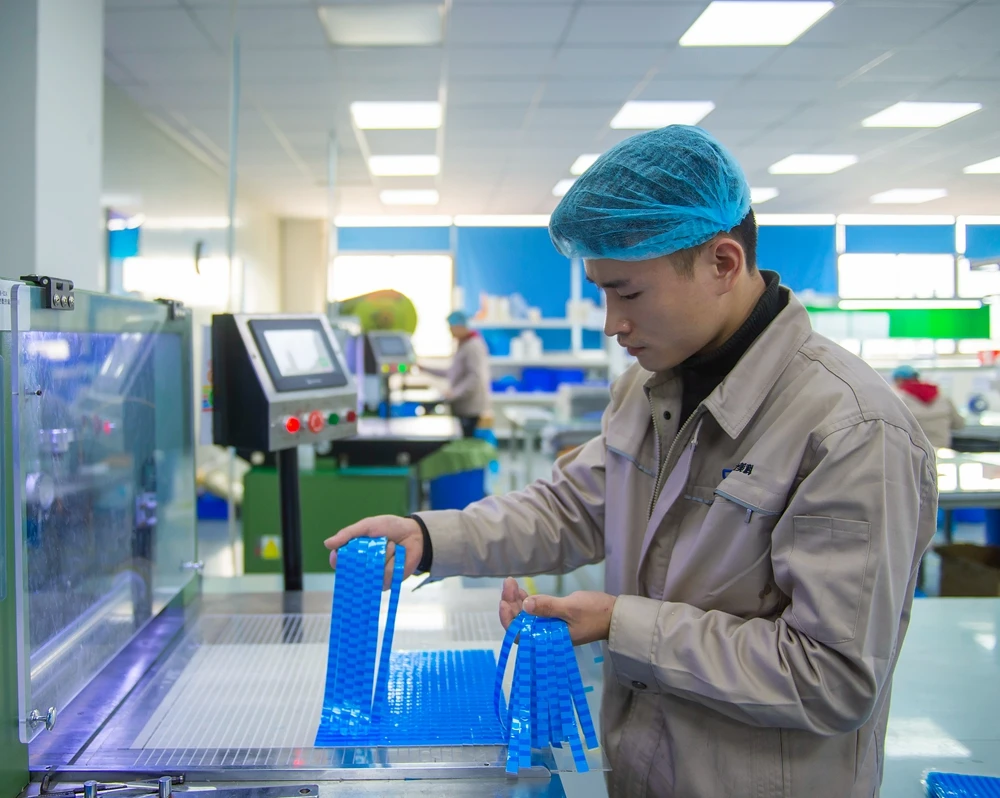

Production Workshop
Processing technology of silicone thermal pad
Product Application
* Flat panel TV, mobile equipment, high-speed hard disk drive
* LED lighting, lighting equipment

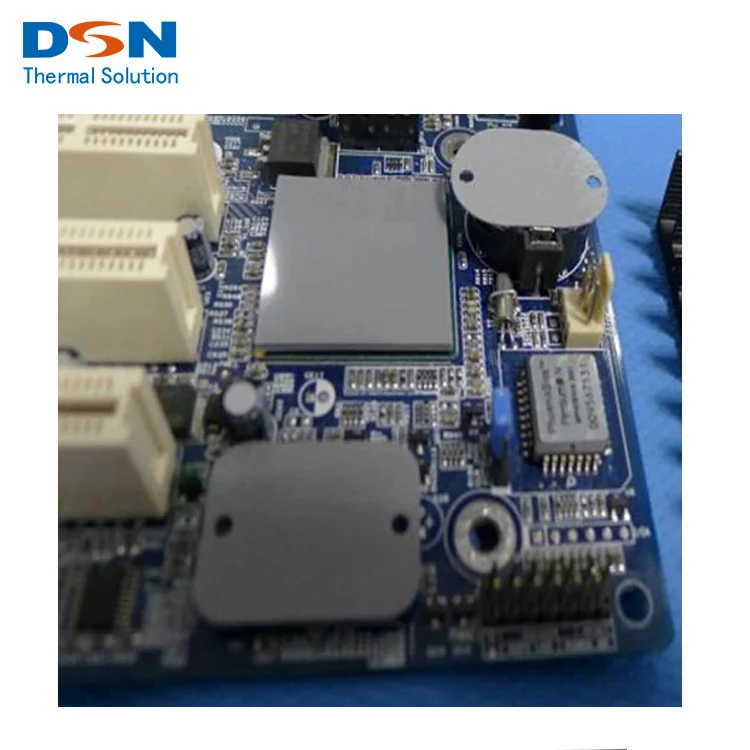

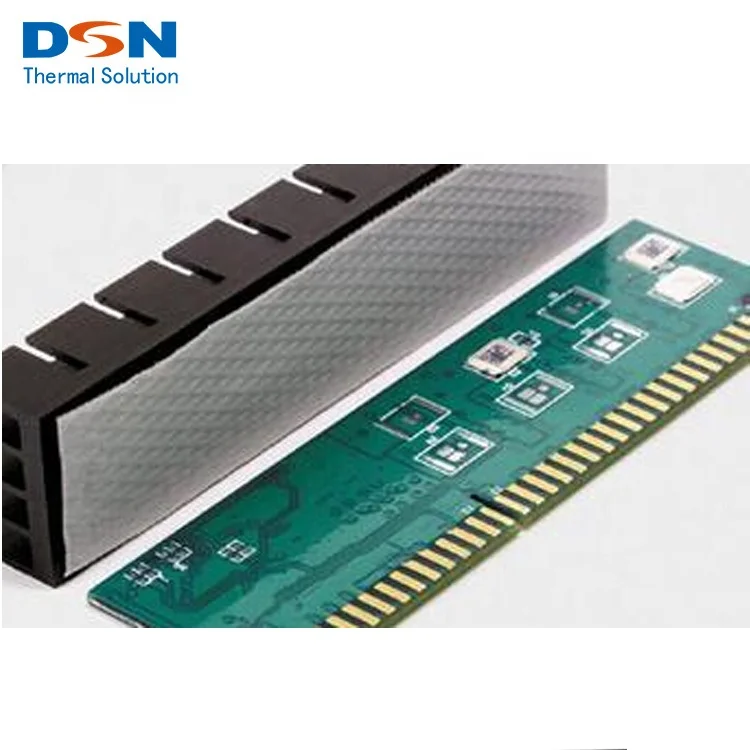

* Between semiconductor and heat sink, processors to heatsinks, GPU to heatsinks
* The chip and chip component
* HDDVD driver IC
* Power conversion
* Automotive engine/trans mission controls
* GPU VRAM
* Mass Storage Drives
* LCD back-light module
* Network communication equipment
Other Products
About Dasen
Professional manufacturer of pyrolytic graphite, silicone thermal pad, graphene thermal gel, vapor chamber, die-cutting, specialties graphite and ceramic filtration membrane. www.thermalgraphite.com
*\tServices in telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental engineering.
*\t Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental protection engineering industry*\t Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
*\tCertificates: ISO9001,IATF16949,ISO14001,UL...
Quality Control
Quality policy
The policy aims at satisfying our customer by way of initializing an updated quality management and sticking to the top requirement of "quality first" in an attempt to achieve an elite project finally.
Quality objective
Provide our customer with products in full line with relevant contract and standard by way of strictly conforming to quality control procedure and intensifying avoiding common quality faults to be sure of an effective operation of the quality assurance and quality control system, achieve a zero quality accident rate and realize good project construction quality.
Quality Assurance System and Function
Establish quality assurance and effective quality control system before construction in order to ensure the realization of construction quality objective.
Work
Post Responsibility - Responsibility of Project Manager
R & D Team:
Dasen has a research and development team with 2 ph. D. leading more than 20 high-end R & D technicians. Dasen also owns a sound management process and advanced development tools.
Packaging:
1. Shock proof foam and PET film covered - protection
2. Standard export carton or customized
3. Marked with customer's information or customized
4. QC department will check if the packing is strong enough.
Delivery time:
1. 3-7 days after receiving the prepayment
2. Accurate delivery date depends on the quantity and season.
Certificates
ISO9001-2015, ISO14001-2015, IATF16949-2016, UL
We obtained more than 30 invention patents and utility model patent and gained the honor: "scientific and technological innovation enterprises", "Jiangxi Province special new enterprises", "national high-tech enterprises".
Business Culture
DSN adheres to Taiji culture of respecting social and loving people, fulfilling social responsibility, publicizing the environment and development, and realizing the common growth of society, enterprises and employees.
As Heaven's movement is ever vigorous, so must a gentleman ceaselessly strive along. DSN will work hard to press ahead and create new splendor.
FAQ
Q1: Can you introduce your main products?
A1: We mainly produce thermal conductive graphite sheet, thermal silicone pad and graphite products.
Q2: What is your MOQ?
A2: No MOQ for the standard product.
Q3: Can you offer free samples?
A3: Yes, usually we can offer the sample F.O.C., but do not pay the courier fee.
However, if the sample is expensive, like large size, Dasen has to charge basic cost of the sample.
Q4: Do you accept OEM or ODM orders?
A4: Yes, we do.
Q5: How about your delivery time?
A5: 3 to 10 days if we have raw materials in stock.
Q6: Do you test your goods before delivery?
A6: Yes, we do test before delivery.
Q7: How do you keep long-term business relationship?
A7: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.
